Bently Nevada 330173-10-18-10-02-00 Spare 3300 XL

Bently Nevada 330173-10-18-10-02-00 Spare 3300 XL: Precision Spare for Vibration Monitoring Downtime Control

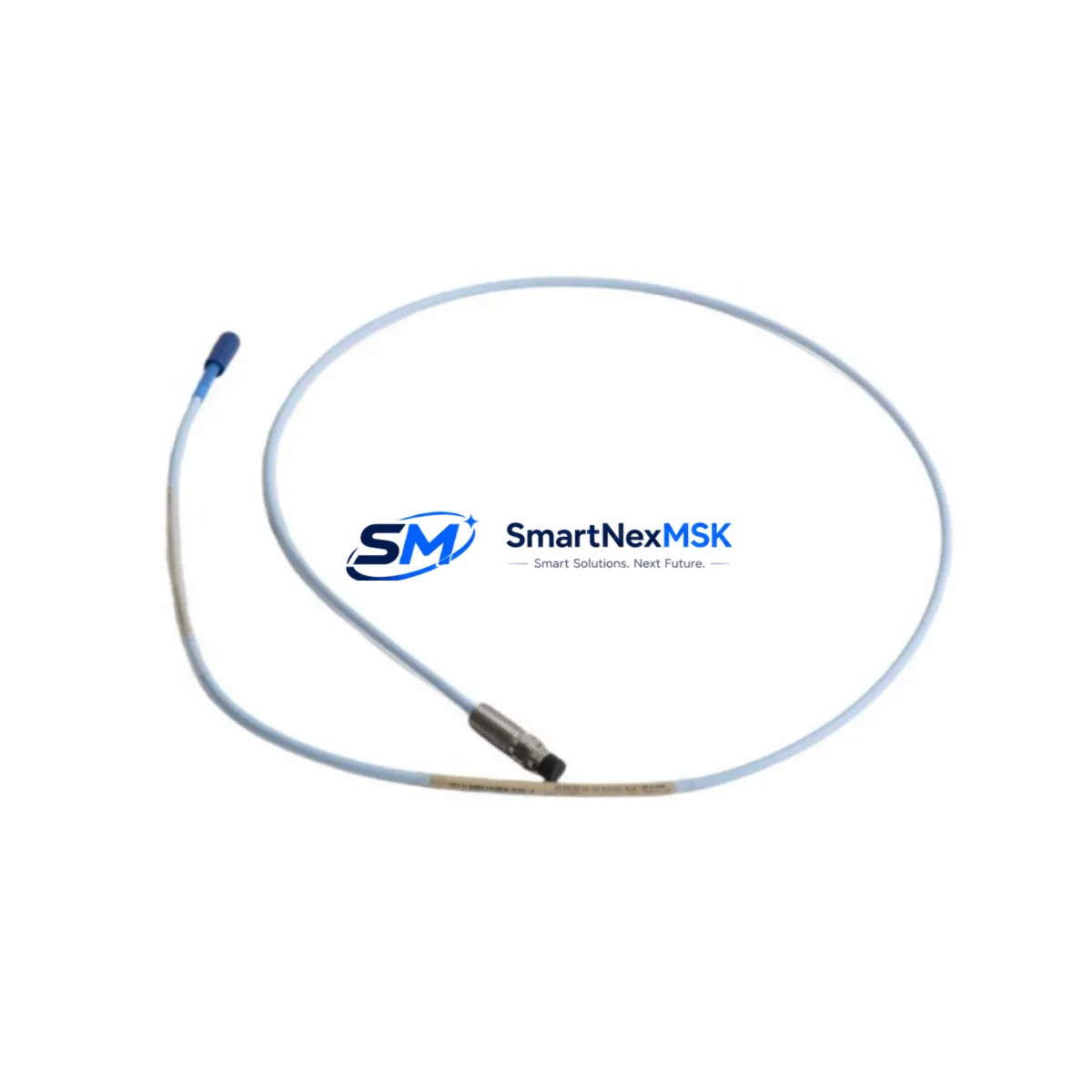

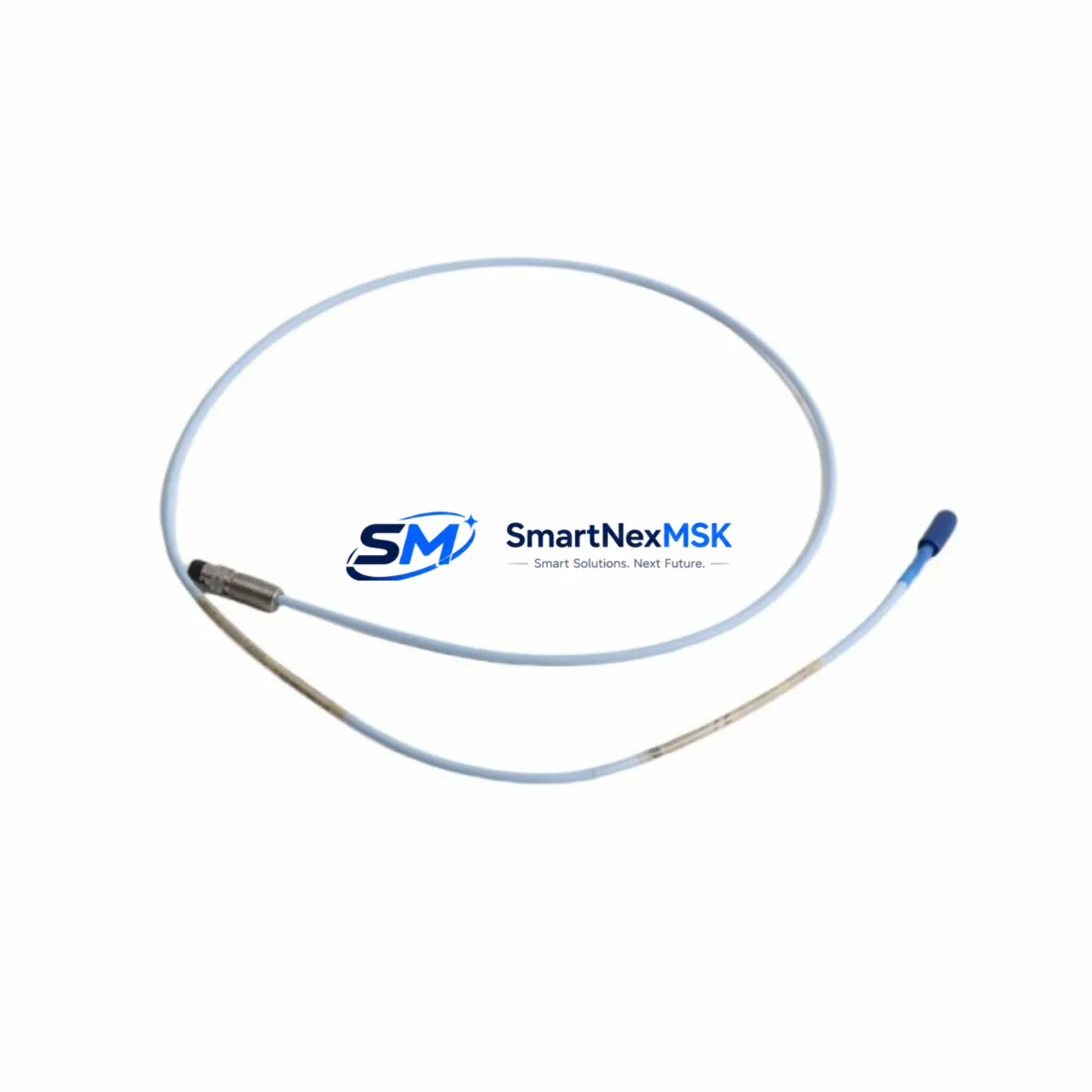

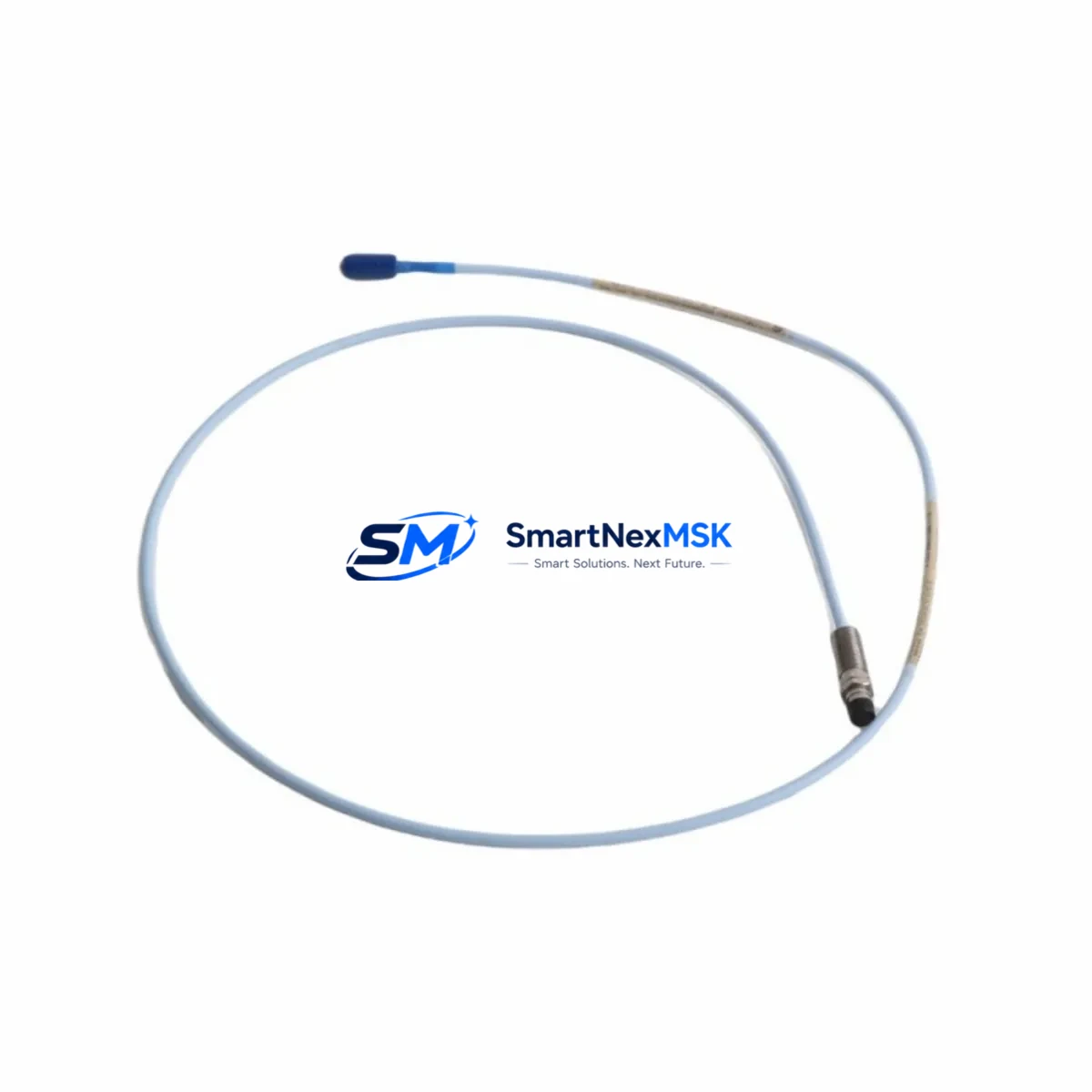

The Bently Nevada 330173-10-18-10-02-00 is an 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring platform. As a maintenance-ready original spare, this unit is stocked to support rapid field replacement in rotating machinery protection systems — turbines, compressors, pumps, and gearboxes — where unplanned downtime carries significant operational and financial risk.

For maintenance engineers managing predictive maintenance (PdM) programs or responding to vibration alarm events, having a verified, tested spare of the 330173-10-18-10-02-00 on the shelf is a fundamental risk-reduction strategy. This transducer is a direct replacement for worn, damaged, or end-of-life units in existing 3300 XL installations, preserving system calibration and measurement integrity without requiring reconfiguration of the monitoring rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330173-10-18-10-02-00 proximity transducer is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. A thorough inspection of the full measurement loop is essential to restore reliable vibration monitoring and prevent repeat failures.

Begin with the 3300 XL Proximitor® sensor (typically a 330180 or 330181 series unit) mounted in the field junction box — check for moisture ingress, connector corrosion, and output voltage stability. The extension cable (such as the 330130 series) running between the transducer and Proximitor should be inspected for jacket damage, pinch points, and connector integrity, as cable faults are a leading cause of false vibration readings. At the monitor rack, verify the 3300/16 or 3300/20 monitor card gap voltage setpoints and alarm thresholds are correctly configured for the replacement transducer’s sensitivity.

In the control cabinet, inspect the DC power supply module providing -24 VDC to the Proximitor system — voltage ripple or supply degradation can introduce noise into the measurement chain. Check terminal blocks and field wiring for loose connections, particularly at the Proximitor junction box and the monitor rack I/O terminals. If the machine is part of a turbine protection system, also verify the status of adjacent velocity transducers or accelerometers on the same bearing housing, as co-located sensors often experience similar wear patterns.

For plants running integrated machinery protection, confirm that the 3500 Series rack (if used in parallel or as an upgrade path) or any System 1 condition monitoring software connection is receiving clean data after transducer replacement. Where signal isolation is required between the monitoring system and the DCS or PLC, inspect signal isolators or barriers in the loop. Finally, review the keyphasor transducer (330980 or equivalent) on the same shaft — a degraded keyphasor reference will corrupt phase and speed measurements across the entire monitoring system.

Stocking the 330173-10-18-10-02-00 alongside its associated Proximitor, extension cable, and a spare monitor card represents best practice for any facility operating critical rotating machinery under continuous protection requirements.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the existing transducer, record the current gap voltage (typically -10 to -18 VDC for 8mm probes) and note the physical gap measurement. This baseline is required to set the replacement transducer to the correct operating point.

Step 2 — Physical Removal: De-energize the Proximitor driver, disconnect the extension cable at the field connector, and unthread the transducer from its mounting bracket using the M10 x 1 thread. Inspect the target area (shaft or thrust collar) for surface damage or runout that may have contributed to transducer failure.

Step 3 — Installation of 330173-10-18-10-02-00: Thread the replacement transducer into the bracket, set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8mm probes), and lock with the jam nut. Reconnect the extension cable, ensuring the connector is fully seated and the cable is routed away from heat sources and mechanical contact points.

Step 4 — Commissioning and Verification: Re-energize the Proximitor and measure the output gap voltage. Confirm the reading falls within the linear range specified for the 3300 XL system. Check the monitor card for alarm-free status and verify that the System 1 or DCS trend display shows a stable, noise-free signal before returning the machine to service.

This workflow minimizes downtime, ensures measurement accuracy, and maintains full compatibility with the existing 3300 XL monitoring architecture — avoiding the cost and complexity of system reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330173-10-18-10-02-00 a direct drop-in replacement for older 3300 XL transducers?
Yes. The 330173-10-18-10-02-00 is designed as a direct replacement within the 3300 XL Proximitor system. It maintains the same 200 mV/mil sensitivity, M10 x 1 thread, and -24 VDC supply compatibility, requiring no recalibration of monitor cards or alarm setpoints when installed at the correct gap.

Q2: How do you verify compatibility before shipment?
Each unit undergoes functional output testing and continuity verification prior to dispatch. The gap voltage output is confirmed within the 3300 XL linear range, and the cable and connector assembly is inspected for integrity. A 12-month warranty covers all units against manufacturing defects and performance deviations.

Q3: What is the recommended spare parts inventory strategy for this transducer?
For facilities with multiple 3300 XL monitoring points, maintaining a minimum of two 330173-10-18-10-02-00 units in the spare parts store is recommended. Pair each transducer spare with a matching extension cable (330130 series) and a Proximitor unit (330180/330181) to enable complete loop replacement during emergency shutdowns without waiting for procurement lead times.

Q4: Can this transducer be used with Bently Nevada 3500 Series monitors?
The 330173-10-18-10-02-00 is optimized for the 3300 XL Proximitor system. While the 3500 Series uses compatible eddy-current technology, transducer selection for 3500 racks should be confirmed against the specific monitor card’s input specifications and the system’s API 670 compliance requirements. Contact our technical team for cross-compatibility confirmation before installation.
