Bently Nevada 330180-50-CN Spare for 3300 XL Automation

Bently Nevada 330180-50-CN Spare for 3300 XL Automation: Precision Replacement for Continuous Machinery Protection

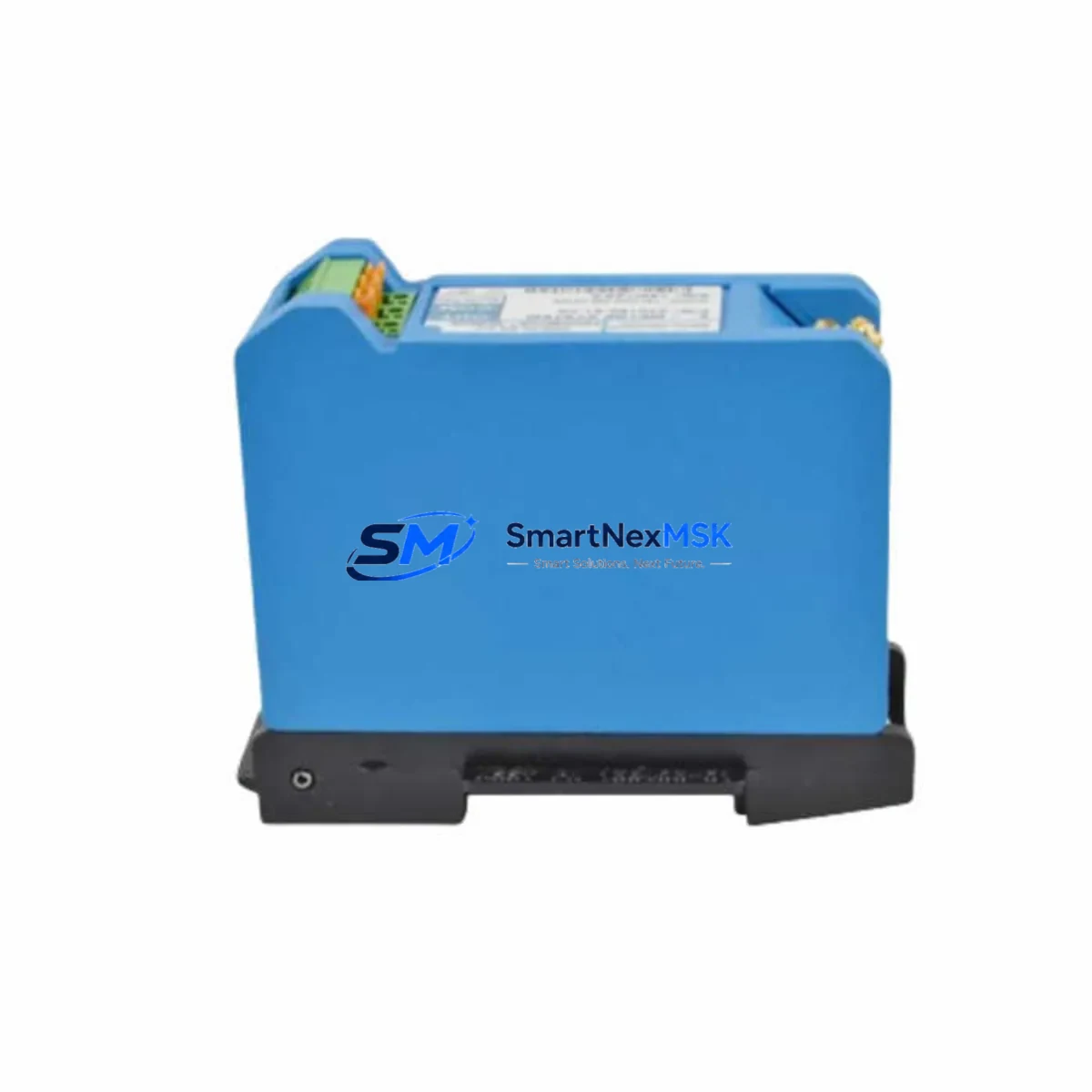

The Bently Nevada 330180-50-CN is an original eddy current proximity sensor engineered for the 3300 XL Series machinery protection and condition monitoring system. Designed for continuous radial vibration measurement, axial position monitoring, and speed detection on rotating machinery, this sensor is a critical spare part for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments. Sourced directly from verified supply channels, every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.

For maintenance engineers managing aging 3300 XL installations, the 330180-50-CN represents a direct, plug-compatible replacement that eliminates the need for system reconfiguration or recalibration of the monitoring rack. Its 5-metre integral cable and standard TNC connector interface directly with the 3300 XL proximitor/driver modules, preserving existing wiring infrastructure and minimising downtime during emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-50-CN in the field, a disciplined maintenance engineer will treat the sensor swap as an opportunity to audit the entire vibration monitoring loop — not just the sensor itself. The 3300 XL system architecture means that a degraded sensor can mask faults in adjacent components, so a structured inspection of the full signal chain is essential before returning the machine to service.

Begin by inspecting the 3300 XL Proximitor/Driver module (typically the 330180 series driver paired with this sensor). A worn or moisture-ingressed driver will produce erratic gap voltage readings even with a new sensor installed. Simultaneously, verify the 3300 XL monitor module — whether a 3300/16 or 3300/20 — for alarm setpoint integrity and channel health. If the monitor has been in service for more than five years without calibration, schedule a bench verification alongside the sensor replacement.

Check the extension cable (typically a 330130 series armoured extension) for continuity, insulation resistance, and connector condition. Damaged extension cables are a leading cause of premature sensor failure and are frequently overlooked during routine inspections. Inspect the TNC connectors at both the sensor and driver ends for corrosion, bent pins, or cracked insulation — these are common failure points in high-vibration environments.

At the control cabinet level, inspect the 24 VDC power supply feeding the proximitor rack. Voltage ripple or transient spikes can corrupt proximity sensor output and trigger nuisance trips. A dedicated DC/DC isolated power module for the monitoring rack is recommended in environments with variable load or frequent motor starts. Review the terminal blocks and field wiring for loose connections, especially on the signal and shield conductors — high-impedance signal paths are sensitive to even minor contact resistance increases.

For systems integrated with a DCS or safety PLC, confirm that the 4–20 mA or voltage output from the 3300 XL monitor is correctly scaled at the analogue input card. A sensor replacement is an ideal time to verify the analogue input module calibration and confirm that the engineering unit conversion in the DCS matches the sensor’s sensitivity factor. If the plant uses a Bently Nevada System 1 condition monitoring platform, update the sensor configuration record to reflect the replacement date and verify that trend baselines are reset appropriately.

Finally, review the spare parts inventory for the full vibration monitoring loop: maintain at least one spare 330180-50-CN sensor, one 330130 extension cable, and one 3300 XL driver module per critical machine train. For plants with multiple identical machine trains, a pooled spare strategy covering sensors, drivers, and monitor cards reduces both inventory cost and emergency procurement lead time.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the machine from the monitoring system per site safety procedures. Do not remove the sensor under live vibration conditions.

Step 2 — Gap voltage baseline: Before removal, record the existing gap voltage from the proximitor output. This establishes the reference for the new sensor installation and confirms whether the old sensor had drifted from its calibrated position.

Step 3 — Sensor removal: Disconnect the TNC connector at the driver. Unscrew the sensor from the bracket using the appropriate spanner. Note the thread engagement depth for reinstallation reference.

Step 4 — New sensor installation: Install the 330180-50-CN to the same thread depth. Reconnect the TNC connector, ensuring it is fully seated and finger-tight plus a quarter turn. Do not over-torque.

Step 5 — Gap setting and verification: With the machine stationary, adjust the sensor gap to achieve the target gap voltage specified in the machine’s vibration monitoring datasheet (typically –10 VDC ±0.5 V for a 1.0 mm gap). Use a calibrated digital voltmeter at the proximitor output.

Step 6 — System check: Confirm alarm and trip setpoints are active in the 3300 XL monitor. Verify that the DCS or safety system is receiving a valid signal. Clear any latched alarms triggered during the replacement procedure.

Step 7 — Return to service: Document the replacement in the maintenance management system, including the new sensor serial number, gap voltage, and date. Update the spare parts inventory record.

This workflow is applicable to both planned maintenance shutdowns and emergency unplanned replacements. The 330180-50-CN’s direct compatibility with the 3300 XL system means no firmware updates, no rack reconfiguration, and no recalibration of the monitor module — significantly reducing mean time to repair (MTTR) compared to cross-brand substitutions.

Spare Parts Support FAQ

Q1: Is the 330180-50-CN a direct replacement for older 330180 series sensors?
Yes. The 330180-50-CN is fully compatible with the Bently Nevada 3300 XL proximitor/driver architecture and is a direct mechanical and electrical replacement for earlier 330180 variants with the same cable length designation. No bracket modification or driver reconfiguration is required.

Q2: How does SMARTNEXMSK verify sensor condition before shipment?
Every 330180-50-CN unit undergoes a pre-shipment functional check including gap voltage output verification, cable continuity test, and connector inspection. Units that do not meet OEM specification are quarantined. A test report is available upon request for critical applications.

Q3: What is the recommended spare parts holding strategy for 3300 XL vibration monitoring systems?
For critical rotating machinery, we recommend holding a minimum of one sensor per monitored shaft, one extension cable per machine train, and one spare driver module per rack. For plants with five or more identical machine trains, a pooled spare of two sensors and one driver per machine type is a cost-effective strategy that balances inventory investment against unplanned downtime risk.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature output failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, over-torquing, chemical exposure beyond the sensor’s rated environment, or mechanical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.
