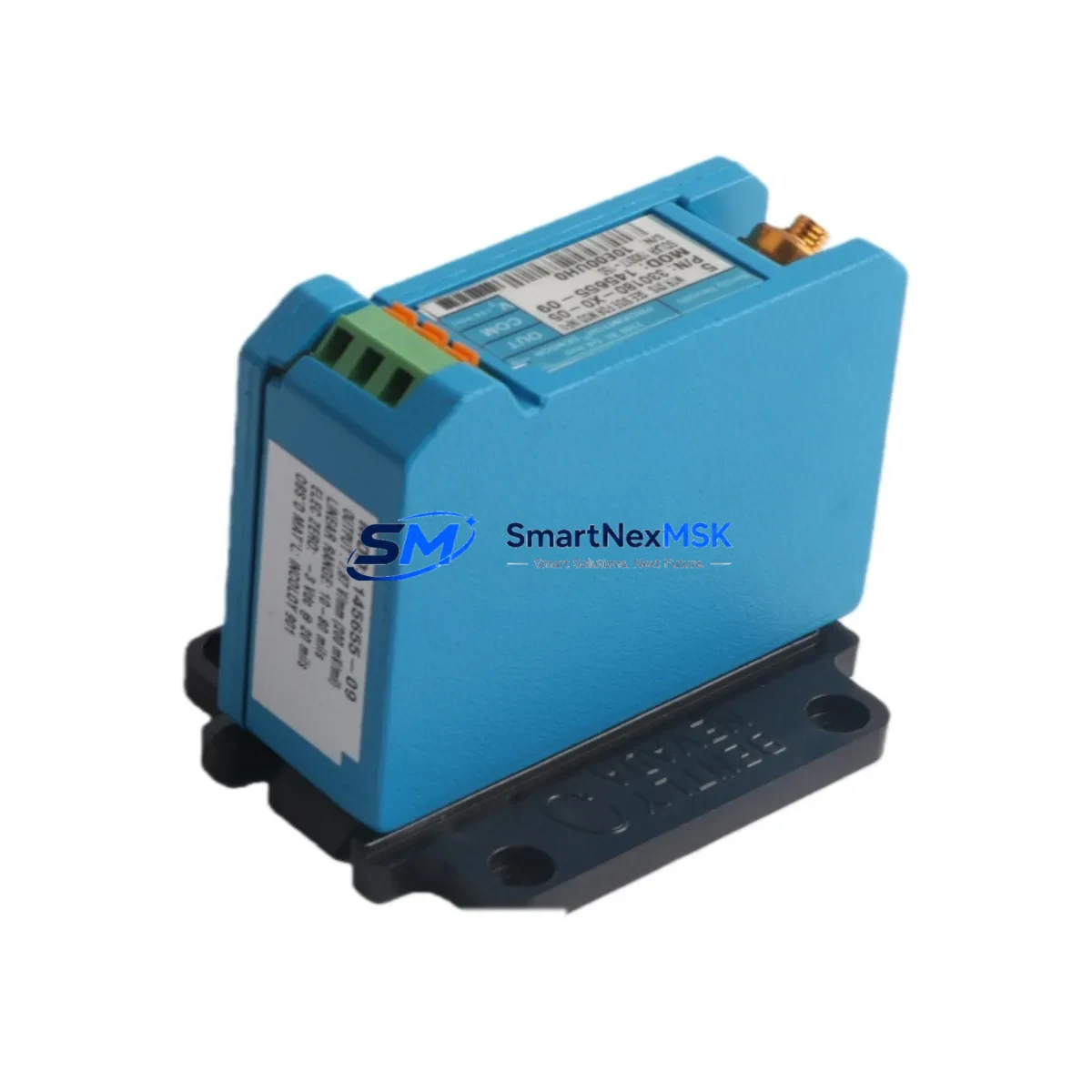

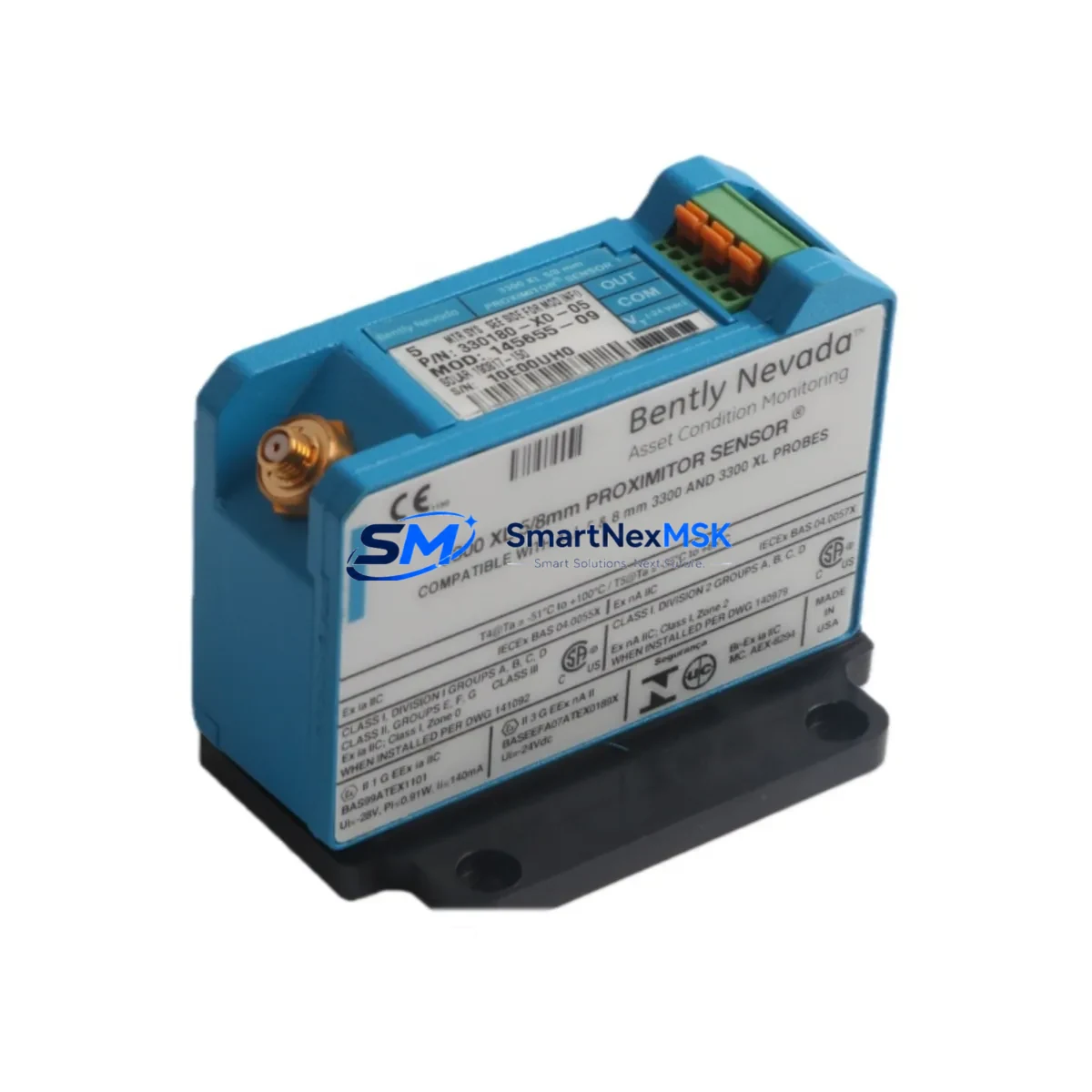

Bently Nevada 330180-X0-05 Retrofit-Ready Proximitor for 3300 XL Control Systems
The Bently Nevada 330180-X0-05 MOD:145004-63 is a precision eddy-current Proximitor sensor engineered for the 3300 XL Series vibration monitoring platform. As legacy 3300 XL installations age and OEM support windows close, this unit serves as the primary retrofit solution for facilities seeking to extend the operational life of their existing monitoring infrastructure without a full system overhaul. Whether you are replacing a failed unit on a critical rotating machine, upgrading a control cabinet, or migrating from an earlier 3300 Series architecture, the 330180-X0-05 delivers the signal conditioning performance and mechanical compatibility required for a smooth, low-risk transition.
This Proximitor is designed to work in conjunction with the Bently Nevada 3300 XL 8mm Proximity Transducer System, accepting input from standard 330101 or 330103 series probe and extension cable assemblies. The output signal — a DC voltage proportional to the gap between the probe tip and the observed shaft surface — interfaces directly with the 3500/40M Proximitor I/O Module and the 3500 Rack backplane without requiring signal recalibration or firmware changes in most retrofit scenarios. Engineers replacing a failed 330180 variant should verify the MOD revision level against the installed rack firmware to confirm full compatibility before energizing the replacement unit.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330180-X0-05 MOD:145004-63 |
| Series Compatibility | Bently Nevada 3300 XL Series; backward-compatible with select 3300 Series installations |
| Probe Interface | 330101 / 330103 8mm Proximity Probe + Extension Cable |
| Output Signal | –24 VDC nominal; linear DC voltage proportional to gap |
| Power Supply Requirement | –24 VDC (±1 VDC); verify rack power module capacity before installation |
| Connector / Terminal | Standard 3300 XL terminal block; no adapter required for direct replacement |
| Backplane Interface | Compatible with 3500 Rack backplane and 3500/40M I/O module |
| Communication Compatibility | Analog signal; integrates with Modbus RTU and 3500 System Monitor via existing rack architecture |
| Replacement Recommendation | Direct drop-in for 330180-X0-05 variants; verify MOD level for 330180-X0-01 / -03 cross-reference |
| Commissioning Note | Perform gap voltage verification and OK/Not OK relay check after installation |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the replacement unit arrives on site. Facilities running the Bently Nevada 3300 XL platform typically have the Proximitor mounted in a dedicated 3500 Rack alongside a 3500/20 Rack Interface Module, a 3500/15 Power Supply Module, and one or more 3500/40M Proximitor I/O Modules. Before removing the failed 330180-X0-05, the maintenance team should document the existing terminal wiring using the as-built drawings, photograph the terminal block connections, and record the current gap voltage readings from the 3500 System Monitor display or the connected HMI workstation running Bently Nevada System 1 software.
Power capacity is a critical pre-check. The 3500/15 Power Supply must have sufficient headroom to support the replacement Proximitor at –24 VDC. If the rack is near capacity — particularly in dense configurations with multiple 3500/40M cards and active 3500/42M Velocity I/O Modules — a load calculation should be completed before energizing the new unit. In older installations where the power supply itself is approaching end-of-life, it is common practice to replace the 3500/15 concurrently to avoid a secondary failure shortly after the Proximitor swap.
For facilities migrating from the earlier Bently Nevada 3300 Series (non-XL) to the 3300 XL architecture, the retrofit scope expands to include probe and extension cable replacement. The 330101 and 330103 probe assemblies are the standard pairing for the 330180-X0-05, and the extension cable length must be matched to the Proximitor’s calibrated range. Mixing probe, cable, and Proximitor from different calibration sets will produce gap voltage errors that can trigger spurious alarms or mask genuine shaft displacement events. Always use a matched set confirmed by the calibration documentation shipped with the replacement unit.
Communication continuity is equally important. Most 3300 XL installations feed vibration data to a plant DCS or SCADA system via Modbus RTU over RS-485, or through a dedicated 3500 System Monitor Ethernet gateway. After replacing the Proximitor, verify that the channel address assignments in the 3500 Rack Configuration Software remain unchanged and that the Modbus register map presented to the upstream DCS I/O card or PLC communication module reflects the correct channel-to-machine mapping. If the plant uses a Bently Nevada TDXnet or similar data acquisition interface, confirm that the channel configuration file does not require re-import after the hardware swap.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing a Proximitor on a running production line. Where process conditions permit, the preferred approach is a hot-swap sequence: place the affected monitoring channel in bypass mode via the 3500 System Monitor, replace the 330180-X0-05, perform the gap voltage verification, confirm OK relay status, and then release the bypass — all within a single planned maintenance window. This sequence preserves the original program logic in the 3500 Rack and avoids any need to modify the upstream PLC ladder program or DCS function block diagram.
For facilities where the machine cannot be taken offline, a parallel monitoring approach using a portable ADRE 408 DSPi data acquisition system can provide continuous vibration data during the swap window, ensuring that the protection function is not interrupted. Once the replacement 330180-X0-05 is confirmed operational and the gap voltage is within the ±10% acceptance band of the original calibrated value, the portable system can be disconnected and the permanent monitoring channel restored to active protection status.
Original program logic — including alarm setpoints, danger thresholds, and time-delay relay configurations stored in the 3500 Rack — is preserved in non-volatile memory and is not affected by a Proximitor replacement. However, if the rack firmware is being updated concurrently as part of a broader system upgrade, a full configuration backup using the 3500 Rack Configuration Software should be completed and archived before any firmware changes are applied. This backup serves as the recovery baseline if the upgrade introduces unexpected behavior in the alarm or relay output logic.
Retrofit Support FAQ
Q1: Is the 330180-X0-05 MOD:145004-63 a direct replacement for earlier 330180 MOD revisions?
In most cases, yes. The 330180-X0-05 MOD:145004-63 is backward-compatible with earlier MOD revisions of the 330180-X0-05 when used with the same probe and extension cable assembly. For cross-referencing with 330180-X0-01 or 330180-X0-03 variants, verify the rack firmware version and the calibration documentation to confirm the output sensitivity (mV/mil) matches the original specification. Contact our technical team with your existing MOD number for a confirmed compatibility assessment before ordering.
Q2: What wiring checks are required before installing the replacement unit?
Before installation, inspect the terminal block for corrosion, loose conductors, and correct wire gauge. Verify that the probe cable shield is grounded at one end only (typically at the Proximitor terminal) to prevent ground loop interference. Confirm that the –24 VDC supply line voltage is within specification at the terminal block under load. After installation, measure the gap voltage with the machine at rest and compare it to the original commissioning record. A reading within ±10% of the original value confirms correct installation.
Q3: How is the replacement unit tested before shipment?
Every 330180-X0-05 MOD:145004-63 unit supplied by SMARTNEXMSK undergoes functional testing prior to shipment. Testing includes power-on verification, output voltage linearity check across the calibrated gap range, and OK/Not OK relay output confirmation. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Units showing damage consistent with incorrect installation voltage or reversed polarity are not covered under warranty.
Q4: What is the lead time and can you supply multiple units for a planned shutdown?
Stock availability for the 330180-X0-05 MOD:145004-63 is maintained to support both emergency replacement and planned shutdown procurement. Standard lead time for in-stock units is 3–7 business days for international shipments. For planned shutdowns requiring multiple units or a complete spare-parts kit — including matched probe assemblies, extension cables, and rack power supply modules — contact our sales team in advance to confirm inventory and arrange consolidated shipment. Volume pricing is available for orders of three or more units.
