Bently Nevada 330180-X0-05 Spare for 3300 XL Automation: Precision Proximity Sensing for Uninterrupted Industrial Operation

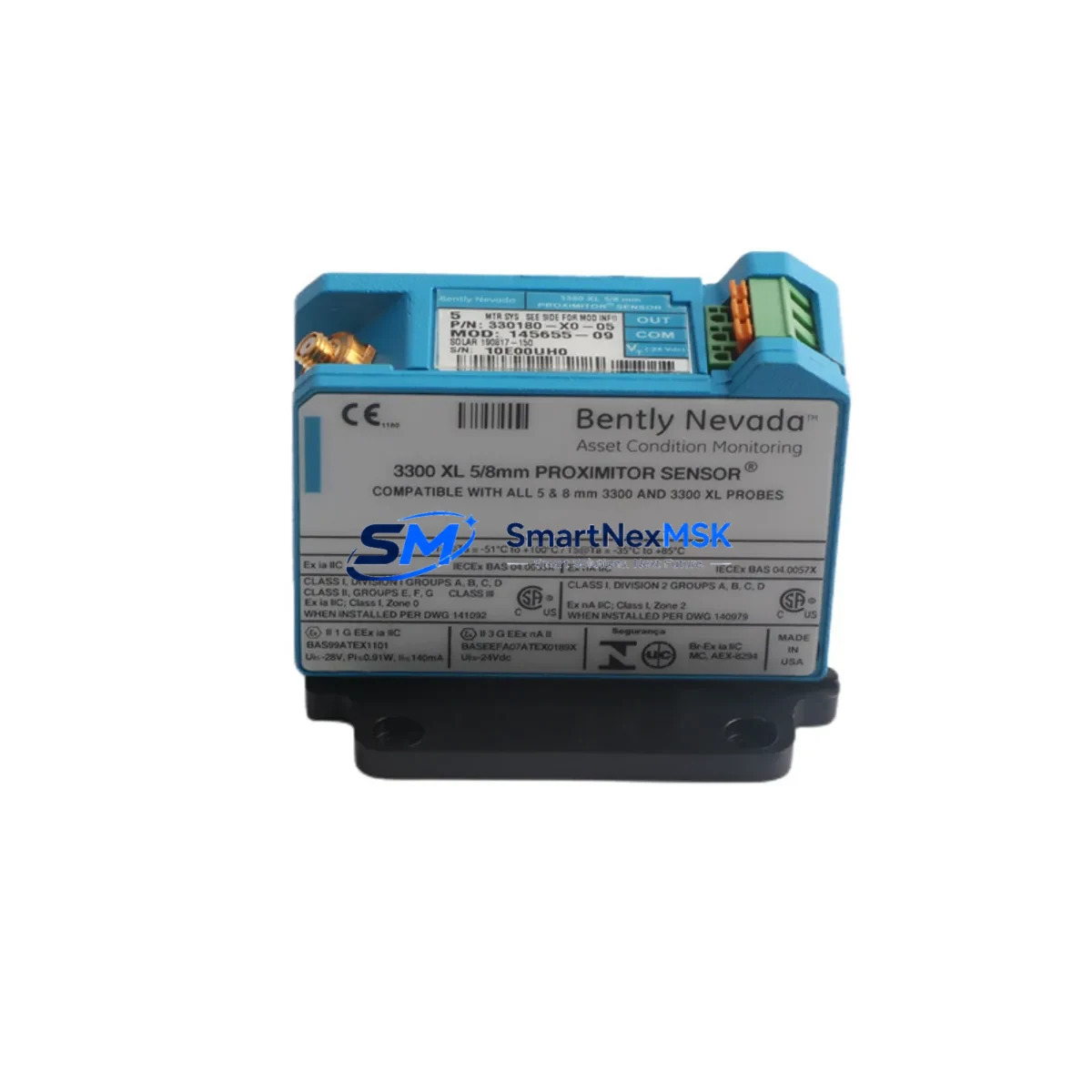

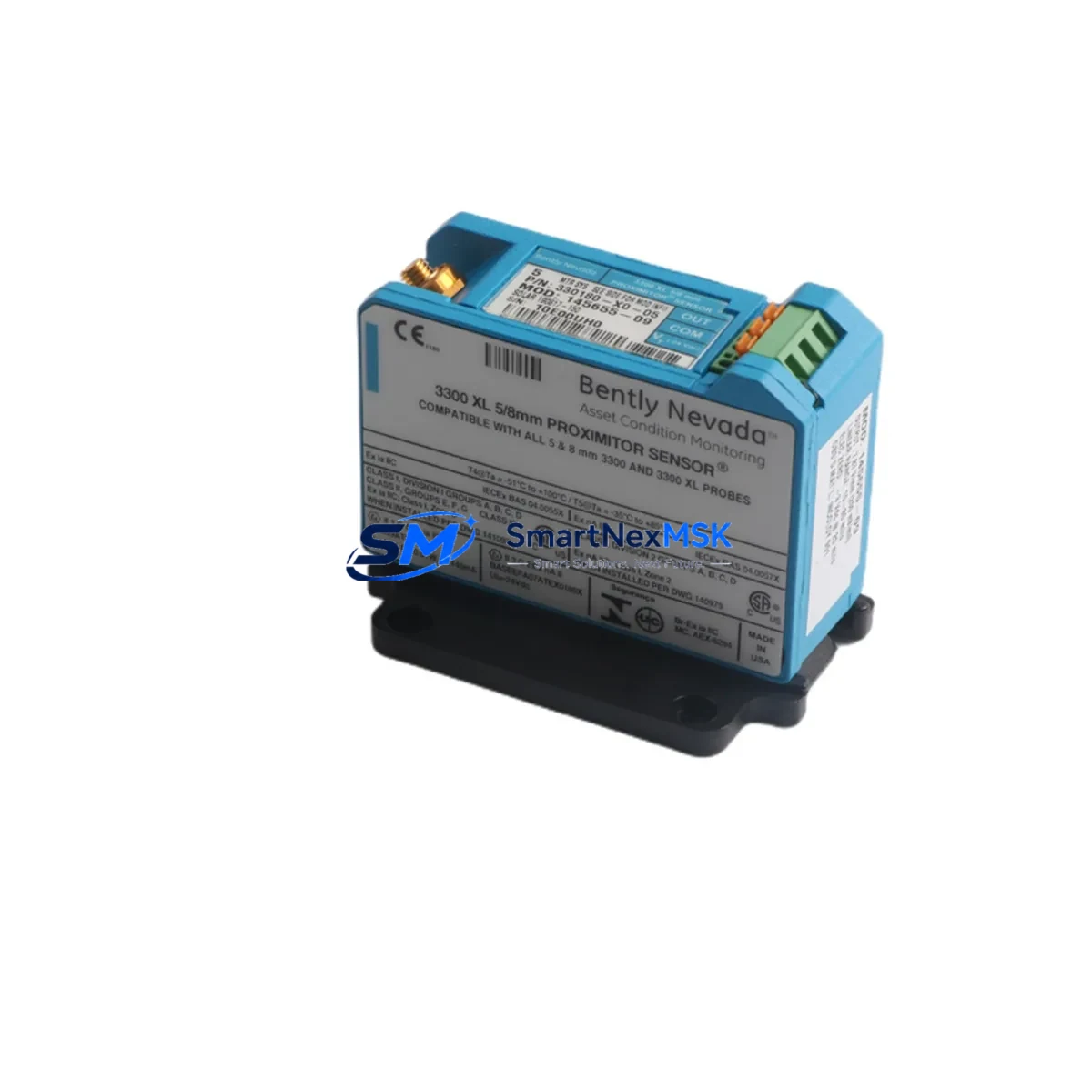

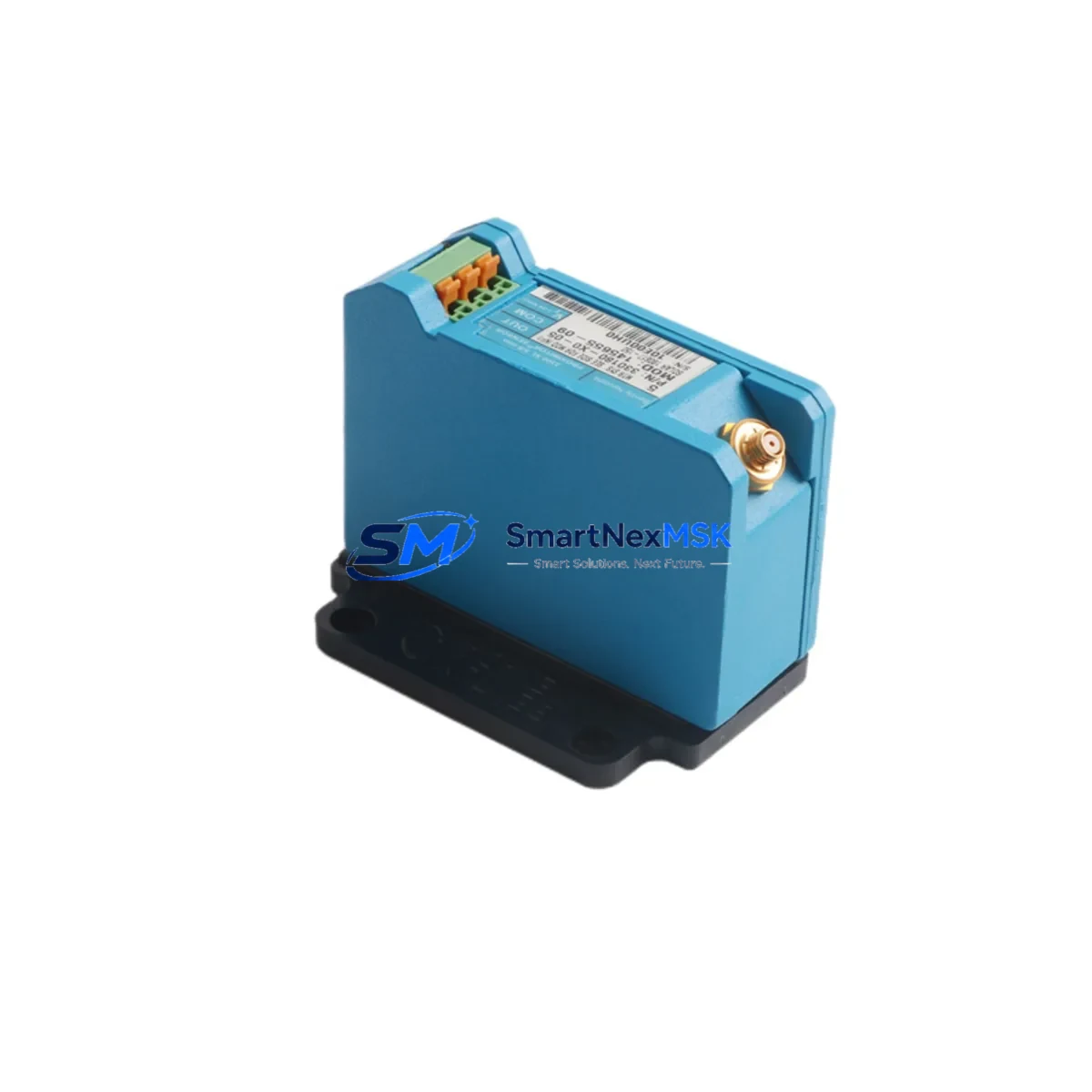

In rotating machinery protection and vibration monitoring systems, the Bently Nevada 330180-X0-05 Proximitor Sensor is a mission-critical component that maintenance engineers cannot afford to overlook. Designed for the Bently Nevada 3300 XL Series monitoring platform, this eddy-current proximity transducer provides continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion — delivering the real-time data that keeps turbines, compressors, pumps, and motors running safely within defined operational limits.

For maintenance planners and procurement engineers managing aging rotating equipment, the 330180-X0-05 represents a direct, drop-in replacement for worn or failed proximity sensors in existing 3300 XL installations. Its standardized 5-meter integral cable configuration and factory-calibrated output ensure that replacement does not require system reconfiguration, minimizing the engineering effort required during a planned or emergency shutdown window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X0-05 Proximitor Sensor is flagged for replacement during a scheduled outage or condition-based maintenance event, experienced maintenance engineers know that the sensor itself is rarely the only component requiring attention. A comprehensive inspection of the entire proximity measurement chain is essential to prevent repeat failures and ensure the system returns to full accuracy after the maintenance window closes.

Begin by inspecting the 330130-080-00-05 extension cable that connects the proximitor sensor to the signal conditioner. Extension cables in high-vibration or high-temperature zones are prone to insulation fatigue and connector corrosion — a degraded cable will introduce noise and offset errors even with a new sensor installed. Simultaneously, verify the condition of the 3300 XL Proximitor Driver module mounted in the monitor rack; driver modules that have operated for extended periods in high-ambient-temperature cabinets may exhibit gain drift that affects the calibrated output of the new sensor.

Within the 3300 XL monitor rack itself, check the 3300/16 Dual Voting Logic Module and associated 3300/20 Rack Interface Module for alarm relay contact wear and communication integrity. These modules work in concert with the proximitor signal to trigger protective shutdown actions — any degradation in their relay outputs or Modbus/RS-485 communication links can mask a genuine machinery fault or generate spurious trips. If the rack has been in service for more than five years, it is prudent to have a spare 3300/15 Power Supply Module on hand, as power supply capacitor aging is a common root cause of intermittent sensor signal dropouts that are often misdiagnosed as sensor failures.

For installations where the 330180-X0-05 monitors axial position on a steam turbine or gas compressor, also inspect the 3300/55 Dual Thrust Position Monitor cards and their associated terminal blocks and field wiring. Loose terminal connections in the junction box — particularly on the negative supply rail — can introduce common-mode noise that corrupts the proximity gap voltage reading. A Bently Nevada 3300 XL Termination Module with clean, torque-verified terminals is a prerequisite for accurate sensor performance after replacement.

Finally, if the plant uses a System 1 Evolution or System 1 Condition Monitoring Software platform for trend analysis, confirm that the new sensor’s scale factor and gap voltage are correctly entered in the channel configuration before returning the machine to service. Incorrect software configuration after a hardware replacement is one of the most common causes of false alarms in the first 24 hours of post-maintenance operation.

Site Replacement Workflow

Replacing the 330180-X0-05 in the field is a straightforward process when the correct procedure is followed. Begin with a controlled shutdown of the monitored machine and isolation of the 3300 XL monitor channel to bypass mode to prevent spurious trips during the swap. Disconnect the extension cable from the existing sensor, noting the installed gap distance (typically 1.0–1.5 mm for most shaft materials) using the original commissioning records or the current DC gap voltage reading from the monitor display.

Install the replacement 330180-X0-05 into the existing probe holder, threading it to the same gap distance. Reconnect the extension cable and verify the DC gap voltage at the monitor input — it should fall within the linear range specified for the target gap. If the gap voltage is outside the expected window, re-adjust the probe depth in 0.25 mm increments until the correct reading is achieved. This process eliminates the need for a full system recalibration and allows the machine to be returned to service within a single shift.

For older installations where the original probe holder threads are worn or the mounting boss has corroded, SMARTNEXMSK can advise on compatible probe adapters and mounting hardware to ensure a secure, vibration-resistant installation. All 330180-X0-05 units supplied by SMARTNEXMSK are tested for output linearity and gap sensitivity prior to shipment, with test records available on request.

Spare Parts Support FAQ

Q1: Does the 330180-X0-05 carry a warranty, and what does it cover?
Yes. Every 330180-X0-05 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, output calibration failures, and connector integrity. In the event of a warranty claim, we provide a replacement unit or full repair at no additional cost, with priority processing to minimize your downtime exposure.

Q2: How is the 330180-X0-05 tested before shipment?
Each unit undergoes a pre-shipment functional test that verifies DC gap voltage output across the full linear measurement range, cable continuity and insulation resistance, and connector seating integrity. Test data is retained and can be provided with the shipment documentation upon request. This ensures that the unit you receive is ready for immediate installation without requiring bench calibration.

Q3: Is the 330180-X0-05 compatible with all 3300 XL monitor configurations?
The 330180-X0-05 is designed for use within the Bently Nevada 3300 XL monitoring system and is compatible with standard 3300 XL proximitor drivers, extension cables, and monitor cards. It is suitable for radial vibration, axial position, and differential expansion measurement channels. For non-standard target materials (e.g., titanium or stainless steel shafts), the effective measurement range and scale factor may differ — contact our technical team to confirm suitability for your specific application before ordering.

Q4: Can SMARTNEXMSK support long-term supply of the 330180-X0-05 for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of the 330180-X0-05 and related 3300 XL Series components to support planned maintenance schedules, annual outage kits, and emergency replacement requirements. We can provide blanket order arrangements and reserved stock agreements for facilities with multiple monitored machines, ensuring that critical spare parts are available when needed without lead-time risk.
