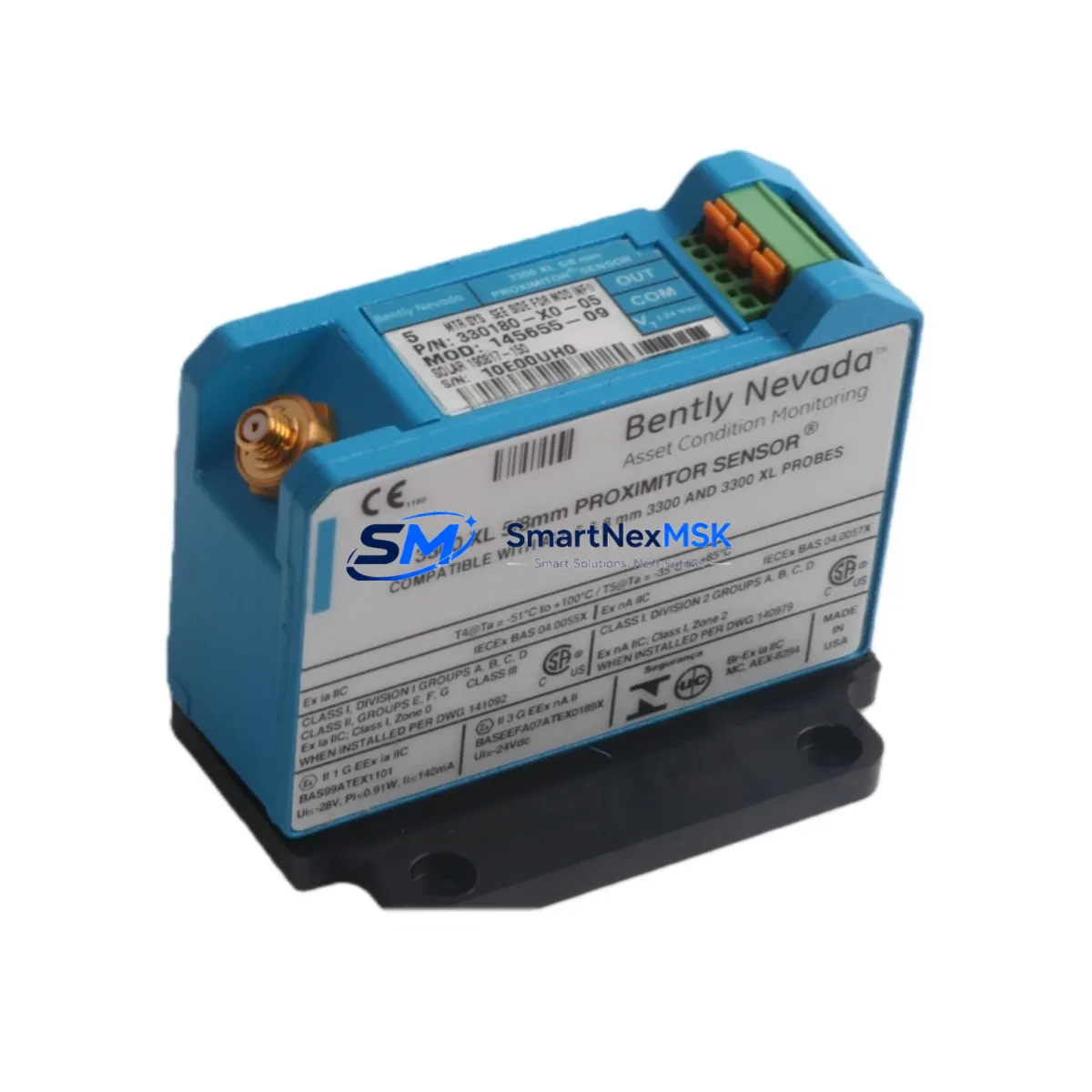

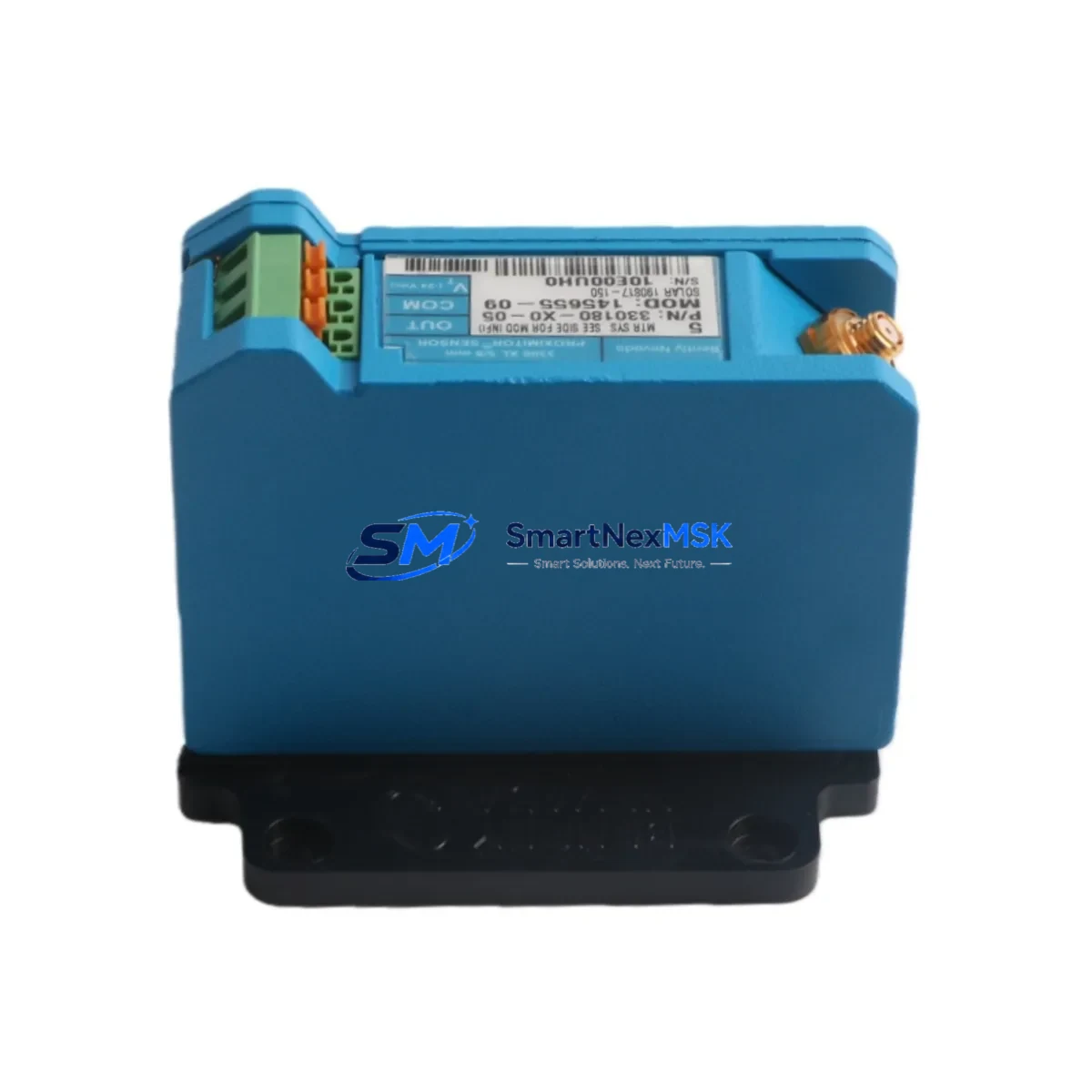

The Bently Nevada 330180-X0-CN (MOD:145004-83) is an original eddy-current Proximitor Sensor engineered for the 3300 XL Series continuous machinery protection system. Designed for critical rotating equipment monitoring — including turbines, compressors, pumps, and gearboxes — this sensor converts mechanical shaft displacement into a precise DC voltage signal, enabling real-time vibration and position measurement at the heart of your condition monitoring architecture. Sourced as a verified original spare, the 330180-X0-CN is stocked and tested to support rapid field replacement, minimizing unplanned downtime and protecting high-value rotating assets.

For maintenance engineers managing aging 3300 XL installations, the 330180-X0-CN represents a direct, drop-in replacement that preserves system calibration and signal chain integrity without requiring reconfiguration of the monitoring rack. For procurement engineers, it offers a reliable, long-term supply path with documented compatibility, 12-month warranty coverage, and pre-shipment functional verification — reducing the risk of sourcing counterfeit or non-original components from unverified channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X0-CN Proximitor Sensor during a planned outage or emergency shutdown, a disciplined maintenance engineer will treat the sensor swap as an opportunity to audit the entire signal chain and associated control cabinet components. The Proximitor is only one element in a tightly coupled measurement loop — its performance depends on the condition of every upstream and downstream component.

Begin with the 3300 XL eddy-current probe (8mm or 11mm, depending on installation) and its matched 3300 XL armored extension cable. These three components — probe, extension cable, and Proximitor — form a calibrated system; replacing the Proximitor while leaving a degraded probe or a cable with damaged shielding will introduce measurement error and may trigger nuisance trips. Inspect connector integrity, cable routing, and shield continuity before closing the cabinet.

Next, verify the –24 VDC power supply module feeding the Proximitor circuit. Voltage sag or ripple on the supply rail is a common root cause of intermittent Proximitor faults that are misdiagnosed as sensor failure. If the power supply is original to the installation and has not been replaced within the last five years, consider scheduling it for replacement during the same maintenance window. Similarly, inspect the 3300 XL I/O module or monitor card receiving the Proximitor output — connector oxidation and card-edge contamination can cause signal dropout that mimics a failed sensor.

For installations where the 3300 XL rack interfaces with a DCS or safety system, confirm that the signal isolator or barrier between the Proximitor output and the DCS analog input card is functioning within specification. Zener barriers and galvanic isolators age in service and can introduce offset errors that affect alarm setpoints. While the cabinet is open, inspect terminal blocks and field wiring terminations for corrosion, loose screws, and insulation degradation — particularly in high-vibration or high-humidity environments.

If the installation includes a Keyphasor module (such as the 3300 XL Keyphasor) for phase reference and speed measurement, verify its output signal simultaneously. Keyphasor faults can corrupt vector data across all channels in the rack. Finally, review the 3300 XL rack backplane and communication module — if the system communicates to a plant historian or DCS via Modbus or proprietary protocol, confirm that the communication link is stable after the sensor replacement and that the new Proximitor’s channel is correctly mapped in the monitoring software.

Maintaining a local spare inventory that includes the 330180-X0-CN alongside matched probes, extension cables, and a spare power supply module is the most effective strategy for reducing mean time to repair (MTTR) on critical rotating equipment. A well-stocked control room spare kit eliminates the lead time risk that turns a two-hour sensor swap into a multi-day production loss event.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the –24 VDC supply to the affected Proximitor channel. Do not remove the probe from the machine while the shaft is rotating.

Step 2 — Documentation: Record the existing gap voltage (typically –10.0 VDC ±0.5 VDC at the nominal air gap) from the monitoring system before disconnection. This value will be used to verify correct installation of the replacement unit.

Step 3 — Removal: Disconnect the extension cable from the Proximitor. Remove the Proximitor from its mounting bracket or housing. Inspect the connector on the extension cable for contamination or pin damage before connecting the replacement.

Step 4 — Installation: Mount the 330180-X0-CN replacement. Connect the extension cable. Restore –24 VDC power. Allow the system to stabilize for 60 seconds before reading the gap voltage output.

Step 5 — Verification: Confirm the gap voltage matches the pre-removal reading within ±0.2 VDC. If the reading is outside tolerance, re-check probe gap distance and cable connections before returning the channel to service. Update the monitoring system channel configuration if required by the site’s change management procedure.

Step 6 — Return to Service: Clear the channel alarm, confirm the monitoring system is logging data correctly, and document the replacement in the equipment maintenance record. The replaced 330180-X0-CN should be tagged, bagged, and returned for evaluation — do not discard potentially repairable units.

This workflow applies equally to planned turnaround replacements and emergency unplanned outages. Having the 330180-X0-CN pre-staged in the site spare parts store — tested, labeled, and ready to install — is the single most effective way to compress the replacement timeline and restore continuous operation.

Spare Parts Support FAQ

Q1: Is the 330180-X0-CN compatible with all 3300 XL monitor cards and racks?
The 330180-X0-CN is designed for use within the Bently Nevada 3300 XL system architecture. Compatibility depends on the specific monitor card and probe type installed at your site. We recommend confirming your probe model (8mm or 11mm) and monitor card part number before ordering. Our technical team can assist with compatibility verification based on your system configuration.

Q2: What pre-shipment testing is performed on the 330180-X0-CN?
Each unit undergoes functional verification prior to dispatch, including output signal check and connector inspection. Units are shipped with appropriate protective packaging to prevent transit damage. A test report is available upon request for critical applications.

Q3: What is the warranty coverage and what does it include?
All 330180-X0-CN units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed with priority to minimize equipment downtime.

Q4: Can you support long-term or blanket orders for ongoing spare parts programs?
Yes. We support scheduled delivery programs, blanket purchase orders, and consignment stocking arrangements for maintenance teams managing multiple 3300 XL installations. Long-term supply agreements help lock in pricing and ensure availability for systems where the original product line has been discontinued or has extended lead times from the OEM channel. Contact our team to discuss your annual consumption requirements.
