Bently Nevada 330180-X1-05 Safety Proximitor for Harsh Sites

Bently Nevada 330180-X1-05 Safety Proximitor for Harsh Industrial Sites

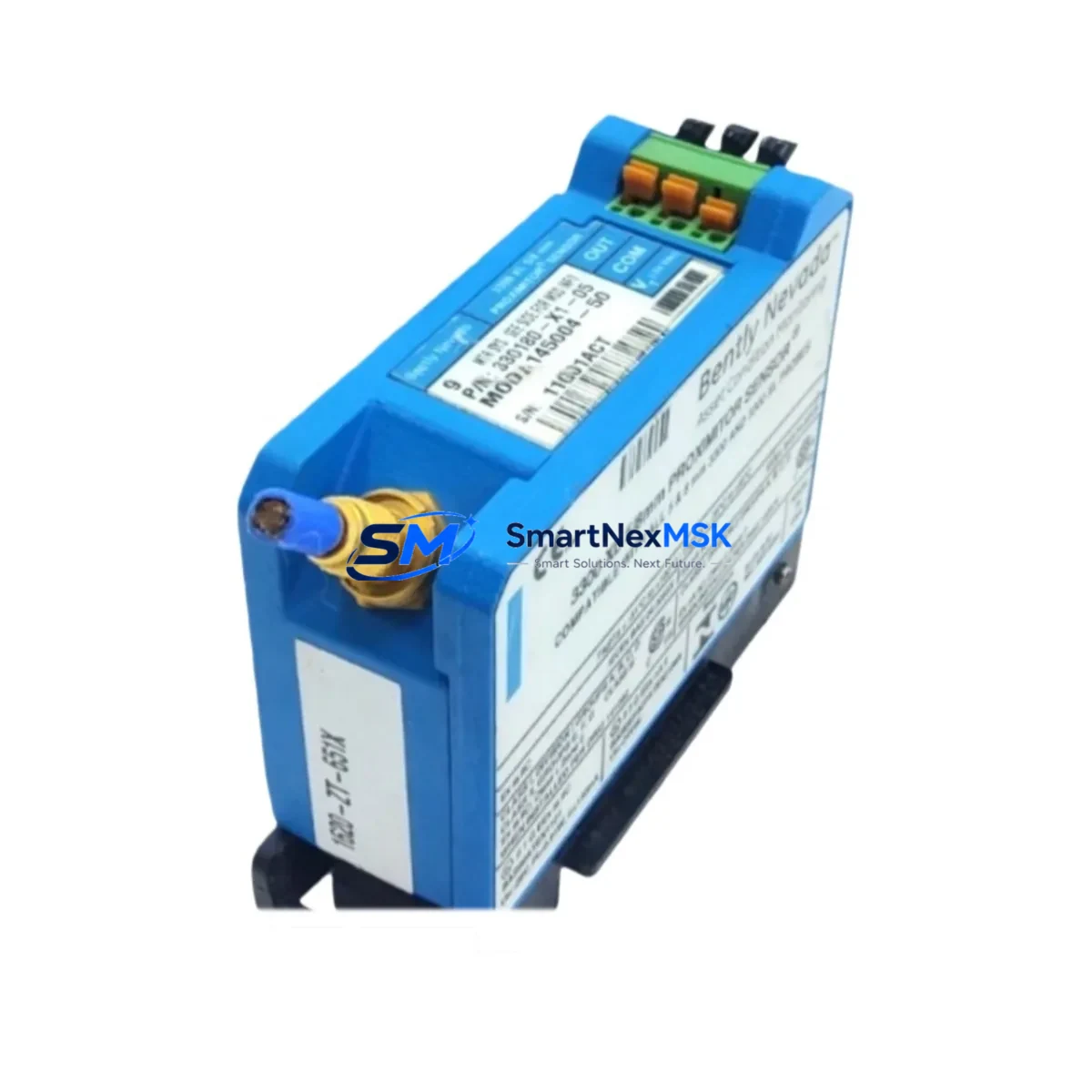

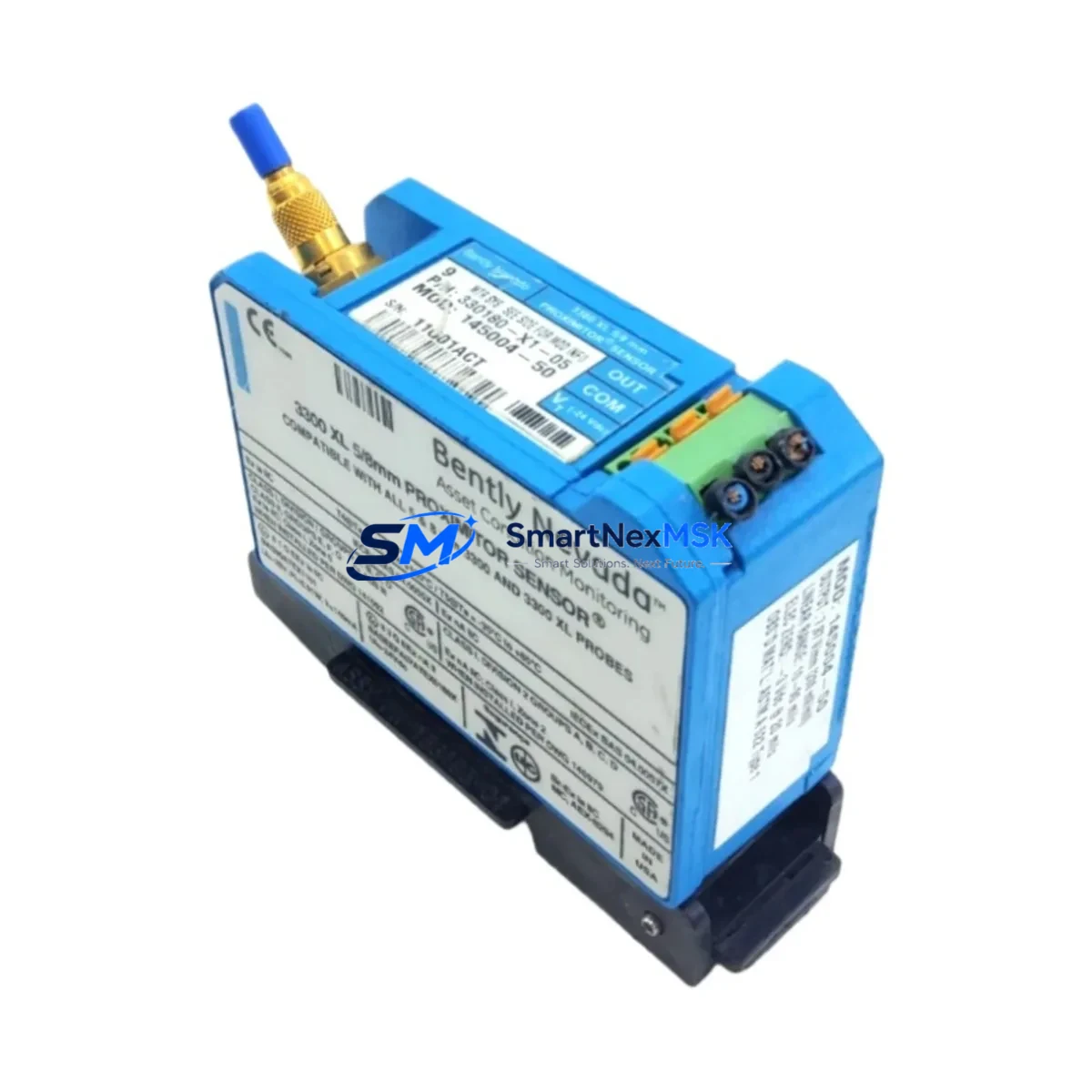

The Bently Nevada 330180-X1-05 MOD:145347-05 Proximitor Sensor is a field-proven, safety-grade eddy-current proximity transducer engineered for continuous, uninterrupted operation in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series vibration monitoring system, this Proximitor converts raw shaft displacement signals into precise, low-noise voltage outputs that feed directly into safety instrumented systems (SIS), distributed control systems (DCS), and critical machinery protection panels. Its ruggedized housing and wide operating temperature range make it the preferred choice for petrochemical reactors, power generation turbines, mining hoists, metallurgical rolling mills, water treatment pump stations, and port crane drives where control interruption is never acceptable.

In high-load, high-interference production environments, signal integrity is the foundation of machine safety. The 330180-X1-05 delivers exceptional electromagnetic interference (EMI) rejection, ensuring that proximity readings remain stable even when installed adjacent to high-voltage switchgear, variable frequency drives (VFDs), or large motor starters. Signal drift — a leading cause of spurious trips and missed fault detection — is suppressed through the sensor’s precision-wound coil assembly and temperature-compensated electronics. When paired with the Bently Nevada 3300 XL 8mm Extension Cable and a matched 3300 XL Proximitor System Driver, the complete measurement chain maintains calibrated linearity across the full operating range, eliminating the gap-voltage errors that can trigger false shutdowns or, worse, mask genuine rotor instability.

Power supply stability is equally critical in safety-critical control cabinets. The 330180-X1-05 operates on a standard −24 VDC bias supply, compatible with the Bently Nevada 3300/20 Power Supply and most third-party DIN-rail DC power modules. Surge and transient protection built into the Proximitor’s input stage guards against voltage spikes from nearby contactors, solenoid valves, and inductive loads — common sources of module mis-operation in dense control enclosures. For installations requiring IEC 61508 SIL-rated loop integrity, the sensor integrates cleanly with Bently Nevada 3500 Series Rack I/O modules, enabling end-to-end functional safety validation without additional signal conditioning hardware.

Communication reliability between the field sensor and the control room is maintained through the sensor’s low-impedance output, which resists noise pickup on long cable runs — a frequent challenge in sprawling petrochemical complexes or underground mining galleries. When the 330180-X1-05 is installed as part of a complete machinery protection loop alongside the Bently Nevada 3300/55 Dual Velocity Monitor and 3300/46 Position Monitor, operators gain a redundant, cross-validated view of shaft behavior that supports both predictive maintenance decisions and emergency shutdown (ESD) logic. The Bently Nevada TK-3 Calibration Tool allows field technicians to verify gap voltage and sensitivity on-site without removing the sensor from service, reducing planned downtime and eliminating calibration-induced errors.

For facilities operating under continuous production mandates — refineries, power plants, desalination stations, and 24/7 manufacturing lines — the availability of a verified, in-stock replacement unit is itself a safety measure. Unplanned sensor failure without a qualified spare on hand can extend machinery downtime from hours to weeks when lead times for new OEM units are factored in. SMARTNEXMSK maintains ready inventory of the 330180-X1-05 and its companion components, including the Bently Nevada 330130-080-00-00 Proximity Probe and 330105-02-12-10-02-00 Extension Cable, enabling same-week dispatch to critical sites worldwide. Every unit shipped undergoes pre-delivery functional testing — gap voltage verification, sensitivity check, and insulation resistance measurement — before leaving our facility.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330180-X1-05 Proximitor typically integrates multiple layers of sensing, conditioning, and power protection. At the measurement layer, the Proximitor works in tandem with the Bently Nevada 330130-080-00-00 8mm Proximity Probe to form a calibrated eddy-current chain; probe tip gap is set to the midpoint of the linear range and locked with anti-vibration probe lock nuts to prevent mechanical drift during high-cycle operation. Signal cables are routed through dedicated shielded conduit, separated from power wiring by a minimum of 150 mm, to prevent capacitive coupling from Allen-Bradley PowerFlex 755 VFD output cables or similar high-dV/dt sources.

At the monitoring layer, the Proximitor output feeds into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, which applies configurable alert and danger setpoints for radial shaft vibration, axial position, and differential expansion. The rack communicates machinery health data to the plant DCS — typically a Honeywell Experion PKS C300 Controller or equivalent — via Modbus TCP or OPC-UA, enabling operators to trend vibration signatures and detect developing faults before they escalate to forced shutdowns. For ESD-critical loops, a hardwired relay output from the 3500 rack drives a Pilz PNOZ X safety relay or equivalent SIL 2-rated device, ensuring that the shutdown signal reaches the final element — turbine trip valve or motor contactor — within the required response time.

Power integrity for the entire protection cabinet is maintained by a dedicated Phoenix Contact QUINT 24VDC/10A power supply with built-in SFB (Selective Fuse Breaking) technology, which isolates faulted branch circuits without collapsing the bus voltage. A Belden 9533 shielded instrumentation cable or equivalent low-capacitance cable connects the Proximitor to the rack, preserving signal bandwidth and minimizing phase error at high shaft speeds. Periodic loop calibration using the Bently Nevada TK-3 Calibration Tool confirms end-to-end system accuracy and satisfies functional safety proof-test requirements under IEC 61511.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 330180-X1-05 is deployed on centrifugal compressors, steam turbines, and boiler feed pumps where API 670 machinery protection standards mandate continuous shaft vibration and position monitoring. A single undetected rotor rub or bearing failure in these machines can result in catastrophic equipment loss, process release, and personnel injury — making the Proximitor’s real-time, high-resolution output an essential input to the plant’s safety instrumented system.

In power generation facilities — gas turbines, steam turbines, and large hydro generators — the sensor monitors shaft eccentricity and differential expansion across load cycles, providing early warning of thermal bow, misalignment, or bearing wear. The wide operating temperature range of the 330180-X1-05 ensures stable performance even in the high-ambient-temperature environment of a turbine hall or generator pit.

In mining and mineral processing operations, the Proximitor is installed on SAG mill pinion bearings, conveyor drive gearboxes, and slurry pump shafts. The ruggedized housing withstands the high dust, moisture, and vibration levels inherent to underground and open-pit mining environments, while the EMI-resistant design maintains signal integrity despite the heavy electrical noise generated by large dragline motors and crusher drives.

In water and wastewater treatment plants, the sensor monitors high-speed centrifugal pumps and blower shafts in continuous-duty service. Early detection of shaft imbalance or bearing degradation prevents unplanned outages that could disrupt municipal water supply or effluent compliance. In metallurgical and steel plants, the 330180-X1-05 is used on rolling mill main drives and continuous caster pinch rolls, where precise axial position measurement is critical to product dimensional accuracy and roll gap control safety interlocks.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to meet its specified sensitivity, linearity, or output voltage parameters within the warranty period, SMARTNEXMSK will replace or repair the unit at no charge. Warranty claims are processed within 5 business days of unit receipt at our facility.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-X1-05 unit undergoes a multi-point functional test before dispatch: gap voltage verification at the nominal 1.0 mm gap point, sensitivity measurement (mV/mil), insulation resistance check between signal conductors and housing, and visual inspection of connector pins and housing integrity. A test report is available upon request for quality-critical applications.

Q3: Is the 330180-X1-05 compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330180-X1-05 is fully compatible with the Bently Nevada 3300 XL probe and extension cable system and integrates directly with 3500 Series rack monitors. It is also backward-compatible with legacy 3300 Series installations using the same 8mm probe format. Always verify the driver/Proximitor pairing (probe + extension + Proximitor) matches the calibrated system listed on the rack channel configuration sheet.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
SMARTNEXMSK maintains a dedicated inventory buffer of the 330180-X1-05 and related 3300 XL components to support customer spare parts programs and emergency replacement needs. We can provide scheduled delivery agreements for facilities requiring guaranteed stock availability. Contact our sales team to discuss consignment stock or annual supply contracts tailored to your plant’s maintenance cycle.
