Bently Nevada 330180-X1-CN Spare for 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

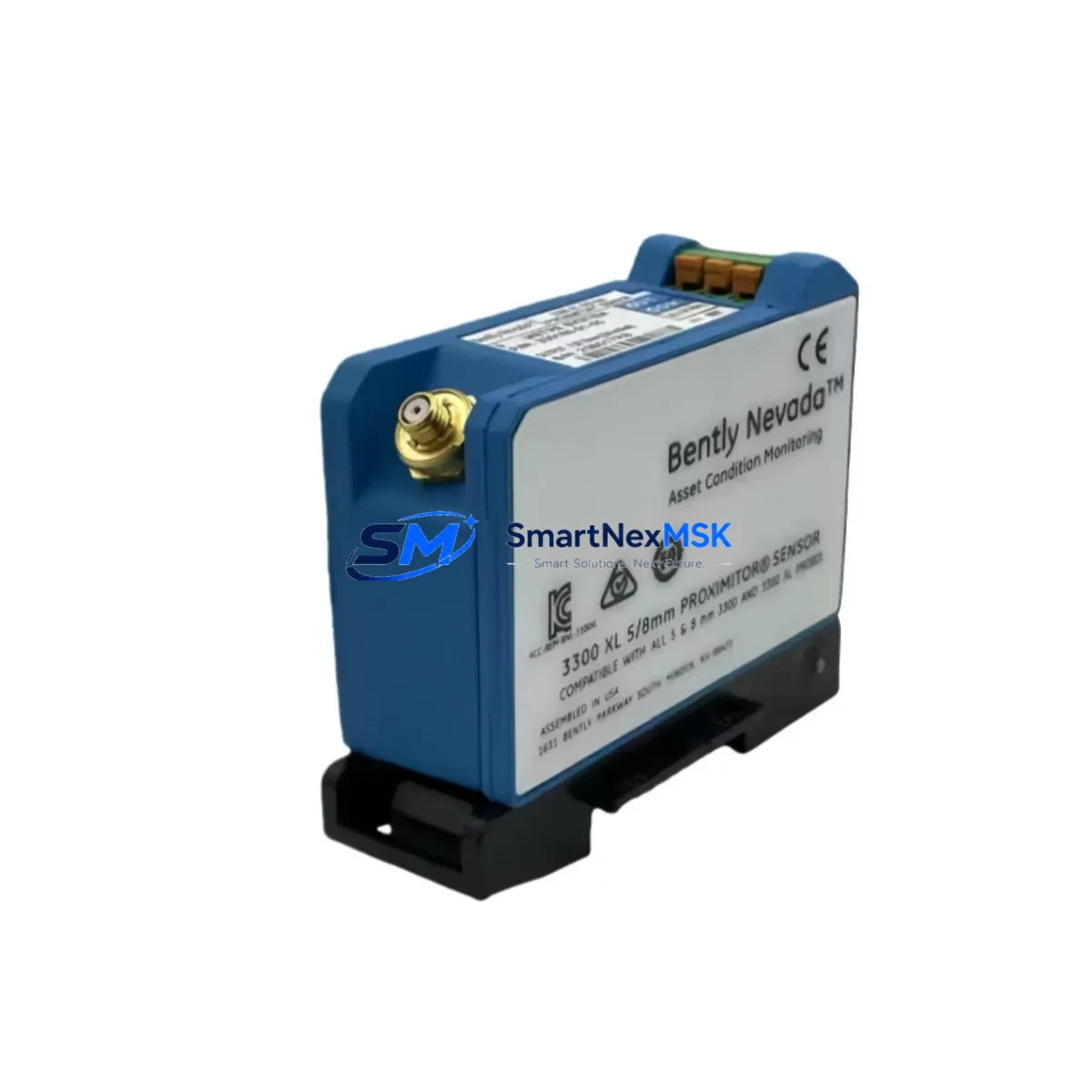

The Bently Nevada 330180-X1-CN (MOD: 1450004-82) is an original eddy-current proximitor sensor engineered for the 3300 XL Series continuous machinery monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this proximitor converts the raw output of a 3300 XL proximity probe into a conditioned DC voltage signal that feeds directly into the 3300 XL monitor rack. Maintaining a verified spare of the 330180-X1-CN in your critical spare inventory is a fundamental strategy for minimizing unplanned downtime and protecting high-value rotating assets.

For maintenance engineers managing aging turbomachinery protection systems, the 330180-X1-CN represents a single-point-of-failure component. Its failure — whether from moisture ingress, connector corrosion, cable damage, or power transient — can immediately disable a vibration monitoring channel, triggering a protective shutdown or, worse, leaving a machine running unprotected. Stocking this original spare ensures that a channel can be restored within minutes of fault isolation, without waiting for procurement lead times that can stretch days or weeks for legacy Bently Nevada components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X1-CN proximitor is flagged during a routine control cabinet inspection or a vibration channel alarm, experienced maintenance engineers know that replacing the proximitor alone is rarely sufficient for a complete corrective maintenance cycle. A thorough site assessment should include the following associated components and subsystems:

Begin with the 3300 XL proximity probe paired to this proximitor — probe tip wear, target surface condition, and gap setting directly affect the accuracy of the proximitor output. Inspect the 3300 XL extension cable for insulation damage, connector corrosion, or continuity faults; a degraded cable is a frequent root cause of proximitor signal drift. Verify the 3300 XL monitor module in the rack for channel configuration, alarm setpoints, and OK relay status — a faulty monitor card can mimic a proximitor failure.

Check the -24 VDC power supply module feeding the proximitor circuit; voltage sag or ripple will directly corrupt the output signal and may cause nuisance trips. Inspect terminal blocks and field wiring in the junction box for loose terminations, moisture ingress, or ground faults. If the system includes a 3300 XL I/O module or signal conditioner, verify its calibration and output integrity. For systems integrated with a DCS or safety PLC, confirm that the 4–20 mA or digital I/O interface card is receiving a clean signal from the monitor rack.

In facilities running legacy Bently Nevada 3300 Series racks alongside newer 3500 Series monitor modules, confirm backward compatibility before substitution. Where vibration data feeds into an HMI or SCADA historian, validate that trend data resumes correctly after the proximitor swap. For high-criticality machines, consider also inspecting the Keyphasor module and its associated probe, as phase reference integrity is essential for vector and orbit analysis. Finally, review the barrier or isolator modules in hazardous-area installations — a failed zener barrier or galvanic isolator can damage a new proximitor within hours of installation.

Proactive spare parts planning for the 330180-X1-CN should include at minimum one spare proximitor per critical machine train, with additional units held for plant-wide coverage of all 3300 XL-equipped assets. Integrating this part into your annual planned shutdown spare kit alongside probes, extension cables, and power supply modules eliminates the most common sources of extended downtime during turnaround maintenance.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the fault is in the proximitor by measuring the DC output voltage at the monitor input terminals. A reading outside the –2 VDC to –18 VDC OK range (gap-dependent) with a known-good probe and cable indicates a proximitor fault.

Step 2 — Safe Isolation: Follow site LOTO procedures. De-energize the –24 VDC supply to the proximitor circuit at the power distribution terminal. Do not disconnect the probe while the proximitor is energized — this can damage the monitor input.

Step 3 — Removal: Disconnect the extension cable connector from the proximitor body. Note the cable routing and any conduit sealing arrangements for reinstallation. Remove the proximitor from its mounting bracket or junction box.

Step 4 — Installation of 330180-X1-CN Spare: Mount the replacement proximitor in the same orientation. Reconnect the extension cable — verify connector thread engagement and apply appropriate sealant if required by the hazardous-area classification. Restore –24 VDC supply.

Step 5 — Gap Verification: With the machine at rest, verify the probe gap using the proximitor output voltage. Adjust the probe position to achieve the target gap voltage per the original system documentation (typically –10 VDC ±0.5 VDC for standard 8mm probes).

Step 6 — Functional Test: Confirm the monitor channel returns to OK status. Verify alarm and danger setpoints are active. Check that the DCS or historian is receiving valid trend data before returning the machine to service.

This workflow is designed to minimize mean time to repair (MTTR) and restore machinery protection coverage as rapidly as possible, reducing the window of unprotected operation to the absolute minimum.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN compatible with both 3300 XL and 3500 Series monitor racks?
The 330180-X1-CN is designed and specified for the 3300 XL Series. Compatibility with 3500 Series racks depends on the specific monitor module and system configuration. We recommend verifying the monitor input specifications against the proximitor output characteristics before substitution in a 3500 Series application. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on this spare?
Every 330180-X1-CN unit is functionally tested before dispatch, including output voltage verification under simulated load conditions and connector integrity inspection. Units are shipped with a test record. The 12-month warranty covers functional failure under normal operating conditions from the date of receipt.

Q3: How should this spare be stored to maintain long-term reliability?
Store in original packaging or anti-static packaging in a dry, temperature-controlled environment (0°C to 40°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect connector seals annually if stored for extended periods. Rotate stock on a first-in, first-out basis to maintain spare freshness.

Q4: What is the lead time and can urgent orders be expedited?
In-stock units ship within 1–3 business days. For urgent plant shutdowns or emergency replacements, contact our sales team directly for expedited dispatch options. We maintain long-term supply capability for legacy Bently Nevada 3300 XL components to support extended asset life programs and old-system longevity strategies.
