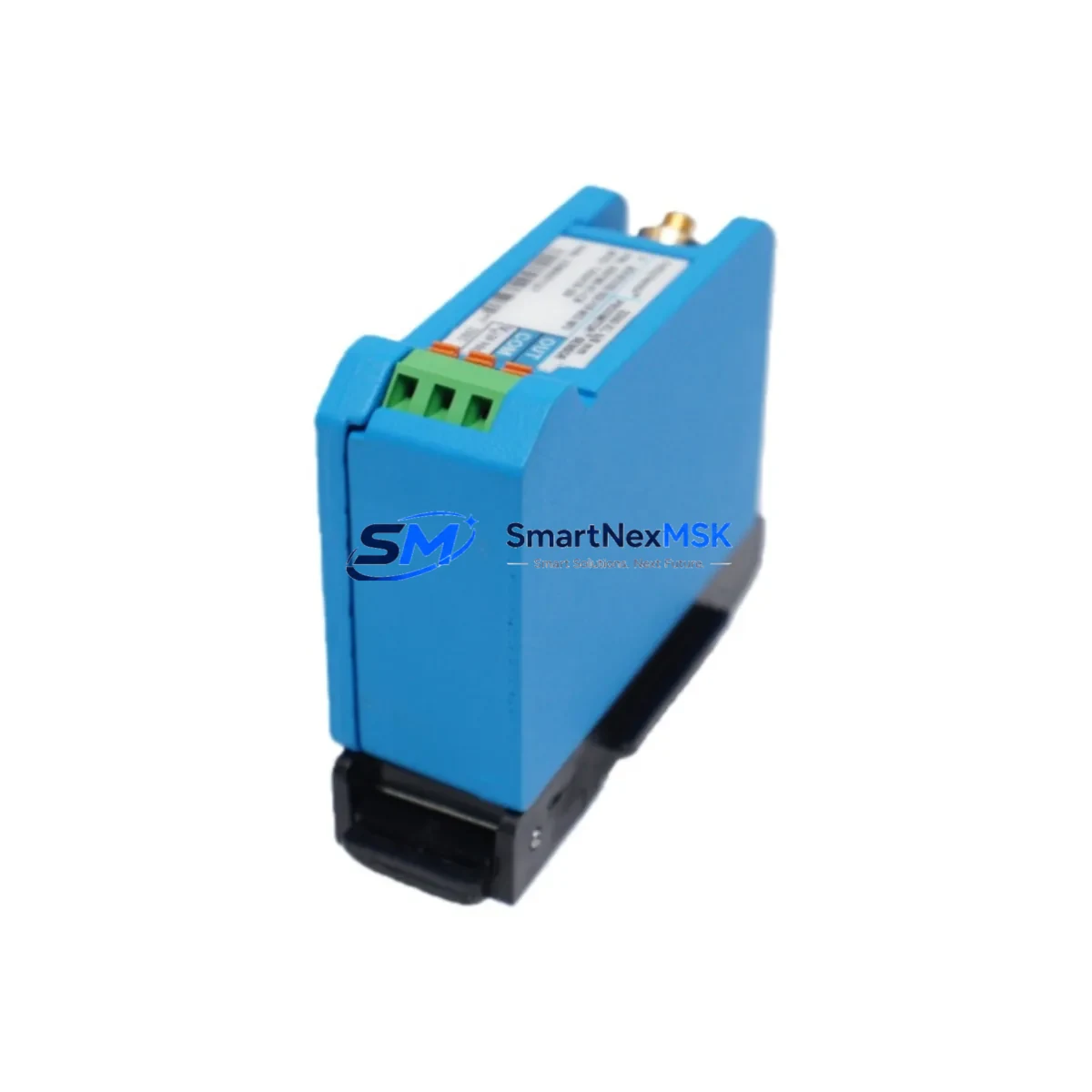

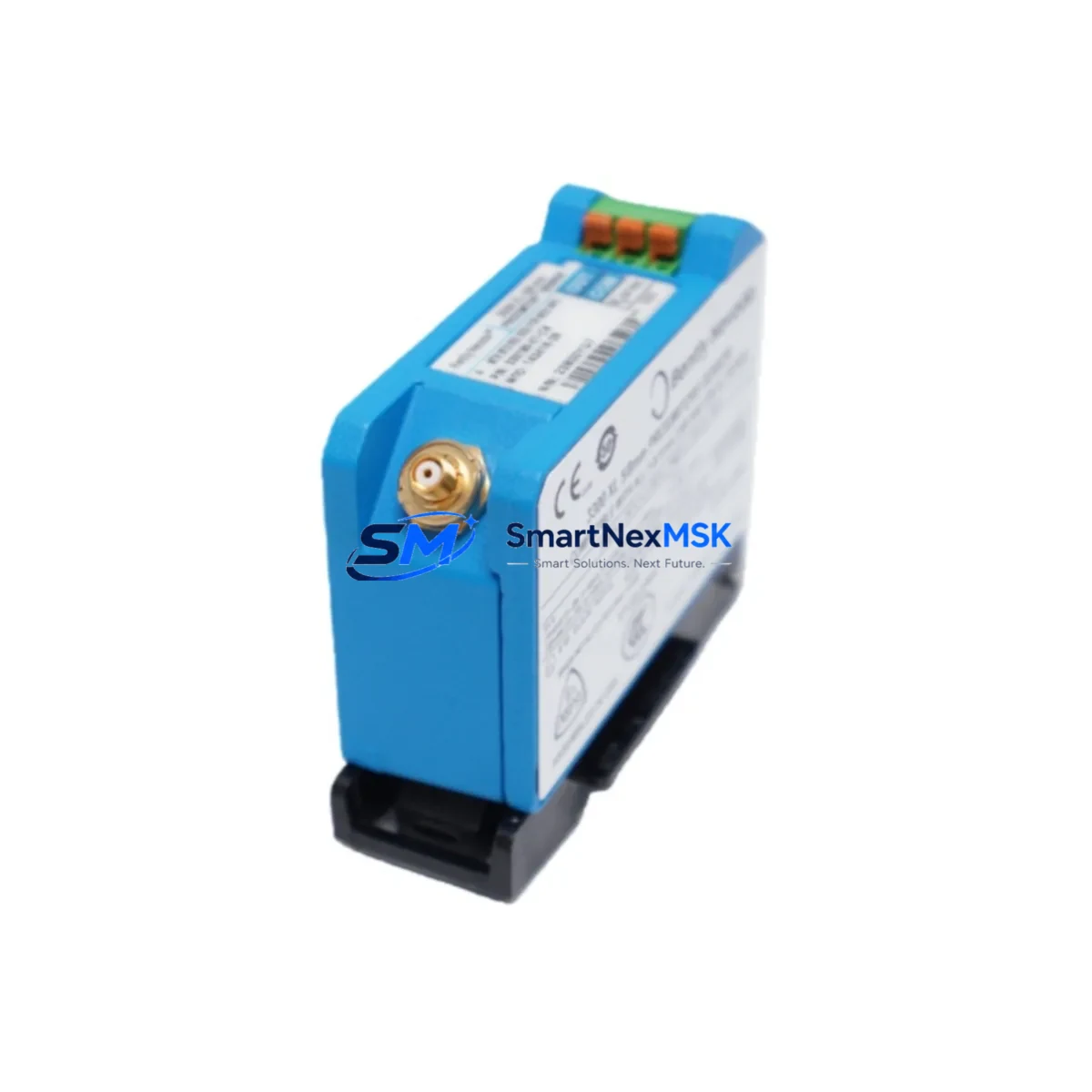

The Bently Nevada 330180-X1-CN MOD:145004-47 is an original proximitor sensor designed for continuous vibration monitoring in rotating machinery protection systems. As a maintenance-ready spare for the 3300 XL Series, this unit supports immediate field replacement with zero re-engineering, making it the preferred choice for maintenance engineers managing turbines, compressors, pumps, and gearboxes in critical industrial environments.

Unplanned downtime caused by a failed proximitor sensor can cascade into full machinery trips, production loss, and costly emergency repairs. Stocking the 330180-X1-CN as a certified spare eliminates this risk. Whether you are executing a planned shutdown, responding to a high-vibration alarm, or conducting a quarterly control cabinet inspection, having this unit on the shelf means your 3300 XL monitoring loop is restored within minutes, not days.

This sensor is engineered to interface directly with the 3300 XL proximitor extension cable and the 3300 XL monitor rack without any firmware reconfiguration. Maintenance teams can validate signal output using a standard oscilloscope or the Bently Nevada System 1 diagnostic platform before reinstallation, ensuring the replacement unit is fully functional prior to machine restart.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-CN in the field, a thorough maintenance engineer will treat the sensor swap as an opportunity to audit the entire vibration monitoring loop. Begin by inspecting the 3300 XL extension cable (typically 5-metre or 9-metre armoured type) for jacket abrasion, connector corrosion, or impedance drift — a degraded cable will corrupt the gap voltage reading even with a new sensor installed. Next, verify the 3300 XL proximitor power supply module output is stable at -24 VDC; a sagging supply rail is a common root cause of false high-vibration trips that are misdiagnosed as sensor failure.

At the monitor rack level, confirm that the 3300 XL vibration monitor card (such as the 3300/16 or 3300/20 series) is seated correctly and that its OK relay output is healthy. If the machine has been in service for more than three years, this is also an appropriate time to inspect the 3300 XL I/O terminal block and tighten all signal wiring terminations, as micro-vibration from the machinery itself can loosen screw terminals over time.

For facilities running a broader Bently Nevada architecture, the replacement window should also include a functional check of the 3500 Series rack if it is installed in parallel for overspeed or thrust monitoring. Verify that the Keyphasor transducer (such as the 330180 series or 330900 series) is outputting a clean once-per-revolution pulse, as a degraded Keyphasor signal will affect phase-referenced vibration data across all channels. Additionally, inspect any signal conditioning barriers or Zener barriers in the intrinsically safe loop if the sensor is installed in a hazardous area classification zone.

Procurement engineers should note that the 330180-X1-CN is frequently co-ordered with the 330130-045-00-CN extension cable, the 330105-02-12-10-02-00 probe, and the 3300 XL proximitor junction box to form a complete replacement kit. Maintaining a minimum of two sensor assemblies per critical machine train is the industry-standard recommendation for Tier 1 rotating equipment.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330180-X1-CN MOD:145004-47 matches the installed probe system gap calibration chart. Measure the installed probe gap voltage at the monitor rack and record as baseline.

Step 2 — Isolation: De-energise the proximitor supply at the 3300 XL rack terminal. Do not disconnect the extension cable from the probe end until the supply is confirmed off to avoid electrostatic discharge to the eddy current coil.

Step 3 — Physical swap: Remove the old sensor using the correct torque specification (typically 20–25 Nm for M10 thread). Install the new 330180-X1-CN and reconnect the extension cable. Apply anti-seize compound to the probe threads if operating in a high-temperature environment.

Step 4 — Gap setting: Set the probe gap to the system-specified value (typically 50 mil / 1.27 mm for standard steel targets) and verify the gap voltage at the monitor rack reads within the linear range (-10 VDC ± 0.5 VDC for a 50 mil gap on AISI 4140).

Step 5 — Functional test: Re-energise the supply, confirm the OK LED on the 3300 XL monitor card illuminates, and verify the vibration reading is within the machine’s normal baseline band before releasing the machine for restart.

This workflow ensures the replacement is completed with full system compatibility verification, minimising the risk of a repeat trip on machine restart and maintaining compliance with API 670 machinery protection standards.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN MOD:145004-47 a direct drop-in replacement for earlier 330180 series sensors?
Yes. The MOD:145004-47 designation indicates a factory-approved modification level that maintains full backward compatibility with all 3300 XL extension cables and monitor racks. No recalibration of the monitor card is required when replacing like-for-like within the 330180 family.

Q2: What pre-shipment testing is performed on this unit?
Each 330180-X1-CN is bench-tested for gap voltage linearity, OK output threshold, and supply current draw before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with a calibration reference card.

Q3: How should this spare be stored in a maintenance inventory?
Store in a dry, temperature-controlled environment (10°C–30°C) away from strong magnetic fields. The eddy current coil is sensitive to mechanical shock; retain the original foam packaging. Recommended shelf life before re-inspection is 5 years from manufacture date.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, signal output failure, and connector integrity under normal operating conditions. It does not cover damage from incorrect gap setting, reverse polarity connection, or installation in environments exceeding the rated temperature range. Warranty claims are processed within 5 business days of receipt of the returned unit.
