Bently Nevada 330190-040-01-00 Spare for 3300 XL Automation

Bently Nevada 330190-040-01-00 Spare for 3300 XL Automation

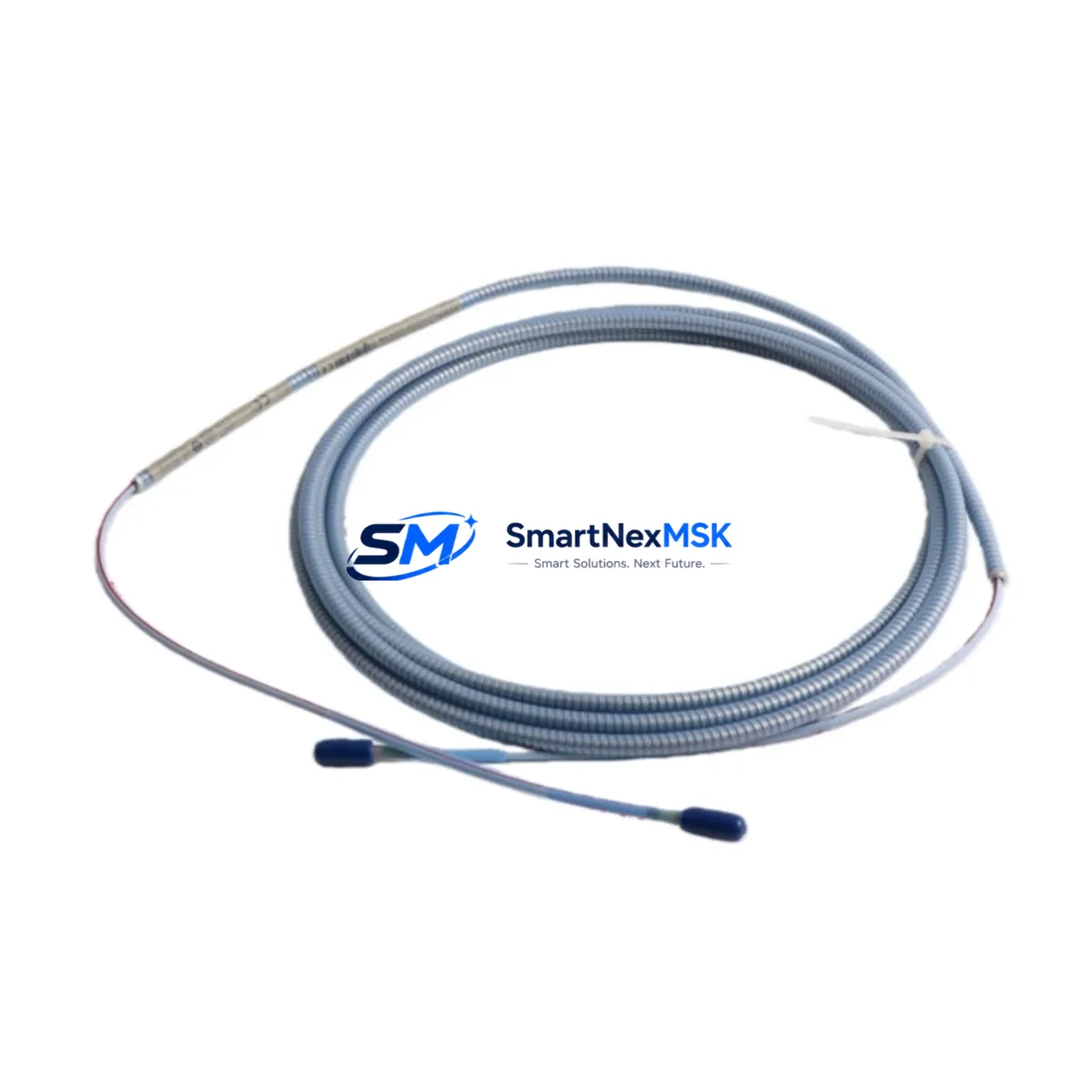

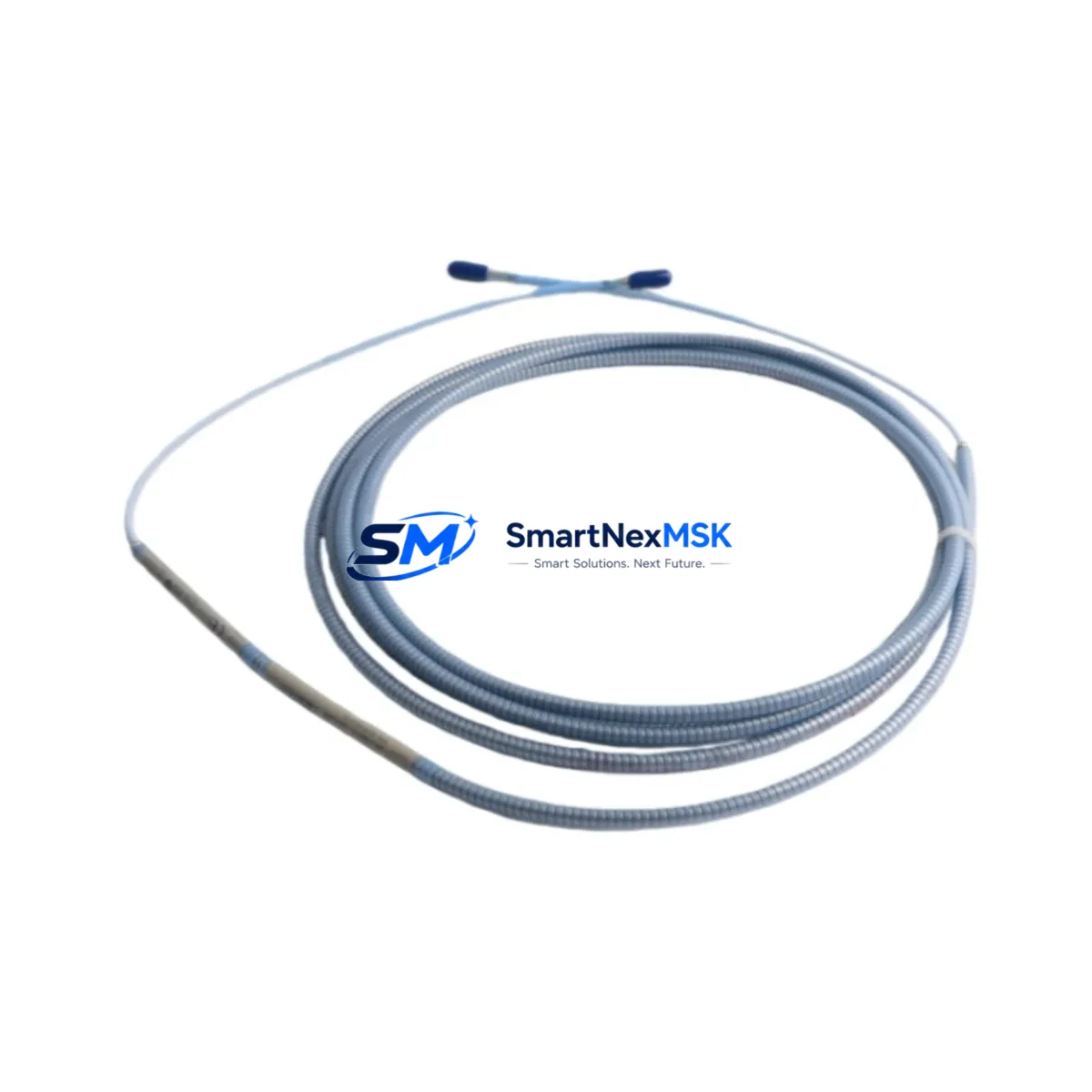

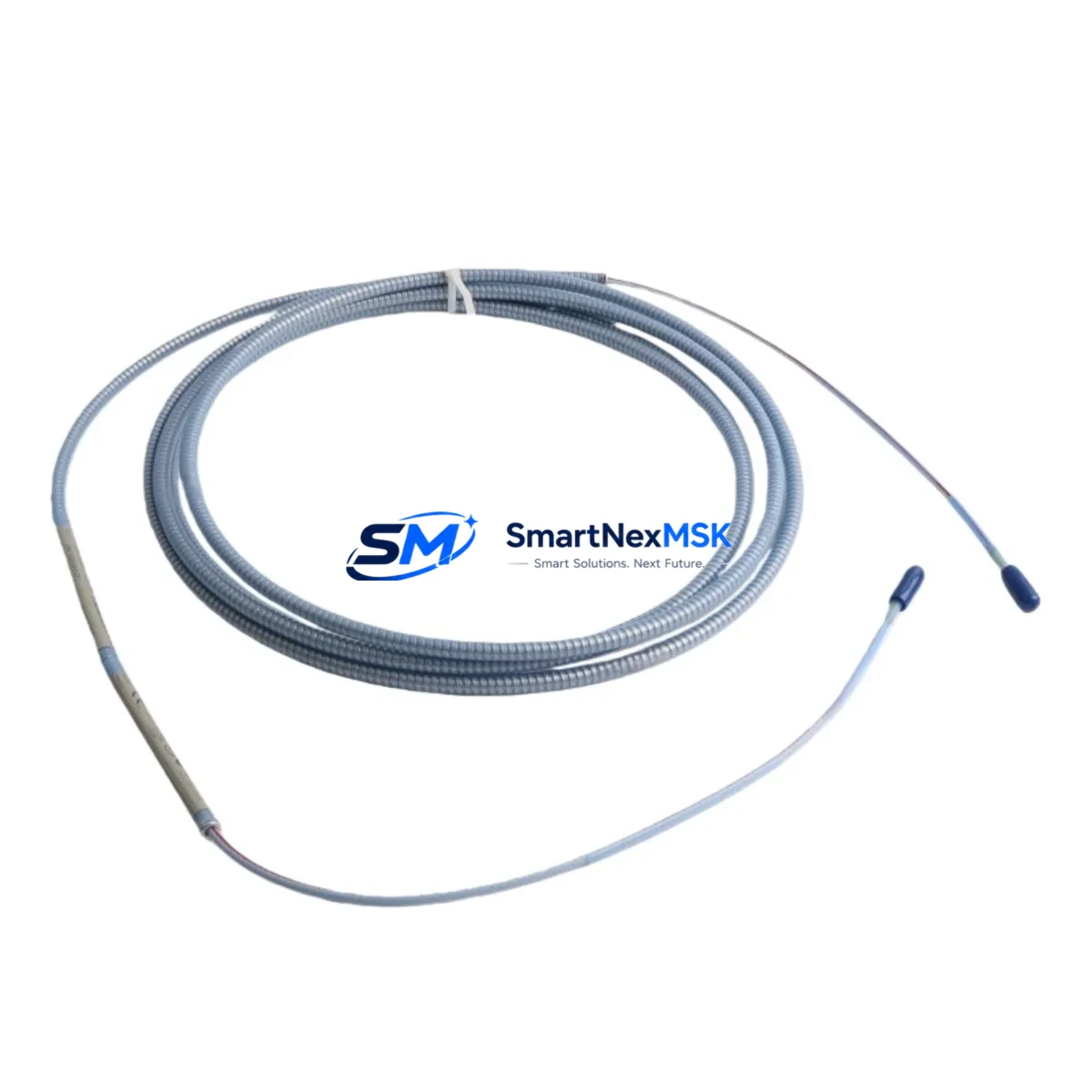

The Bently Nevada 330190-040-01-00 is an original 40-foot (12.2 m) proximity probe extension cable engineered for the 3300 XL continuous machinery protection system. Designed to transmit the low-level eddy-current signal from the proximity probe tip to the 3300 XL monitor rack with minimal signal degradation, this cable is a critical link in rotating machinery protection circuits monitoring shaft vibration, axial position, and differential expansion on turbines, compressors, pumps, and gearboxes.

Maintaining a verified spare of the 330190-040-01-00 in your on-site inventory is a fundamental practice for any facility operating Bently Nevada 3300 XL systems. Cable faults — caused by mechanical damage, connector corrosion, or insulation breakdown — are among the most common causes of spurious trips and false-high vibration readings. A pre-tested, SKU-matched replacement allows maintenance teams to restore normal monitoring within minutes rather than hours, dramatically reducing unplanned downtime risk on critical rotating assets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330190-040-01-00 extension cable is flagged for replacement during a planned outage or emergency callout, experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire proximity measurement loop. The extension cable does not operate in isolation — it is part of a three-component transducer system that includes the 330103-00-08-10-02-00 proximity probe (or equivalent 8mm probe) and the 330180-X0-00 proximitor/oscillator module mounted in the field junction box. All three components should be verified for continuity, gap voltage, and signal quality before the system is returned to service.

Within the 3300 XL monitor rack, the signal from this cable terminates at a 3300/16 or 3300/20 series monitor module. These modules should be inspected for alarm setpoint integrity and channel health during the same maintenance window. The 3300/05 power supply module feeding the rack should also be checked — a marginal power supply can introduce noise that mimics cable faults and leads to misdiagnosis.

At the field junction box, inspect the 3300 XL field wiring barrier and terminal blocks for corrosion, loose terminations, and moisture ingress. In high-vibration environments, terminal screws can back off over time, creating intermittent signal loss that is difficult to distinguish from a cable fault without systematic inspection. Replacing the extension cable while leaving degraded terminal connections in place is a common source of repeat callouts.

For facilities running parallel protection channels, the 330130-040-01-00 armored extension cable (standard, non-ETR variant) and the 330191-040-01-00 (alternative length) are closely related spares that should be reviewed for cross-compatibility with your installed probe and proximitor configuration. Stocking both ETR and standard variants ensures coverage across mixed installations common in older turbine trains.

Where the 3300 XL system interfaces with a System 1 Evolution or Orbit 60 Series condition monitoring platform, verify that the data acquisition module recognizes the restored channel correctly after cable replacement. A channel re-calibration or gap voltage verification step is recommended before clearing the maintenance work order. The 3500/42M proximity monitor (for facilities with mixed 3300/3500 racks) uses the same TNC-terminated extension cables, making the 330190 series a dual-purpose spare in many control rooms.

Finally, document the replacement in your CMMS with the as-found gap voltage, as-left gap voltage, and cable serial number. This data supports predictive maintenance trending and helps justify spare parts inventory levels to procurement teams during annual budget reviews.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and confirm the machinery is in a safe state. For online replacement on non-critical channels, coordinate with the control room to bypass the affected channel in the 3300 XL monitor to prevent a spurious trip during disconnection.

Step 2 — As-Found Documentation: Record the existing gap voltage (typically –10 VDC ±0.5 V for an 8mm probe at nominal gap) using a calibrated voltmeter at the proximitor output terminals. Photograph connector condition and cable routing before removal.

Step 3 — Cable Removal: Disconnect the TNC connectors at both the probe and proximitor ends. Inspect the probe tip and proximitor input connector for contamination or mechanical damage. If the probe shows wear or the proximitor output is outside specification, replace those components concurrently — the 330103-00-08-10-02-00 probe and 330180 proximitor are the logical next spares to have on hand.

Step 4 — New Cable Installation: Route the 330190-040-01-00 replacement cable following the original cable path. Avoid sharp bends below the minimum bend radius and secure with appropriate cable clamps. Torque TNC connectors to specification (finger-tight plus 1/4 turn with a wrench).

Step 5 — As-Left Verification: Power the proximitor and measure gap voltage. Confirm the reading is within the –10 VDC ±0.5 V window. Verify the 3300 XL monitor channel shows a healthy signal and no alarms. Remove the channel bypass and confirm normal monitoring status in the control room.

Step 6 — Close-Out: Update the CMMS, attach as-found/as-left data, and replenish the spare parts inventory with a new 330190-040-01-00 to maintain readiness for the next event.

Spare Parts Support FAQ

Q1: Is the 330190-040-01-00 a direct drop-in replacement for older 3300 XL installations?
Yes. The 330190-040-01-00 is the current Bently Nevada part number for the 40 ft ETR extension cable and is backward-compatible with all 3300 XL proximity probe systems using 8mm probes and TNC connectors. No adapter or re-termination is required for standard installations.

Q2: How should this cable be stored as a long-term spare?
Store coiled (minimum 150 mm bend radius) in a clean, dry environment between –20°C and +70°C. Keep TNC connectors capped with the supplied dust caps to prevent contamination. Inspect connectors and jacket condition annually even in storage. Shelf life under proper storage conditions exceeds 5 years.

Q3: What pre-shipment testing is performed on each unit?
Each 330190-040-01-00 shipped by SMARTNEXMSK undergoes continuity testing, TNC connector integrity inspection, and visual jacket inspection before dispatch. A test report is available on request. All units carry a 12-month warranty from the date of shipment covering manufacturing defects and electrical performance.

Q4: Can this cable be used with Bently Nevada 3500 series monitors?
The 330190-040-01-00 uses standard TNC connectors compatible with the 3500 series proximity transducer system. Compatibility depends on the specific 3500 monitor module and probe configuration. Contact our technical team with your full system part numbers for a compatibility confirmation before ordering.
