Bently Nevada 330194-00-18-10-00 Safety Probe for Harsh Sites

Bently Nevada 330194-00-18-10-00 Safety Probe for Harsh Industrial Sites

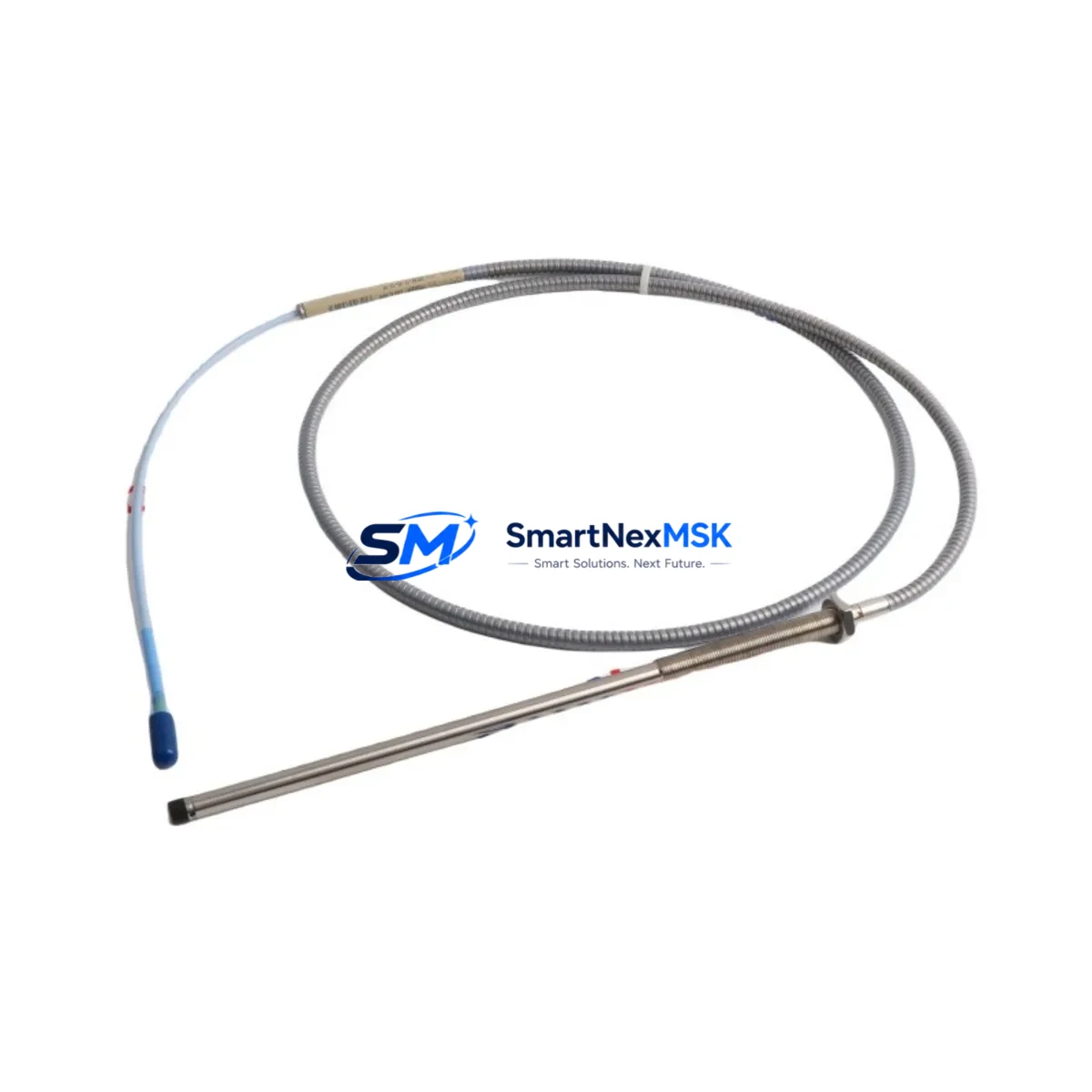

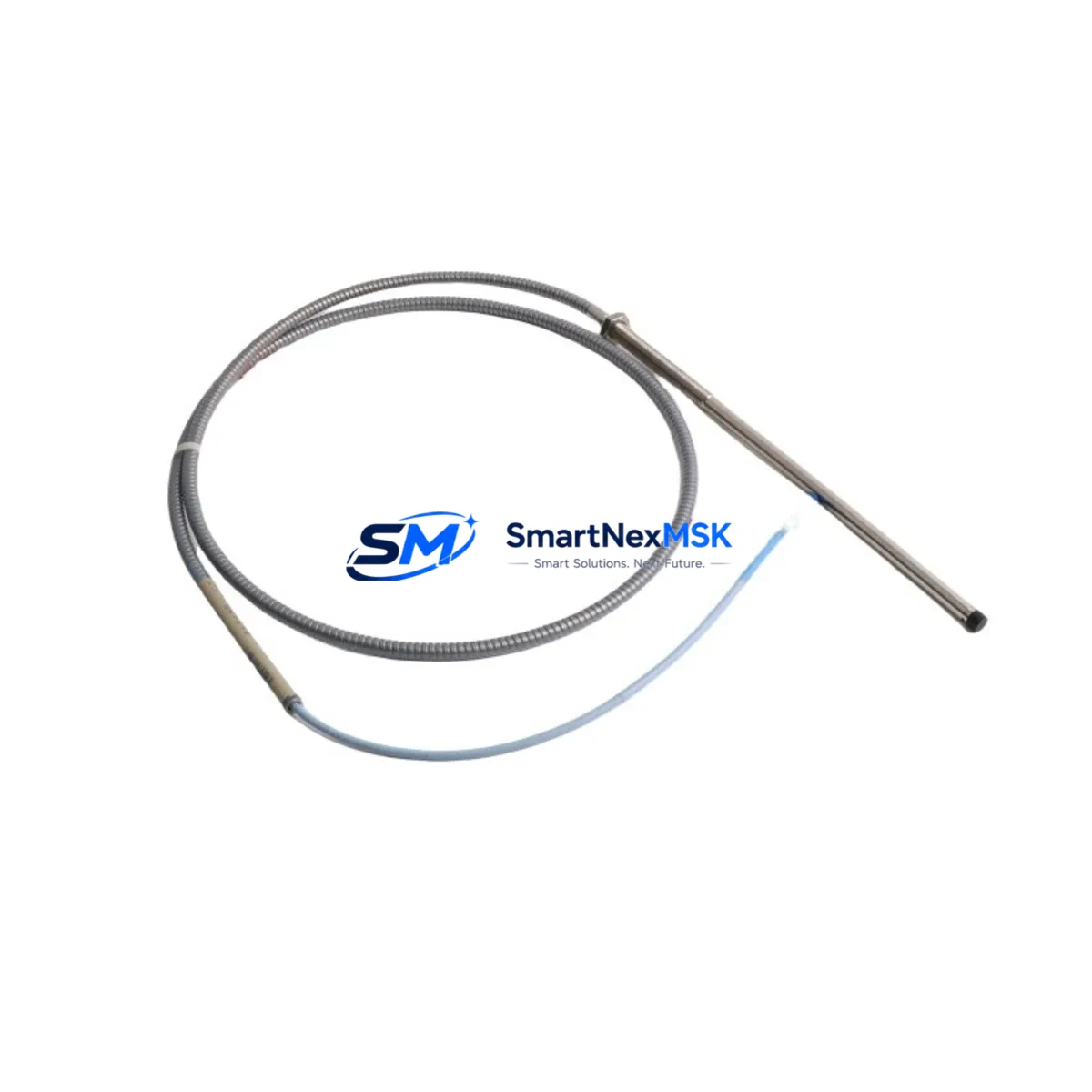

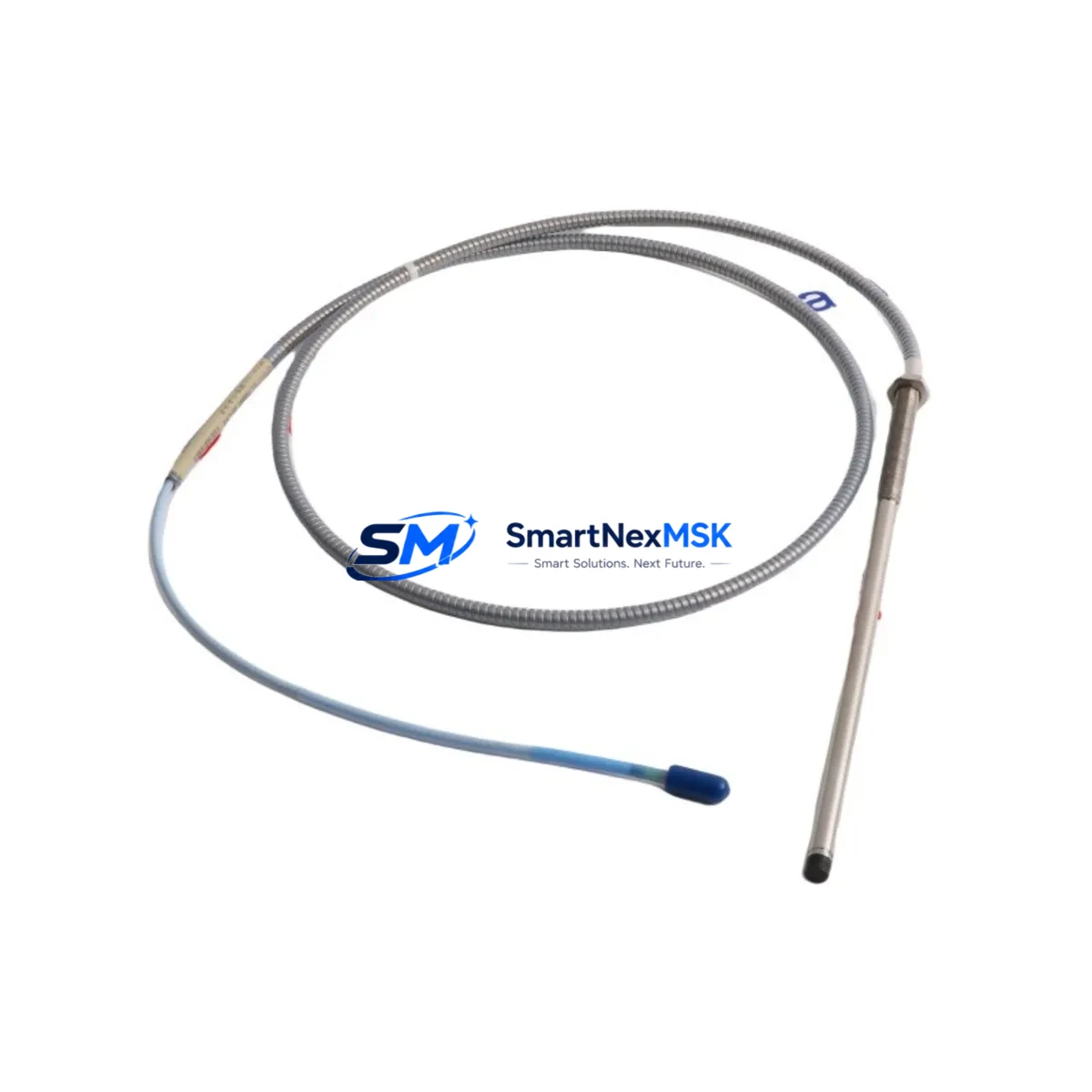

The Bently Nevada 330194-00-18-10-00 is an 18-inch ruggedized proximity probe engineered for the 3300 XL Extended Temperature Range (ETR) series — one of the most trusted vibration monitoring platforms in continuous heavy-industry operations. Designed to deliver uninterrupted shaft displacement measurement in environments where signal integrity, thermal stability, and mechanical resilience are non-negotiable, this probe is a cornerstone component in safety-critical machinery protection systems worldwide.

In high-stakes industrial environments — petrochemical compressor trains, power generation turbines, mining hoists, and metallurgical rolling mills — control interruption is not merely a productivity issue; it is a safety event. The 330194-00-18-10-00 addresses this risk directly. Its extended-temperature design maintains calibrated output across extreme ambient swings, ensuring that the 3300 XL monitor receives a clean, drift-free signal even when cabinet temperatures fluctuate due to solar loading, process heat, or inadequate HVAC in remote field enclosures.

Signal drift is one of the most insidious failure modes in proximity-based vibration monitoring. A probe that loses calibration under thermal stress or electromagnetic interference can mask developing bearing faults or, worse, generate false trips that halt production unnecessarily. The 330194-00-18-10-00 is built to resist both failure modes: its shielded coaxial cable assembly and precision-wound sensing tip maintain stable eddy-current response across the full operating range, reducing the risk of nuisance trips and missed alarms in equal measure.

When integrated into a complete Bently Nevada 3300 XL monitoring loop, this probe pairs with the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/oscillator driver to form a fully calibrated measurement chain. The system is designed to interface directly with 3300/16 dual-channel monitor cards and 3500/42M proximity monitor modules, enabling seamless integration into existing rack-based protection architectures. For plants running System 1 condition monitoring software, the probe’s output feeds directly into trend and alarm databases without signal conditioning gaps.

In safety instrumented systems (SIS) and critical interlock loops, the reliability of every field device matters. The 330194-00-18-10-00 is API 670-compliant, meaning it meets the machinery protection standard required for turbomachinery in hydrocarbon processing, LNG facilities, and offshore platforms. Its compliance ensures that the probe can be specified in safety requirement specifications (SRS) without additional derating or qualification testing, reducing engineering overhead during HAZOP and SIL assessment phases.

Power supply stability in the control cabinet directly affects probe performance. Installations that pair this probe with a regulated -24 VDC proximitor power supply — such as those derived from a Bently Nevada 3300/05 power supply module or an equivalent DIN-rail regulated supply — will achieve the lowest noise floor and most stable gap voltage output. In environments with significant power line disturbances, adding a surge protection device (SPD) on the proximitor supply rail further protects the measurement chain from transient damage.

For plants managing large rotating machinery fleets, the 330194-00-18-10-00 is a high-turnover spare part. Maintaining a buffer stock of probes, extension cables, and proximitor drivers ensures that bearing replacement or probe swap-out during a planned outage does not extend into unplanned downtime. SMARTNEXMSK maintains verified inventory of this probe and its associated 3300 XL ETR system components, with pre-shipment functional testing and full traceability documentation included with every unit.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330194-00-18-10-00 probe requires careful selection of every component in the signal chain. The probe connects via a 330130-080-00-00 extension cable to a 330180-X1-05 proximitor mounted inside or adjacent to the control enclosure. The proximitor’s conditioned output feeds into a Bently Nevada 3300/16 dual-channel vibration monitor, which provides both analog 4–20 mA outputs for DCS integration and relay contacts for direct trip logic.

For plants using a Bently Nevada 3500 rack, the equivalent 3500/42M proximity monitor module accepts the same probe-and-proximitor signal chain, offering enhanced diagnostics and Modbus/TCP communication to the plant historian. Rack power is typically supplied by a 3500/15 power supply module, which should be backed by a UPS or DC bus with sufficient hold-up time to ride through momentary grid disturbances without dropping the protection system.

In cabinets where multiple probes monitor a single machine train — for example, X-Y radial probes plus a keyphasor on a centrifugal compressor — cable routing discipline is critical. Proximity probe cables must be separated from high-voltage power wiring and VFD output cables to prevent induced noise. Using dedicated grounded cable trays and maintaining minimum separation distances per API 670 Annex recommendations will preserve the signal integrity that the 330194-00-18-10-00 is designed to deliver.

Surge protection on the proximitor supply rail — using a Phoenix Contact TRABTECH or equivalent DIN-rail SPD rated for 24 VDC signal circuits — protects the entire measurement chain from lightning-induced transients and switching surges common in heavy industrial substations. Pairing this with a Bently Nevada I/O module for isolated signal output to the safety PLC ensures that a fault in the DCS loop cannot propagate back into the protection system.

Critical Industrial Safety Applications

The Bently Nevada 330194-00-18-10-00 is deployed across the most demanding rotating machinery applications in global industry. In petrochemical and refinery environments, it monitors shaft vibration on centrifugal compressors, steam turbines, and boiler feed pumps — machines where an undetected bearing failure can escalate to a fire or explosion event. API 670 compliance makes it the default choice for new installations and replacement programs at major EPC contractors.

In power generation — both thermal and combined-cycle plants — the probe monitors turbine shaft displacement continuously across load cycles. Its ETR rating ensures stable performance in turbine halls where ambient temperatures can exceed 60°C during summer peak-load periods. The probe’s output feeds directly into the turbine protection system, providing the vibration trip signal that prevents catastrophic rotor damage during runaway events.

In mining and mineral processing, the probe is used on large SAG mill pinion bearings, crusher drive shafts, and conveyor head pulleys. These applications subject the probe to high levels of structural vibration, dust ingress risk, and wide temperature swings between day and night shifts. The ruggedized ETR construction and shielded cable assembly maintain measurement integrity under these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

In water and wastewater treatment facilities, the probe monitors large vertical turbine pumps and blower shafts in environments with high humidity and chemical vapor exposure. Its stable output supports automated alarm management systems that alert operators to developing imbalance or misalignment conditions before they progress to seal failure or shaft fracture.

In metallurgical and steel mill applications — rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains — the probe operates in environments with intense electromagnetic interference from large DC drives and induction furnaces. Its EMI-resistant design maintains clean signal output even in these electrically hostile conditions, ensuring that the protection system responds only to genuine mechanical events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330194-00-18-10-00?
The 12-month warranty covers manufacturing defects, calibration integrity, and cable assembly failures under normal operating conditions. Each unit is functionally tested prior to shipment, with gap voltage and sensitivity verified against Bently Nevada factory specifications. Warranty claims are processed with full traceability documentation.

Q2: How is the probe tested before shipment?
Every 330194-00-18-10-00 unit undergoes a pre-shipment functional check that includes output voltage verification at nominal gap, sensitivity confirmation, and cable continuity testing. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Is this probe compatible with existing 3300 XL and 3500 series monitor racks?
Yes. The 330194-00-18-10-00 is fully compatible with the Bently Nevada 3300 XL monitor series and the 3500 rack system when used with the correct extension cable and proximitor driver. It is a direct replacement for standard 3300 XL ETR probes of the same cable length and tip diameter. Confirm the proximitor model and gap setting before installation to ensure calibrated system performance.

Q4: Can long-term supply be guaranteed for critical spare programs?
SMARTNEXMSK maintains buffer stock of the 330194-00-18-10-00 and associated 3300 XL ETR system components to support planned outage schedules and emergency replacement requirements. For plants with critical spare agreements or annual maintenance contracts, contact our sales team to discuss reserved inventory arrangements and lead-time commitments.
