Bently Nevada 330194-08-18-50-00 Spare 3300 XL

Bently Nevada 330194-08-18-50-00 Maintenance-Ready Spare for 3300 XL Automation

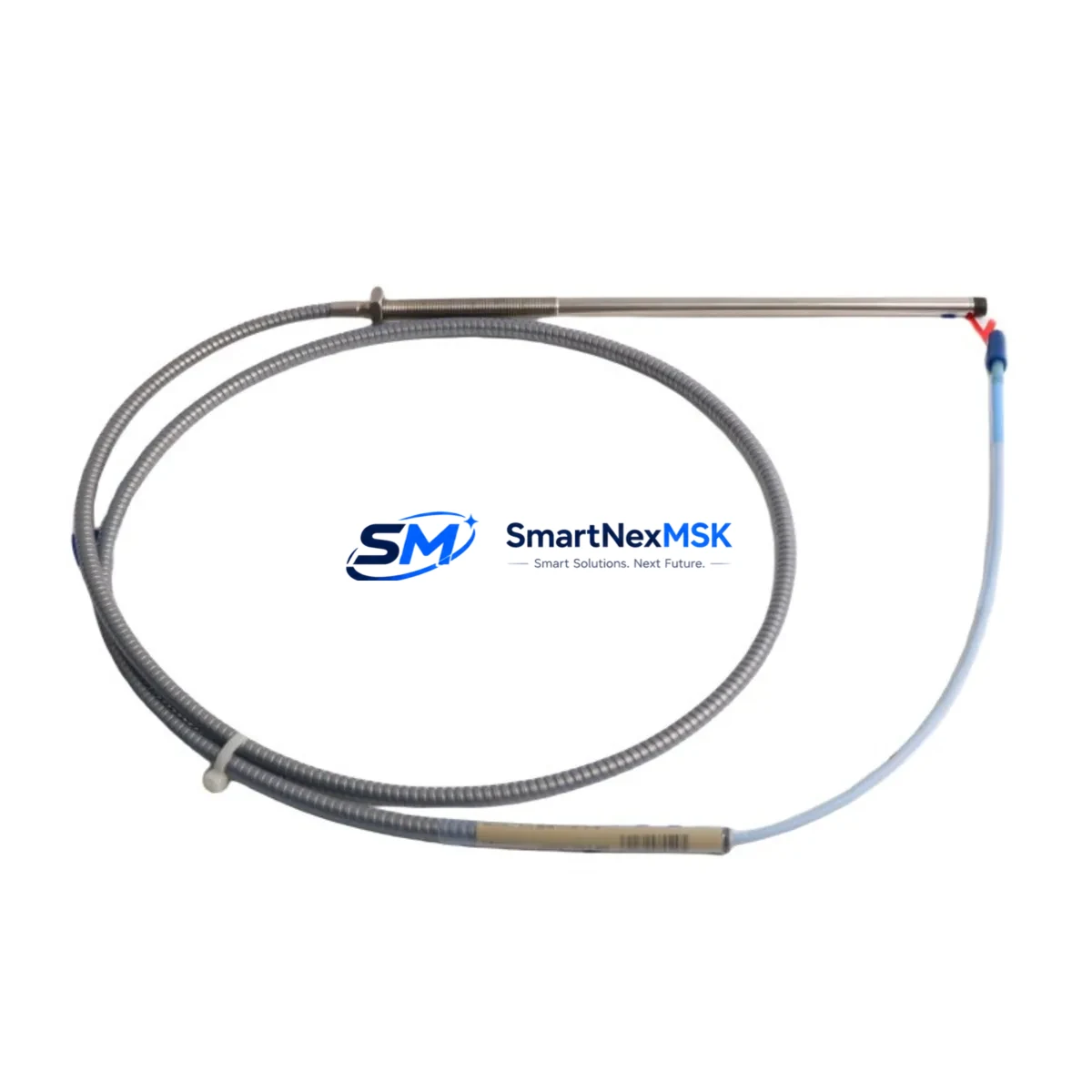

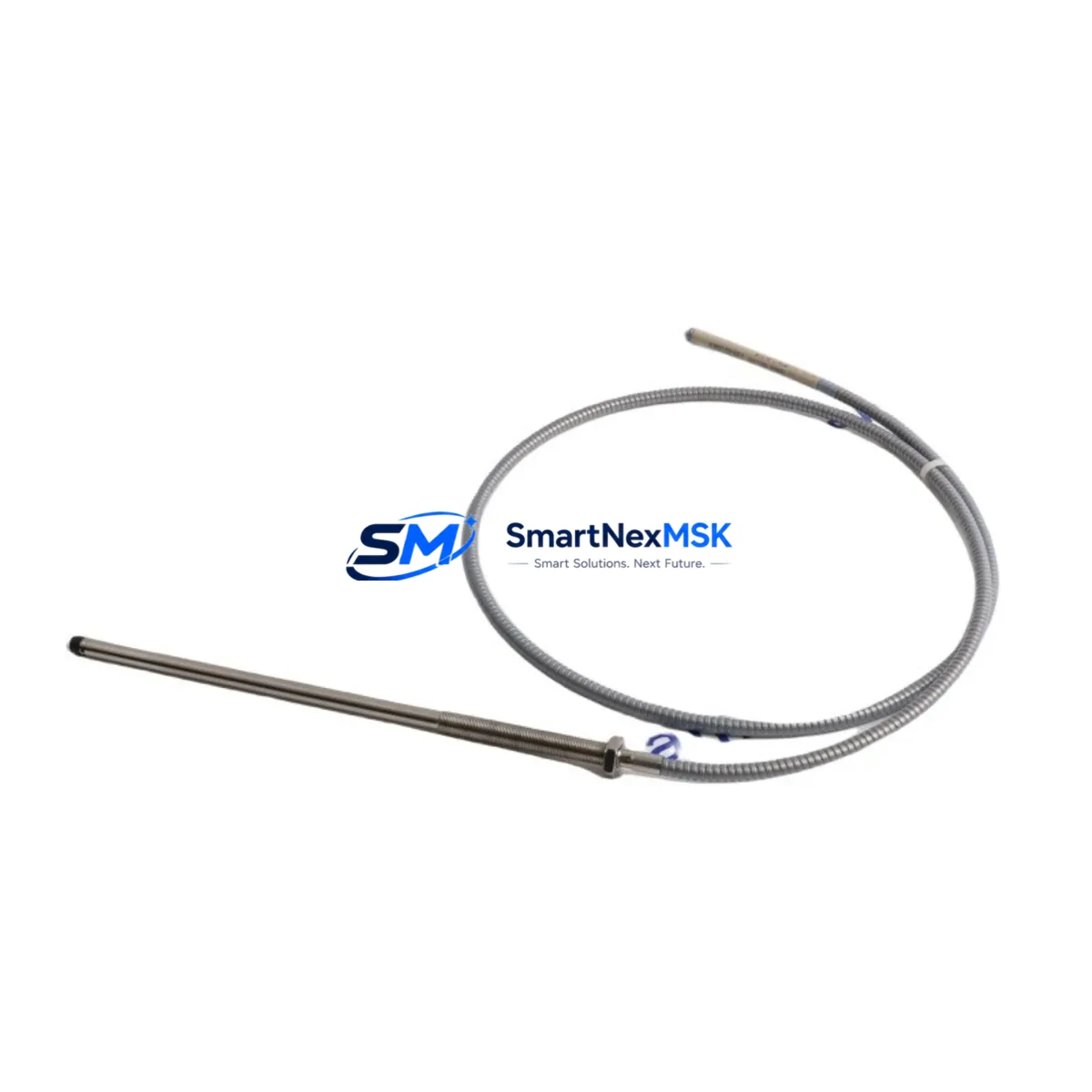

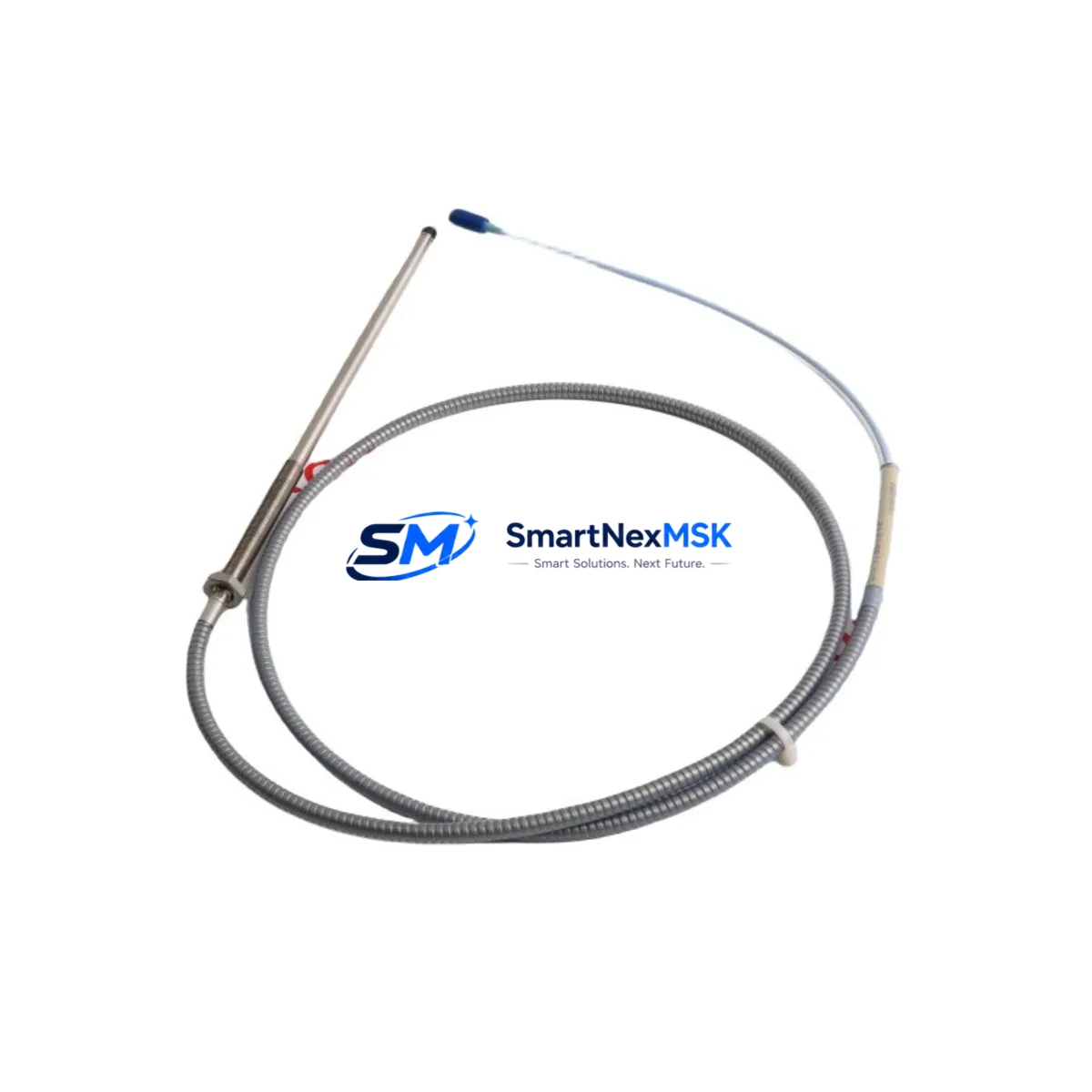

In continuous industrial operations — rotating machinery protection, turbine monitoring, compressor control, and critical shaft vibration measurement — unplanned downtime caused by a failed proximity probe can cascade into production losses, safety incidents, and costly emergency shutdowns. The Bently Nevada 330194-08-18-50-00 is an original 3300 XL ETR Series eddy-current proximity probe engineered for exactly these high-stakes environments. With an 8mm sensing tip and a 50-foot (15.2m) armored extension cable, this probe delivers precise, continuous non-contact displacement measurement in the harshest industrial sites — from petrochemical turbine trains to power generation steam turbines, mining hoists, and metallurgical rolling mills.

For maintenance engineers and spare parts procurement teams, having a verified, tested replacement unit of the 330194-08-18-50-00 on the shelf is not optional — it is a core element of any serious predictive maintenance or reliability-centered maintenance (RCM) program. When this probe is flagged during a routine inspection or fails during a condition monitoring cycle, the replacement window is narrow. Every hour of unplanned downtime on a critical rotating asset carries significant financial and safety risk. This is why SMARTNEXMSK maintains ready stock of this SKU, fully tested prior to shipment, backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer schedules replacement of the 330194-08-18-50-00 proximity probe, best practice demands a systematic inspection of the entire measurement chain — not just the probe itself. The probe operates as part of a three-component system: the probe, the extension cable, and the Proximitor® sensor. If the probe has failed due to mechanical damage, contamination, or thermal stress, the paired Bently Nevada 330130-045-00-00 extension cable should be inspected for insulation breakdown, connector corrosion, or impedance drift before reuse. Similarly, the Bently Nevada 330180-X1-05 Proximitor® Sensor should be bench-tested to confirm its output linearity and gap voltage remain within specification.

In a 3500 Series machinery protection rack, the probe signal feeds into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor module. During a planned outage, maintenance teams should simultaneously verify the health of adjacent rack modules — including the 3500/15 Power Supply Module, which provides regulated ±24 VDC to the entire monitoring system. A degraded power supply can introduce noise into probe signals, causing false alerts or missed trips. The 3500/20 Rack Interface Module (RIM) should also be checked for firmware currency and communication integrity, particularly in plants where the monitoring system interfaces with a DCS or safety instrumented system (SIS) via Modbus or OPC.

For sites running older 3300 Series racks alongside newer 3500 infrastructure, the Bently Nevada 3300/16 Dual Proximitor® Monitor may still be in service. Spare probe compatibility across both platforms is a key procurement consideration — the 330194-08-18-50-00 is designed to operate within both ecosystems when properly gapped and calibrated. Maintenance planners should also stock Bently Nevada 330105-02-12-10-02-00 proximity probe variants for shorter-reach applications on the same turbine train, ensuring full coverage across all measurement planes.

Beyond the probe chain, a complete control cabinet inspection during a probe replacement outage should include the terminal strip assemblies connecting field wiring to the rack, checking for loose terminations, oxidation, or thermal discoloration. In high-vibration environments, cable gland fittings and conduit seals at the junction box should be inspected for integrity. Where signal isolation is required between the monitoring system and the plant DCS, galvanic signal isolators in the 4–20 mA output loop should be tested for drift. This holistic approach to spare parts maintenance — treating the 330194-08-18-50-00 replacement as a trigger for a broader system health check — is what separates reactive maintenance from true reliability engineering.

Site Replacement Workflow

Replacing the Bently Nevada 330194-08-18-50-00 on a live industrial site follows a structured workflow designed to minimize downtime and eliminate re-work. Before the outage window opens, the replacement probe should be verified against the system’s calibration records: confirm the probe gap voltage (typically -10.0 VDC at the standard 50-mil gap for steel targets), check the cable impedance, and ensure the Proximitor® sensor serial number matches the probe/cable system calibration certificate.

During installation, the probe tip should be cleaned and the mounting thread inspected for damage. Gap setting is performed using a non-ferrous feeler gauge or a calibrated gap-setting tool, with the Proximitor® output monitored in real time. Once the gap is set and locked, the system should be allowed to thermally stabilize before the protection system is re-armed. For ETR-rated probes like the 330194-08-18-50-00, this is particularly important in high-temperature applications where thermal expansion of the shaft and probe mount can shift the gap by several mils during warm-up.

For plants transitioning away from legacy 3300 Series hardware, the 330194-08-18-50-00 provides a direct replacement path without requiring re-cabling or re-termination, significantly reducing the labor cost and risk associated with system upgrades. SMARTNEXMSK can supply matched probe-cable-Proximitor® sets to simplify the replacement process and ensure system-level calibration traceability.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 330194-08-18-50-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output voltage, cable continuity, and connector integrity before dispatch.

Q2: How do I confirm compatibility with my existing 3300 XL or 3500 Series system?
The 330194-08-18-50-00 is designed for use with the Bently Nevada 3300 XL Proximitor® Sensor and is also compatible with 3500 Series monitoring racks when used with the appropriate Proximitor® sensor. Compatibility is determined by the probe tip diameter (8mm), cable length (50ft), and system gap voltage requirements. Our technical team can review your system configuration and confirm compatibility before shipment — contact sales@smartnexmsk.com with your rack model and current probe part number.

Q3: Can you supply matched probe-cable-Proximitor® sets for a complete system replacement?
Yes. SMARTNEXMSK maintains stock of matched 3300 XL system components including probes, extension cables, and Proximitor® sensors. Supplying matched sets ensures calibration traceability and eliminates the risk of impedance mismatches that can occur when mixing components from different system generations. Contact us for a matched-set quotation.

Q4: What is your lead time and long-term supply commitment for this SKU?
The 330194-08-18-50-00 is a stocked item with typical dispatch within 3–5 business days. For plants with critical spare requirements, SMARTNEXMSK offers long-term supply agreements and consignment stock arrangements to ensure availability throughout your asset’s operational life. We are committed to supporting legacy Bently Nevada systems for the long term, including obsolete and discontinued SKUs.
