Bently Nevada 330194-10-20-05-00 Spare 3300 XL ETR

Bently Nevada 330194-10-20-05-00 Maintenance-Ready Spare for 3300 XL Automation

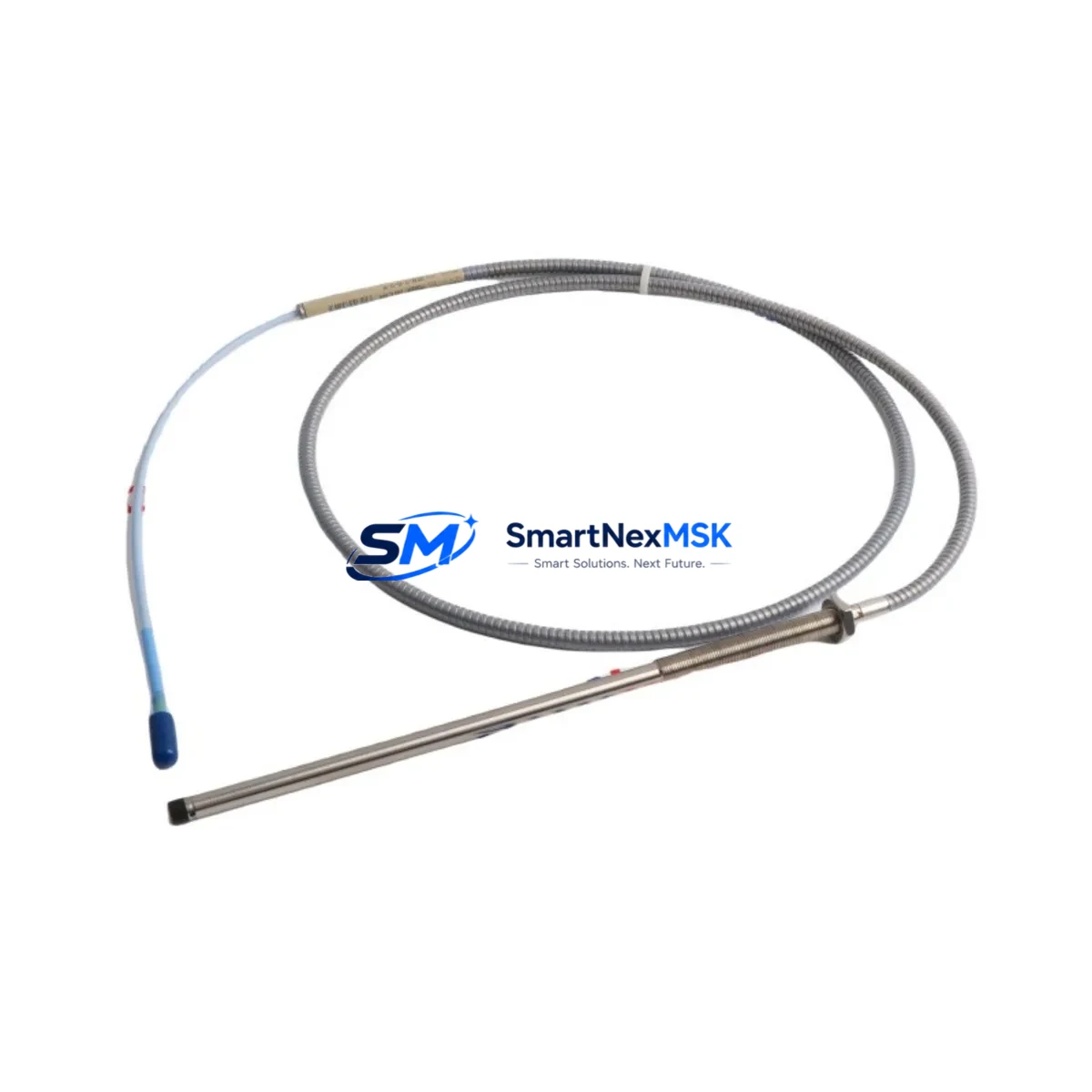

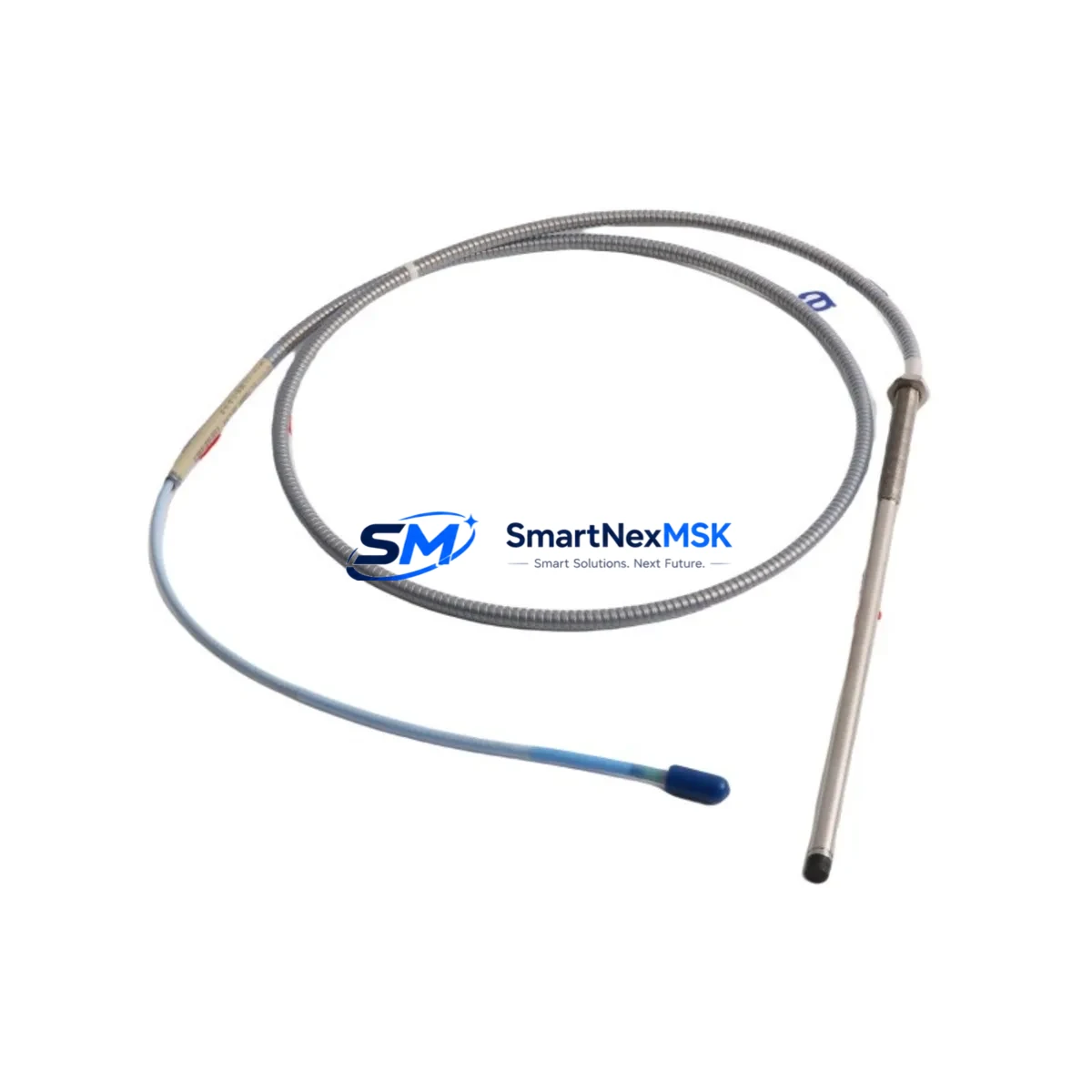

The Bently Nevada 330194-10-20-05-00 is an original proximity probe engineered for the 3300 XL Extended Temperature Range (ETR) vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery and turbomachinery applications worldwide. For maintenance engineers managing gas turbines, steam turbines, compressors, and pumps, this probe is a critical front-line component in continuous vibration surveillance. When this part fails or degrades, the entire monitoring loop is compromised, creating blind spots in machinery protection that can lead to unplanned shutdowns, catastrophic bearing failures, and costly production losses.

Sourced as an original spare, the 330194-10-20-05-00 is designed to deliver full compatibility with the 3300 XL system architecture without requiring recalibration of the proximitor or signal conditioning chain. Its 5-meter extension cable configuration and -05-00 connector termination make it a direct field replacement for aging or damaged probes in existing installations. Whether you are executing a planned turnaround, responding to a high-vibration alarm, or building a strategic spare parts inventory for long-term asset reliability, this probe is a foundational item in any 3300 XL maintenance kit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330194-10-20-05-00 probe is rarely an isolated task. In a well-structured maintenance workflow, probe replacement should trigger a systematic inspection of the entire vibration monitoring loop and associated control cabinet components. Maintenance engineers should simultaneously verify the condition of the 3300 XL Proximitor module (typically the 330180 or 330181 series), which conditions the eddy-current signal from the probe and converts it to a usable 4–20 mA or voltage output for the monitoring rack.

The 3300/16 or 3300/20 monitor rack should be inspected for relay output integrity, as relay contacts in the danger/alert output circuits can degrade over time in high-vibration environments. Alongside the monitor, the 3500/22M Transient Data Interface or equivalent communication module should be checked for firmware currency and communication health if the system is integrated into a plant DCS or historian.

Extension cables — particularly the 330130 series armored extension cables — are frequently overlooked during probe replacements but are a common source of intermittent signal faults due to connector corrosion, mechanical damage, or insulation breakdown in high-temperature zones. Always inspect and, where possible, replace extension cables as a matched set with the probe.

For installations where the 3300 XL system feeds into a broader machinery protection architecture, the 3500 Series rack power supply module should be load-tested to confirm it can sustain full channel capacity after any component swap. Signal isolators — such as those used to interface the 3300 XL output with third-party SCADA or DCS inputs — should also be verified for loop integrity. Terminal blocks and field wiring terminations within the control cabinet should be torque-checked and inspected for oxidation, particularly in humid or offshore environments.

If the machine being monitored is approaching end-of-life or operating on an extended maintenance interval, consider stocking the 330104 series radial vibration probe and 330500 series thrust position probe as complementary spares. These components share the same 3300 XL ecosystem and are subject to similar wear patterns in turbomachinery applications. A complete spare kit for a single machine train might also include a 3300 XL keyphasor probe, barrier isolators for intrinsically safe zones, and a spare Proximitor housing assembly.

Site Replacement Workflow

Field replacement of the 330194-10-20-05-00 follows a structured sequence to minimize downtime and ensure system integrity. Begin by documenting the existing probe gap voltage (typically –10 to –18 VDC for a properly gapped 8 mm probe on steel) using the installed Proximitor output before shutdown. This baseline reading allows you to verify correct installation of the replacement probe without requiring a full system recalibration.

After isolating the machine and de-energizing the monitoring loop, remove the existing probe assembly and inspect the probe tip for wear, pitting, or contamination. Clean the probe bore and verify thread condition before installing the replacement. Set the probe gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8 mm probes) and verify the output voltage falls within the linear range of the Proximitor. Reconnect the extension cable, ensuring the connector is fully seated and the cable routing avoids heat sources and mechanical contact points.

Once reinstalled, perform a static gap check and confirm the Proximitor output is within specification before returning the machine to service. Log the replacement in the maintenance management system with the new part serial number, installation date, and gap voltage reading. This documentation supports warranty claims and provides traceability for future maintenance cycles.

For legacy systems where the original 330194 series probe is being replaced due to obsolescence rather than failure, the 330194-10-20-05-00 is a direct form-fit-function replacement that does not require changes to the Proximitor calibration or monitor configuration — a significant advantage over third-party alternatives that may require system-level recalibration and revalidation.

Spare Parts Support FAQ

Q: Is the 330194-10-20-05-00 compatible with all 3300 XL Proximitor models?
A: Yes. The 330194-10-20-05-00 is designed for use with the full range of 3300 XL Proximitor modules, including the 330180 and 330181 series. It is also backward-compatible with earlier 3300 series installations where the ETR probe specification is met. Always verify the Proximitor input impedance and cable length matching before installation.

Q: What is the recommended spare parts stocking strategy for this probe?
A: For critical rotating machinery, we recommend maintaining a minimum of one spare probe assembly per machine train, with a secondary buffer stock for high-criticality assets such as main gas turbines or boiler feed pumps. Probes should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector integrity and cable insulation condition.

Q: How is the part tested before shipment?
A: Each 330194-10-20-05-00 unit is functionally tested prior to dispatch to verify probe sensitivity, cable continuity, and connector integrity. Units are shipped with a test report confirming compliance with 3300 XL system specifications. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q: Can this probe replace older 330194 variants with different cable or connector configurations?
A: The -10-20-05-00 suffix specifies probe body length (10 mm), cable length (2.0 m probe / 5.0 m extension), and connector type (-05-00). If your existing installation uses a different suffix configuration, contact our technical team to confirm compatibility or identify the correct replacement variant. Substituting an incorrect cable length can affect Proximitor calibration and system accuracy.
