Bently Nevada 330194-18-25-50-00 Safety Proximity Probe

Bently Nevada 330194-18-25-50-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

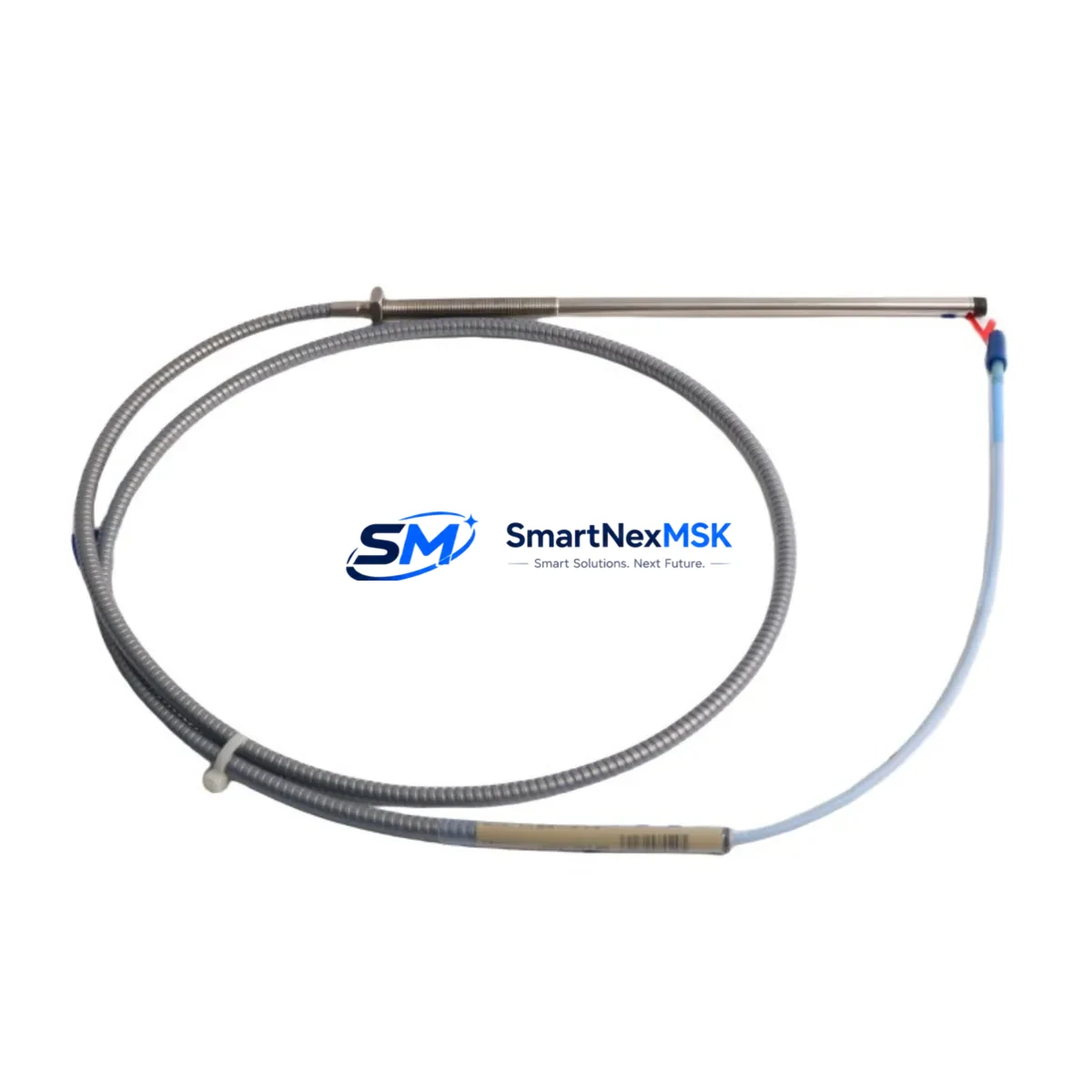

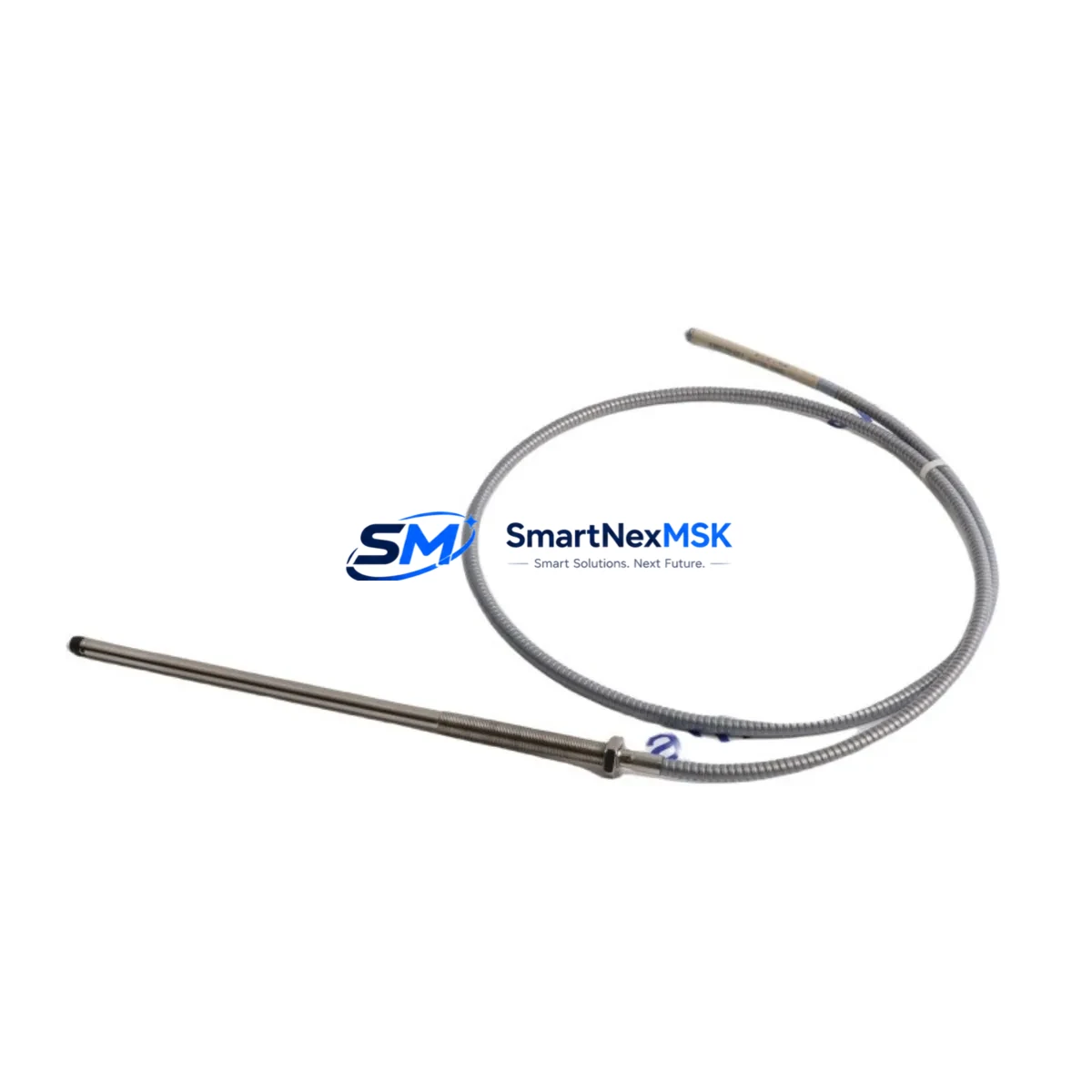

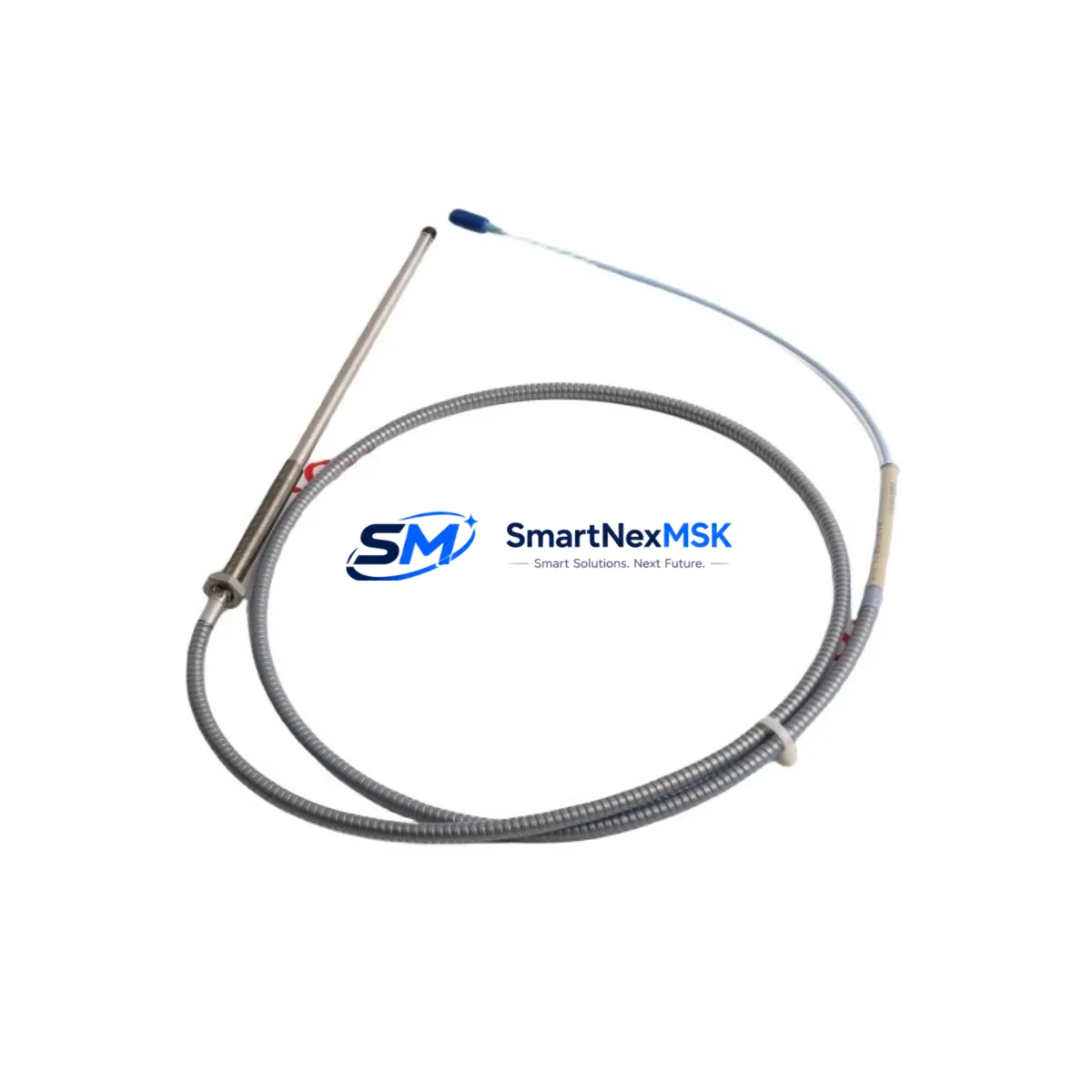

The Bently Nevada 330194-18-25-50-00 is an 8mm Eddy Current Transducer (ETR) proximity probe engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Series monitoring system, this probe delivers precise, non-contact displacement and vibration measurement across rotating machinery — including turbines, compressors, pumps, and motors — where control interruption or signal drift can trigger catastrophic shutdowns or safety incidents.

In high-load, high-interference production facilities — petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical plants, and port logistics centers — the integrity of every vibration signal in the control loop is non-negotiable. The 330194-18-25-50-00 is built to maintain signal fidelity under electromagnetic interference, mechanical vibration, thermal cycling, and aggressive chemical exposure, ensuring that your machinery protection system receives accurate, uninterrupted data at all times.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 330194-18-25-50-00 proximity probe operates as the primary sensing element, feeding real-time displacement data into the Bently Nevada 3300/16-15-02-01 16-Channel Monitor or the 3300/55 Proximitor Signal Conditioner. These monitors process raw probe signals and trigger protective relay outputs when vibration thresholds are exceeded — a critical function in API 670-compliant installations.

To ensure signal integrity from probe to control room, the probe is typically paired with a Bently Nevada 330130-045-01-00 Proximitor Sensor (driver/oscillator unit), which conditions the eddy current signal before transmission over long cable runs. In installations where cable runs exceed 30 meters, engineers often specify the 330105-02-12-10-02-00 Extension Cable to maintain signal quality without attenuation or ground loop interference.

Power supply stability is equally critical. The Bently Nevada 3300/20 Power Supply Module provides regulated ±24 VDC to the monitoring rack, protecting the entire signal chain — including the proximity probe circuit — from power fluctuations and voltage transients common in heavy industrial environments. For installations in hazardous areas classified as Zone 1 or Zone 2, the system is often complemented by Pepperl+Fuchs Zener barriers or MTL galvanic isolators to maintain intrinsic safety compliance while preserving signal fidelity.

Within the same control cabinet, the Bently Nevada 3500/42M Proximitor/Seismic Monitor may be deployed alongside the 3300 XL system for dual-channel redundancy on critical machinery shafts. Communication between the monitoring rack and the plant DCS is typically handled via Bently Nevada 3500/92 Communication Gateway modules supporting Modbus TCP or FOUNDATION Fieldbus protocols, ensuring that vibration alarm states are visible to operators in the central control room without delay.

For surge protection at the field junction box, Phoenix Contact TRABTECH surge protection devices are commonly installed in series with the probe cable circuit, guarding against lightning-induced transients and switching surges that could damage the probe tip or corrupt the Proximitor output signal. This layered protection strategy — from probe to conditioner to monitor to DCS — ensures that the 330194-18-25-50-00 delivers uninterrupted, safety-grade vibration data throughout the machinery lifecycle.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking columns, rotating machinery operates at high speeds under extreme thermal and chemical stress. The 330194-18-25-50-00 monitors shaft radial vibration on centrifugal compressors and process pumps, providing early warning of bearing wear, rotor imbalance, or misalignment before these conditions escalate to unplanned shutdowns or safety incidents. Its IP67-rated probe body resists hydrocarbon vapors and process fluid ingress.

Power Generation (Thermal & Nuclear): Steam turbine-generator sets in power plants demand the highest level of vibration monitoring reliability. The probe’s wide operating temperature range and EMI-resistant cable construction make it suitable for installation in turbine bearing pedestals, where electromagnetic interference from generator excitation systems is significant. Integration with the 3300 XL monitor enables automatic trip relay activation when vibration exceeds API 670 danger thresholds, protecting multi-million-dollar assets and ensuring grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe mechanical shock and continuous high-load operation. The 330194-18-25-50-00 provides reliable shaft displacement monitoring in these harsh conditions, enabling predictive maintenance programs that reduce unplanned downtime and extend equipment service life. Its robust construction withstands the vibration, dust, and moisture exposure typical of underground and open-pit mining environments.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt critical public infrastructure services. The probe’s non-contact measurement principle eliminates wear and maintenance requirements at the sensing point, ensuring long-term reliability in wet, corrosive environments.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with extreme heat, heavy vibration, and intense electromagnetic fields. The 330194-18-25-50-00‘s shielded cable construction and high-temperature probe body rating make it a dependable choice for shaft monitoring in these critical drive systems, where a single undetected bearing failure can halt an entire production line.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330194-18-25-50-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair support, minimizing your equipment downtime.

Q2: How is each unit tested before shipment?
Every 330194-18-25-50-00 proximity probe undergoes full functional verification and calibration check prior to dispatch. This includes scale factor verification, gap voltage linearity testing, and cable continuity/insulation resistance checks — ensuring that the unit you receive performs to Bently Nevada OEM specifications from day one.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL installations?
Yes. The 330194-18-25-50-00 is a direct-fit replacement for the Bently Nevada 3300 XL ETR proximity probe system. It is fully compatible with 3300 XL Proximitor sensors, extension cables, and monitor modules. No system reconfiguration or recalibration of the monitor is required when replacing a like-for-like probe in an existing installation.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the 330194-18-25-50-00 and related 3300 XL series components to support ongoing maintenance, turnaround planning, and emergency replacement requirements. We provide stable, long-term supply commitments for industrial customers with planned maintenance schedules, ensuring that critical spare parts are available when your facility needs them most.
