Bently Nevada 330195-02-12-05-00 Spare for 3300 XL

Bently Nevada 330195-02-12-05-00 Spare for 3300 XL Automation

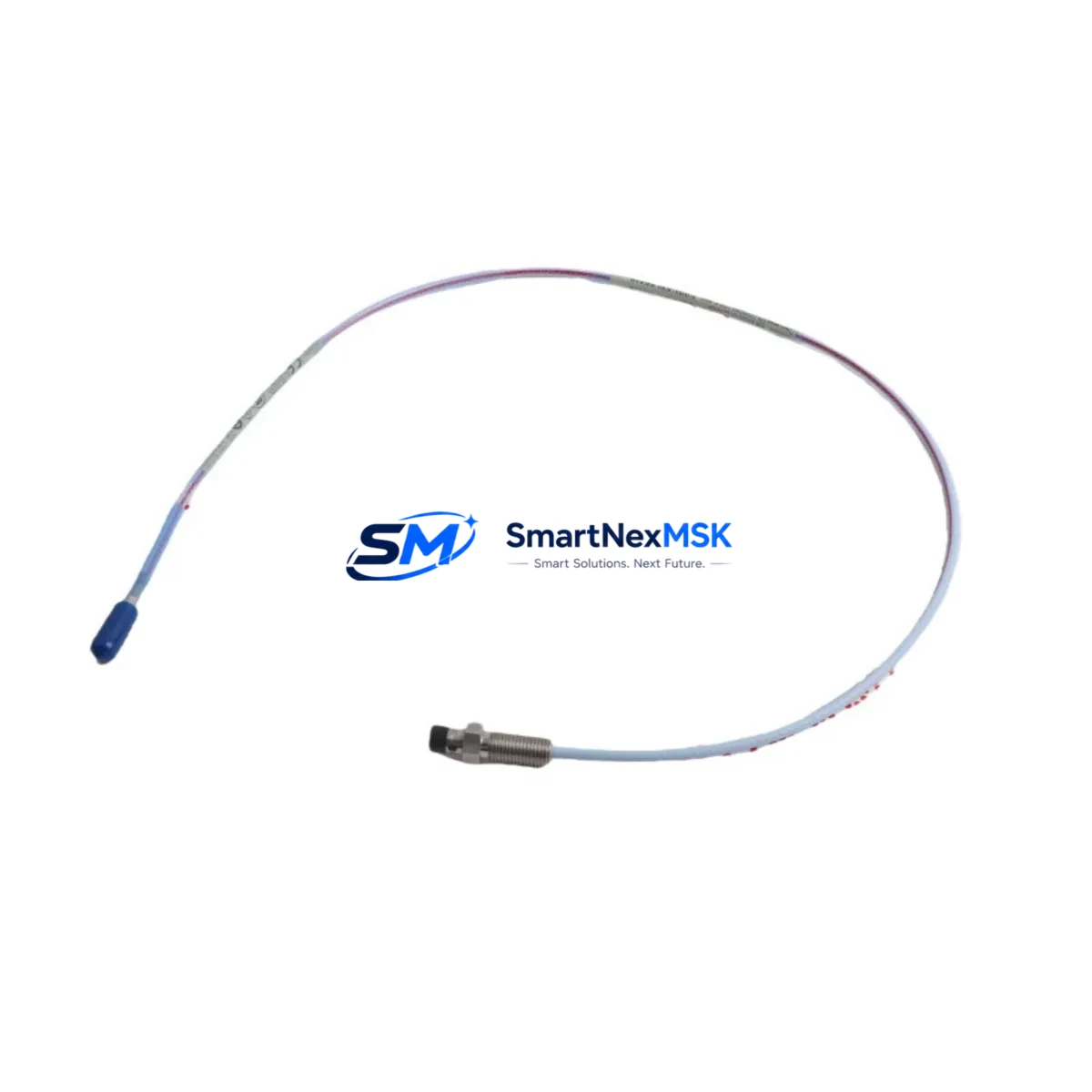

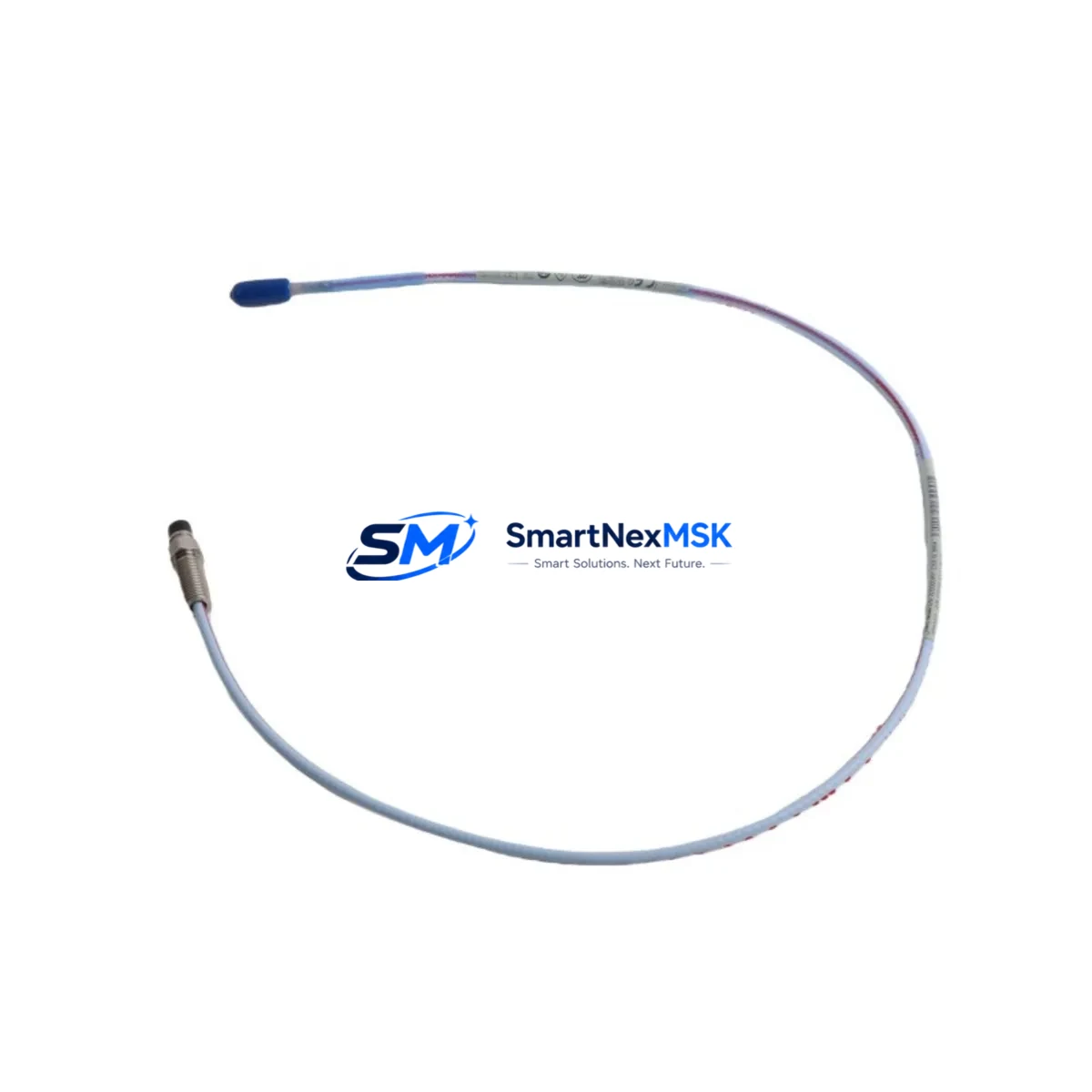

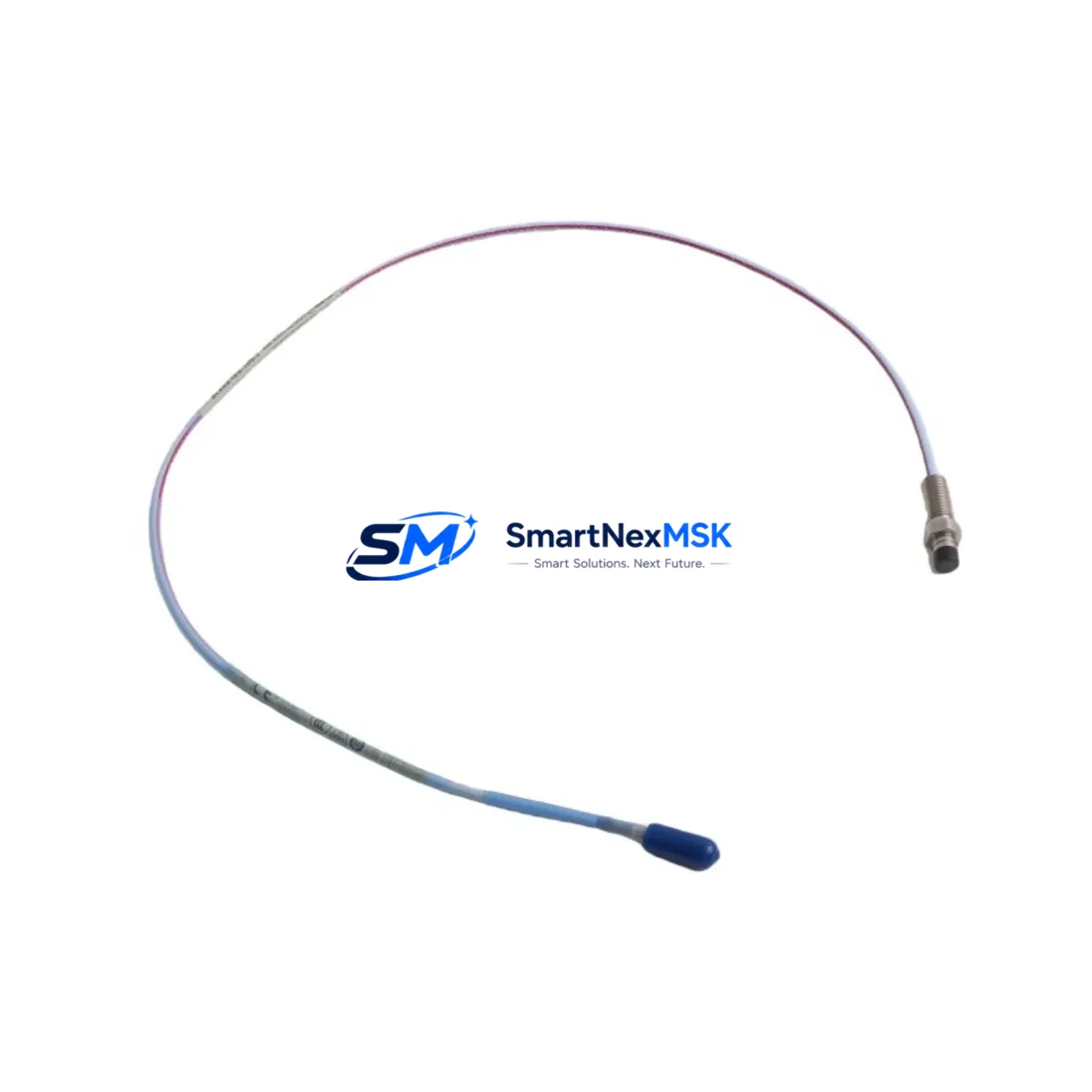

The Bently Nevada 330195-02-12-05-00 is an original eddy-current proximity probe engineered for the 3300 XL series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare component for turbines, compressors, pumps, and generators operating in demanding industrial environments. Maintaining a verified stock of this probe directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled or emergency maintenance events.

For maintenance engineers managing aging machinery or legacy Bently Nevada monitoring systems, the 330195-02-12-05-00 offers a direct, specification-matched replacement that preserves system calibration integrity. Its 5 mm tip diameter, 12-inch (305 mm) cable length, and 5 mm sensing range are factory-verified to meet 3300 XL system requirements. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing and is covered by a 12-month warranty, ensuring confidence in every replacement cycle.

Procurement engineers sourcing spare parts for long-term maintenance contracts will find this probe available for immediate dispatch, with consistent supply chain support for multi-unit orders and blanket purchase agreements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330195-02-12-05-00 proximity probe in a 3300 XL monitoring loop, a thorough site inspection should extend beyond the probe itself. Maintenance engineers should simultaneously inspect the 3300 XL extension cable (typically 5 or 9 meter lengths) for jacket abrasion, connector corrosion, or impedance drift — a degraded cable will produce erratic gap voltage even with a new probe installed. The 3300 XL proximitor/driver module (e.g., 330180-X1-05 or 330130-040-00-00) should be verified for stable -24 VDC supply and correct output scaling before the new probe is commissioned.

Within the control cabinet, check the 3300/16 or 3500/42 vibration monitor card for alarm setpoint integrity and I/O channel health. If the system feeds a DCS or safety PLC, verify that the 4–20 mA output signal isolator or signal conditioner downstream of the monitor is functioning correctly — a failed isolator can mask probe replacement success during loop testing. Inspect terminal blocks and field wiring for loose connections, especially in high-vibration environments where terminal screws can back off over time.

For systems integrated with a Bently Nevada 3500 rack, confirm that the rack’s power supply module (e.g., 3500/15) is delivering stable dual-redundant DC rails. A marginal power supply will cause intermittent probe faults that are frequently misdiagnosed as probe failures. If the installation includes a keyphasor probe (e.g., 330180-X1-00 series), verify its gap voltage and signal quality simultaneously, as keyphasor reference errors affect all vibration channels in the rack.

Procurement teams building a comprehensive spare parts kit for 3300 XL systems should consider stocking the 330130-040-00-00 proximitor, 330105-02-12-05-10-00 probe (alternative tip geometry), 3500/22M transient data interface module, and relevant 3500/42 monitor cards alongside the 330195-02-12-05-00 to ensure full loop redundancy coverage during planned outages or emergency shutdowns.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL driver supply and confirm zero voltage at the probe connector before disconnecting.

Step 2 — Gap Measurement: Record the existing probe gap voltage (typically -10.0 VDC ±0.5 V at nominal gap). This baseline confirms whether the original probe had drifted before failure.

Step 3 — Probe Removal: Unthread the 330195-02-12-05-00 from its mounting bracket. Inspect the mounting threads and bracket for wear or corrosion. Replace the bracket if thread engagement is compromised.

Step 4 — New Probe Installation: Thread the replacement probe to the OEM-specified gap distance (typically 1.0–1.5 mm from shaft surface). Use a non-conductive feeler gauge. Do not over-torque.

Step 5 — Gap Voltage Verification: Re-energize the driver and measure output voltage. Adjust probe position until gap voltage matches the calibration chart for the 3300 XL system. Target: -10.0 VDC ±0.2 V.

Step 6 — Loop Test & Monitor Confirmation: Confirm the vibration monitor card displays correct static displacement reading. Clear any latched alarms. Verify 4–20 mA output at the DCS input card if applicable.

Step 7 — Documentation: Record replacement date, new gap voltage, and probe serial number in the equipment maintenance log. Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow minimizes downtime to under 2 hours for a single-channel replacement and maintains full system compatibility without requiring recalibration of adjacent channels.

Spare Parts Support FAQ

Q1: Is the 330195-02-12-05-00 a direct drop-in replacement for older 3300 series probes?
The 330195-02-12-05-00 is designed for the 3300 XL system and is compatible with 3300 XL drivers and extension cables. It is not a direct replacement for earlier 3300 (non-XL) probes due to differences in sensitivity scaling (-7.87 V/mm for XL vs. -7.87 V/mm nominal — verify driver compatibility). Always confirm the installed driver model before ordering.

Q2: What is included in the 12-month warranty?
Each 330195-02-12-05-00 shipped by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Pre-shipment functional testing is performed on every unit. Warranty claims are supported with replacement dispatch within 5 business days of confirmed fault diagnosis.

Q3: Can I order multiple units for a blanket spare parts contract?
Yes. SMARTNEXMSK supports multi-unit orders and long-term supply agreements for the 330195-02-12-05-00 and related 3300 XL components. Volume pricing and reserved stock arrangements are available for maintenance contractors and plant engineering teams. Contact sales@smartnexmsk.com for a formal quotation.

Q4: How do I verify compatibility before installation?
Confirm the installed driver model (3300 XL proximitor), extension cable length, and monitor card type. The 330195-02-12-05-00 is rated for 5 mm sensing range with a 12-inch armored cable. Cross-reference the Bently Nevada 3300 XL system compatibility matrix or contact our technical team for pre-installation verification support.
