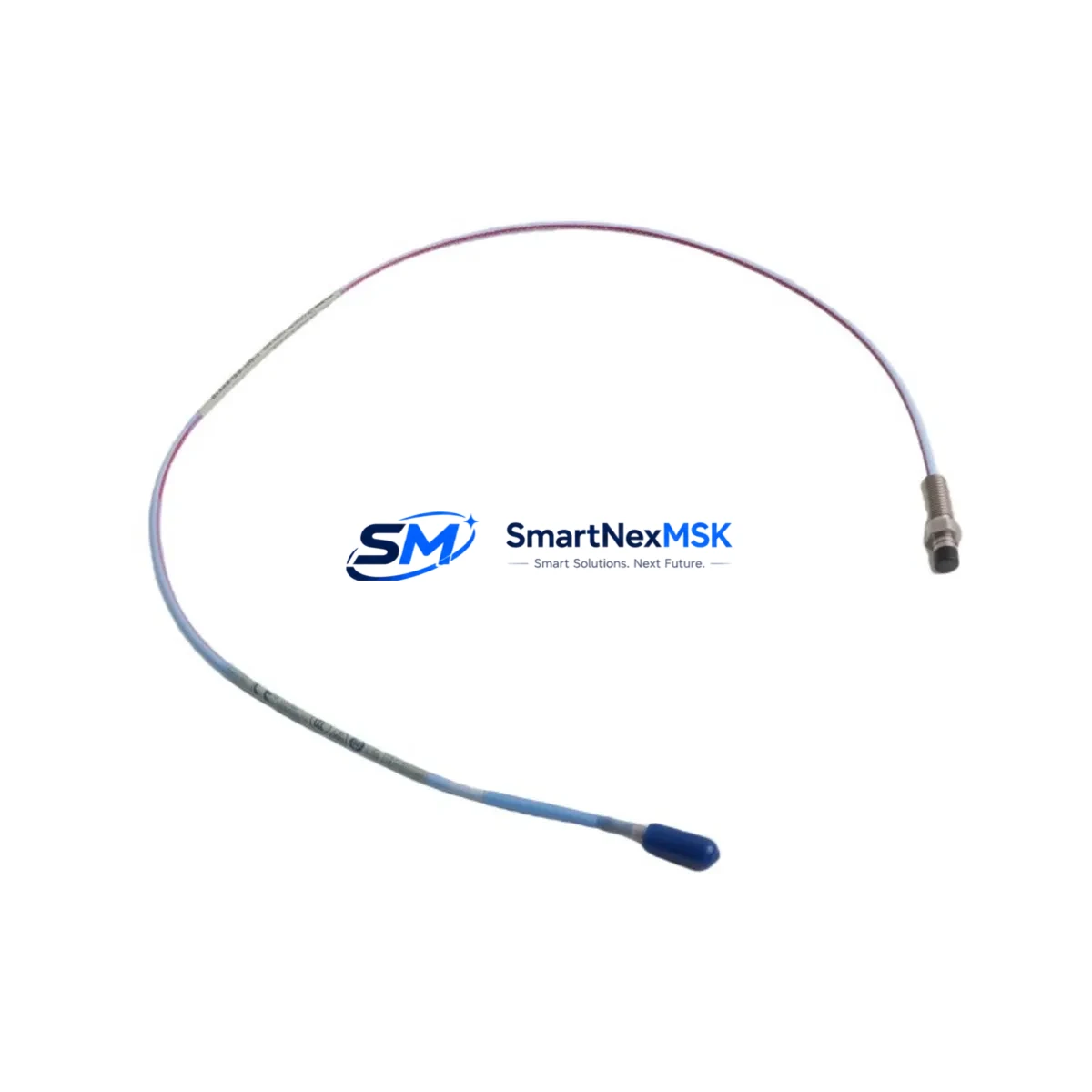

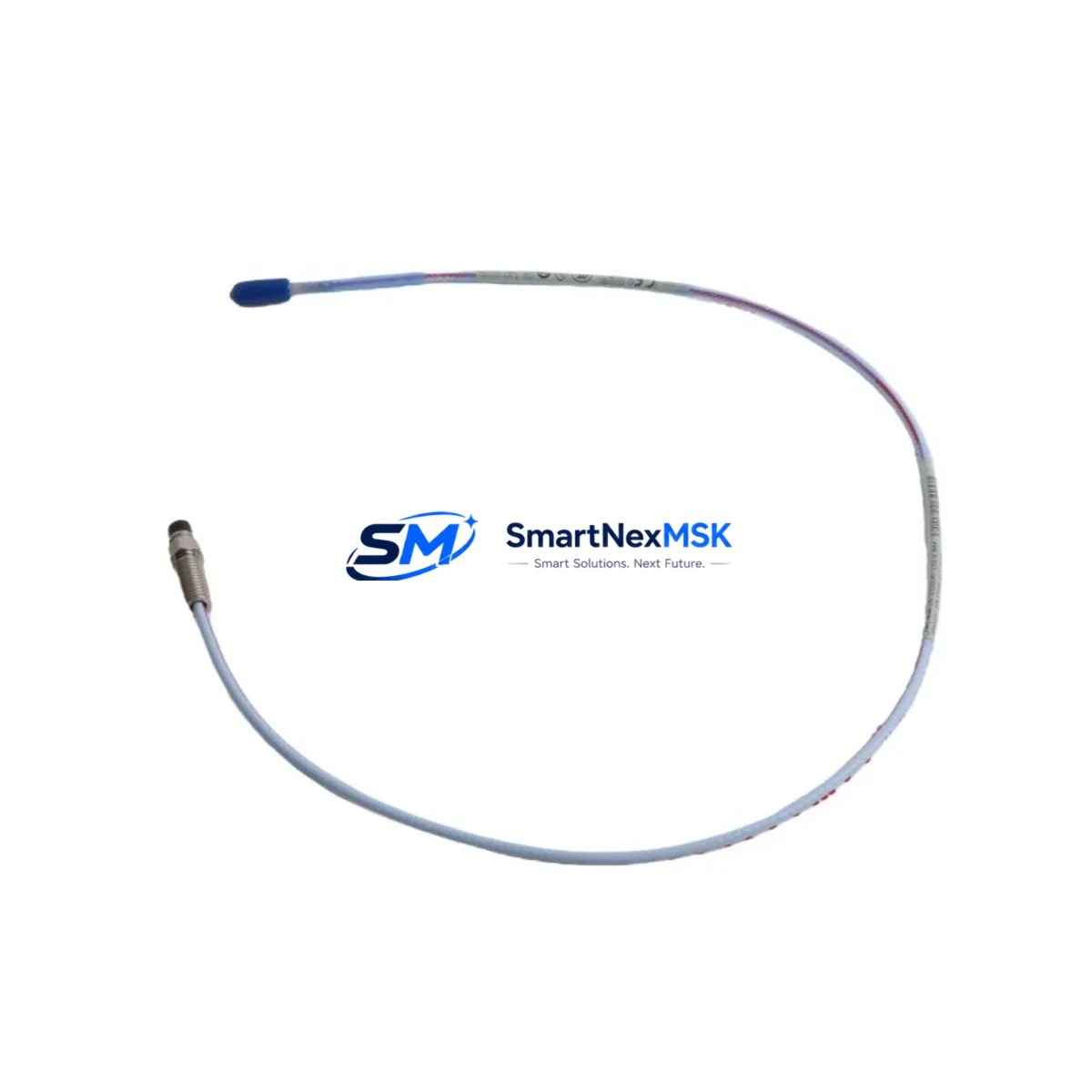

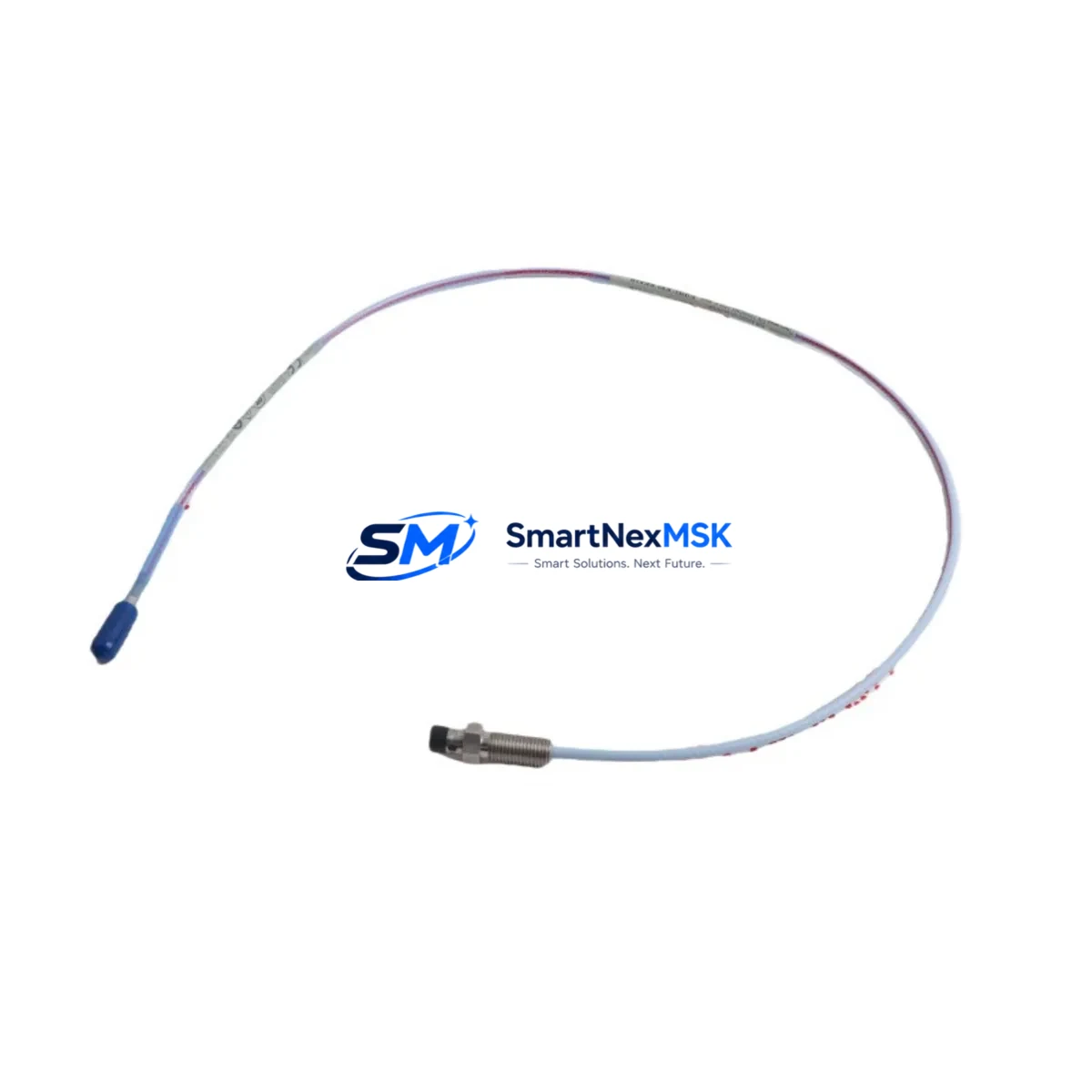

Bently Nevada 330195-02-12-10-00 Retrofit-Ready Proximity Probe for 3300 XL ETR Control Systems
The Bently Nevada 330195-02-12-10-00 is a reverse-mount eddy current proximity probe engineered for the 3300 XL Enhanced Transient Recording (ETR) system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As legacy installations age and OEM support windows close, this probe serves as a verified drop-in replacement for facilities undertaking control system modernization, machinery protection upgrades, and predictive maintenance overhauls across turbines, compressors, pumps, and gearboxes.
Whether you are replacing a failed unit on a critical asset, rebuilding a spare parts inventory, or executing a planned retrofit of an aging 3300 Series rack, the 330195-02-12-10-00 delivers the dimensional accuracy, cable length, and sensitivity specifications required for seamless integration without reprogramming the monitor or recalibrating the gap voltage.
Upgrade Compatibility Table
| Parameter | 330195-02-12-10-00 Specification | Retrofit Notes |
|---|---|---|
| Probe Type | Eddy Current, Reverse Mount | Direct replacement for same-type probes in 3300 XL ETR racks |
| Cable Length | 12 inches (probe) + 10 ft extension | Verify total system cable length matches driver calibration range |
| Target Material Compatibility | Steel, Inconel, 4140 alloy | Confirm shaft material before installation; non-standard alloys require recalibration |
| Thread / Mounting | 8mm reverse-mount thread | Compatible with standard 3300 XL ETR probe holders; no bracket modification required |
| Driver Compatibility | 3300 XL 8mm Driver (e.g., 330180-X1-05) | Must use matched driver; do not mix with 5mm driver series |
| Communication / Signal | Analog DC voltage output (–24 VDC nominal) | Compatible with 3300 XL monitor cards; no protocol conversion needed |
| Installation Gap Voltage | –10.0 VDC nominal at 50 mil gap | Verify gap with oscilloscope or Bently Nevada gap tool before commissioning |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330195-02-12-10-00 into an existing 3300 XL ETR installation requires a structured pre-retrofit assessment. Begin by auditing the current rack configuration: identify the monitor card type (typically a 3300/16 or 3300/20 Dual Voting Machinery Protection Monitor), confirm the backplane slot assignments, and document the existing channel-to-machine mapping stored in the System 1 configuration database.
The probe pairs with the Bently Nevada 330180-X1-05 8mm driver module, which must remain matched to the probe for accurate scale factor performance. If the existing driver shows signs of drift or has exceeded its calibration interval, replace both the probe and driver simultaneously to avoid introducing measurement error into the vibration channel. Extension cables — commonly the Bently Nevada 330130-045-00-00 or 330130-080-00-00 series — should be inspected for connector corrosion, jacket damage, and continuity before reuse.
For facilities migrating from older 3300/05 or 3300/10 monitor cards to the current 3300 XL ETR platform, the probe itself is mechanically and electrically compatible, but the monitor card firmware version must support ETR functionality. Confirm the firmware revision on the 3300 XL monitor card and cross-reference with the Bently Nevada firmware compatibility matrix before energizing the channel.
In multi-machine protection panels, the 330195-02-12-10-00 is frequently deployed alongside the 3300/55 Keyphasor module, which provides the once-per-revolution reference signal required for phase and speed measurements. Ensure the Keyphasor probe gap and cable routing are verified independently during the same maintenance window to avoid a second outage. I/O terminal blocks on the 3500 rack interface — if the facility is running a hybrid 3300/3500 architecture — should be checked for correct wiring polarity and shield grounding per the Bently Nevada installation manual.
Where HMI integration is involved, the System 1 Evolution software or legacy System 1 v6.x platform will automatically recognize the replacement probe channel once the gap voltage is within the linear range. No HMI screen reconfiguration is typically required unless the channel tag name or engineering unit scaling has been modified. Confirm with the control room operator that the alarm setpoints (Alert and Danger) are correctly displayed and acknowledged after the probe is commissioned.
All replacement probes are pre-shipment tested for sensitivity, linearity, and insulation resistance. A functional test report is included with each unit, supporting your site acceptance procedure and quality records.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern when replacing proximity probes on operating machinery. For facilities that cannot take the monitored machine offline, a bypass procedure using the 3300 XL monitor’s channel bypass function allows the affected channel to be placed in a non-voting state while the probe is replaced, preventing a spurious trip on the remaining channels.
Before initiating the bypass, document the current vibration baseline readings from System 1 or the local display on the 3300 XL monitor card. This baseline serves as the acceptance criterion after the new 330195-02-12-10-00 is installed and gapped. Once the probe is seated and the gap voltage confirmed at –10.0 VDC ±0.5 VDC, restore the channel from bypass and verify that the System 1 trend data resumes without alarm condition.
For planned outages, the recommended sequence is: de-energize the driver power supply at the rack terminal, remove the extension cable at the field junction box, extract the probe from the holder, install the replacement 330195-02-12-10-00, reconnect the extension cable, re-energize, and perform gap verification before releasing the channel to normal monitoring. This sequence preserves the original program logic in the monitor card and requires no changes to the 3300 XL configuration file.
Spare probe inventory management is critical for facilities with multiple 3300 XL ETR installations. Maintaining at least one 330195-02-12-10-00 per monitored machine in bonded warehouse stock reduces mean time to repair (MTTR) and supports the 12-month warranty coverage period from date of installation.
Retrofit Support FAQ
Q1: Is the 330195-02-12-10-00 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional, electrical, and sensitivity specifications as the original 330195-02-12-10-00. It is compatible with the 3300 XL ETR monitor system and the matched 8mm driver without requiring recalibration of the monitor card or modification of the System 1 configuration.
Q2: What wiring checks are required before installation?
Verify that the extension cable shield is grounded at one end only (typically at the rack), that the connector threads are clean and fully engaged, and that the driver output voltage is within the –18 VDC to –24 VDC supply range. Use a calibrated digital multimeter to confirm gap voltage at the driver output terminal before releasing the channel from bypass.
Q3: Can this probe be used with the Bently Nevada 3500 series monitors?
The 330195-02-12-10-00 is designed for the 3300 XL ETR platform. While the eddy current principle is the same, the 3500 series uses different driver modules and scale factors. Cross-platform use requires verification against the 3500 series probe/driver compatibility table and may require a new calibration certificate. Contact our technical team for application-specific guidance.
Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report. Warranty claims are processed within 5 business days upon receipt of the returned unit. Damage caused by incorrect installation gap, mechanical impact, or chemical exposure is excluded.
