Bently Nevada 330195-02-12-50-00 Spare 3300 XL ETR Automation: Maintenance-Ready Proximity Probe for Industrial Downtime Control

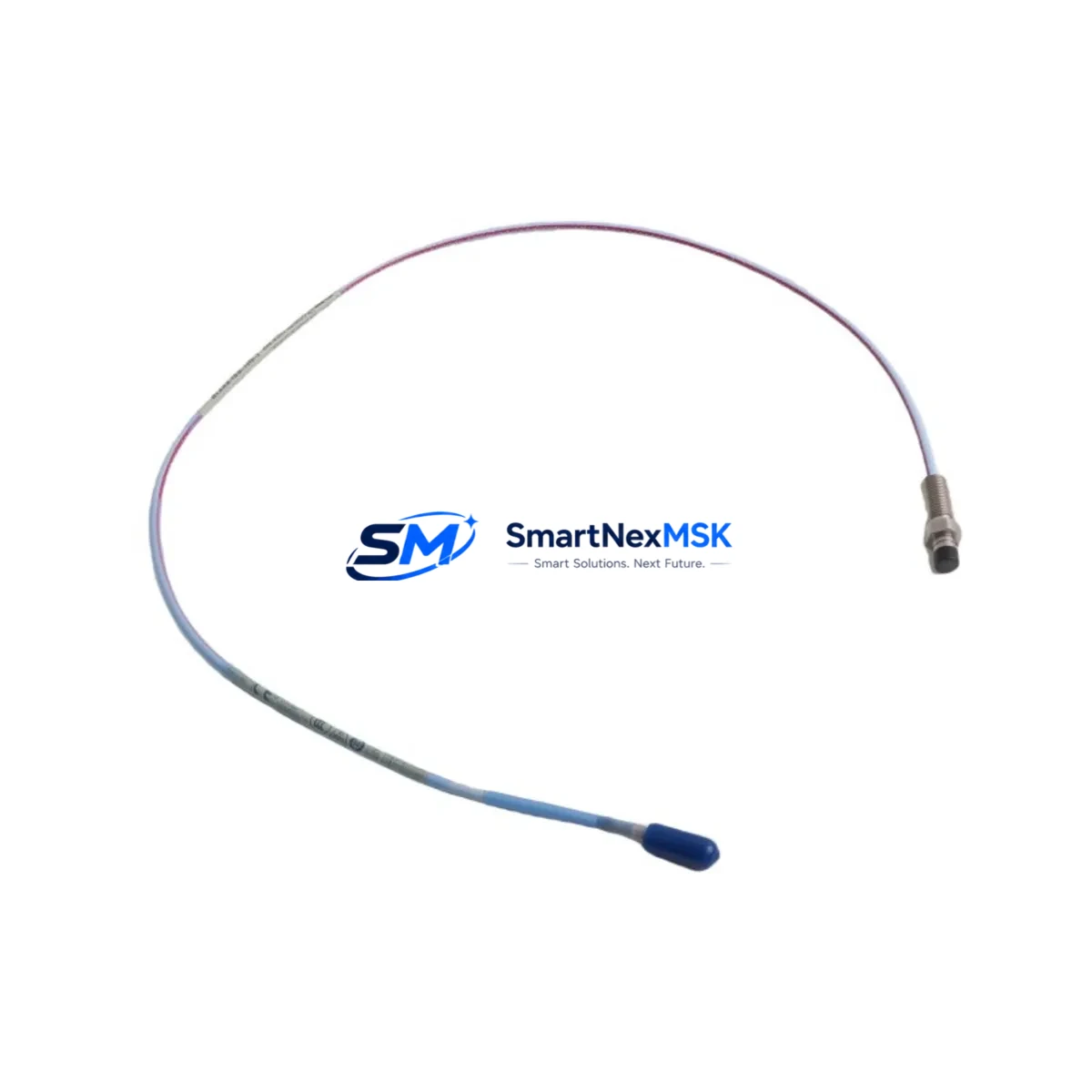

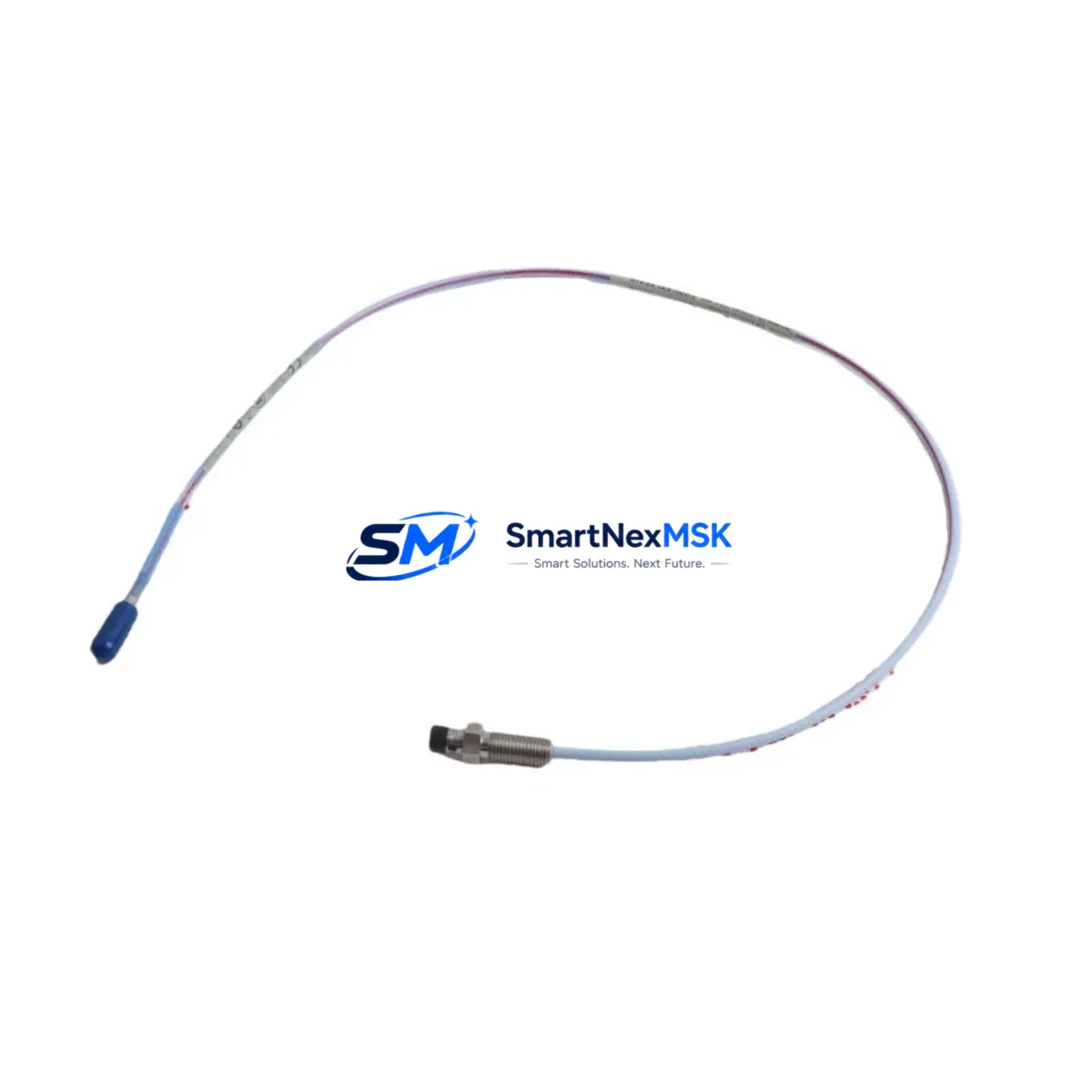

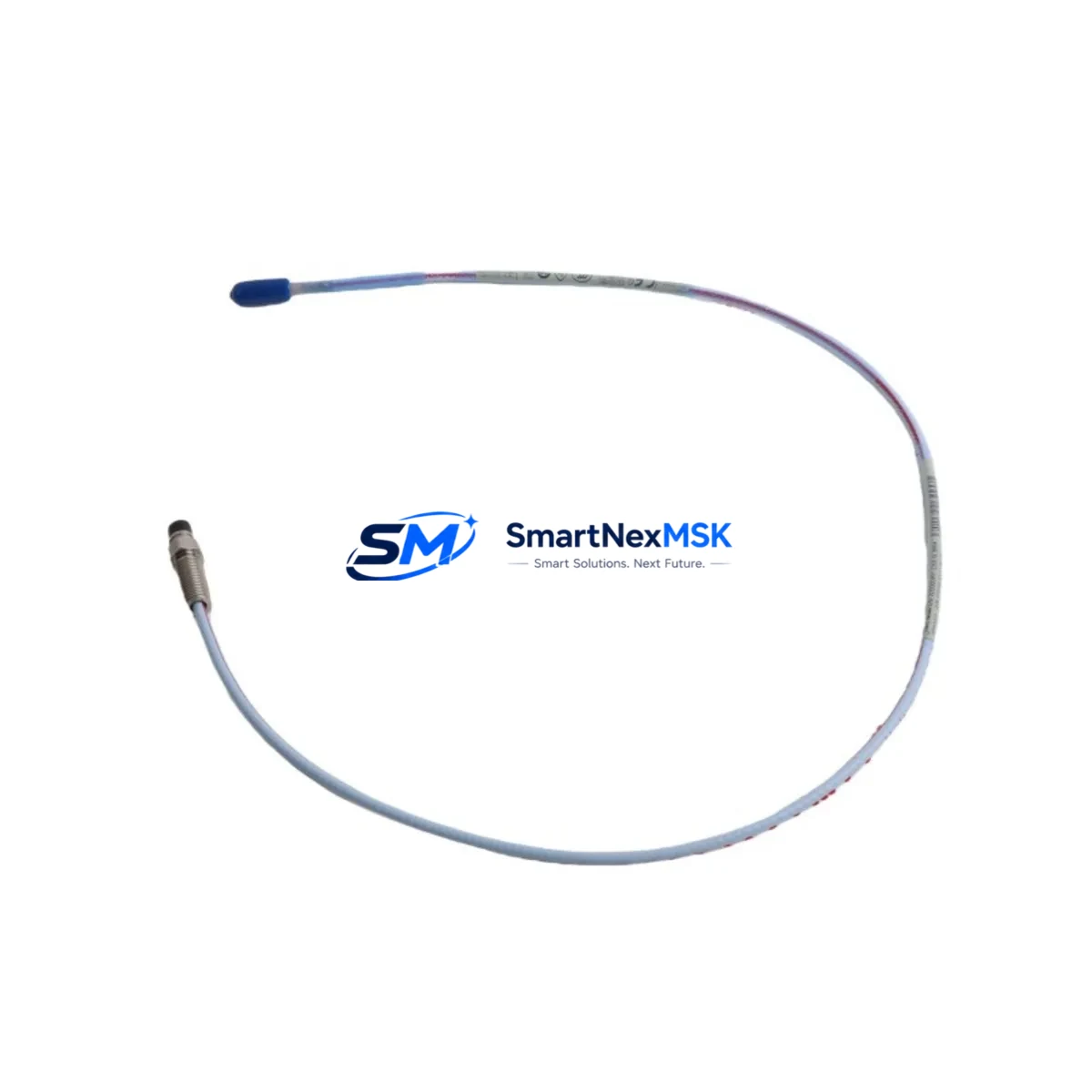

The Bently Nevada 330195-02-12-50-00 is an original proximity probe engineered for the 3300 XL Extended Temperature Range (ETR) vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare for maintenance engineers managing turbines, compressors, pumps, and generators in process-critical environments. Holding verified stock of the 330195-02-12-50-00 ensures rapid fault isolation and minimizes unplanned downtime when a probe failure is detected during routine inspection or emergency shutdown analysis.
For maintenance and procurement engineers, the 330195-02-12-50-00 represents a direct, specification-matched replacement that eliminates compatibility risk. Unlike generic alternatives, this original Bently Nevada probe maintains the calibrated sensitivity and gap voltage characteristics required by the 3300 XL ETR monitor. Every unit is tested prior to shipment and backed by a 12-month warranty, providing confidence for both planned overhauls and emergency callouts.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330195-02-12-50-00 |
| Brand | Bently Nevada |
| Series | 3300 XL ETR (Extended Temperature Range) |
| Product Type | Proximity Probe |
| Probe Length | 12 inches (305 mm) |
| Cable Length | 50 cm extension cable included |
| Tip Diameter | 8 mm standard |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature | -50°C to +177°C (ETR rated) |
| Gap Voltage Range | -2 VDC to -18 VDC |
| Supply Voltage | -24 VDC nominal |
| Compatibility | 3300 XL Monitor, 3300 XL ETR Driver, 3500 Series (with adapter) |
| Installation | Threaded tip, locknut secured, standard Bently Nevada mounting |
| Application | Shaft radial vibration, axial position, differential expansion |
| Origin | USA |
| Warranty | 12 Months |
| Pre-shipment Test | Yes — gap voltage and sensitivity verified |
Maintenance Planning for Continuous Operation
When replacing the 330195-02-12-50-00 proximity probe in a 3300 XL ETR system, a thorough maintenance inspection should extend beyond the probe itself. The 3300 XL ETR driver (such as the 330130-080-01-00 or 330180-X1-05 extension cable assembly) should be inspected for insulation damage, connector corrosion, and continuity, as a degraded cable can produce false gap voltage readings that mimic probe failure. The 3300 XL monitor card installed in the rack should be verified for correct channel configuration and alarm setpoints before the replacement probe is commissioned.
Maintenance engineers should also inspect the proximitor or driver power supply rail — typically the 3300 XL power supply module — to confirm stable -24 VDC output, since voltage fluctuations directly affect probe sensitivity and gap calibration. If the machine has been in service for more than three years, it is advisable to simultaneously inspect the 3300 XL I/O module and terminal strip connections for oxidation or loose terminations that could introduce signal noise.
For systems integrated with a DCS or safety instrumented system (SIS), the 4–20 mA output signal from the 3300 XL monitor should be loop-checked at the marshalling cabinet terminal blocks. Signal isolators or barriers in the vibration signal loop — such as those used to interface with a Yokogawa CENTUM VP or Emerson DeltaV I/O card — should be tested for correct scaling. Where the vibration data feeds into a historian or condition monitoring platform, verify that the engineering unit conversion and alarm thresholds are updated to reflect the new probe’s calibration certificate.
In control cabinets housing multiple 3300 XL channels, it is good practice to inspect adjacent probe channels, relay output modules, and the rack backplane connectors during any single-probe replacement. Fuse holders on the -24 VDC supply rail and any surge protection devices on the probe cable entry should also be checked. For older installations, consider stocking the 330130-080-01-00 extension cable and a spare 3300 XL ETR driver alongside the 330195-02-12-50-00 probe to enable complete loop replacement without a second site visit.
Site Replacement Workflow
Replacing the 330195-02-12-50-00 on-site follows a structured sequence to minimize downtime and ensure system compatibility. Begin by documenting the existing gap voltage reading and alarm status from the 3300 XL monitor before de-energizing the channel. Remove the locknut and extract the worn probe, taking care not to disturb the mounting bracket or alter the probe holder thread depth. Install the replacement 330195-02-12-50-00 and set the initial gap to the manufacturer-specified voltage (typically -10.0 VDC ±0.5 VDC at the nominal air gap of 50 mil / 1.27 mm) using a calibrated gap-setting tool.
Reconnect the extension cable and restore power to the driver. Verify the gap voltage at the proximitor output connector before reconnecting to the monitor. Once the monitor channel is re-enabled, confirm that the OK relay is energized and that the vibration reading is within the expected baseline range for the machine at rest. Update the maintenance log with the replacement date, new probe serial number, and measured gap voltage. This workflow supports a typical replacement time of under 90 minutes for a trained technician, significantly reducing mean time to repair (MTTR) compared to sourcing a probe reactively during an unplanned outage.
For legacy machinery where the original 3300 XL ETR system is no longer in production support, the 330195-02-12-50-00 remains a viable long-term spare strategy. Its compatibility with the 3500 series monitor (using the appropriate driver and cable assembly) also provides a migration path for system upgrades without requiring immediate full-system replacement, extending the operational life of existing rotating machinery protection infrastructure.
Spare Parts Support FAQ
Q1: Is the 330195-02-12-50-00 compatible with both the 3300 XL and 3500 series monitors?
The 330195-02-12-50-00 is natively designed for the 3300 XL ETR system. Compatibility with the 3500 series requires the correct driver and extension cable assembly to match the 3500 monitor’s input specifications. We recommend confirming the driver part number before ordering for a 3500 series application.
Q2: How is the probe tested before shipment?
Every 330195-02-12-50-00 unit undergoes pre-shipment electrical verification including gap voltage output, sensitivity check, and insulation resistance test. A test report is available upon request. This ensures the probe is ready for immediate installation upon receipt.
Q3: What is the recommended spare parts inventory strategy for the 3300 XL ETR system?
For critical rotating machinery, we recommend holding a minimum of one 330195-02-12-50-00 probe, one matched extension cable assembly, and one spare 3300 XL ETR driver per monitored machine train. For plants with multiple identical trains, a shared pool of two to three probe assemblies per series is a common industry practice to balance inventory cost against downtime risk.
Q4: What warranty and after-sales support is provided?
All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. In the event of a warranty claim, we provide rapid replacement dispatch to minimize impact on your maintenance schedule. Contact our technical team for compatibility verification, application support, or expedited delivery requirements.
