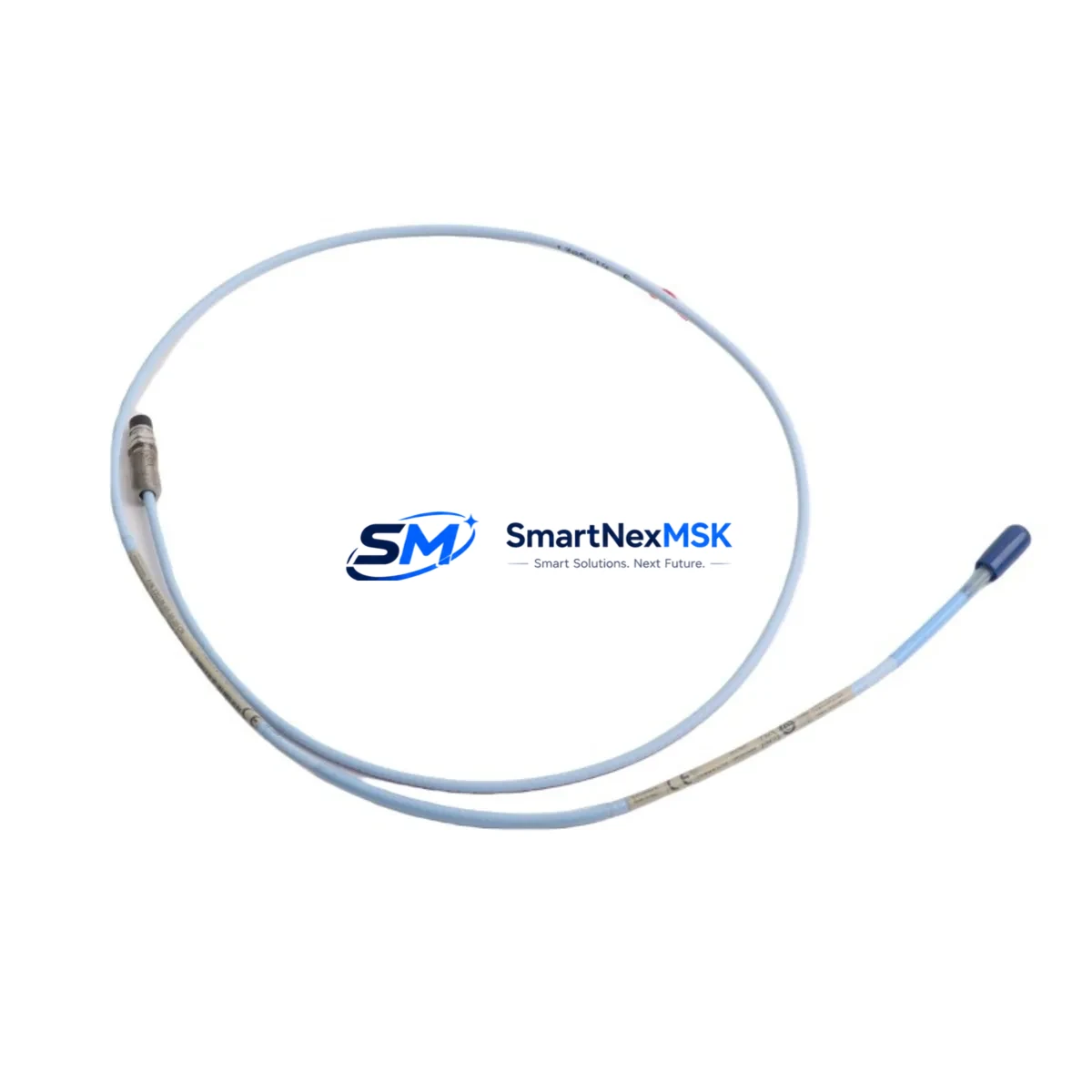

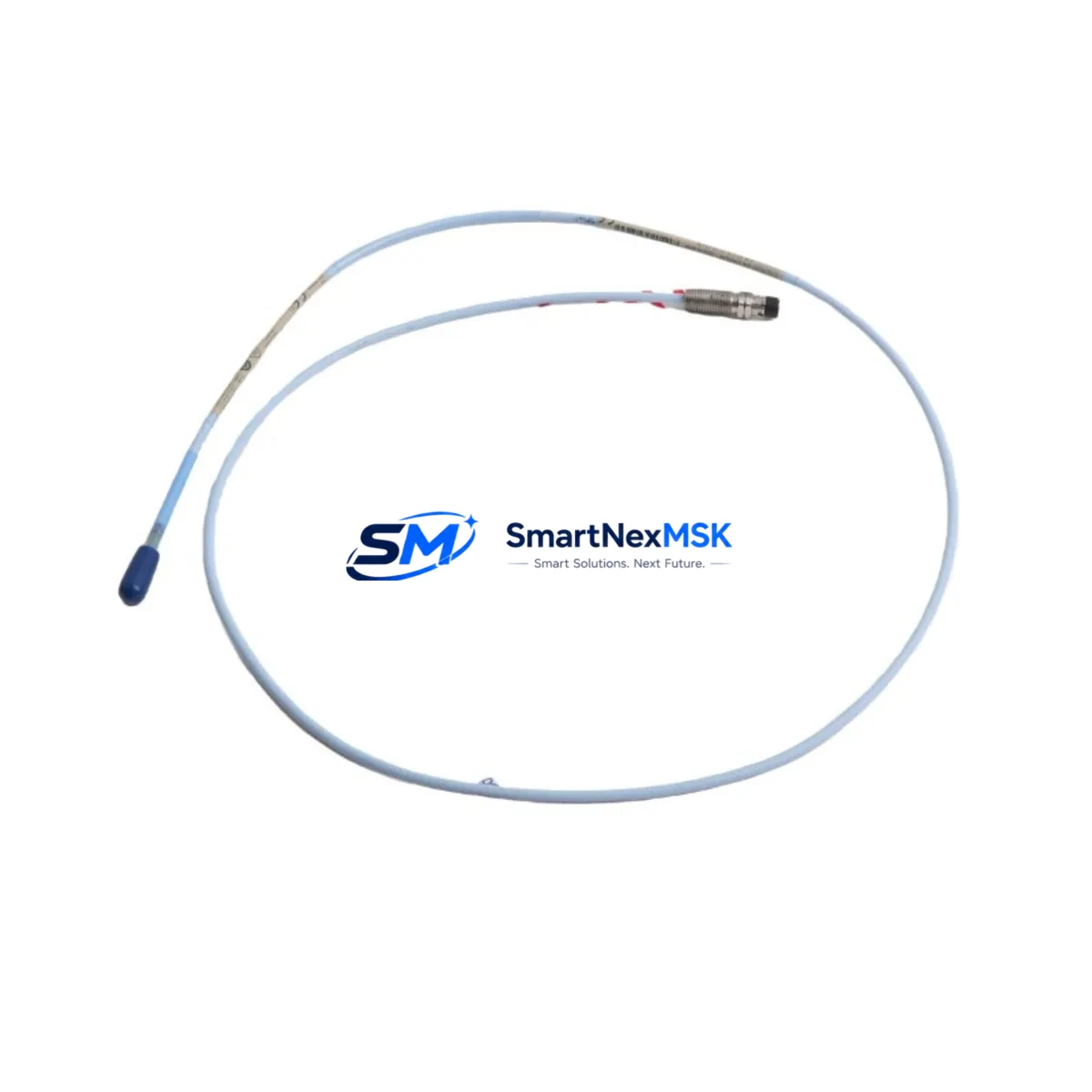

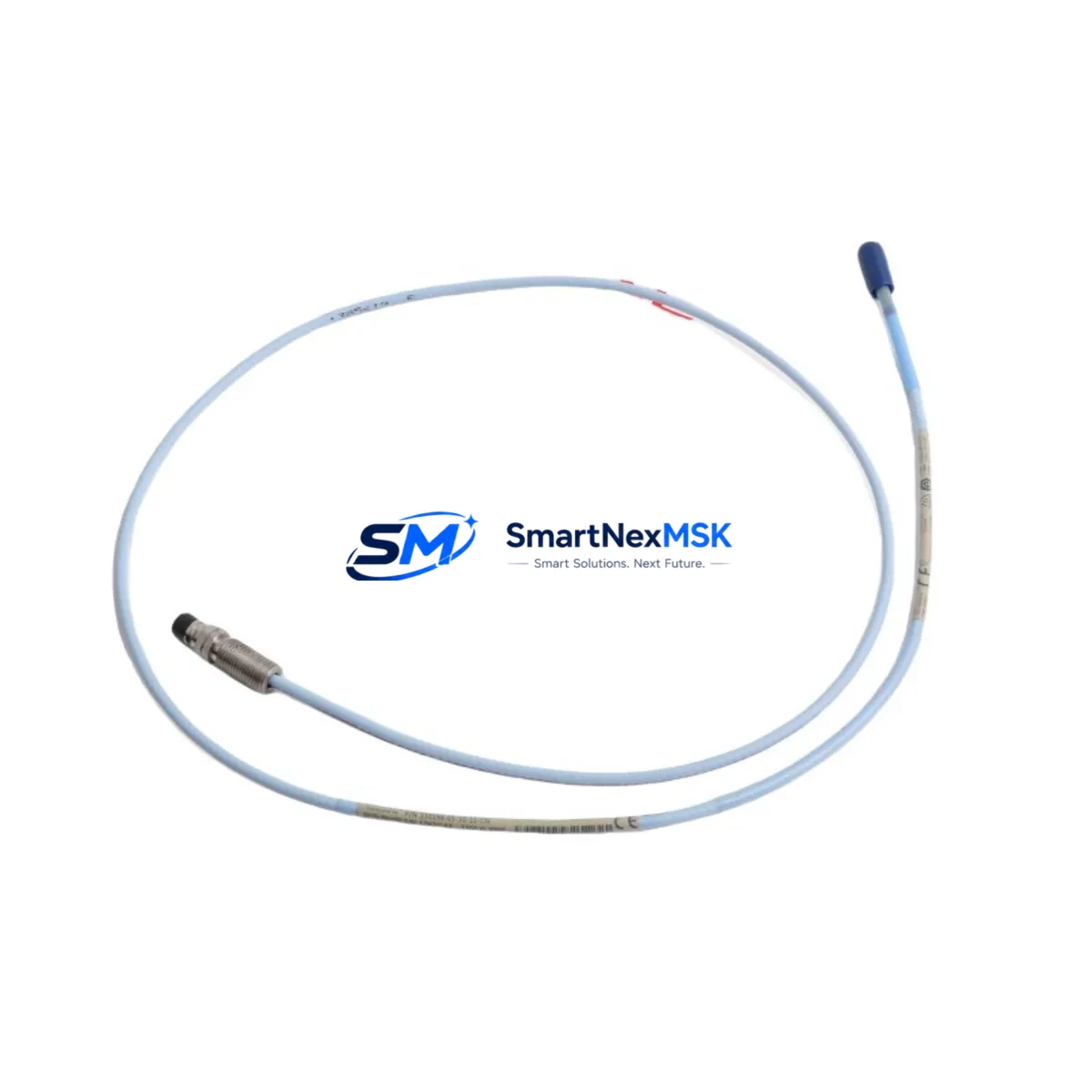

Bently Nevada 330196-05-30-50-00 Retrofit-Ready ETR Probe for 3300 XL Control Systems
The Bently Nevada 330196-05-30-50-00 is an ETR (Extended Temperature Range) Reverse Mount Proximity Probe engineered for the 3300 XL vibration monitoring platform. Designed to deliver reliable, non-contact displacement measurement in rotating machinery applications, this probe is a direct retrofit solution for facilities operating legacy Bently Nevada 3300 and 3500 Series monitoring systems. Whether you are replacing a failed sensor, upgrading an aging control cabinet, or migrating from an obsolete 3300 architecture to a modernized 3300 XL framework, the 330196-05-30-50-00 provides a verified drop-in fit with minimal re-engineering.
Industrial facilities running turbines, compressors, pumps, and gearboxes depend on continuous vibration data to prevent catastrophic failure. When a proximity probe fails or reaches end-of-life, the replacement window is narrow. The 330196-05-30-50-00 is stocked and tested to support rapid deployment, with a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional verification to confirm output sensitivity, gap voltage linearity, and cable integrity before leaving our facility.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330196-05-30-50-00 |
| Brand | Bently Nevada |
| Series Compatibility | 3300 XL, 3300, 3500 (with adapter verification) |
| Probe Type | ETR Reverse Mount Proximity Probe |
| Mounting Style | Reverse Mount (tip-to-target, reverse cable exit) |
| Cable Length | 5 m (extension cable: 330130-045-00-CN or equivalent) |
| Connector Interface | Standard 3300 XL coaxial connector — compatible with 3300 XL Proximitor® Sensor |
| Installation Requirement | Verify probe gap voltage (typically –10 VDC at nominal gap); confirm target material (steel preferred) |
| Communication / Signal | Analog voltage output; integrates with 3300 XL monitor rack via standard coaxial cabling |
| Replacement Recommendation | Direct replacement for failed or end-of-life 330196-05-30-50-00 units; verify Proximitor® driver compatibility |
| Commissioning Focus | Gap setting, sensitivity calibration, alarm setpoint verification in System 1 or equivalent software |
| Warranty | 12 Months — covers manufacturing defects and functional performance |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe in a live production environment requires careful pre-work to avoid extended downtime. Before removing the failed 330196-05-30-50-00, technicians should document the existing gap voltage reading, cable routing, and junction box termination points. The 3300 XL Proximitor® Sensor (typically a 330180 or 330185 series driver) must be confirmed compatible with the replacement probe’s sensitivity specification (7.87 V/mm or 200 mV/mil). If the existing Proximitor® is also aged or suspect, replacing it alongside the probe during the same maintenance window eliminates a second unplanned outage.
In retrofit projects involving a full rack upgrade, the 3300 XL 16-Channel Monitor and associated 3300 XL I/O Module should be inspected for firmware currency. Facilities migrating from older Bently Nevada 3300 Non-XL racks will need to verify backplane connector pinouts, as the XL series introduced revised I/O addressing. The 3500/42M Proximitor® Monitor is a common upgrade target for sites moving from 3300 to 3500 architecture, and the 330196-05-30-50-00 probe is compatible with both platforms when the correct driver is selected.
Cable management is a frequent oversight in probe retrofits. The existing 330130 series extension cable should be inspected for jacket integrity, connector corrosion, and shield continuity. A damaged extension cable will introduce noise into the vibration signal and produce false alarms or missed trips. If the junction box contains a 3300 XL Termination Block, verify that terminal torque specifications are met after reconnection. For installations in high-temperature zones, confirm that the ETR rating of the 330196-05-30-50-00 is appropriate for the ambient conditions at the probe mounting location.
Sites operating GE System 1 or Bently Nevada System 1 Evolution condition monitoring software should update the channel configuration to reflect the replacement probe’s serial number and calibration data. HMI screens tied to vibration trend displays should be verified post-commissioning to confirm that gap voltage, direct vibration, and 1X/2X vector readings are populating correctly. If the facility uses a DCS integration via Modbus or FOUNDATION Fieldbus through a 3500/92 Communication Gateway, confirm that the data mapping remains intact after the probe swap.
Downtime Control During System Migration
Minimizing production downtime during a proximity probe replacement begins with pre-staging. The 330196-05-30-50-00 should be on-site and bench-verified before the maintenance window opens. Use a Bently Nevada 330980 Field Calibration Kit or equivalent to confirm probe output at a known gap distance before installation. This eliminates the risk of discovering a transit-damaged unit after the machine is already offline.
Where process conditions allow, a temporary bypass of the vibration trip channel — with appropriate management of change documentation — permits the machine to remain online while the probe is replaced. Once the new 330196-05-30-50-00 is installed and gapped, restore the trip channel and verify alarm setpoints before returning the machine to full load. For critical turbine or compressor applications, a second technician should monitor the 3300 XL rack display or System 1 trend screen in real time during the gap-setting procedure to catch any signal anomalies immediately.
Program logic in the associated PLC or DCS controller — whether a GE Fanuc, Rockwell ControlLogix, or Siemens S7 platform — should not require modification for a like-for-like probe replacement. However, if the retrofit involves a change in probe sensitivity or cable length, the Proximitor® scale factor in the monitor configuration must be updated to maintain accurate engineering unit conversion. Retaining the original program backup before any configuration change is mandatory practice.
Retrofit Support FAQ
Q1: Is the 330196-05-30-50-00 a direct drop-in replacement for my existing 3300 XL proximity probe?
Yes, provided your existing installation uses a standard 3300 XL Proximitor® driver and the probe mounting thread and cable exit orientation match the reverse-mount configuration. Confirm the gap voltage specification and target material before installation. If your existing probe is a non-ETR variant, the 330196-05-30-50-00 ETR version is backward compatible in most ambient temperature ranges.
Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, set the probe gap to achieve the nominal –10 VDC output (verify against your specific Proximitor® driver datasheet). Confirm signal continuity through the extension cable and termination block. In System 1 or your monitor’s front-panel display, verify that direct vibration, gap DC, and vector readings are within expected ranges before re-enabling the vibration trip channel.
Q3: Can this probe be used in a 3500 Series rack as part of a 3300-to-3500 migration?
The 330196-05-30-50-00 probe is compatible with 3500 Series Proximitor® monitors when the driver sensitivity specification matches. During a 3300-to-3500 migration, the primary changes occur at the monitor and I/O module level — the probe and extension cable typically carry over without modification. Verify the 3500/42M or 3500/40M monitor configuration accepts the probe’s output range.
Q4: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. Each unit is pre-shipment tested for output sensitivity, gap voltage linearity, and cable integrity. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement or repair will be coordinated promptly to minimize your system downtime.
