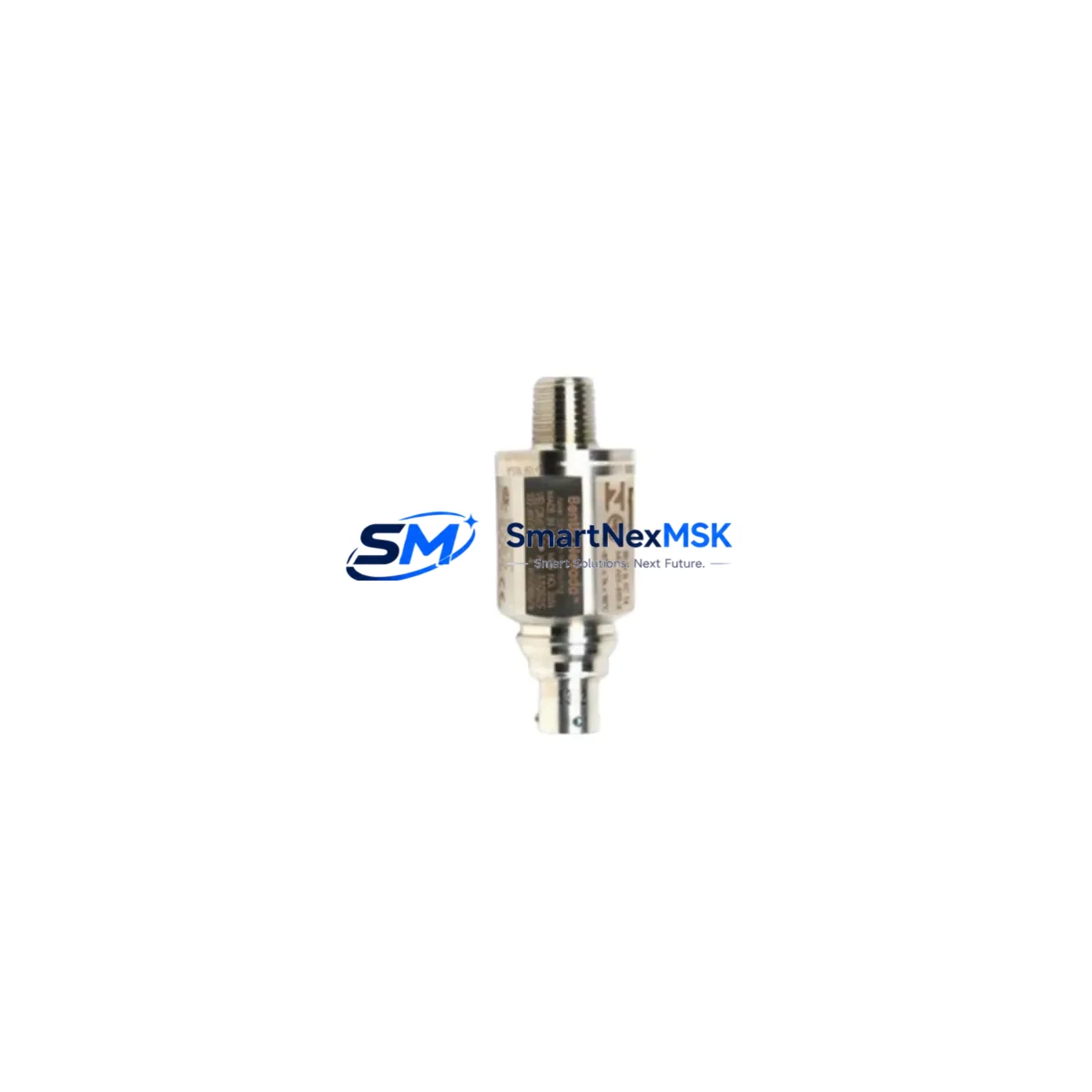

Bently Nevada 330525-CN Retrofit-Ready Proximity Sensor for 3300 XL

Bently Nevada 330525-CN Retrofit-Ready Proximity Sensor for 3300 XL Control Systems

The Bently Nevada 330525-CN is an eddy-current proximity sensor engineered for seamless integration into 3300 XL Series vibration monitoring systems. As legacy machinery continues to operate well beyond its original design life, the demand for reliable, drop-in replacement components has never been greater. The 330525-CN addresses this need directly — offering plant engineers and maintenance teams a verified, retrofit-ready solution that eliminates the risk of extended downtime caused by obsolete or unavailable original parts.

Whether you are managing a planned upgrade of an aging turbomachinery protection system, responding to an unplanned failure of a discontinued proximity probe, or executing a phased migration from an older Bently Nevada 3300 platform to a more current architecture, the 330525-CN provides the dimensional, electrical, and signal compatibility required to restore full system functionality with minimal intervention.

This sensor is designed to work within the standard 3300 XL Series signal conditioning chain. It interfaces directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor driver, maintaining the same gap voltage characteristics and output sensitivity (200 mV/mil, 7.87 V/mm) as the original factory specification. Engineers replacing worn or failed probes in existing installations can reuse existing cable runs, conduit paths, and terminal block wiring without modification, provided the extension cable length and driver module remain within the original system design parameters.

Before completing a retrofit using the 330525-CN, the following verification steps are recommended. First, confirm that the existing Proximitor driver — typically a 3300 XL 8mm Proximitor or equivalent — is rated for the same probe series and has not drifted beyond calibration tolerance. Second, verify the power supply feeding the monitoring rack: the 3300 XL system typically requires a regulated –24 VDC supply, and any degradation in the rack power module, such as the 3300 XL Power Supply, can introduce measurement offset errors that are incorrectly attributed to the probe itself. Third, inspect the terminal block connections at the junction box and at the monitor module input — corroded or loose terminals are a common source of signal noise in long-installed systems.

For installations where the original monitor module has also been flagged for replacement, the 330525-CN is compatible with the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor/Seismic Monitor, both of which accept standard 3300 XL Series probe inputs when configured appropriately. If the migration path involves moving from a 3300 XL rack to a 3500 Series rack, the probe itself does not need to change — only the extension cable length and Proximitor driver selection may require adjustment based on the new gap range and target material.

In control cabinet upgrade projects, the 330525-CN is frequently deployed alongside the 3300 XL 5mm Proximity Transducer System for radial vibration channels and the 3300 XL Thrust Position Transducer for axial displacement monitoring. When both radial and axial channels are being refreshed simultaneously, coordinating the probe replacement with a rack-level reconfiguration — including updating the 3500 Framework software configuration file — ensures that channel assignments, alert setpoints, and danger thresholds are correctly mapped to the new hardware without requiring a full system re-commissioning.

Communication protocol continuity is another critical consideration during system migration. Many 3300 XL installations communicate with the plant DCS or SCADA system via Modbus RTU or a proprietary Bently Nevada data link. When upgrading the monitor rack while retaining the existing probe infrastructure, verify that the new monitor module’s communication configuration matches the existing register map. Mismatched Modbus addresses or baud rate settings are a common cause of post-upgrade alarm failures that are difficult to diagnose without access to the original system documentation.

HMI screen updates should also be planned as part of any probe or monitor replacement project. If the plant uses an Operator Interface Terminal or a SCADA display configured to show vibration trend data from specific channel addresses, any change in rack slot assignment or monitor module type may require corresponding updates to the HMI tag database. This is particularly relevant when migrating from a 3300 XL rack to a 3500 Series rack, where the data communication architecture differs significantly.

All 330525-CN units supplied by SMARTNEXMSK are subject to pre-shipment functional testing, including gap voltage linearity verification and output sensitivity confirmation. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown situations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. For 3300 XL Series installations, the first step is a full audit of the existing probe, extension cable, and Proximitor driver assembly. The 330525-CN probe body must be paired with the correct 3300 XL 8mm Extension Cable — available in standard lengths of 5m, 9m, and 15m — to maintain the system’s calibrated gap range. If the existing extension cable shows signs of jacket damage, connector corrosion, or impedance drift, it should be replaced simultaneously with the probe to avoid introducing a new fault source into the repaired channel.

The Proximitor driver module — whether a standalone 3300 XL Proximitor or a channel card within a 3500 Series monitor rack — should be inspected for output voltage stability before the new probe is installed. A driver module that has drifted from its factory calibration will produce incorrect gap readings even with a new, fully functional probe. In multi-channel racks, it is common practice to replace the probe and recalibrate the driver simultaneously to ensure the channel is returned to a known-good baseline.

For control cabinets that house both vibration monitoring and process control equipment, the retrofit plan should account for the physical layout of the rack. The 3300 XL rack accepts standard DIN-rail mounted modules, and the replacement of a probe does not typically require rack reconfiguration. However, if the project scope includes adding I/O capacity — for example, adding a 3500/20 Rack Interface Module to support additional communication channels — the rack slot assignment must be updated in the system configuration software before the new hardware is powered on.

Terminal block wiring at the field junction box is another area that requires careful attention. The 330525-CN uses the same three-wire connection scheme (power, common, output) as the original 3300 XL probe, so existing terminal assignments can be retained. However, it is good practice to inspect each terminal for tightness and corrosion, particularly in installations where the junction box is exposed to moisture or chemical vapors. Loose terminals are a leading cause of intermittent vibration signal faults that are difficult to reproduce during commissioning but recur under operating conditions.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any probe replacement or system migration project. For rotating machinery protected by a 3300 XL Series monitoring system, the replacement of a single proximity probe channel can typically be completed within a two-hour maintenance window, provided all replacement components — including the 330525-CN probe, extension cable, and any required connector hardware — are on-site and pre-tested before the machine is taken offline.

To protect the original program logic during a monitor module replacement, the existing configuration file should be exported from the 3500 Framework software before any hardware changes are made. This file contains all channel assignments, alert and danger setpoints, time delays, and communication parameters. Restoring this configuration to the new monitor module after installation ensures that the system returns to its pre-outage operating state without requiring manual re-entry of setpoint data, which is a significant source of commissioning errors in time-pressured situations.

For sites where continuous monitoring is required during the replacement process, a temporary bypass relay or a portable vibration analyzer can be used to maintain surveillance on the affected channel while the permanent probe is being replaced. This approach is particularly valuable for critical machinery where the protection system interlock cannot be defeated without a formal management of change process. Once the 330525-CN is installed and the channel has been verified against the adjacent channels and the machine’s historical baseline, the bypass can be removed and the channel returned to normal protection service.

Field commissioning of the 330525-CN follows the standard 3300 XL gap-setting procedure: with the machine stationary, adjust the probe gap to achieve the target gap voltage (typically –10 VDC for an 8mm probe at the nominal gap), then verify the output linearity across the full measurement range before releasing the machine for restart. Document the as-found and as-left gap voltages for the maintenance record.

Retrofit Support FAQ

Q: Is the 330525-CN a direct replacement for the original Bently Nevada 330525-CN, or does it require recalibration after installation?
A: The 330525-CN supplied by SMARTNEXMSK is manufactured to the original Bently Nevada specification and is a direct drop-in replacement. No recalibration of the Proximitor driver is required provided the extension cable length and target material are unchanged. A gap voltage verification is recommended as part of standard commissioning practice.

Q: Can the 330525-CN be used with a 3500 Series monitor rack, or is it limited to 3300 XL racks?
A: The 330525-CN is compatible with both 3300 XL and 3500 Series monitor racks when paired with the appropriate Proximitor driver. For 3500 Series installations, confirm that the 3500/40M or 3500/42M monitor module is configured for 8mm probe input and that the gap range setting matches the probe’s calibrated output.

Q: What documentation is included with each 330525-CN shipment?
A: Each unit ships with a pre-shipment functional test report confirming gap voltage linearity and output sensitivity. A 12-month warranty certificate is included. Installation and wiring documentation is available upon request.

Q: How quickly can the 330525-CN be shipped for an emergency breakdown situation?
A: SMARTNEXMSK maintains stock of the 330525-CN for immediate dispatch. Emergency orders received before the daily shipping cutoff are typically dispatched the same business day. Contact [email protected] or +86 18259474341 for urgent requirements.
