Bently Nevada 330701-00-050-10-12-05 Retrofit-Ready Proximity Probe

Bently Nevada 330701-00-050-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

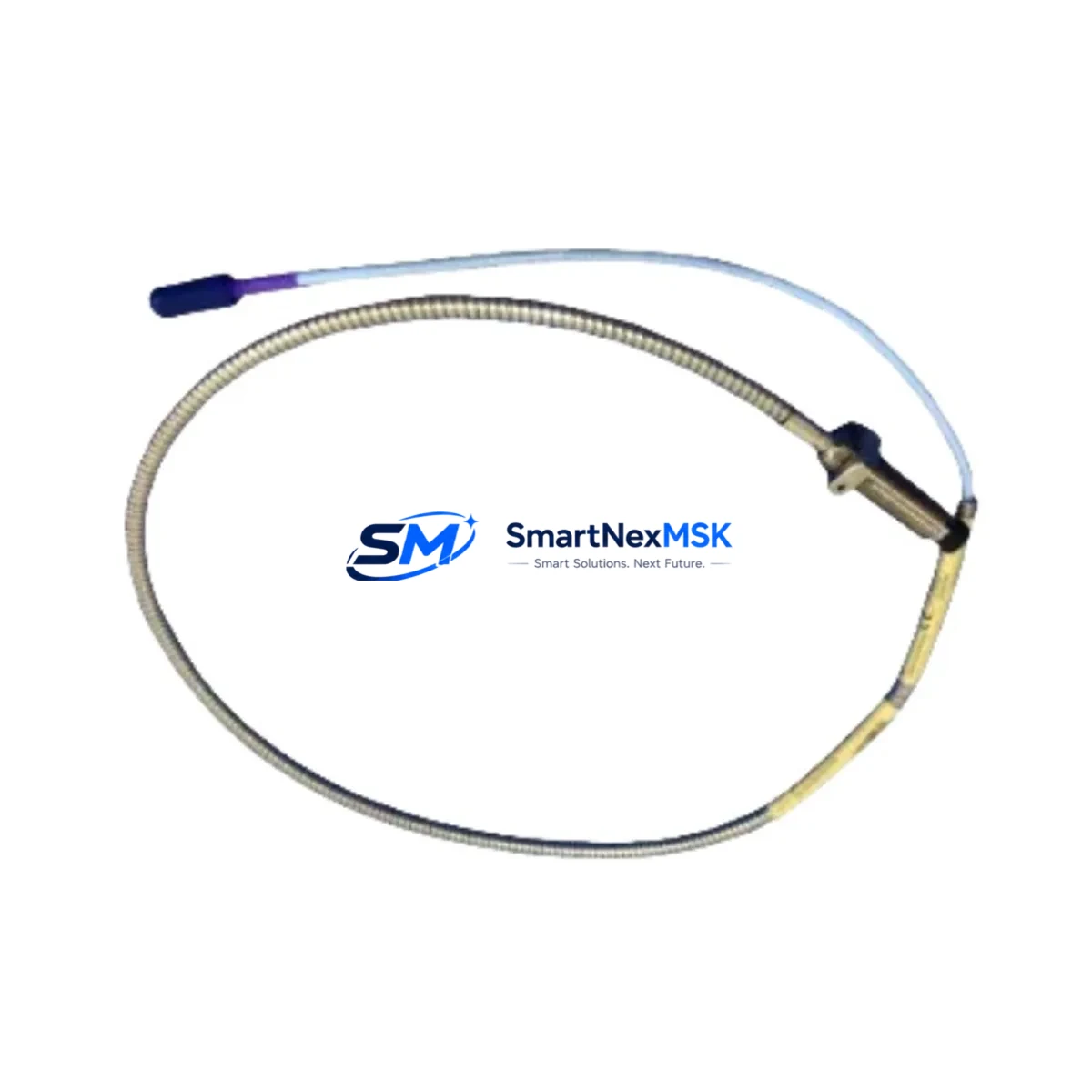

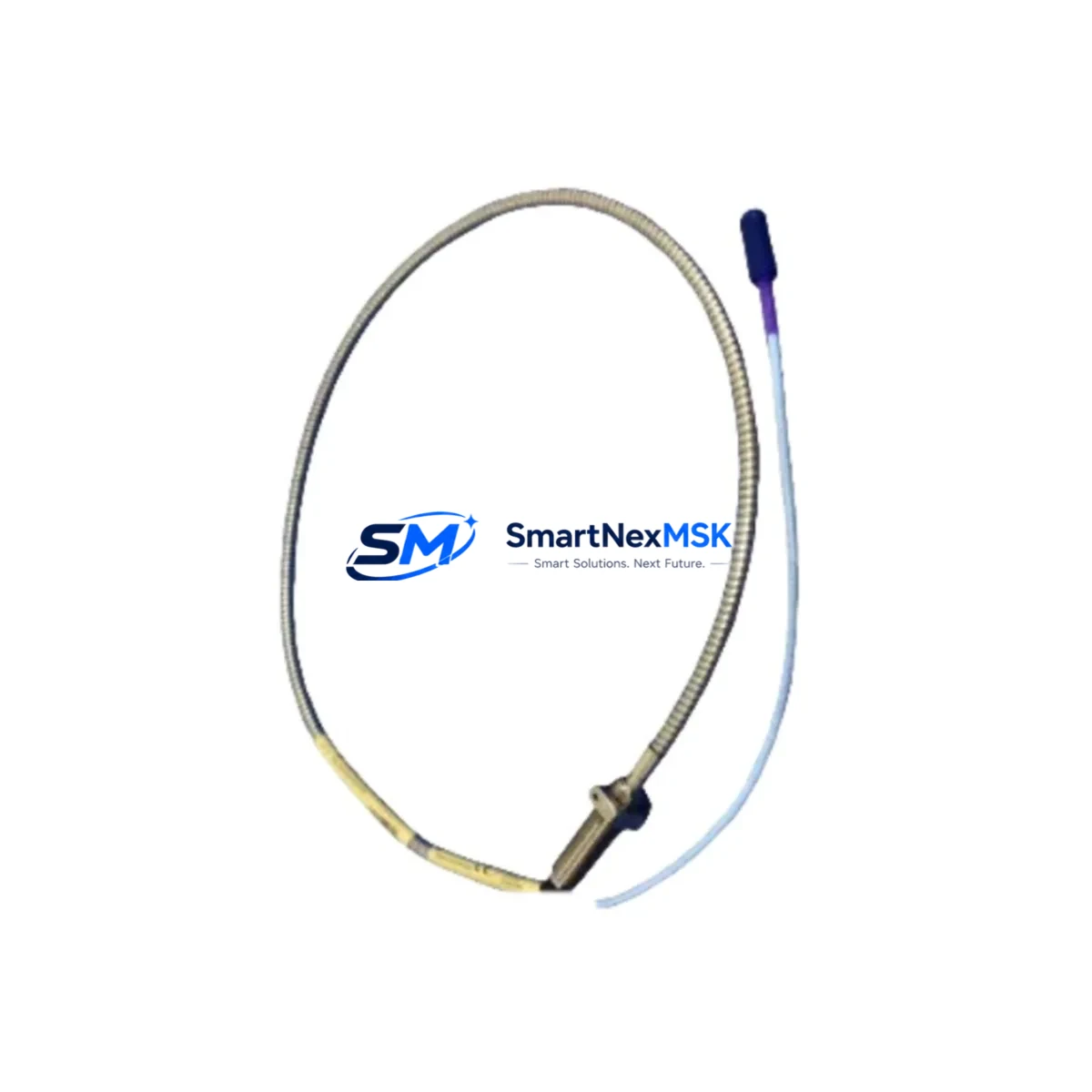

The Bently Nevada 330701-00-050-10-12-05 is a 5mm eddy current proximity probe engineered for seamless compatibility with the Bently Nevada 3300 XL Series vibration monitoring platform. Designed to serve as a direct retrofit replacement for aging or discontinued probe assemblies, this unit supports legacy machinery protection systems without requiring reprogramming, rewiring, or hardware redesign. Whether you are upgrading a turbine monitoring rack, replacing a failed probe in a compressor train, or restoring a mothballed control cabinet, the 330701-00-050-10-12-05 delivers verified electrical and mechanical compatibility with the 3300 XL signal conditioning chain.

This probe ships with a 5-metre integral cable and is calibrated for use with the standard Bently Nevada 3300 XL proximitor/seismic module. The output sensitivity, gap voltage range, and frequency response are factory-set to match the original OEM specification, ensuring that existing Bode plots, alarm setpoints, and vibration trend baselines remain valid after installation. For sites operating under API 670 machinery protection requirements, this probe maintains full compliance with the standard’s transducer performance criteria.

Before installation, engineers should confirm the existing proximitor model — typically a 3300 XL 8mm or 5mm proximitor — and verify that the extension cable, if used, is the correct Bently Nevada 330130 series to preserve system calibration. The probe tip-to-target gap should be set to the nominal 1.0 mm (approximately −10 VDC) using a calibrated gap tool, and the output voltage should be confirmed at the proximitor terminal strip before reconnecting to the monitor module. If the installation replaces a probe that fed a 3500/40M proximitor monitor or a 3500/42M Proximitor Monitor, the channel configuration in the 3500 rack should be reviewed to confirm probe type selection matches the 5mm specification.

Stock availability is maintained for immediate dispatch. Each unit undergoes pre-shipment functional testing covering output linearity, insulation resistance, and cable continuity. A 12-month warranty is included from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL-based machinery protection system requires a structured approach that accounts for both the mechanical installation and the upstream signal chain. The 330701-00-050-10-12-05 probe is typically installed as part of a broader upgrade that may also involve replacing the 3300 XL 5mm proximitor module, refreshing the 330130-080-00-00 extension cable, and verifying the integrity of the 3500/20 rack power supply module that feeds the monitoring chassis.

In turbine and compressor applications, the probe is often paired with a 3300 XL 8mm proximity probe on the Y-axis, forming a dual-probe XY configuration for full shaft orbit analysis. When one probe in the pair is replaced, both channels should be re-gapped simultaneously to maintain orbit plot symmetry. The 3500/42M monitor module stores the calibration constants for each channel; these should be exported from System 1 software before any hardware change and re-imported after commissioning to preserve historical trend continuity.

For sites migrating from older 7200 Series or 3300 Series (non-XL) monitors, the 330701-00-050-10-12-05 may require a proximitor change to the 3300 XL-compatible model, as the earlier 7200-series proximitors use a different sensitivity curve. In these cases, the 3500 rack I/O module configuration must be updated to reflect the new transducer type. The 3500/22M transient data interface module, if installed, should also be checked to confirm that the sampling rate and trigger thresholds remain appropriate for the new probe’s frequency response.

Control cabinet work associated with this retrofit typically involves the 3500/01 rack backplane, terminal strip rewiring, and — where the system feeds a DCS or safety system — verification of the 4–20 mA output loop to the DCS analogue input card. If the site uses a GE Mark VIe or Emerson DeltaV as the host DCS, the vibration channel scaling in the DCS tag database should be confirmed against the new probe’s sensitivity before returning the machine to service. HMI faceplate displays showing shaft vibration trends should be reviewed to confirm that engineering unit scaling and alarm limits remain consistent with the replacement probe’s output range.

Downtime Control During System Migration

Minimising unplanned downtime during a probe replacement on a running machinery protection system requires careful sequencing. Where the 3500 rack supports channel bypass, the affected channel should be placed in bypass mode before the probe is disconnected, preventing a spurious high-vibration trip during the swap. The bypass state should be logged in the site’s management of change (MOC) record and cleared immediately after the new probe is gapped and verified.

The original probe wiring — including shield grounding at the proximitor end — should be photographed before removal. The 330701-00-050-10-12-05 uses the same coaxial termination as the outgoing probe, so the extension cable connection at the field junction box requires only a coaxial hand-tight torque; no special tooling is needed. After installation, the gap voltage should be read at the proximitor terminal strip with a calibrated multimeter before the channel is taken out of bypass. A gap of 1.0 mm should produce approximately −10 VDC; values outside the −9 to −11 VDC range indicate a gap adjustment is required before the channel is returned to service.

For sites where the machine cannot be stopped, a hot-swap procedure using a spare proximitor module and a pre-gapped probe assembly can reduce in-service interruption to under 15 minutes. Pre-commissioning the replacement assembly on a bench — confirming output voltage, cable continuity, and connector integrity — before entering the field eliminates the most common sources of delay. All commissioning results should be recorded in the site’s instrument calibration database to support future maintenance planning and regulatory audit requirements.

Retrofit Support FAQ

Q: Is the 330701-00-050-10-12-05 a direct replacement for all 330701 series probes?
A: The 330701-00-050-10-12-05 is a direct replacement for 330701 series probes with matching tip diameter (5 mm) and cable length (5 m). Probes with different cable lengths (e.g., 330701-00-050-10-05-05 with a 0.5 m cable) are not interchangeable without adjusting the extension cable to maintain the correct total system cable length. Always verify the full part number before ordering.

Q: Do I need to reconfigure the 3500 rack after installing this probe?
A: If the replacement probe is the same tip diameter and sensitivity as the original, no rack reconfiguration is required. However, the channel configuration in the 3500 rack software should be reviewed to confirm the probe type is set to 5 mm and the calibration constants match the new probe. If migrating from a different probe series, a full channel reconfiguration and functional test is required before returning the machine to service.

Q: What pre-shipment testing is performed on each unit?
A: Each 330701-00-050-10-12-05 undergoes output linearity verification, insulation resistance testing, and cable continuity checks before dispatch. Test records are available on request. The unit is covered by a 12-month warranty from the date of shipment against manufacturing defects and premature failure under normal operating conditions.

Q: Can this probe be used with a Bently Nevada System 1 condition monitoring platform?
A: Yes. When connected through a 3300 XL proximitor and a 3500 monitor rack, the analogue output is fully compatible with System 1 data acquisition. The System 1 database tag for the channel should be reviewed after replacement to confirm that the probe sensitivity and gap calibration constants are current, ensuring that orbit plots, Bode plots, and trend data remain accurate.
