Bently Nevada 330703-00-050-10-02-00 3300 XL Spare: Precision Proximity Probe for Industrial Vibration Monitoring

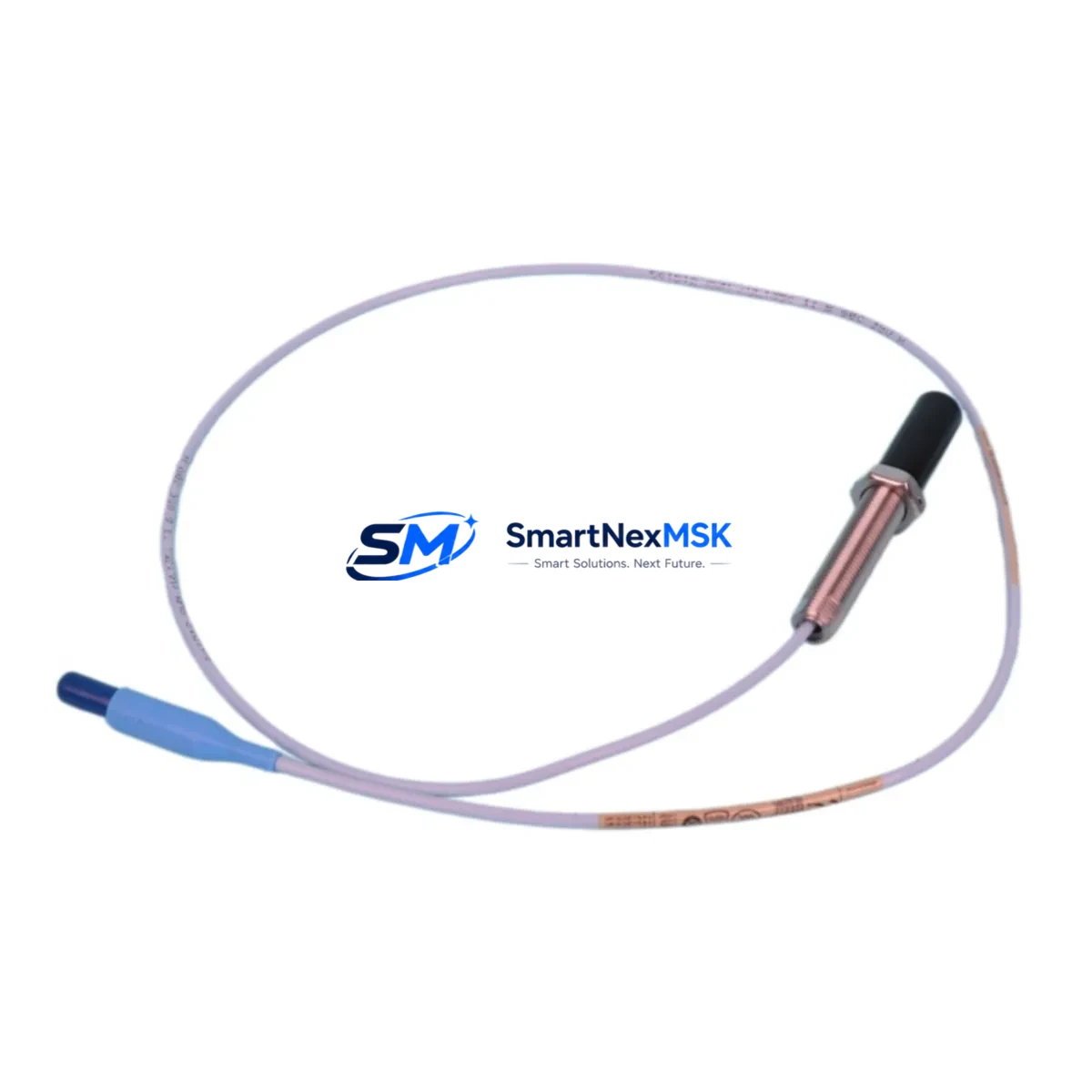

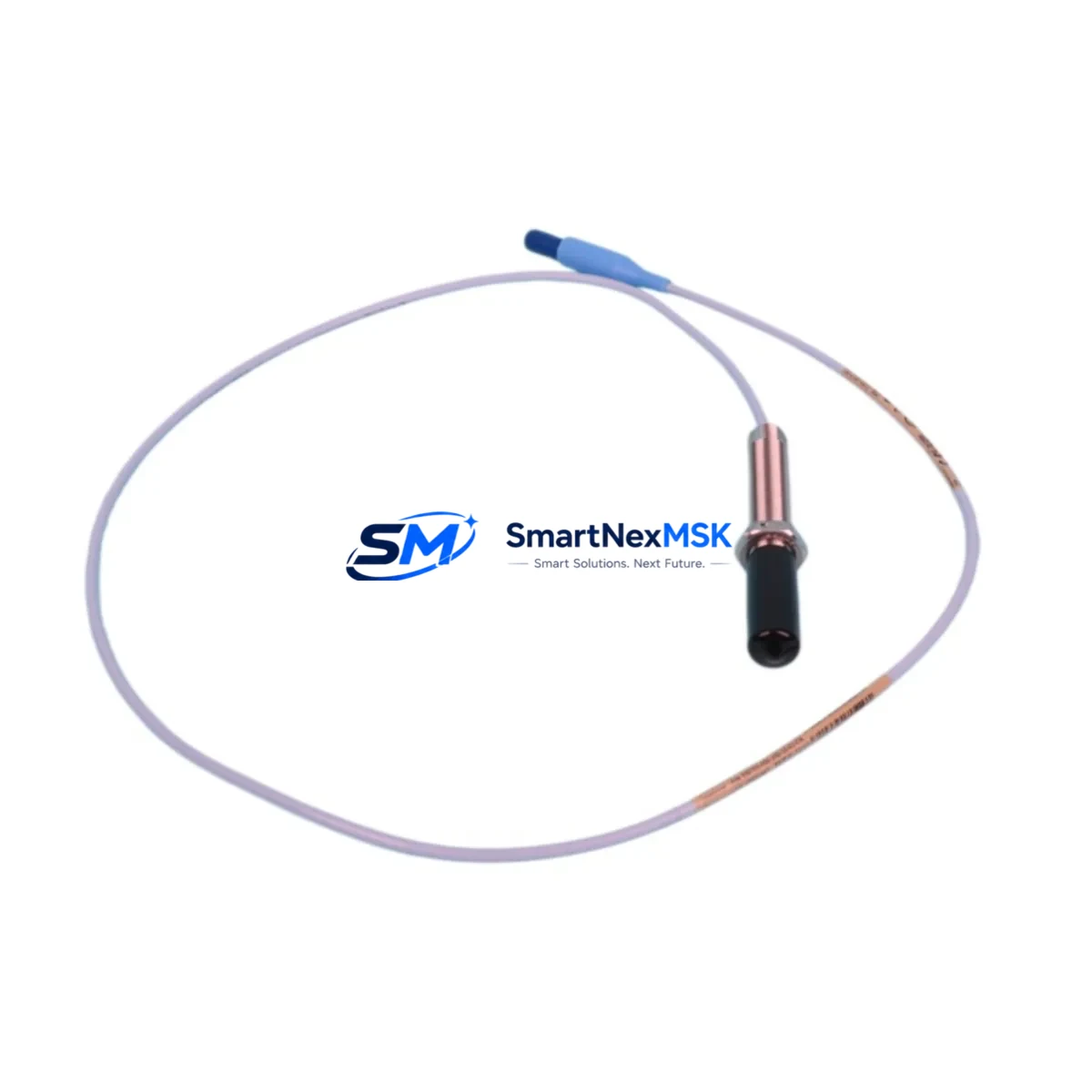

The Bently Nevada 330703-00-050-10-02-00 is an original eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. With a 5-metre metric cable configuration, this probe integrates directly into Bently Nevada 3300 XL monitoring systems deployed across turbines, compressors, pumps, and critical rotating assets in oil & gas, power generation, petrochemical, and heavy industrial environments.

For maintenance engineers managing aging machinery or executing planned overhauls, having a verified, tested spare of the 330703-00-050-10-02-00 on the shelf is a fundamental risk-reduction strategy. Proximity probe failures are among the most common causes of unplanned machinery trips — a single degraded probe can trigger false vibration alarms, mask real shaft displacement events, or cause a full unit shutdown. Stocking this SKU as a ready-to-install spare eliminates the lead-time risk associated with OEM procurement channels and keeps your machinery protection system fully operational.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty. Fast dispatch, secure packaging, and full traceability documentation are standard.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330703-00-050-10-02-00 proximity probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL measurement chain is a tightly coupled system — probe, extension cable, and proximitor/driver must all be evaluated together to ensure measurement integrity after reinstallation.

Begin by inspecting the 3300 XL Proximitor (e.g., 330180-51-05) paired with this probe. Proximitor output voltage drift or erratic gap readings often indicate a failing driver rather than a faulty probe. If the proximitor has not been replaced within the last maintenance cycle, treat it as a co-suspect and have a spare on hand.

Next, check the extension cable assembly — typically a 3300 XL series extension cable matched to the probe’s 5m configuration. Cable shield integrity, connector condition, and continuity should be verified before the new probe is installed. A damaged extension cable will corrupt the output of even a brand-new probe.

At the rack level, inspect the 3500/40M Proximitor Monitor or equivalent 3500 Series I/O module receiving the probe signal. Verify that channel configuration in System 1 or the local monitor matches the probe’s sensitivity constant (–200 mV/mil). Misconfigured sensitivity is a common post-replacement error that generates false alarms.

For machines with redundant measurement planes, also inspect the companion probe on the opposing measurement axis. Asymmetric probe wear or contamination on a single axis can introduce measurement bias that is only visible when both channels are compared.

In the broader control cabinet context, confirm the –24 VDC power supply rail feeding the proximitor is within tolerance. A sagging power supply is a frequent root cause of intermittent probe faults that are misdiagnosed as probe failures. Check the 3500 Series power supply module and its fuse or circuit breaker.

For facilities running integrated machinery protection with DCS connectivity, verify the 4–20 mA output signal from the 3500 monitor to the DCS I/O card is stable post-replacement. Signal isolators or barriers in the loop — such as those used in hazardous area installations — should also be inspected for drift or degradation.

Finally, if the machine is part of an older system approaching end-of-life, consider scheduling a full 3300 XL to 3500 Series migration assessment. Proactive system modernization, supported by a well-stocked spare parts inventory, is the most cost-effective strategy for extending asset life and avoiding unplanned downtime.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the proximitor supply before disconnecting the probe. Record the existing gap voltage (typically –10 VDC at nominal gap) as a baseline for post-installation verification.

Step 2 — Probe Removal: Loosen the locknut and carefully unthread the probe from the bracket. Inspect the probe tip for contamination, pitting, or mechanical damage. Inspect the bracket bore for wear or misalignment.

Step 3 — New Probe Installation: Thread the 330703-00-050-10-02-00 into the bracket. Set the gap to the OEM-specified nominal value (typically 1.0–1.5 mm for 8 mm probes) using a non-ferrous feeler gauge or gap-setting tool. Secure the locknut to the specified torque.

Step 4 — Cable Routing & Connection: Connect the extension cable to the probe and route it clear of heat sources and mechanical contact points. Reconnect at the proximitor end, ensuring the connector is fully seated and the locking ring is engaged.

Step 5 — Energize & Verify: Restore power to the proximitor. Measure the output voltage at the proximitor terminals. Confirm the gap voltage matches the expected value for the set gap distance. Verify the reading in System 1 or the local monitor display.

Step 6 — Alarm & Trip Setpoint Check: Confirm that vibration alarm and trip setpoints are correctly configured and active. Clear any latched alarms. Document the replacement in the site maintenance management system (CMMS).

This workflow supports rapid, accurate replacement that minimizes downtime and maintains full system compatibility — whether you are replacing a failed probe on an emergency basis or executing a scheduled overhaul.

Spare Parts Support FAQ

Q1: Is the 330703-00-050-10-02-00 compatible with both 3300 XL and 3500 Series monitoring systems?
The 330703-00-050-10-02-00 is a native 3300 XL series probe. It is directly compatible with 3300 XL Proximitors. Integration with 3500 Series monitors is possible using the appropriate 3300 XL to 3500 interface, but configuration must be verified against the 3500 Series documentation. Contact our technical team for compatibility confirmation before ordering if your system is a 3500 Series rack.

Q2: How do you verify the probe before shipment, and what does the 12-month warranty cover?
Each unit undergoes pre-shipment functional testing including output voltage verification at a known gap distance and cable continuity check. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified parameters.

Q3: What is the recommended spare parts stocking strategy for 3300 XL proximity probe systems?
For critical rotating machinery, we recommend maintaining a minimum of one probe, one extension cable, and one proximitor per monitored shaft as on-shelf spares. For facilities with multiple identical machines, a pooled spare strategy — typically one spare set per three to five machines — balances inventory cost against downtime risk. Long-lead OEM items should be prioritized for local stocking.

Q4: Can you supply the matching extension cable and proximitor for the 330703-00-050-10-02-00?
Yes. SMARTNEXMSK stocks matched extension cables and 3300 XL Proximitors compatible with this probe. Ordering the complete measurement chain as a matched set ensures system-level compatibility and simplifies post-installation verification. Contact [email protected] with your system configuration details for a matched spare parts quotation.
