Bently Nevada 330703-00-060-10-11-00 Safety Proximity Transducer

Bently Nevada 330703-00-060-10-11-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

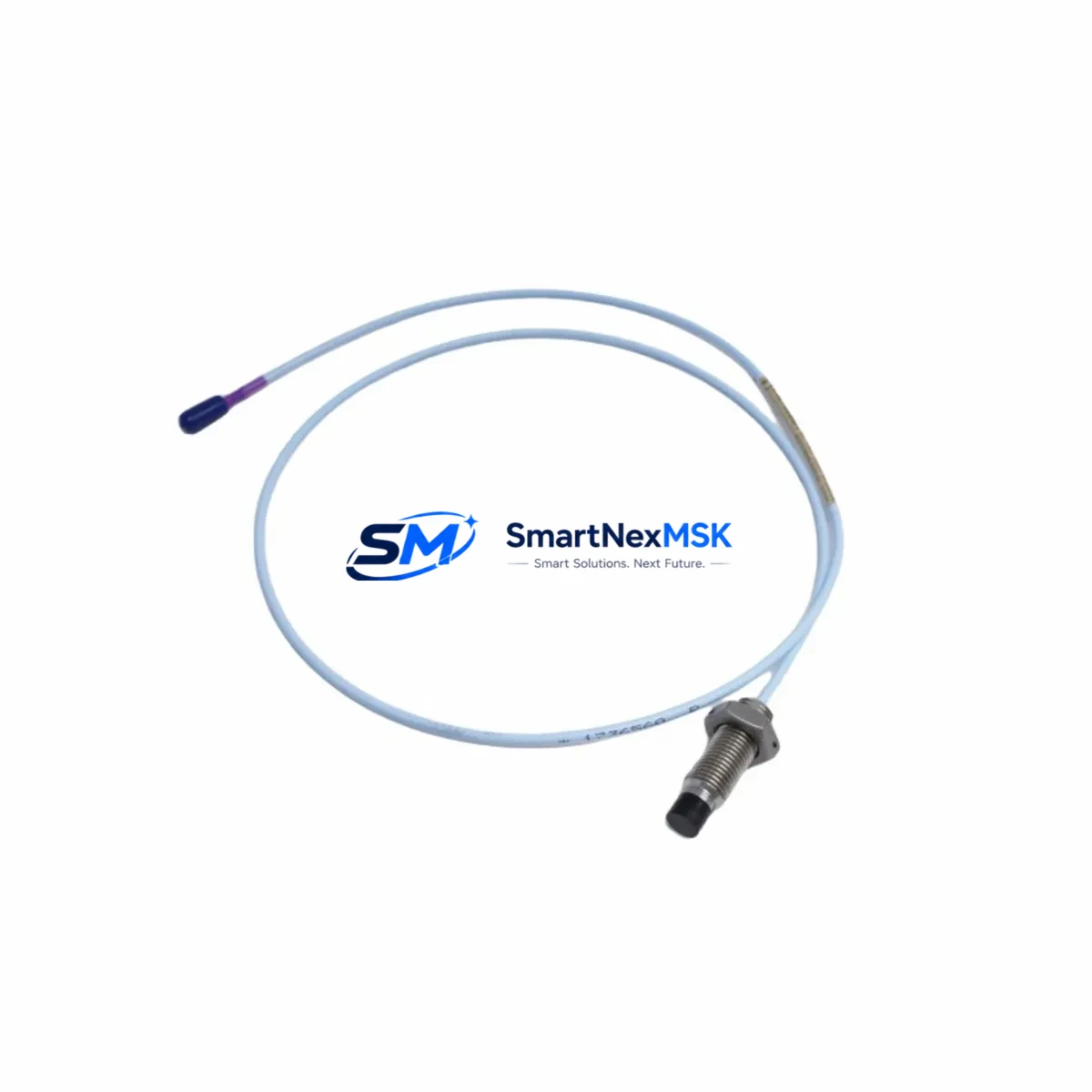

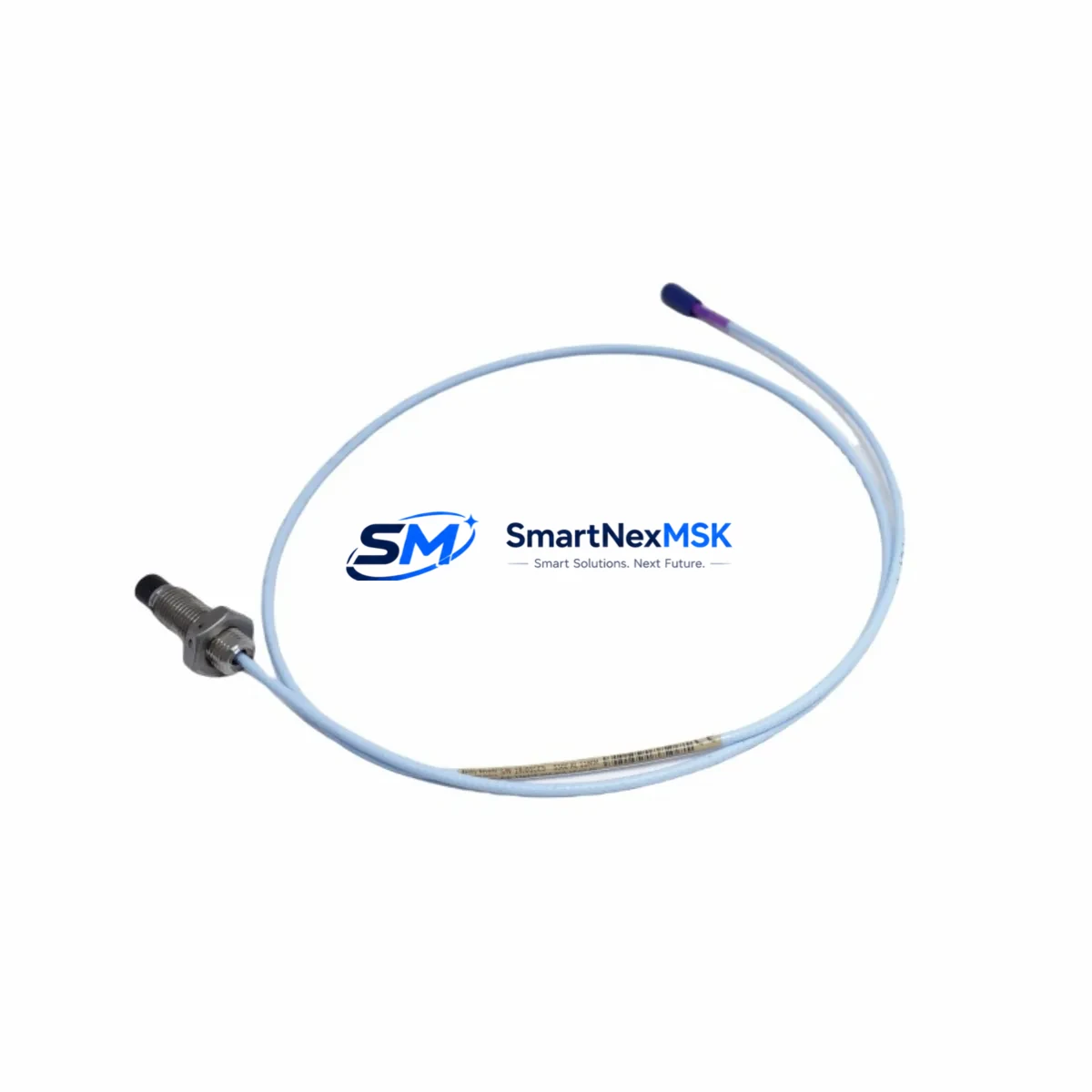

The Bently Nevada 330703-00-060-10-11-00 is a ruggedized eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, extreme temperature cycling, chemical exposure, and mechanical shock, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.

In high-stakes control environments — where a single sensor failure can cascade into unplanned downtime, equipment damage, or a safety incident — the 330703-00-060-10-11-00 delivers the measurement stability and signal integrity that plant engineers and reliability teams depend on. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring consistent output over extended service intervals without drift or degradation. This makes it particularly well-suited for critical interlock loops, turbine protection systems, and compressor monitoring circuits where signal accuracy is non-negotiable.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330703-00-060-10-11-00 as part of a comprehensive machinery protection architecture requires careful integration with the broader 3300 XL system ecosystem. The transducer pairs directly with the Bently Nevada 330130-080-00-00 extension cable, which maintains signal fidelity over long cable runs between the probe tip and the monitoring rack — a critical consideration in large turbine halls or compressor stations where cable routing distances can exceed 5 meters.

At the rack level, the transducer feeds into the Bently Nevada 3500/40M Proximitor I/O Module, which conditions the raw eddy-current signal and interfaces with the 3500 Series machinery protection system. The 3500 platform’s modular architecture allows plant engineers to configure alarm setpoints, danger thresholds, and relay outputs for automatic machine trip — forming the backbone of a safety instrumented function (SIF) for rotating equipment. Alongside the proximity channel, many installations also incorporate the Bently Nevada 3500/42M Velocity and Acceleration Module to capture broadband vibration signatures that complement the shaft displacement data from the 330703-00-060-10-11-00.

Power supply integrity is equally critical. The Bently Nevada 3500/15 Power Supply Module provides redundant, isolated DC power to the monitoring rack, preventing voltage transients and power sags from corrupting sensor readings or triggering spurious trips. In facilities with high-voltage switching equipment or variable frequency drives (VFDs), additional surge protection at the cabinet entry point — such as a Phoenix Contact TRABTECH surge arrester — is recommended to protect the transducer cable from induced voltage spikes.

For facilities operating under IEC 61511 or ISA-84 functional safety standards, the proximity transducer system is often integrated with a Triconex or Rockwell GuardLogix Safety PLC via hardwired relay outputs from the 3500 rack. This architecture ensures that a confirmed high-vibration condition triggers an automatic shutdown sequence through the safety instrumented system (SIS), independent of the basic process control system (BPCS). Complementary components in this safety loop may include Pepperl+Fuchs intrinsic safety barriers for installations in Zone 1 or Zone 2 hazardous areas, ensuring that the transducer circuit cannot become an ignition source in the presence of flammable gases or vapors.

Communication of machinery health data to the plant DCS or historian is typically handled through the Bently Nevada System 1 Condition Monitoring Software, which aggregates vibration, position, and temperature data from multiple 3500 racks across the facility. This enables predictive maintenance workflows, trend analysis, and early fault detection — reducing the risk of catastrophic bearing failure, seal damage, or rotor rub events that could result in extended outages or personnel safety incidents.

Critical Industrial Safety Applications

The Bently Nevada 330703-00-060-10-11-00 proximity transducer is deployed across a wide spectrum of safety-critical industrial applications where continuous shaft monitoring is essential to operational integrity and personnel protection.

In petrochemical and refinery operations, this transducer monitors the radial shaft displacement of centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors. Abnormal shaft movement — indicative of bearing wear, rotor imbalance, or seal degradation — is detected in real time, allowing operators to initiate controlled shutdowns before a failure escalates into a process safety event or hydrocarbon release.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 330703-00-060-10-11-00 is installed on steam turbine shafts, boiler feed pumps, and generator bearing housings. The transducer’s wide frequency response (DC to 10,000 Hz) captures both slow-speed runout and high-frequency subsynchronous instabilities, providing early warning of oil whirl, misalignment, and rotor bow conditions that are common causes of forced outages.

In mining and mineral processing environments, where equipment operates under extreme dust loading, high ambient temperatures, and continuous heavy-load cycles, the ruggedized construction of the 330703-00-060-10-11-00 ensures reliable operation on ball mill pinion shafts, SAG mill trunnion bearings, and slurry pump impeller shafts. The non-contact sensing principle eliminates the sensor wear that would otherwise occur in these high-contamination environments.

In water and wastewater treatment facilities, the transducer monitors large vertical turbine pumps and blower shafts in aeration basins, where bearing failures can result in extended service interruptions affecting municipal water supply. In metallurgical and steel mill applications, it is used on rolling mill drive shafts and continuous caster pinch roll assemblies, where vibration anomalies must be detected before they cause product quality defects or mechanical damage to high-value tooling.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330703-00-060-10-11-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and expedited replacement to minimize plant downtime.

Q2: What pre-shipment testing and inspection is performed?
Every 330703-00-060-10-11-00 unit undergoes functional verification prior to dispatch, including output sensitivity check, cable continuity and insulation resistance testing, and visual inspection for connector integrity and tip condition. Units are shipped in anti-static, moisture-protected packaging to preserve calibration and prevent transit damage.

Q3: Is this transducer compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330703-00-060-10-11-00 is fully compatible with the Bently Nevada 3300 XL driver and extension cable system, and integrates directly with the 3500 Series machinery protection rack. It is a direct replacement for earlier 3300 Series transducers of the same thread size and cable length configuration, requiring no rack reconfiguration or recalibration in most installations.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 XL series components to support ongoing maintenance and emergency replacement requirements. For facilities with critical spare parts programs, we offer reserved stock arrangements and priority fulfillment to ensure that a transducer failure never results in an extended production stoppage. Contact our technical sales team to discuss your site’s specific spare parts strategy.
