Bently Nevada 330703-000-040-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330703-000-040-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

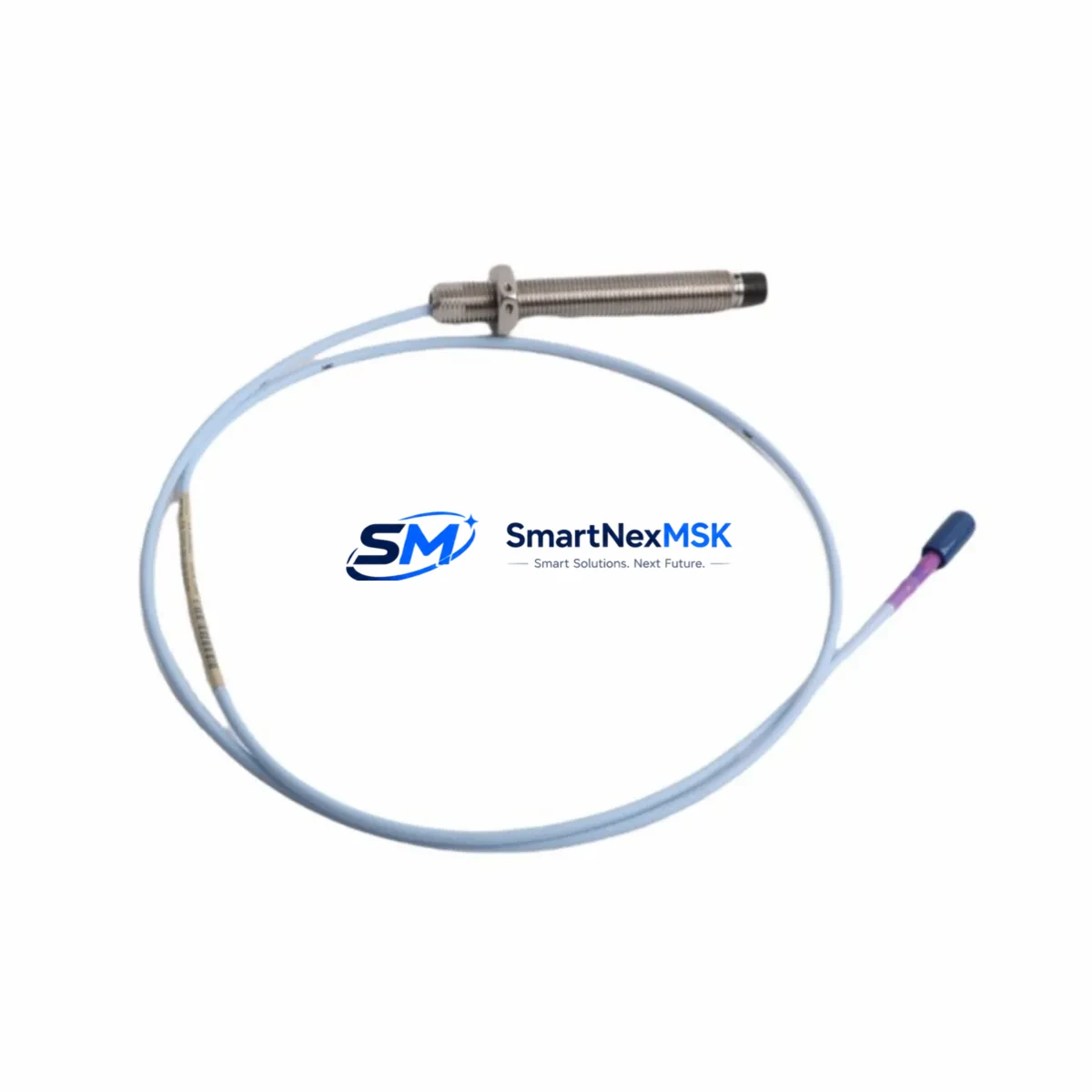

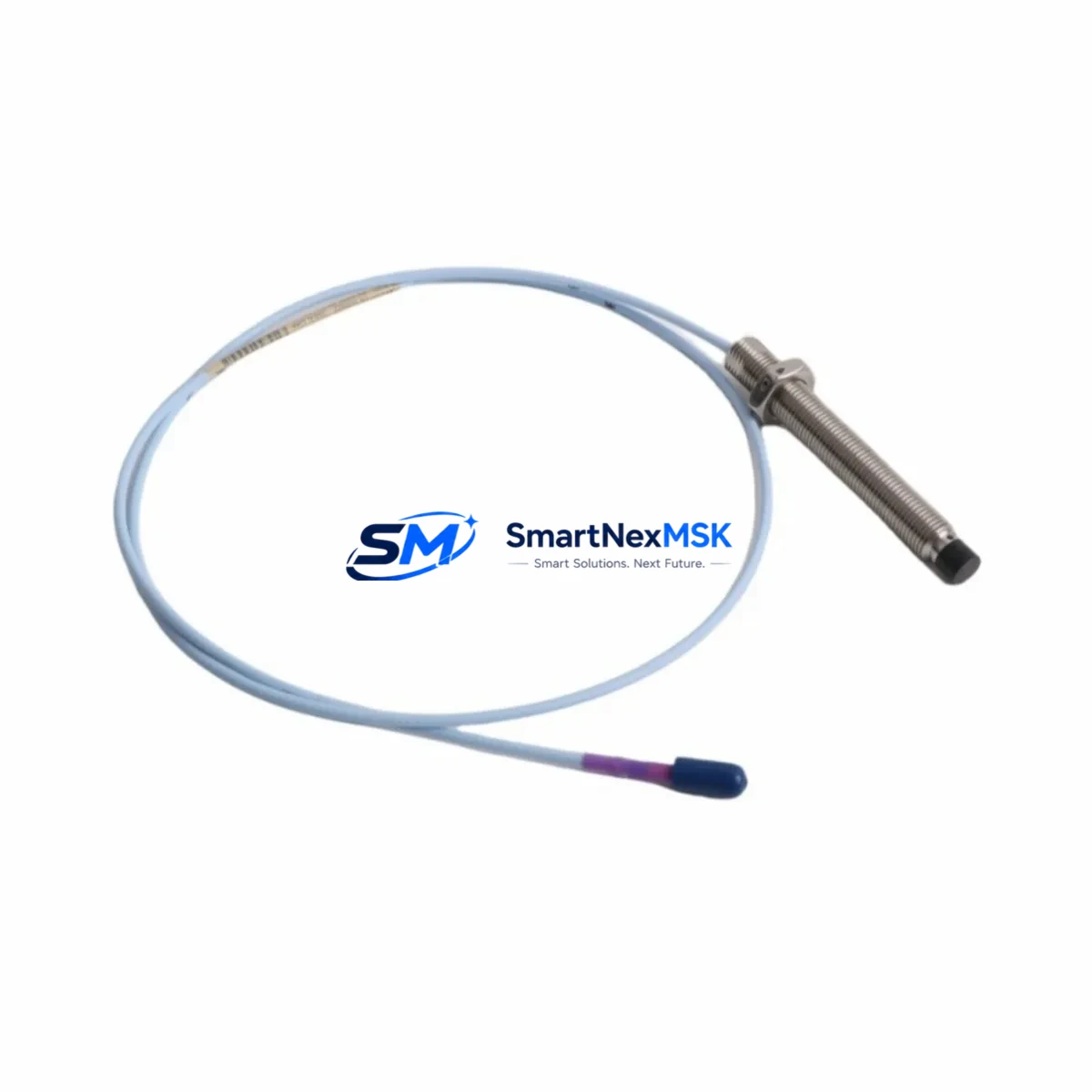

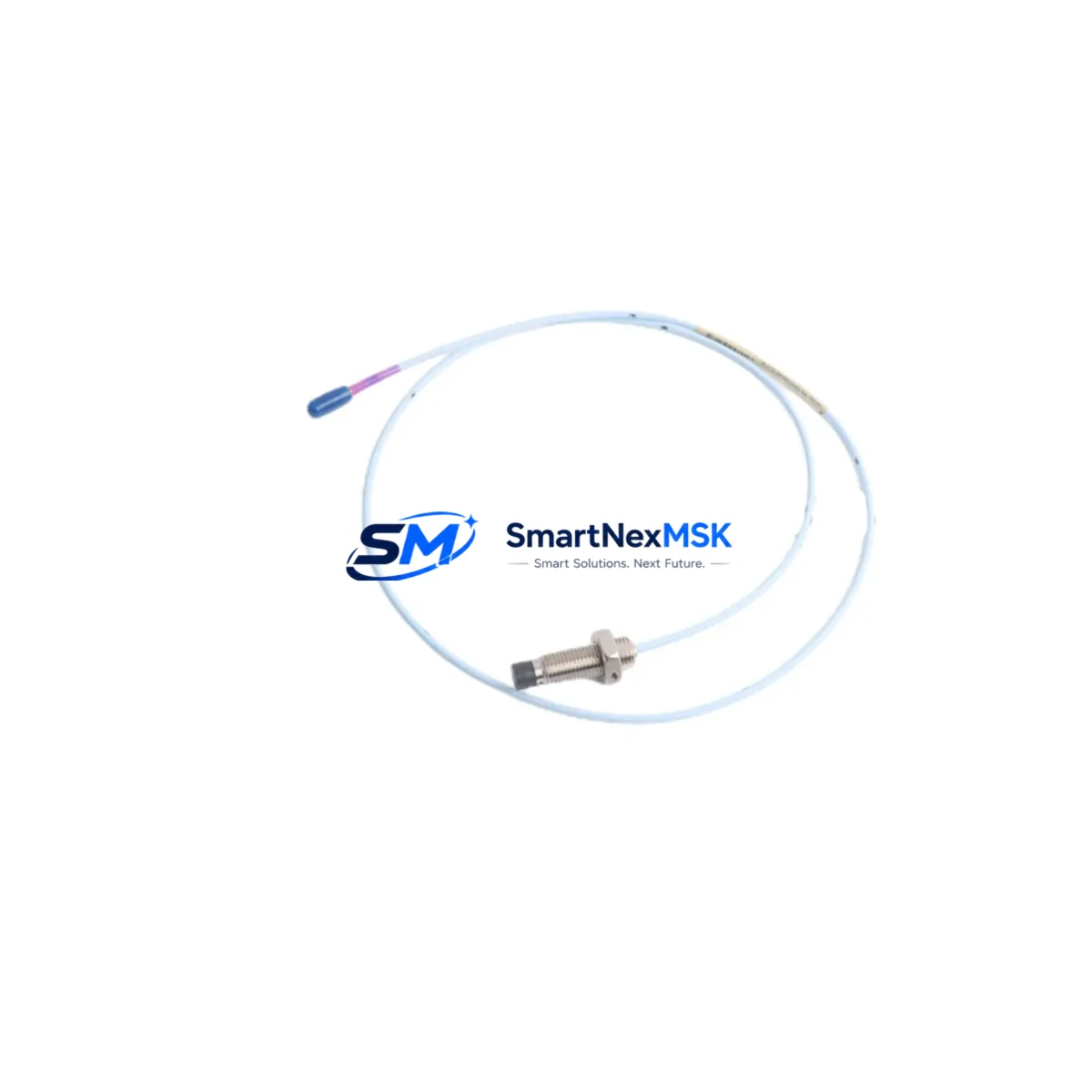

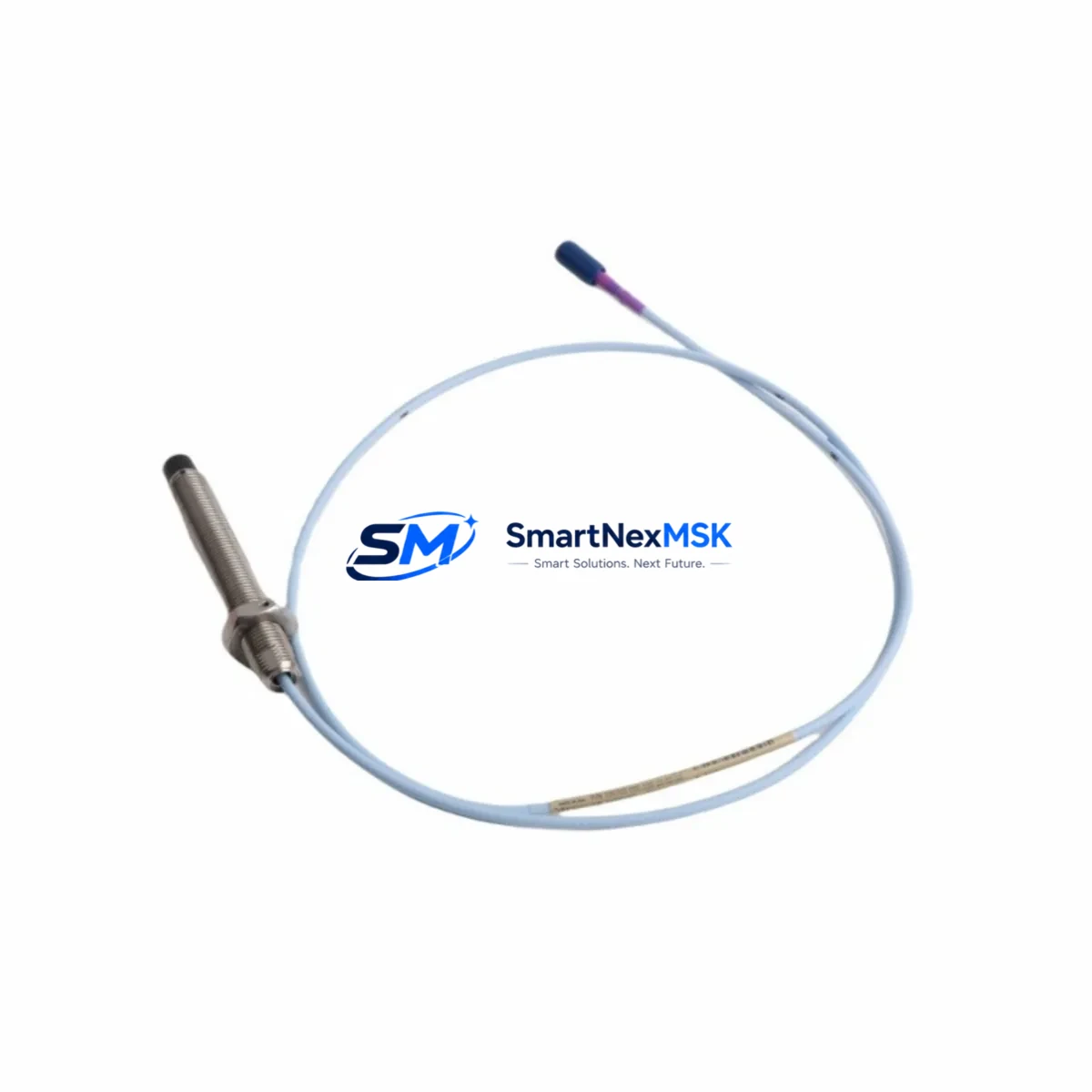

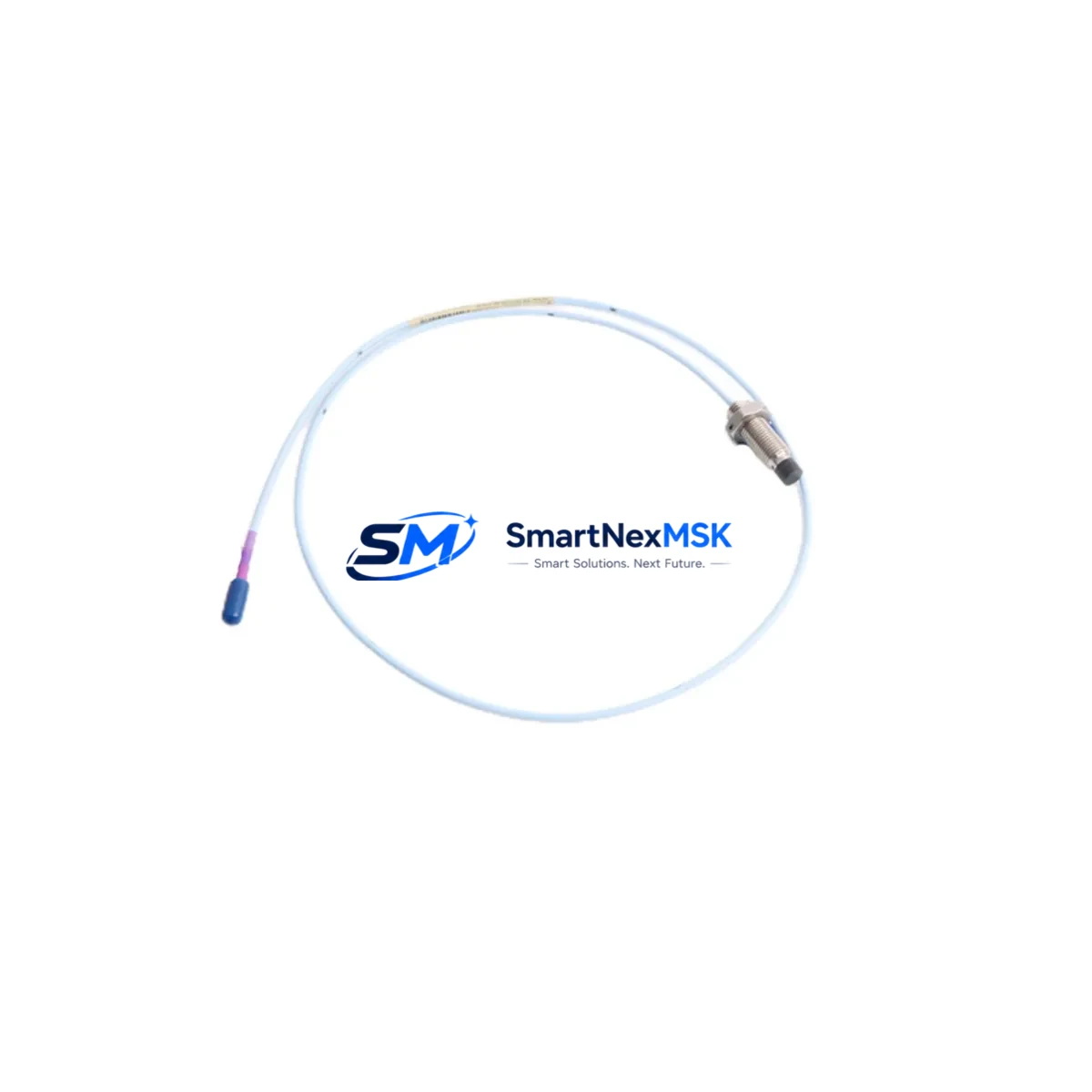

The Bently Nevada 330703-000-040-10-02-00 is a ruggedized eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemical exposure, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

In high-load continuous production environments — where unplanned downtime carries severe safety and financial consequences — the 330703-000-040-10-02-00 delivers stable, drift-free proximity measurement across its full operating range. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent signal integrity even after years of continuous operation in critical interlock loops and emergency shutdown (ESD) systems. When paired with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 driver), the system forms a complete, calibrated measurement chain that meets the stringent requirements of API 670 machinery protection standards.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330703-000-040-10-02-00 proximity probe does not operate in isolation — it is one element of a layered safety and signal integrity architecture. The probe connects to a Bently Nevada 3300 XL Proximitor Sensor (330180-51-05), which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/42M Proximitor Monitor or the 3500/40M Proximitor/Seismic Monitor rack module. These monitor cards interface directly with the plant’s DCS or Safety Instrumented System (SIS), triggering alarms or initiating emergency shutdowns when vibration or axial position exceeds safe thresholds.

To protect the signal chain from power-line transients and surge events, the control cabinet should incorporate a Phoenix Contact TRABTECH surge protection device on the 24 VDC supply rail feeding the Proximitor. A Bently Nevada 3500 Power Supply Module (3500/15) provides regulated, redundant power to the monitoring rack, eliminating voltage sag as a source of false trips or missed alarms. For installations in classified hazardous areas (Zone 1 or Zone 2), a Pepperl+Fuchs Zener barrier or galvanic isolator is inserted between the Proximitor output and the DCS analog input card to maintain intrinsic safety compliance.

Communication integrity is maintained through the Bently Nevada 3500 System 1 Evolution software platform, which aggregates vibration, position, and temperature data from multiple measurement points across the machine train. Complementary sensors — including Bently Nevada 330500-02-00 velocity transducers for bearing housing vibration and Bently Nevada 330900-00-05-05-02-00 temperature sensors for bearing metal temperature — complete the full-spectrum condition monitoring picture. Together, these components form a redundant, fail-safe protection architecture that minimizes the risk of control interruption, signal drift, module misoperation, and unplanned field shutdowns.

Critical Industrial Safety Applications

The 330703-000-040-10-02-00 proximity probe is deployed across a wide range of safety-critical rotating machinery applications in heavy industry:

Petrochemical & Refinery: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in continuous process units where shaft radial vibration and axial thrust position must be monitored 24/7. Any deviation beyond alarm setpoints triggers automatic isolation of the affected machine, preventing catastrophic seal failure or rotor-stator contact.

Power Generation: Used on gas turbine generator sets and large steam turbines in baseload and peaking power stations. The probe’s high-temperature tolerance and EMI immunity make it suitable for installation in close proximity to high-voltage busbars and generator excitation systems.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts in environments with extreme dust loading, vibration, and moisture. The ruggedized cable and probe body withstand the mechanical abuse typical of mineral processing facilities.

Water & Wastewater Treatment: Monitors shaft position on large vertical turbine pumps and blower units in water treatment plants, where continuous availability is essential for public health infrastructure. The non-contact design eliminates the risk of process contamination from sensor wear debris.

Metallurgy & Steel: Deployed on rolling mill drive motors, continuous casting machine drives, and converter fan units in steel plants. The probe operates reliably in the presence of strong magnetic fields from induction furnaces and high-frequency interference from variable-frequency drives (VFDs).

Port & Material Handling: Used on large crane hoist motors and conveyor drive gearboxes in port terminals, where early detection of bearing deterioration prevents load-drop incidents and unscheduled maintenance during peak cargo operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330703-000-040-10-02-00?
All units are supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair at no additional cost to the customer.

Q2: How is each unit tested before shipment?
Every 330703-000-040-10-02-00 undergoes a full functional and calibration verification prior to dispatch. This includes output linearity testing across the full 5–8 mm measurement range, cable continuity and insulation resistance checks, and connector integrity inspection. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor drivers and 3500 Series monitor racks?
Yes. The 330703-000-040-10-02-00 is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and integrates directly with 3500 Series monitor rack modules. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the Proximitor or monitor card, provided the gap voltage is re-verified after installation.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated inventory of the 330703-000-040-10-02-00 and related 3300 XL series components to support ongoing maintenance programs, planned turnarounds, and emergency replacement requirements. Customers with critical fleet applications are encouraged to contact our team to discuss consignment stock or priority supply agreements.
