Bently Nevada 330703-000-040-10-12-00 Spare 3300 XL

Bently Nevada 330703-000-040-10-12-00 Maintenance-Ready Spare for 3300 XL Automation

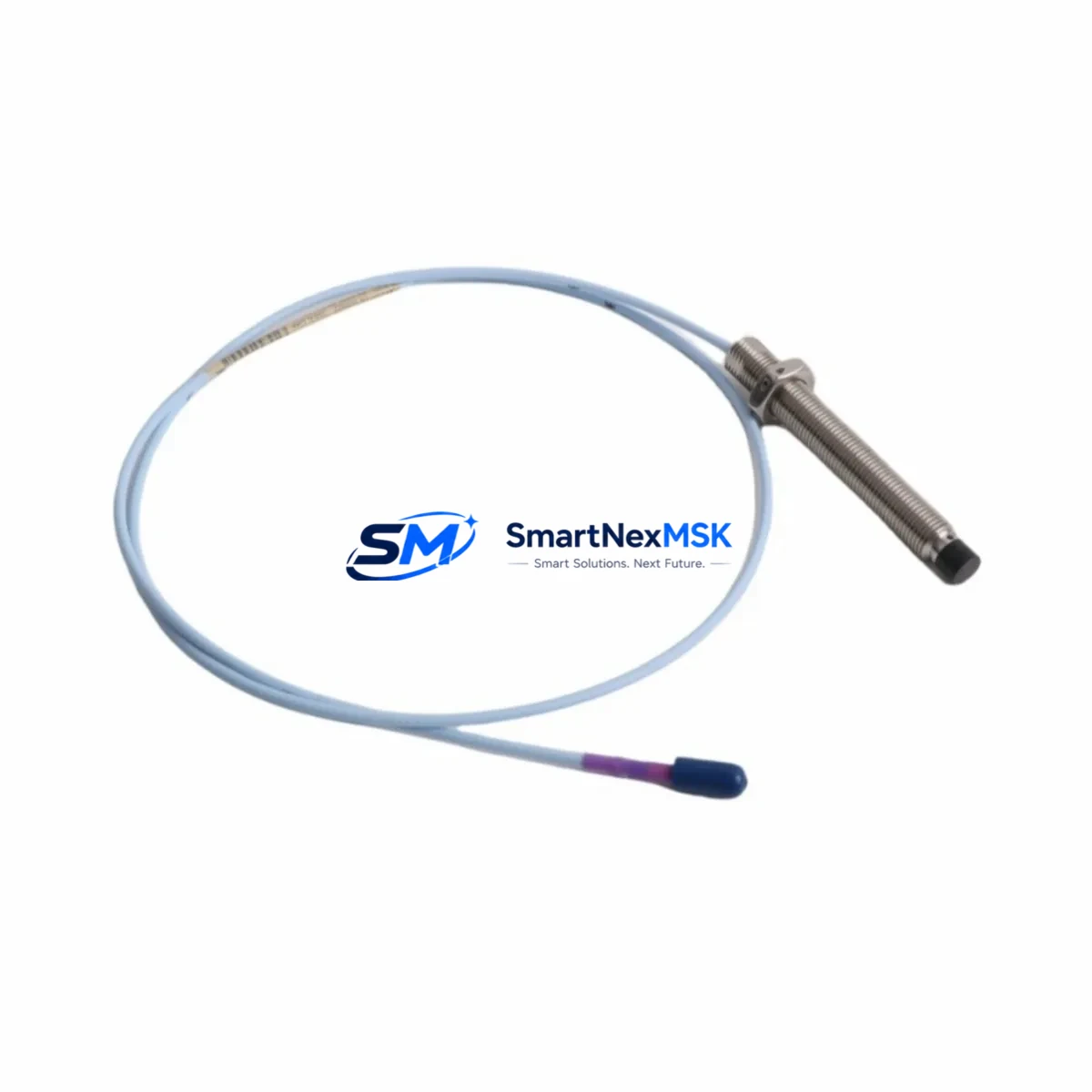

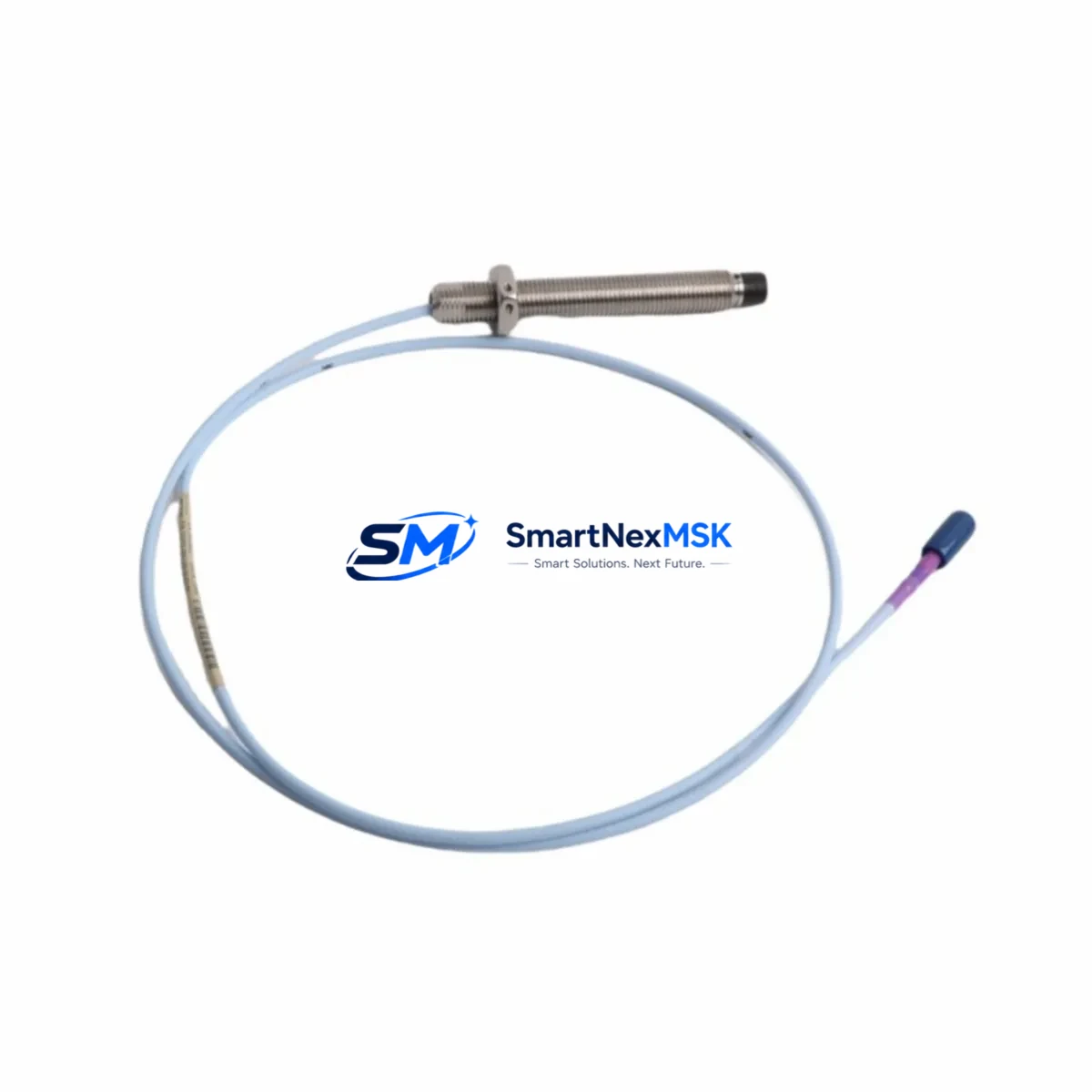

The Bently Nevada 330703-000-040-10-12-00 is an original proximity transducer engineered for continuous vibration and position monitoring within the 3300 XL Series machinery protection system. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and gearboxes — this transducer is a critical front-line component. An unplanned failure of this sensor can trigger a full machinery trip, resulting in costly unplanned downtime. Stocking a verified original spare is the most effective strategy to minimize mean time to repair (MTTR) and sustain continuous operation.

This unit is sourced as an original spare, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with the Bently Nevada 3300 XL proximitor/monitor system and is designed for direct drop-in replacement without system reconfiguration, provided the cable and proximitor specifications are matched correctly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330703-000-040-10-12-00 proximity transducer in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL system is an integrated measurement chain, and any weak link can compromise the integrity of the vibration signal reaching the monitor. During a planned or emergency replacement, the following components should be inspected or staged as concurrent spares:

The 3300 XL Proximitor (e.g., 330180-91-05) is the signal conditioning module that pairs directly with this transducer. If the transducer has failed due to environmental stress or cable damage, the proximitor may have been exposed to the same conditions and should be bench-tested. Similarly, the extension cable assembly (330130-080-00-00 or equivalent) connecting the transducer to the proximitor is a common failure point — inspect for jacket cracking, connector corrosion, and continuity.

At the monitor level, verify the 3300/16 or 3300/20 monitor module is reading within calibrated range after transducer swap. If the monitor card shows a fault or gap voltage out of range, the issue may be upstream in the proximitor or cable rather than the transducer itself. Keep a spare monitor card in the control cabinet inventory for rapid substitution during fault isolation.

For the power supply feeding the 3300 XL rack, inspect the 3300/05 power supply module for output voltage stability. A degraded power supply can cause erratic gap voltage readings that mimic transducer failure. Alongside this, check the terminal block and field wiring connections within the junction box — loose or corroded terminals are a frequent root cause of intermittent transducer faults in high-vibration environments.

If the machinery protection system interfaces with a DCS or safety PLC, confirm that the 4–20 mA output signal from the monitor is being received correctly at the DCS input card. An I/O channel fault on the DCS side can be misdiagnosed as a transducer failure. Where signal isolation is required between the monitor output and the DCS, a signal isolator/repeater should be included in the spare parts kit.

For facilities running older 3300 Series (non-XL) monitors alongside 3300 XL hardware, ensure that the transducer and proximitor are matched to the correct system generation — cross-generation mixing can cause calibration errors. Maintain a documented spare parts register that maps each transducer position to its paired proximitor part number, cable length, and monitor slot to eliminate substitution errors during night-shift emergency repairs.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330703-000-040-10-12-00 matches the installed unit’s cable length (10 ft integral) and extension cable length (12 ft). Verify thread size (10-32 UNF) and target gap specification against the original installation record.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Note the existing gap voltage reading from the monitor before disconnection — this serves as a baseline for post-installation verification.

Step 3 — Physical replacement: Remove the failed transducer, inspect the target area for surface damage or runout that may have contributed to the failure. Install the new 330703-000-040-10-12-00, set gap to the specified linear range midpoint (typically 50 mil / 1.27 mm for steel targets), and torque to specification.

Step 4 — Signal verification: Reconnect the extension cable and proximitor. Power up and confirm gap voltage is within the -10 VDC ± 0.5 VDC range (or per site calibration record). Verify the monitor displays a valid OK status and that the vibration reading is within expected baseline for the machine at rest.

Step 5 — System handback: Document the replacement in the maintenance management system (CMMS), update the spare parts register, and reorder a replacement spare to restore buffer stock. All units shipped from our inventory include a pre-shipment test report to support your incoming inspection process.

Spare Parts Support FAQ

Q: Is the 330703-000-040-10-12-00 a direct replacement for older 3300 Series transducers?
A: The 330703-000-040-10-12-00 is designed for the 3300 XL system. While it shares the same physical thread and gap range as some earlier 3300 Series transducers, compatibility with non-XL proximitors should be verified against Bently Nevada’s system documentation before installation. We recommend confirming the proximitor part number before ordering.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment electrical testing. Warranty claims are supported with a test report issued at the time of dispatch.

Q: How quickly can this spare be shipped for emergency downtime recovery?
A: In-stock units are available for same-day or next-business-day dispatch. Contact our team directly for urgent requirements — we support emergency spare procurement for unplanned outages with priority handling.

Q: How should I verify compatibility before installation?
A: Cross-reference the installed proximitor part number, monitor model, and cable assembly against the 3300 XL system documentation. The key parameters are cable length, extension cable length, and target material. Our technical team can assist with compatibility confirmation prior to shipment if you provide the existing system configuration.
