Bently Nevada 330703-000-050-50-02-00 Spare for 3300 XL Automation

Bently Nevada 330703-000-050-50-02-00 Maintenance-Ready Spare for 3300 XL Automation

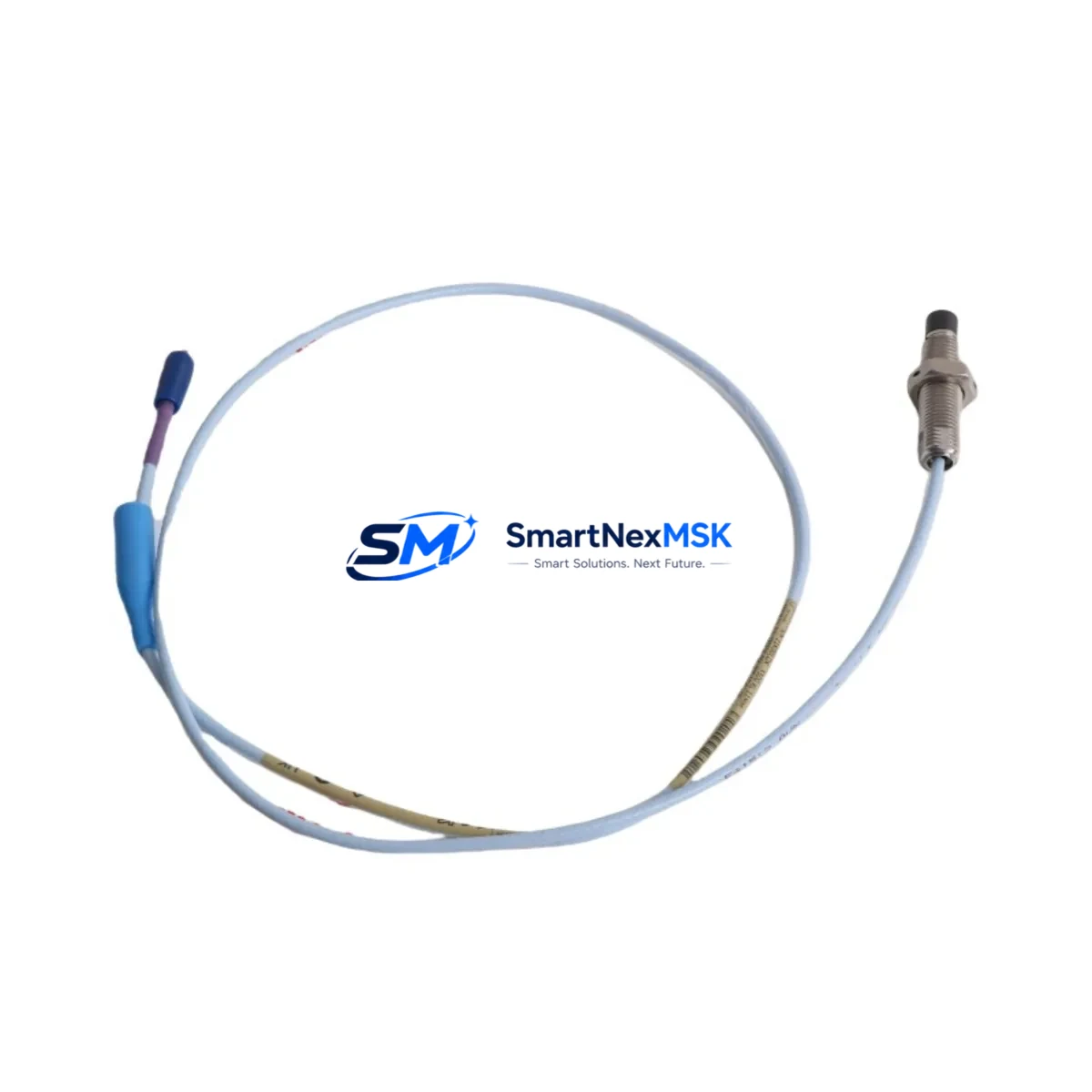

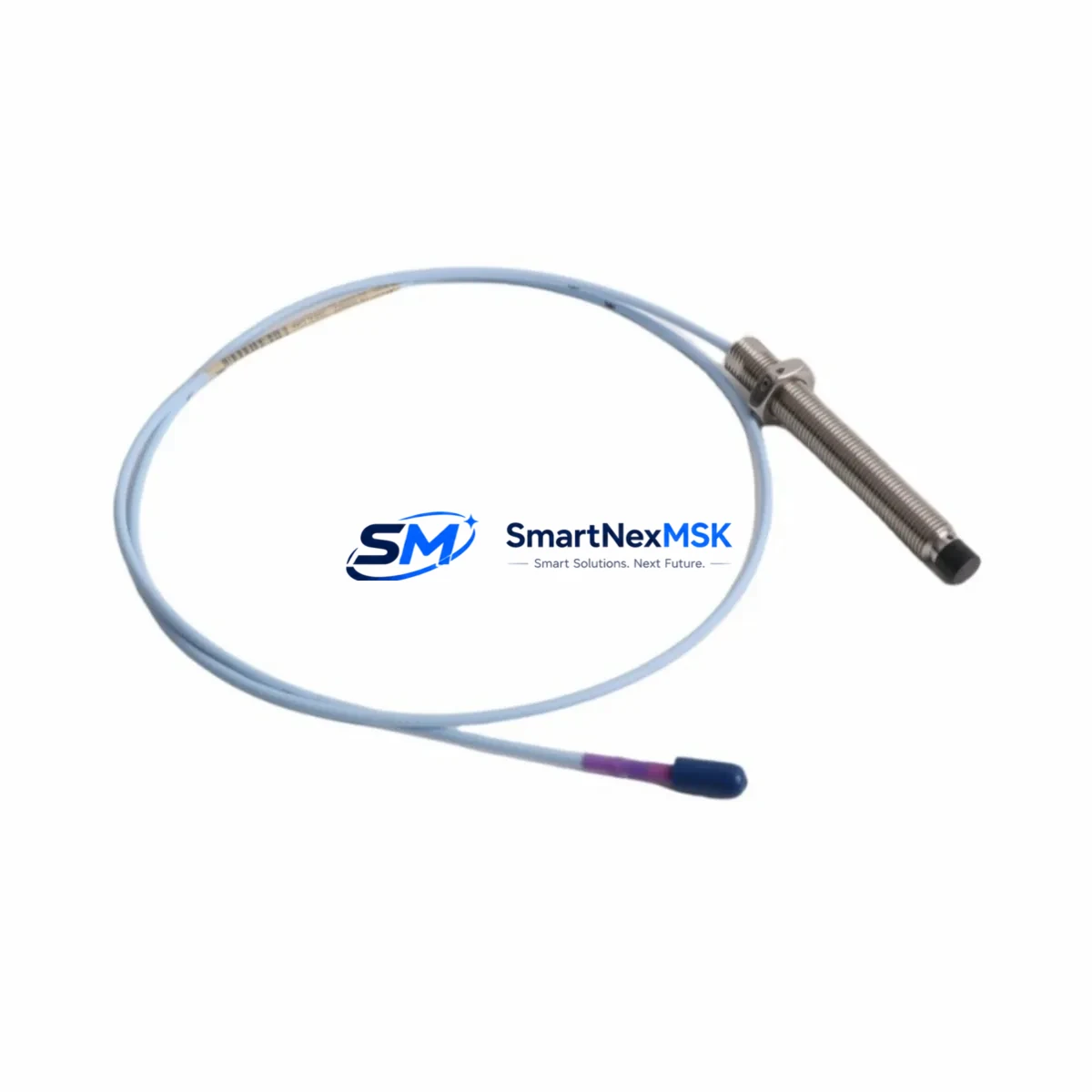

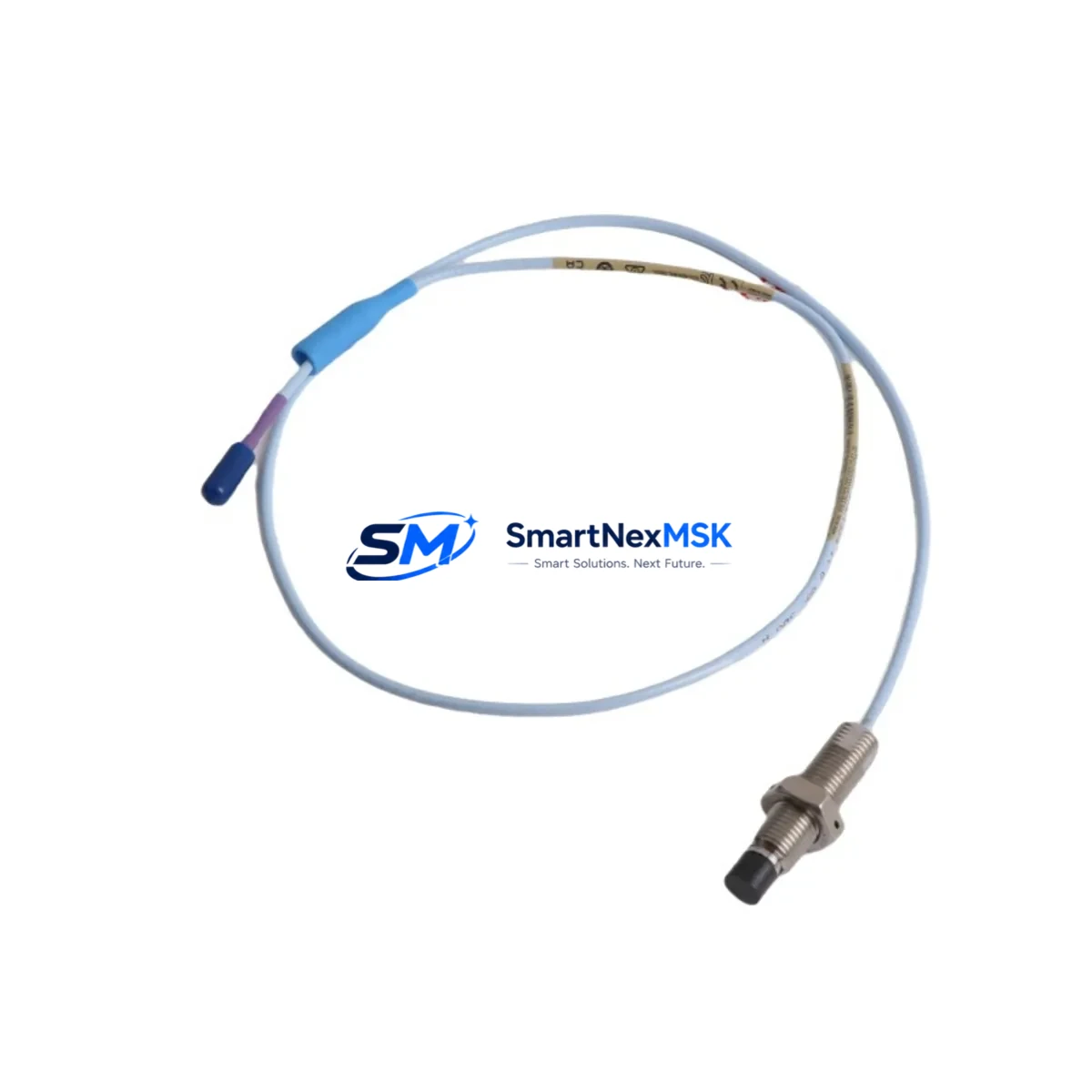

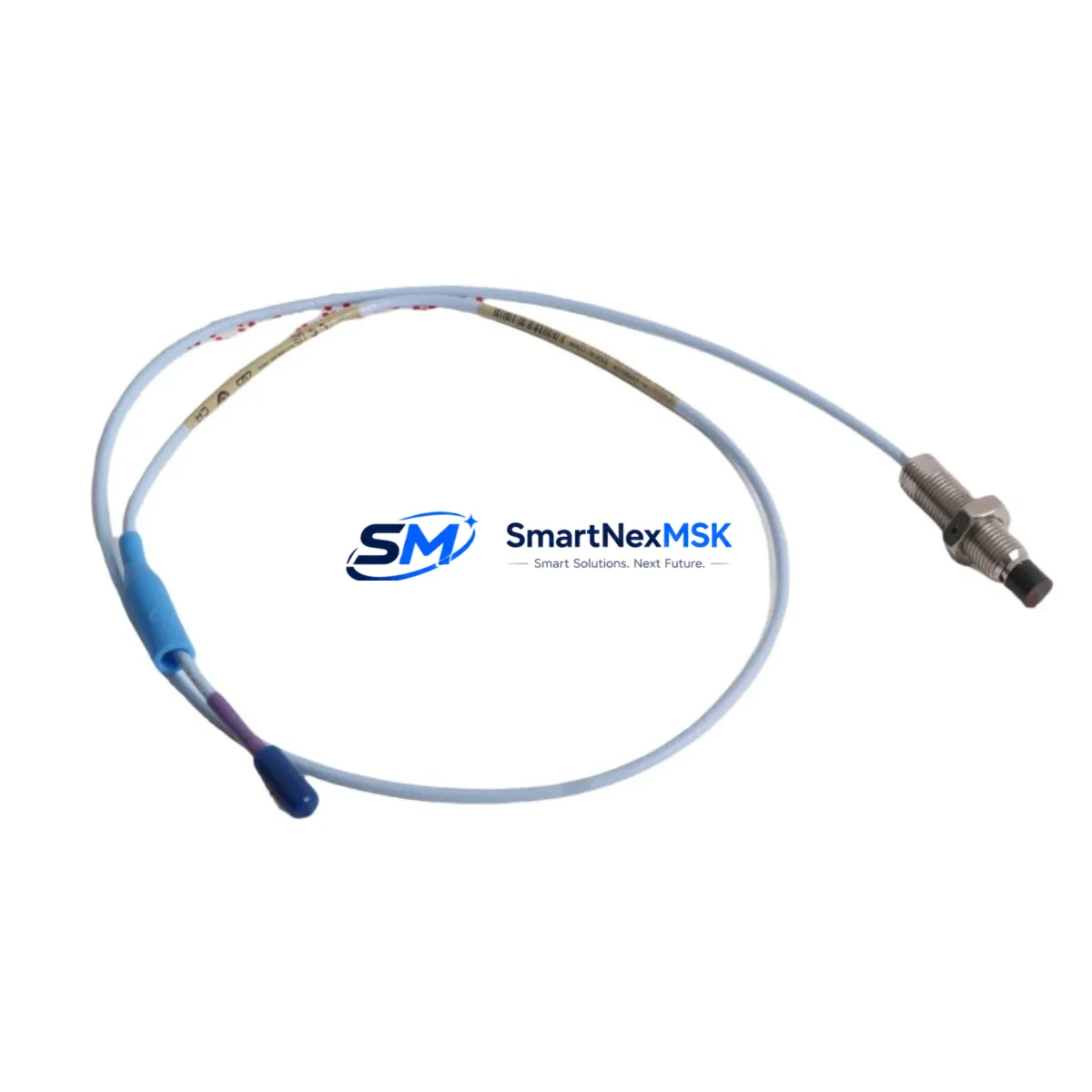

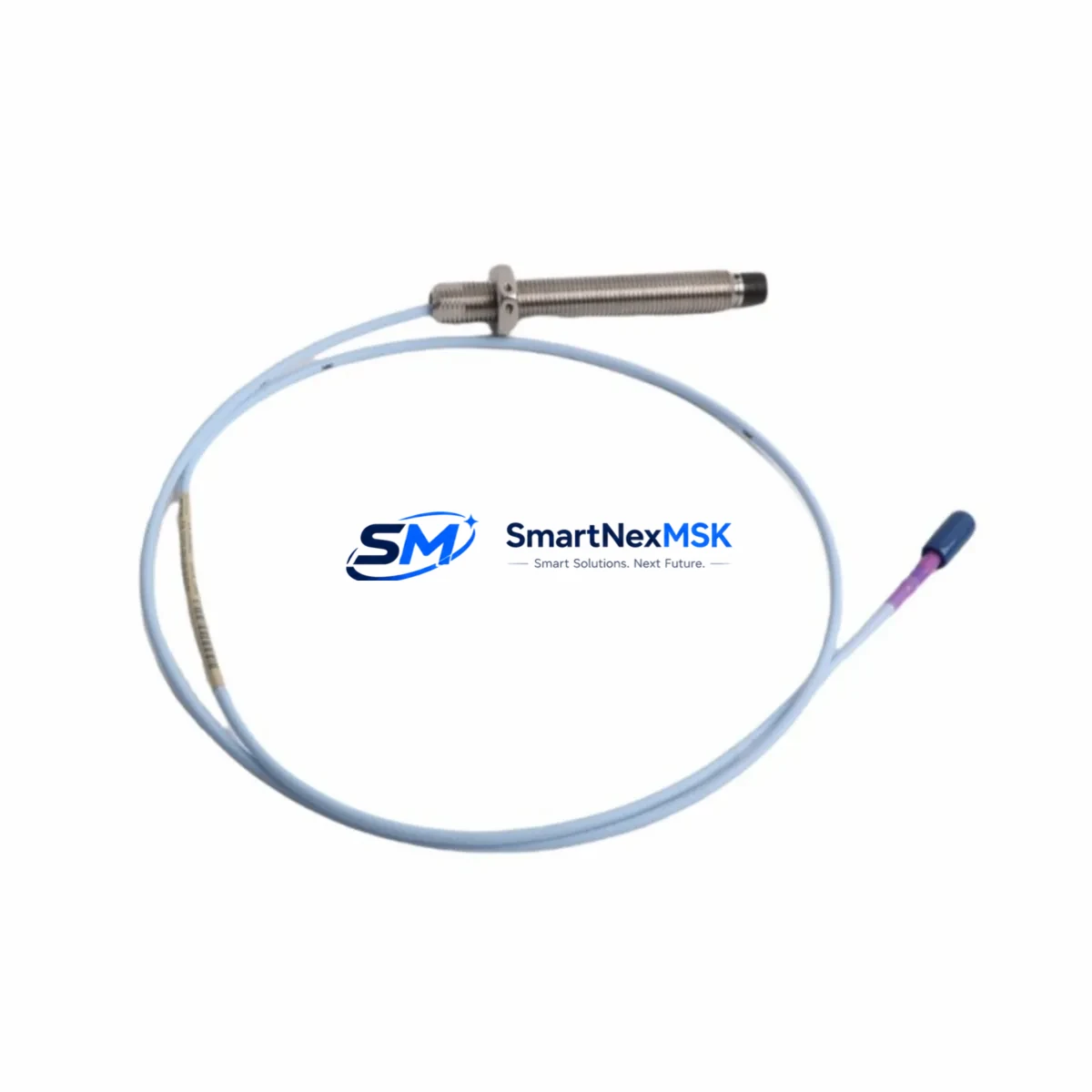

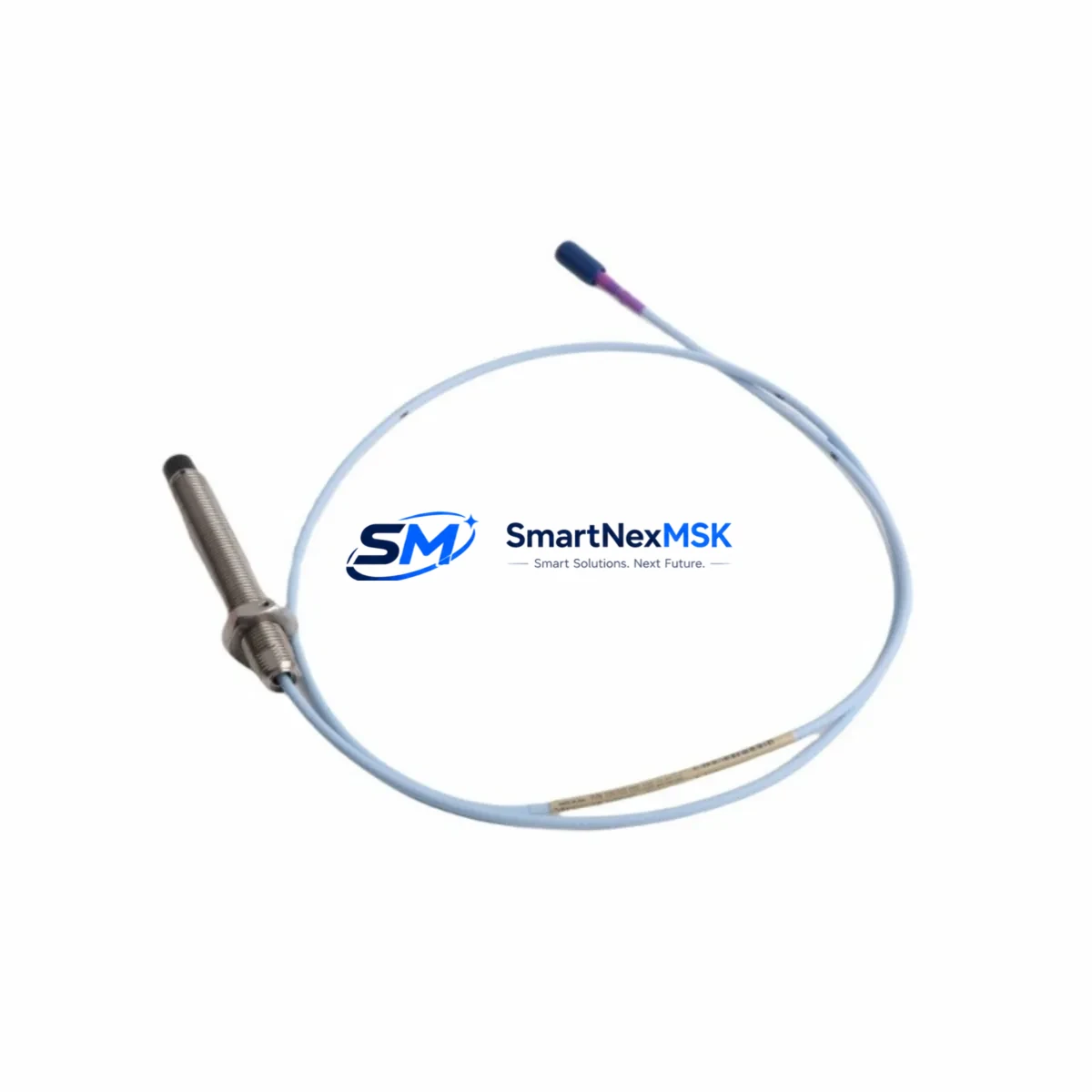

The Bently Nevada 330703-000-050-50-02-00 is an original 11mm Eddy Current Proximity Probe designed for the 3300 XL series continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this probe is engineered to deliver precise radial and axial shaft displacement measurements in turbines, compressors, pumps, and gearboxes operating under demanding industrial conditions. Maintaining a verified spare of this probe in your parts inventory is a fundamental requirement for any maintenance strategy targeting zero unplanned downtime.

For maintenance engineers managing aging machinery protection systems, the 330703-000-050-50-02-00 represents a direct, drop-in replacement for worn or damaged probes without requiring recalibration of the entire monitoring loop — provided the extension cable and proximitor remain within the qualified system length. Each unit shipped from our facility undergoes functional verification and output linearity testing prior to dispatch, ensuring field-ready performance upon arrival.

Procurement engineers sourcing this part for MRO inventory should note that the 3300 XL probe system operates as a matched set: the probe, extension cable (such as the 330130 series), and proximitor/driver (such as the 3300 XL 8mm or 11mm proximitor) must be selected as a compatible system. Substituting components from mismatched series can introduce measurement offset errors that compromise machinery protection thresholds.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330703-000-050-50-02-00 probe during a planned outage or emergency shutdown, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure system integrity. Maintenance teams should treat this replacement as an opportunity to audit the full vibration monitoring chain.

Begin by inspecting the 330130 series extension cable for jacket abrasion, connector corrosion, or impedance drift — a degraded cable is the most common cause of premature probe failure and measurement noise. Next, verify the 3300 XL Proximitor/Driver module (typically rack-mounted in the 3500 monitoring rack) for correct gap voltage output and alarm setpoint integrity. If the proximitor shows output drift or fails the gap voltage test, it should be replaced concurrently to avoid a second outage.

Within the Bently Nevada 3500 Series monitoring rack, check the 3500/42M Proximitor I/O Module and associated 3500/20 Rack Interface Module for firmware currency and communication health. Loose terminal connections on the I/O module are a frequent source of intermittent alarms that are often misdiagnosed as probe faults. Inspect all terminal blocks and verify torque specifications.

For the power supply side, confirm that the 3500/15 Power Supply Module is delivering stable ±24 VDC within tolerance. Voltage sag under load can cause the proximitor to report false high-gap conditions. If the rack houses a redundant power supply, test the automatic switchover function during the maintenance window.

On the signal output side, verify that the 4–20 mA output isolator or signal conditioner feeding the DCS or safety system is calibrated and free of ground loops. A faulty isolator can introduce offset errors that shift the vibration baseline and trigger nuisance trips. If the plant uses a Bently Nevada 3300 XL Keyphasor Probe for phase reference, inspect it alongside the radial probes — a degraded Keyphasor signal degrades the accuracy of all vector measurements in the monitoring system.

Finally, review the junction box and field wiring for moisture ingress, especially in outdoor or wash-down environments. Corroded terminals and compromised cable glands are a leading cause of insulation resistance failures that appear as probe faults. Replacing the probe without addressing wiring deficiencies will result in repeat failures within the next maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow plant LOTO procedures. Inhibit the vibration channel at the 3500 rack to prevent spurious trips during probe removal. Document the current gap voltage (typically –10.0 to –18.0 VDC for 11mm probes) as a baseline reference.

Step 2 — Probe Removal: Disconnect the extension cable at the field junction box. Unthread the probe from the probe holder using the correct spanner. Inspect the probe holder threads and bearing housing bore for damage or contamination.

Step 3 — New Probe Installation: Install the 330703-000-050-50-02-00 replacement probe. Set the initial gap to the manufacturer-specified air gap (typically 1.0 mm / 40 mil for 11mm probes) using a feeler gauge or gap voltage measurement. Reconnect the 330130 extension cable and verify connector seating.

Step 4 — System Verification: With the shaft stationary, measure the gap voltage at the proximitor output. Confirm the reading falls within the linear range (–10.0 to –18.0 VDC). Restore the channel inhibit and monitor the vibration reading during machine run-up. Confirm alarm and danger setpoints are active and correctly configured in the 3500 rack.

Step 5 — Documentation: Record the replacement date, new gap voltage, and technician sign-off in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement probe for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the 330703-000-050-50-02-00 compatible with both the 3300 XL and older 3300 series systems?
The 330703-000-050-50-02-00 is specifically qualified for the 3300 XL system. While the physical connector may be similar to earlier 3300 series probes, the sensitivity calibration and system matching are optimized for the XL proximitor. Using this probe with a non-XL proximitor may result in measurement offset. Always verify the proximitor model before installation.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every unit undergoes output linearity verification, gap voltage calibration check, and connector integrity testing before dispatch. The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, mismatched system components, or operation outside rated environmental limits.

Q3: How should this probe be stored if purchased for inventory rather than immediate installation?
Store in the original packaging in a dry, temperature-controlled environment (10°C to 40°C, <75% RH non-condensing). Avoid exposure to strong magnetic fields or solvents. Inspect the connector and cable jacket annually. Shelf life under proper storage conditions is typically 5+ years without performance degradation.

Q4: Can you supply the matching 330130 extension cable and 3300 XL Proximitor as a complete replacement set?
Yes. We maintain stock of the full 3300 XL probe system components including 330130 series extension cables in standard lengths and 3300 XL Proximitor/Driver modules. Ordering as a matched set ensures system compatibility and simplifies site acceptance testing. Contact our technical sales team to confirm the correct cable length and proximitor model for your application.
