Bently Nevada 330703-000-060-10-01-00 Retrofit-Ready Proximity Probe

Bently Nevada 330703-000-060-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

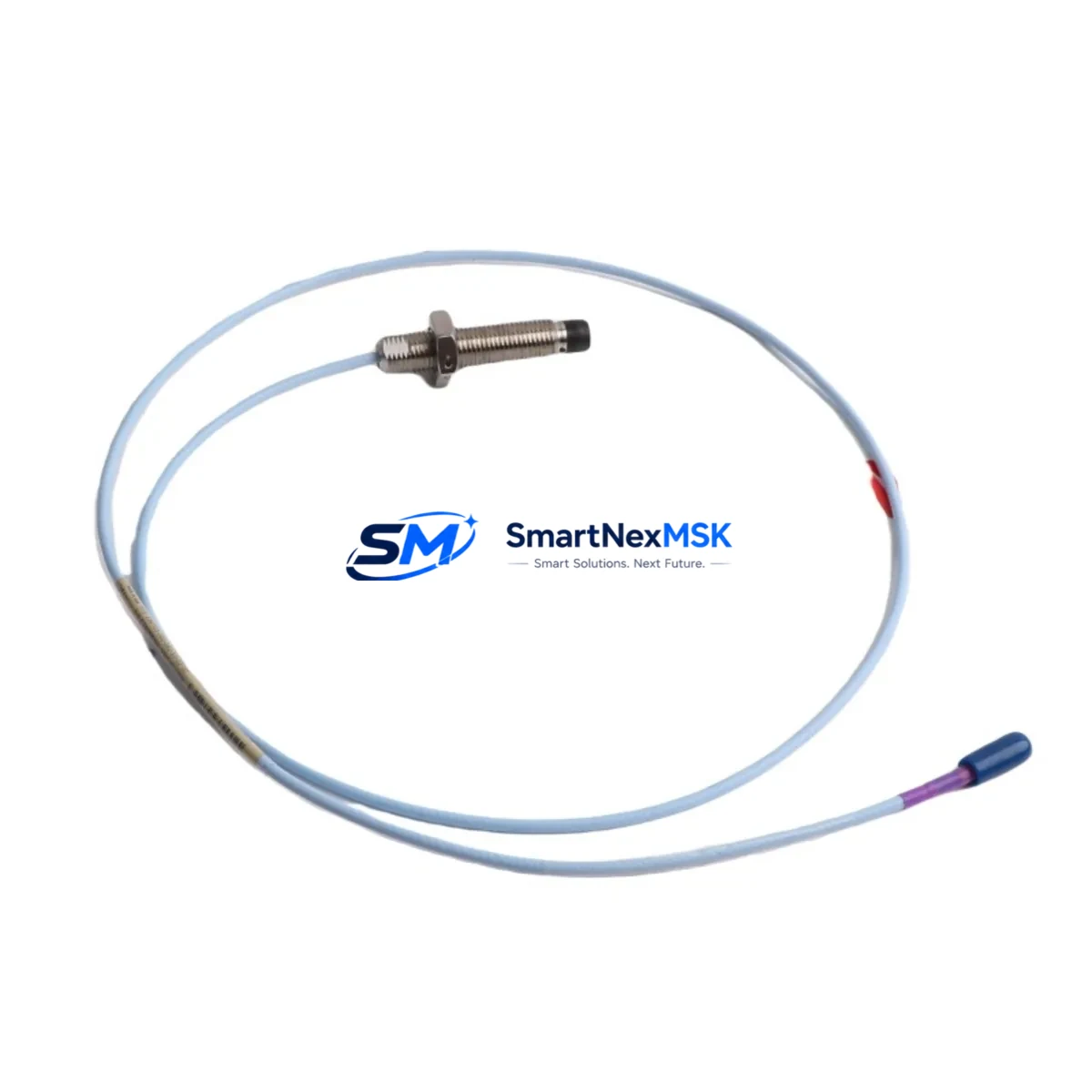

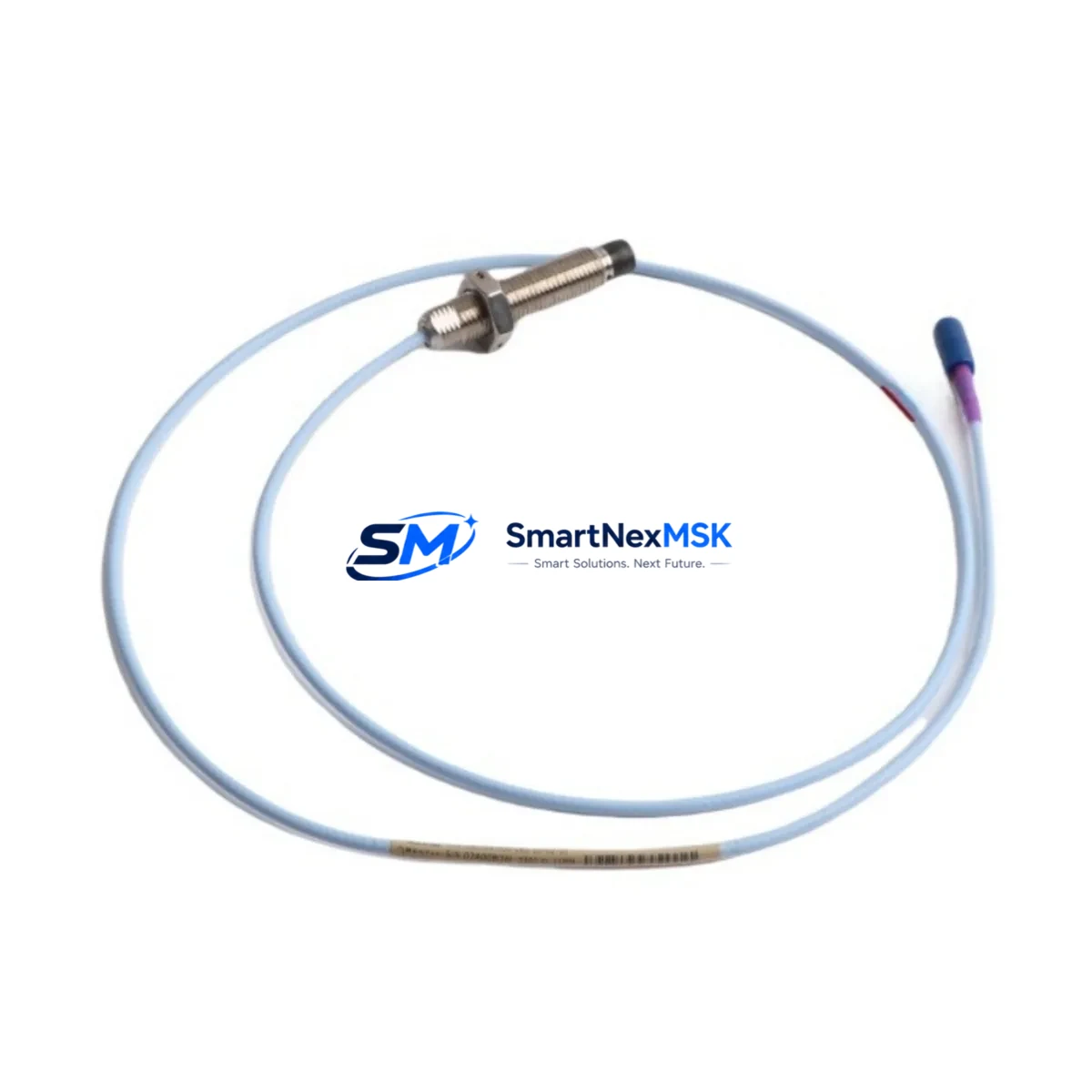

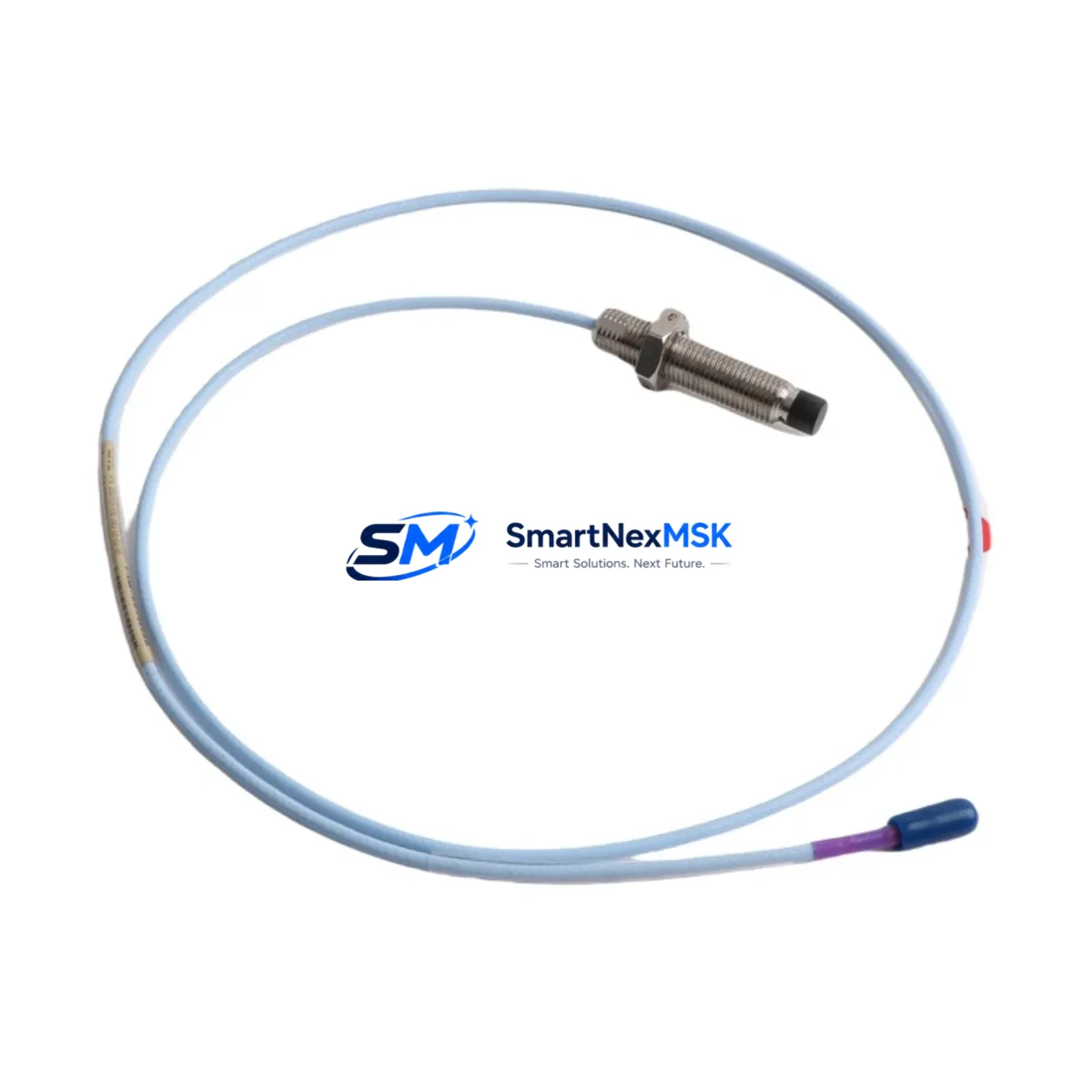

The Bently Nevada 330703-000-060-10-01-00 is an 11mm proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As original equipment reaches end-of-life or becomes increasingly difficult to source through OEM channels, this retrofit-ready replacement provides a verified drop-in solution for facilities managing turbines, compressors, pumps, and gearboxes that depend on continuous vibration and position monitoring.

This probe is designed to integrate directly with the Bently Nevada 3300 XL proximitor/driver system, maintaining the same 11mm sensing tip geometry, cable length options, and signal output characteristics as the original factory part. Engineers and reliability teams undertaking control system upgrades, panel refurbishments, or emergency spare replacements will find this unit fully compatible with existing field wiring, terminal blocks, and DCS input cards without requiring software reconfiguration or signal scaling changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330703-000-060-10-01-00 into an existing machinery protection architecture, the retrofit scope typically extends beyond the probe itself. A complete 3300 XL channel consists of the proximity probe, a matched extension cable such as the 330130-045-00-00 or 330180-X0-05 series, and the proximitor driver module mounted in the field junction box or directly on the machinery skid. Technicians should confirm that the existing proximitor — commonly a 330180-X1-00 or 330180-X0-00 variant — is rated for 11mm probe operation before installation.

In facilities where the 3300 XL rack has been partially upgraded to the Bently Nevada 3500 Series platform, the 330703-000-060-10-01-00 probe remains compatible with 3500/42M and 3500/40M monitor cards, provided the proximitor driver output is within the accepted input range. This cross-generation compatibility is a key advantage during phased migration projects where not all channels are upgraded simultaneously.

Panel-level integration should account for the terminal block wiring scheme used in the existing control cabinet. The probe’s coaxial cable terminates at the proximitor, which then outputs a DC voltage signal to the monitor rack. Confirm that the 3300 XL monitor card — such as the 3300/16 or 3300/20 — is correctly configured for the 11mm probe scale factor. If the facility is migrating from an older 7200 Series Bently Nevada system, signal scaling and gap voltage references will differ and must be recalibrated in the DCS or safety system input configuration.

For facilities running Emerson DeltaV or Honeywell Experion as the supervisory DCS, the analog input cards receiving vibration signals from the 3300 XL rack should be verified for input impedance compatibility. In most cases, no hardware changes are required at the DCS level, but alarm setpoints and trip thresholds stored in the DCS database should be reviewed against the new probe’s sensitivity curve. HMI faceplate displays tied to the vibration channel should also be checked to confirm that engineering unit scaling and alarm visualization remain accurate after probe replacement.

Where the retrofit involves replacing multiple probes across a machine train — for example, on a steam turbine with radial vibration, axial position, and speed sensing channels — it is advisable to source matched sets of 330703-000-060-10-01-00 probes along with corresponding 330130 extension cables and 330180 proximitor drivers to ensure consistent signal chain performance. Mixing probe generations within a single machine train can introduce gap voltage offsets that complicate vibration baseline comparisons and trend analysis.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or 3300 XL system retrofit requires careful pre-outage preparation. Before the maintenance window opens, technicians should document the existing gap voltage readings for each channel, photograph the terminal wiring at the proximitor junction box, and export the current alarm and trip setpoint configuration from the monitor rack. This baseline record protects the original program logic and allows rapid restoration if commissioning reveals unexpected signal deviations.

During the outage, the 330703-000-060-10-01-00 probe should be installed and the gap set to the OEM-specified voltage — typically -10.0 VDC ±0.5 VDC for an 11mm probe at nominal gap — before the extension cable is reconnected to the proximitor. Powering the proximitor and verifying the DC output voltage at the monitor card input terminals confirms signal chain integrity before the machine is returned to service. If the facility uses a Bently Nevada 3500 rack with online configuration capability, channel bypass and reinstatement can be performed without interrupting adjacent monitoring channels, further reducing exposure during the commissioning sequence.

For critical machinery where continuous monitoring is contractually or regulatorily required, a temporary portable vibration analyzer connected in parallel during the probe swap can maintain surveillance of shaft vibration and position throughout the replacement procedure. This approach is particularly valuable in power generation, petrochemical, and LNG facilities where machinery protection system availability is tied to operating permits.

Retrofit Support FAQ

Q: Is the 330703-000-060-10-01-00 a direct replacement for all 330703 series variants?
A: The 330703-000-060-10-01-00 is the standard 11mm, 60-inch (approximately 1.5m) cable length variant. It is a direct replacement for other 330703-000-060 configurations sharing the same tip geometry and cable length. Variants with different cable lengths (e.g., 330703-000-030 or 330703-000-090) require the corresponding length suffix to match the original installation. Confirm the cable length against the existing field routing before ordering.

Q: What commissioning checks are required after installation?
A: After mechanical installation, set the probe gap to achieve the OEM-specified DC output voltage at the proximitor (typically -10.0 VDC ±0.5 VDC). Verify the signal at the monitor card input terminals, confirm alarm and trip setpoints are active, and perform a functional test by simulating shaft movement or using a calibrated gap tool. Document the as-left gap voltage for future reference.

Q: Can this probe be used with non-Bently Nevada monitor systems?
A: The 330703-000-060-10-01-00 outputs a standard eddy-current proximity signal compatible with any monitor system designed for 200 mV/mil (7.87 V/mm) sensitivity probes operating on a -24 VDC supply. It can be used with third-party vibration monitors provided the input specifications match. Signal scaling in the receiving system must be configured to match the probe’s sensitivity factor.

Q: What warranty and pre-shipment testing is provided?
A: Every 330703-000-060-10-01-00 unit is covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing verifies DC output voltage, cable continuity, and connector integrity. Units are shipped with test documentation available upon request. Expedited shipping options are available to support urgent maintenance outages and emergency spare requirements.

—
