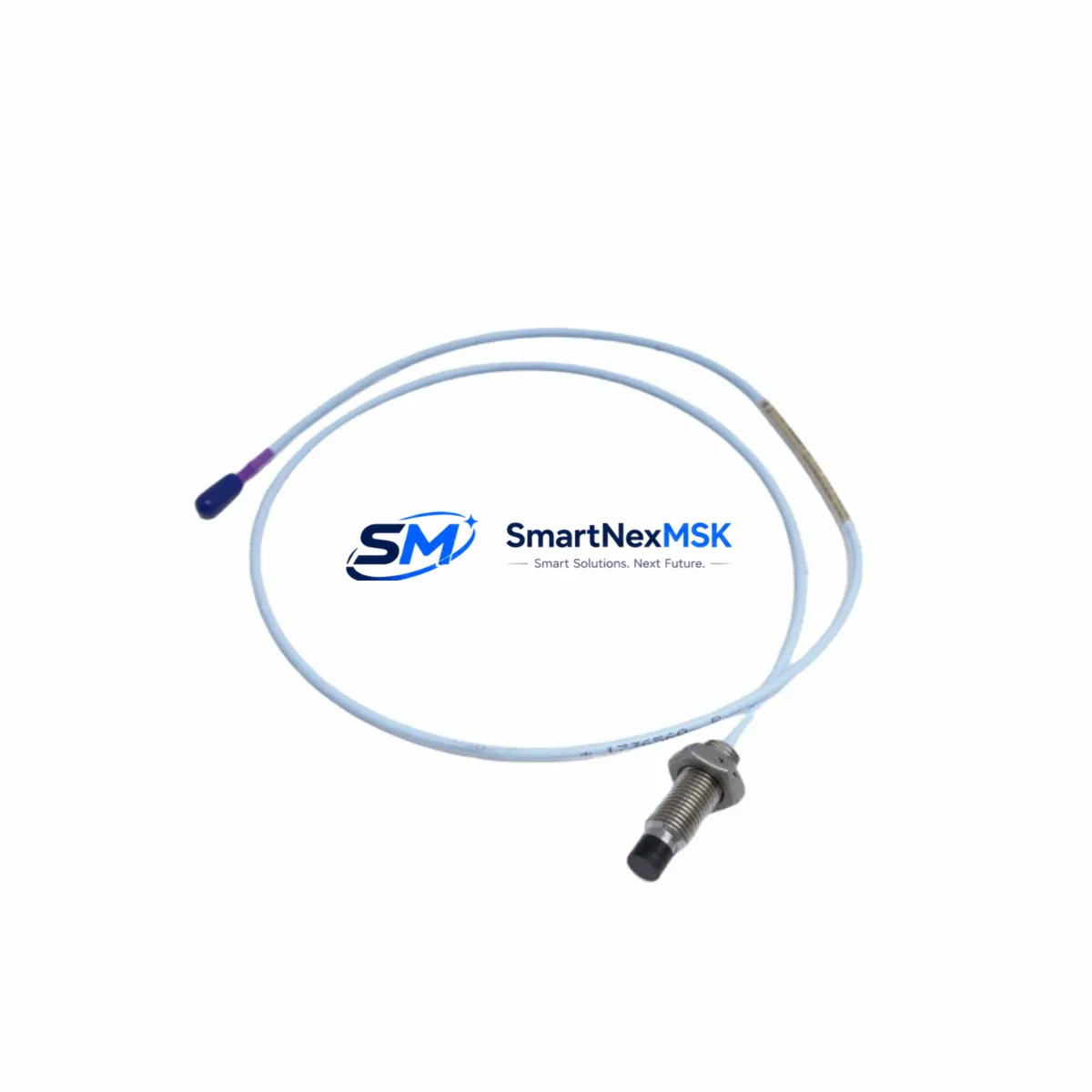

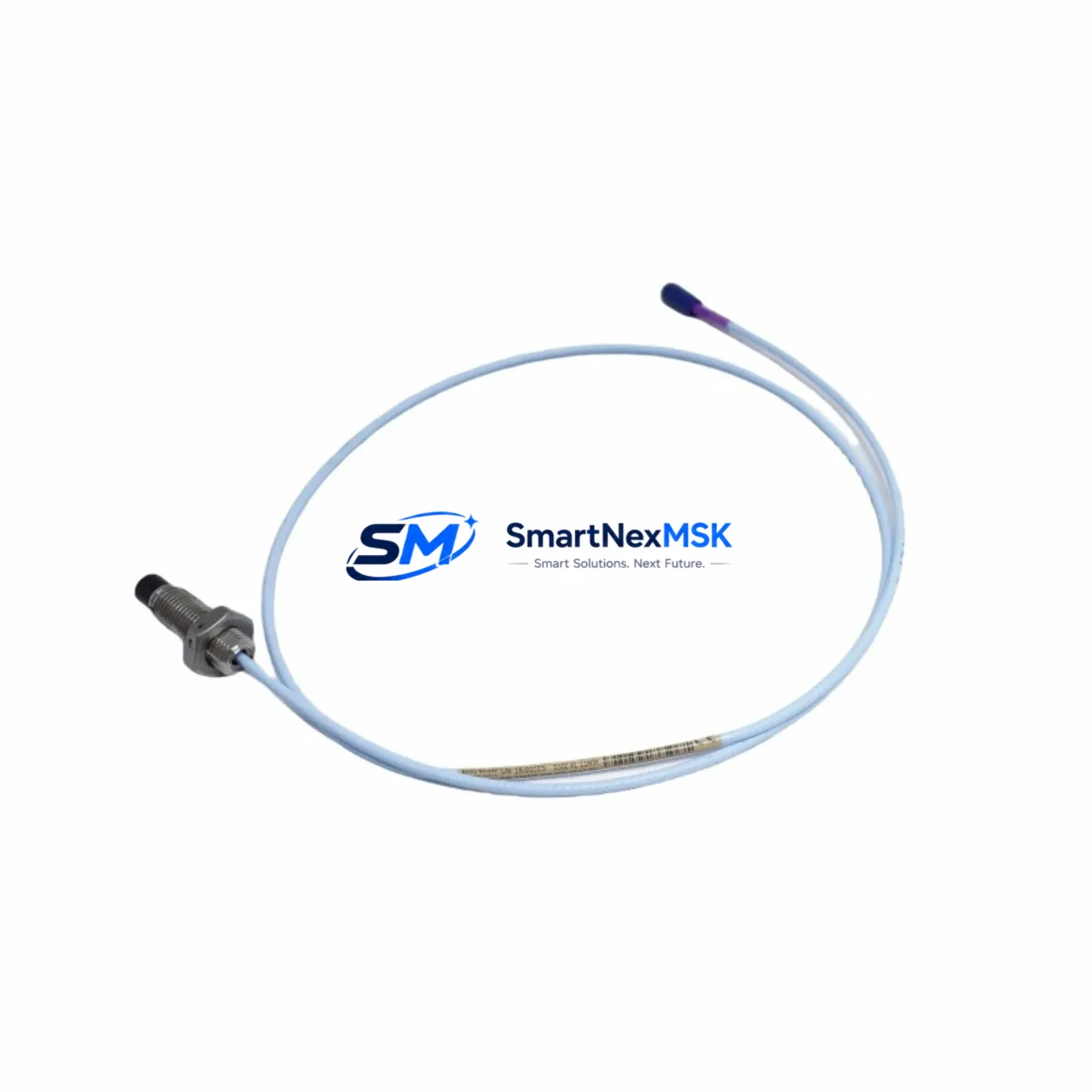

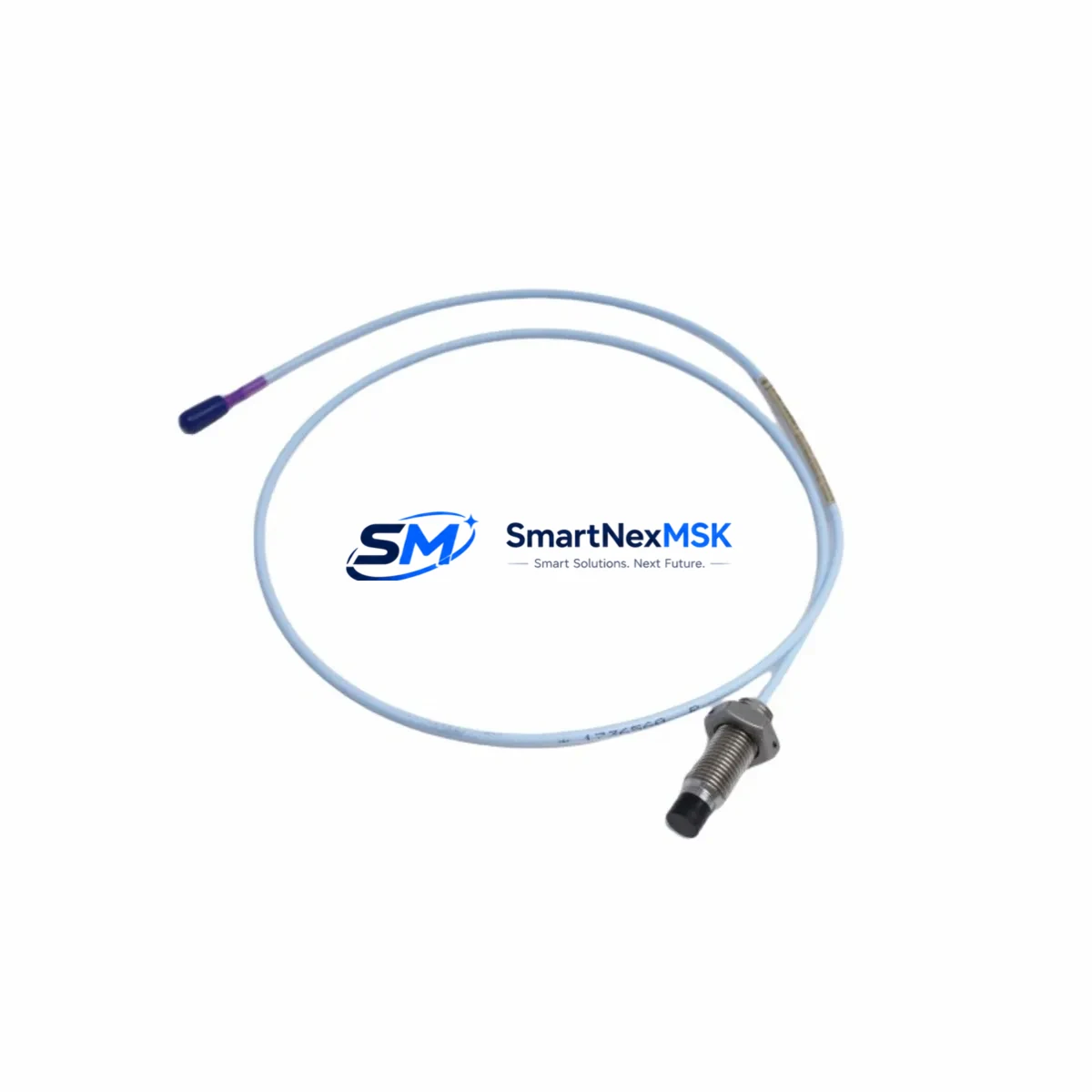

Bently Nevada 330703-000-060-90-02-00 Safety Proximity Transducer

Bently Nevada 330703-000-060-90-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330703-000-060-90-02-00 is a high-reliability eddy-current proximity transducer from the 3300 XL NSv Series, engineered for continuous vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s 3300 XL monitoring system architecture, this transducer delivers precise, non-contact shaft displacement measurement with exceptional immunity to electromagnetic interference, mechanical shock, and thermal cycling — making it a cornerstone component in safety-critical rotating machinery protection systems.

In high-stakes industrial facilities — including petrochemical plants, power generation stations, offshore platforms, and heavy metallurgical operations — control loop integrity is non-negotiable. The 330703-000-060-90-02-00 is purpose-built to eliminate the risk of signal drift, false trips, and measurement gaps that can cascade into unplanned shutdowns or catastrophic equipment failures. Its ruggedized construction and NSv (Non-Standard Voltage) output configuration ensure compatibility with the full 3300 XL monitor rack, including the 3300/16 Monitor and 3300/55 Proximitor Monitor, providing seamless integration into existing safety interlock and machinery protection architectures.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330703-000-060-90-02-00 as part of a comprehensive machinery protection strategy requires careful attention to the entire signal chain — from the probe tip to the monitor output. In a typical 3300 XL installation, this transducer works in conjunction with the Bently Nevada 330130-045-00-00 extension cable and the 330180-X1-05 Proximitor Sensor to form a complete eddy-current measurement loop. The Proximitor converts the probe’s raw impedance signal into a calibrated DC voltage proportional to gap distance, which is then fed into the 3300/16 Dual Vibration Monitor for real-time alarm and trip processing.

Within the control cabinet, signal integrity is protected by routing transducer cables away from high-voltage power conductors and using dedicated cable trays with grounded shielding. The Bently Nevada 3500/22M Transient Data Interface can be integrated alongside the 3300 XL rack to capture high-resolution transient events during startup and shutdown — critical for identifying rotor instability before it escalates to a trip condition. For power supply redundancy, the 3300/20 Power Supply Module provides dual-input capability, ensuring that a single power source failure does not interrupt the protection system.

In safety instrumented systems (SIS) environments, the 330703-000-060-90-02-00 is frequently paired with Bently Nevada 3500 Series monitors — particularly the 3500/40M Proximitor/Seismic Monitor — to achieve SIL 2 loop integrity for overspeed and high-vibration shutdown functions. The 3500/92 Communication Gateway Module enables Modbus or Ethernet/IP data export to the plant DCS, such as a Honeywell Experion PKS or Emerson DeltaV system, maintaining a continuous audit trail of vibration trends for predictive maintenance programs. Surge protection devices, such as the Phoenix Contact TRABTECH surge arresters, are recommended at all field cable entry points to guard against lightning-induced transients in outdoor or exposed installations.

Critical Industrial Safety Applications

The Bently Nevada 330703-000-060-90-02-00 proximity transducer is deployed across a wide spectrum of safety-critical rotating machinery applications in heavy industry:

Petrochemical and Refinery Operations: In compressor trains and centrifugal pump systems handling hydrocarbons, continuous shaft vibration monitoring is mandated by API 670. This transducer provides the real-time radial displacement data required to trigger automatic shutdown before bearing failure or seal damage can result in a process release or fire hazard.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity transducers to monitor journal bearing clearances and detect rotor rubs. The 330703-000-060-90-02-00’s wide operating temperature range and high-frequency response make it suitable for both high-pressure turbine stages and generator end bearings.

Mining and Mineral Processing: In ball mills, SAG mills, and large slurry pumps operating in dusty, high-vibration environments, the armored cable construction and IP67-equivalent sealing of this transducer ensure reliable signal transmission even when exposed to abrasive particulates and wash-down water.

Water and Wastewater Treatment: Large vertical turbine pumps and blower systems in municipal water infrastructure require continuous monitoring to prevent unplanned outages. The 330703-000-060-90-02-00 supports predictive maintenance programs by providing early warning of developing bearing defects.

Metallurgy and Steel Production: Rolling mill drives, ID fans, and induced draft blowers in steel plants operate under extreme thermal and mechanical stress. This transducer’s rated operating temperature and vibration resistance make it a dependable choice for continuous monitoring in these harsh environments.

Port and Marine Infrastructure: Crane hoisting machinery, ship unloaders, and large diesel generator sets in port facilities benefit from the transducer’s robust construction and compatibility with standard 3300 XL monitoring infrastructure, enabling centralized condition monitoring across distributed assets.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330703-000-060-90-02-00?
All units are supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair options available to minimize downtime.

Q2: How is each unit tested before shipment?
Every 330703-000-060-90-02-00 undergoes a full pre-shipment functional verification, including gap sensitivity calibration, cable continuity and insulation resistance testing, and output linearity checks against Bently Nevada factory specifications. A test report is available upon request.

Q3: Is this transducer compatible with existing 3300 XL monitor racks and Proximitor sensors?
Yes. The 330703-000-060-90-02-00 is designed for direct compatibility with the Bently Nevada 3300 XL NSv monitoring system, including all standard 3300 XL monitors and the 330180-series Proximitor sensors. Always verify the NSv output configuration matches your monitor’s input requirements before installation.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of the 330703-000-060-90-02-00 and related 3300 XL series components to support planned maintenance schedules and emergency replacement requirements. Our procurement team actively manages inventory to ensure consistent availability, and we can provide lead-time commitments for bulk or scheduled orders.
