Bently Nevada 330703-000-070-10-02-00 Safety Proximity Probe

Bently Nevada 330703-000-070-10-02-00 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Control Environments

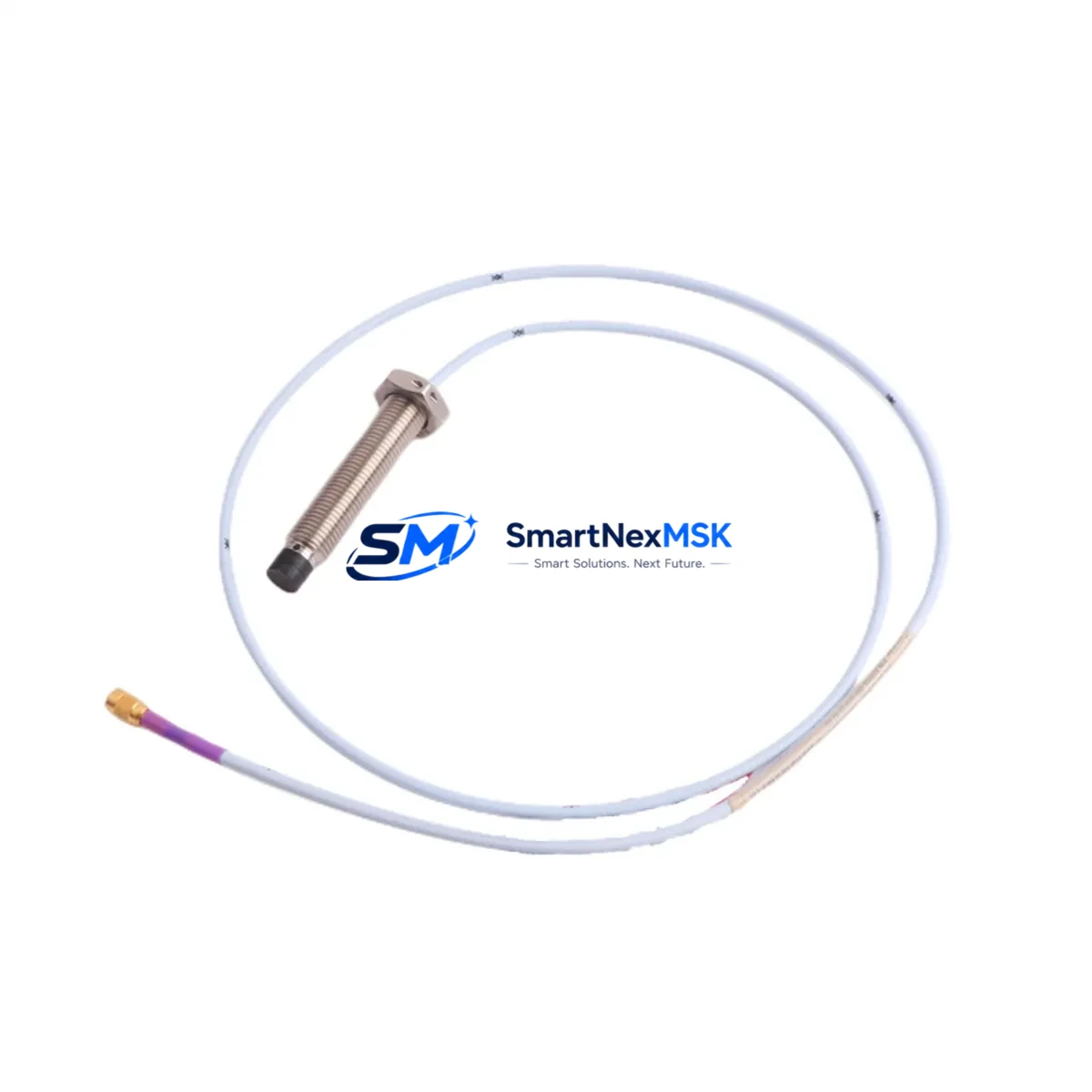

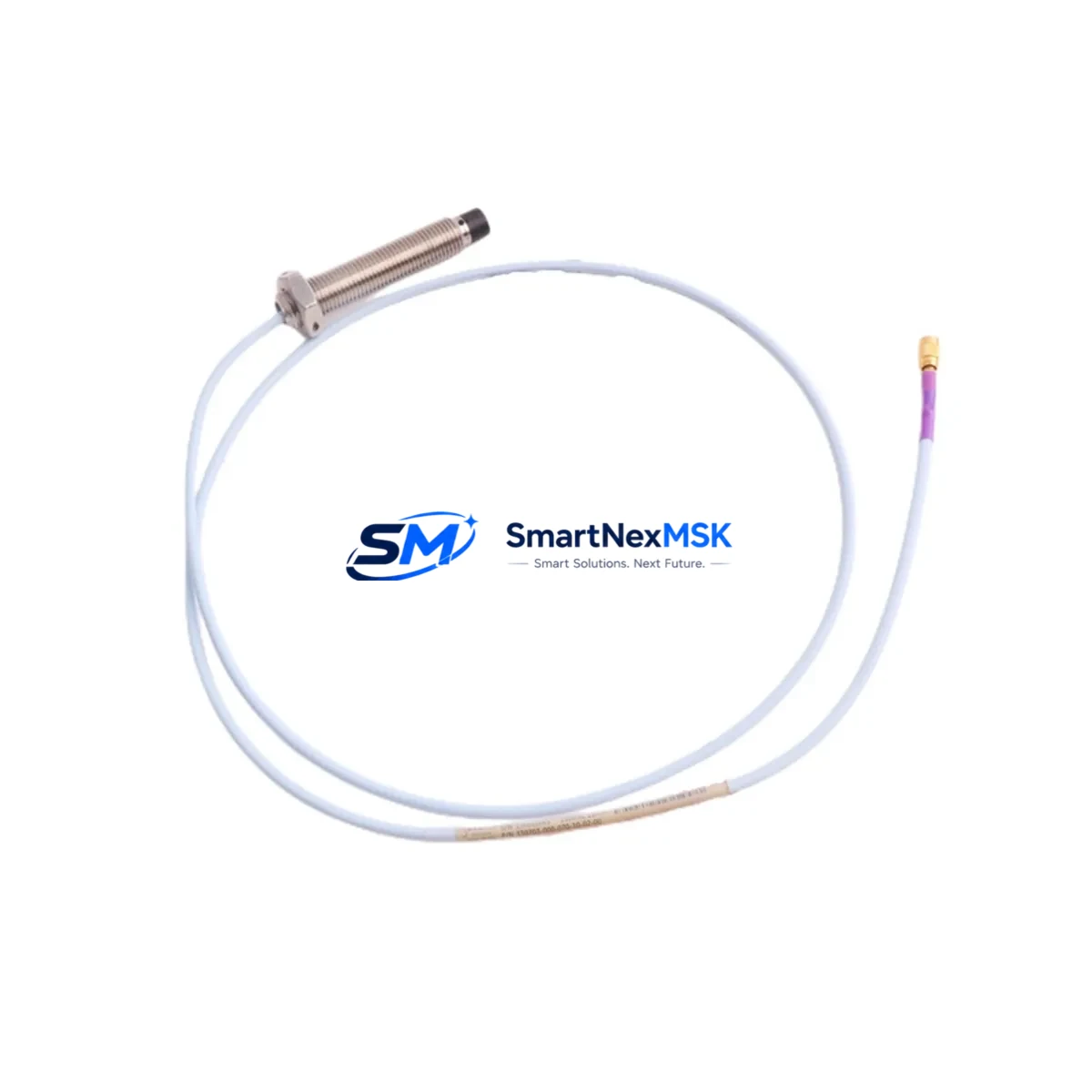

The Bently Nevada 330703-000-070-10-02-00 is an 11mm eddy-current proximity probe from the industry-proven 3300XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably inside high-voltage control cabinets, rotating machinery enclosures, and critical interlock circuits, this probe delivers the signal integrity and mechanical durability that petrochemical, power generation, mining, and heavy manufacturing facilities depend on to prevent unplanned shutdowns and protect rotating assets.

In high-load, high-interference production environments — where electromagnetic noise from variable frequency drives, large motor starters, and power bus systems can corrupt sensor signals — the 330703-000-070-10-02-00 maintains stable, drift-free output. Its ruggedized stainless-steel housing and armored cable construction resist vibration fatigue, chemical exposure, and mechanical impact, ensuring that the probe continues to deliver accurate gap measurements even after years of continuous operation in aggressive field conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 330703-000-070-10-02-00 proximity probe does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain that must be carefully assembled to ensure signal fidelity from shaft to control room. The probe pairs directly with the Bently Nevada 3300XL Proximitor® Sensor (such as the 330180-X1-05 or 330130-040-00-00 extension cable assemblies), which conditions the raw eddy-current signal into a clean, calibrated voltage output suitable for the Bently Nevada 3500/42M Proximitor Monitor or the 3500/40M Proximitor/Velomitor Monitor installed in the 3500 Series rack.

Within the control cabinet, the 3500 Series rack — including the 3500/01 Rack Interface Module and 3500/15 Power Supply Module — provides the regulated -24 VDC supply that the proximity probe system requires. Unstable or noisy DC power is one of the leading causes of signal drift and false trips in vibration monitoring loops; therefore, pairing the probe system with a high-quality, low-ripple power supply module is a non-negotiable safety practice. For installations in cabinets that also house variable frequency drives or large contactors, additional surge protection devices and EMI filters on the power rail are strongly recommended to prevent transient-induced probe output errors.

In critical interlock and safety instrumented system (SIS) architectures, the vibration signal from the 330703-000-070-10-02-00 is often routed through a Bently Nevada 3500/22M Transient Data Interface or directly into a safety PLC — such as a Rockwell Automation GuardLogix or Siemens S7-300F safety controller — where it is compared against high-high vibration trip setpoints. Proper cable segregation, grounded cable trays, and the use of shielded twisted-pair signal cables between the Proximitor and the monitor rack are essential to maintaining signal integrity in these high-stakes loops. Failure to observe these practices can result in nuisance trips or, more dangerously, missed trips during actual machinery fault events.

For installations requiring long cable runs between the probe and the Proximitor sensor, the Bently Nevada 330130 Series extension cables are the correct matched accessory, maintaining system calibration and sensitivity within specification. Using non-OEM or mismatched extension cables is a common field error that degrades measurement accuracy and can invalidate machinery protection system performance guarantees.

Critical Industrial Safety Applications

The Bently Nevada 330703-000-070-10-02-00 proximity probe is deployed across the full spectrum of heavy industrial and process-critical rotating machinery applications:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, where continuous shaft vibration monitoring is mandated by API 670 machinery protection standards. In these environments, an undetected bearing failure or rotor rub can escalate within seconds to a catastrophic seal failure and hydrocarbon release. The 330703-000-070-10-02-00 provides the early-warning vibration data that allows operators to initiate controlled shutdowns before damage propagates.

Power Generation: Used on steam turbine-generator sets, boiler feed pumps, and induced draft fans in coal, gas, and combined-cycle power plants. Turbine shaft vibration monitoring is a primary protection function; the 3300XL probe system’s ability to maintain calibration accuracy across wide temperature swings — from cold startup to full-load thermal equilibrium — is critical to reliable trip system performance.

Mining and Mineral Processing: Applied to large ball mill pinion bearings, slurry pump drive trains, and conveyor head pulley shafts in copper, iron ore, and gold processing facilities. The probe’s IP67-rated stainless-steel body and armored cable withstand the high dust loading, water spray, and mechanical vibration characteristic of mineral processing environments.

Water and Wastewater Treatment: Monitoring vertical turbine pumps, blower trains, and centrifugal aerators in municipal and industrial water treatment plants, where continuous operation is required and unplanned downtime directly impacts public health compliance obligations.

Metallurgy and Steel Production: Deployed on rolling mill main drive motors, continuous caster pinch roll drives, and blast furnace top gas compressors, where the combination of high ambient temperature, heavy electromagnetic interference from large DC drives, and aggressive vibration levels demands a proximity probe system with proven EMI immunity and mechanical robustness.

Port and Marine Infrastructure: Used on ship-to-shore crane hoist motors, bulk material handling conveyor drives, and harbor dredge pump sets, where salt-laden air, high humidity, and continuous duty cycles place exceptional demands on sensor reliability and corrosion resistance.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330703-000-070-10-02-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional faults arising under normal operating conditions as specified in the Bently Nevada 3300XL product documentation. If the probe fails to meet its published sensitivity, linearity, or temperature performance specifications within the warranty period, we will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, use outside rated environmental limits, or physical abuse.

Q2: What pre-shipment testing is performed on each unit?
Every 330703-000-070-10-02-00 unit undergoes a full functional verification prior to dispatch, including output sensitivity check, cable continuity and insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada 3300XL specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series monitoring systems?
Yes. The 330703-000-070-10-02-00 is fully compatible with the Bently Nevada 3300XL Proximitor Sensor family and the 3500 Series Machinery Protection System monitors. It is also backward-compatible with legacy 3300 Series Proximitor sensors when used within the specified cable length and gap range. Always verify the Proximitor model and system configuration against the Bently Nevada TDM (Technical Data Manual) for your specific installation to confirm calibration constants.

Q4: Can long-term supply continuity be guaranteed for this SKU?
We maintain dedicated safety stock of the 330703-000-070-10-02-00 to support both planned maintenance schedules and emergency replacement requirements. For facilities operating under a critical spare parts program or API 670-compliant machinery protection strategy, we recommend establishing a standing supply agreement to ensure availability during planned turnarounds and unplanned outage events. Contact our technical sales team to discuss volume pricing and reserved inventory arrangements.
