Bently Nevada 330703-000-080-50-02-00 Spare 3300 XL

Bently Nevada 330703-000-080-50-02-00 Maintenance-Ready Spare for 3300 XL Automation

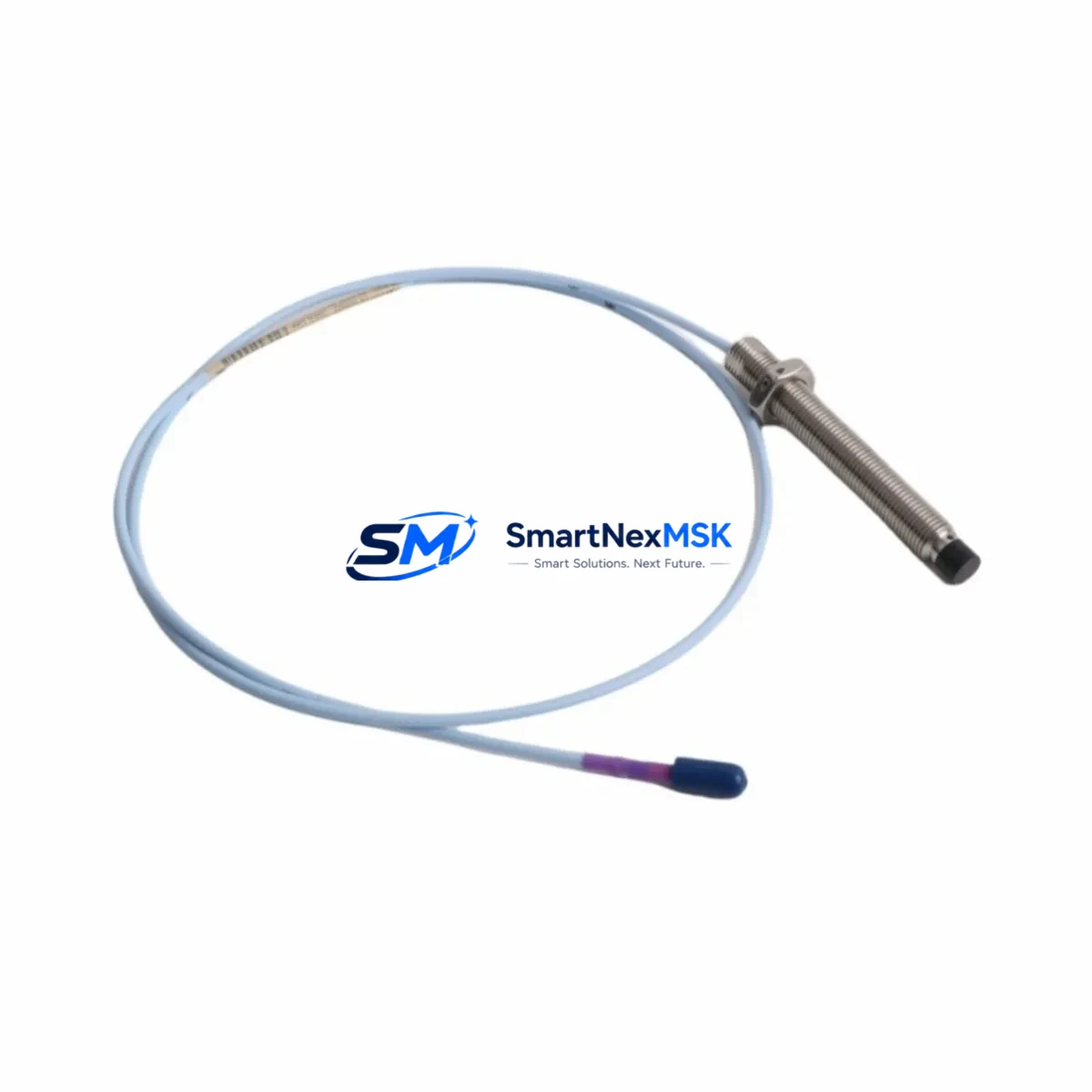

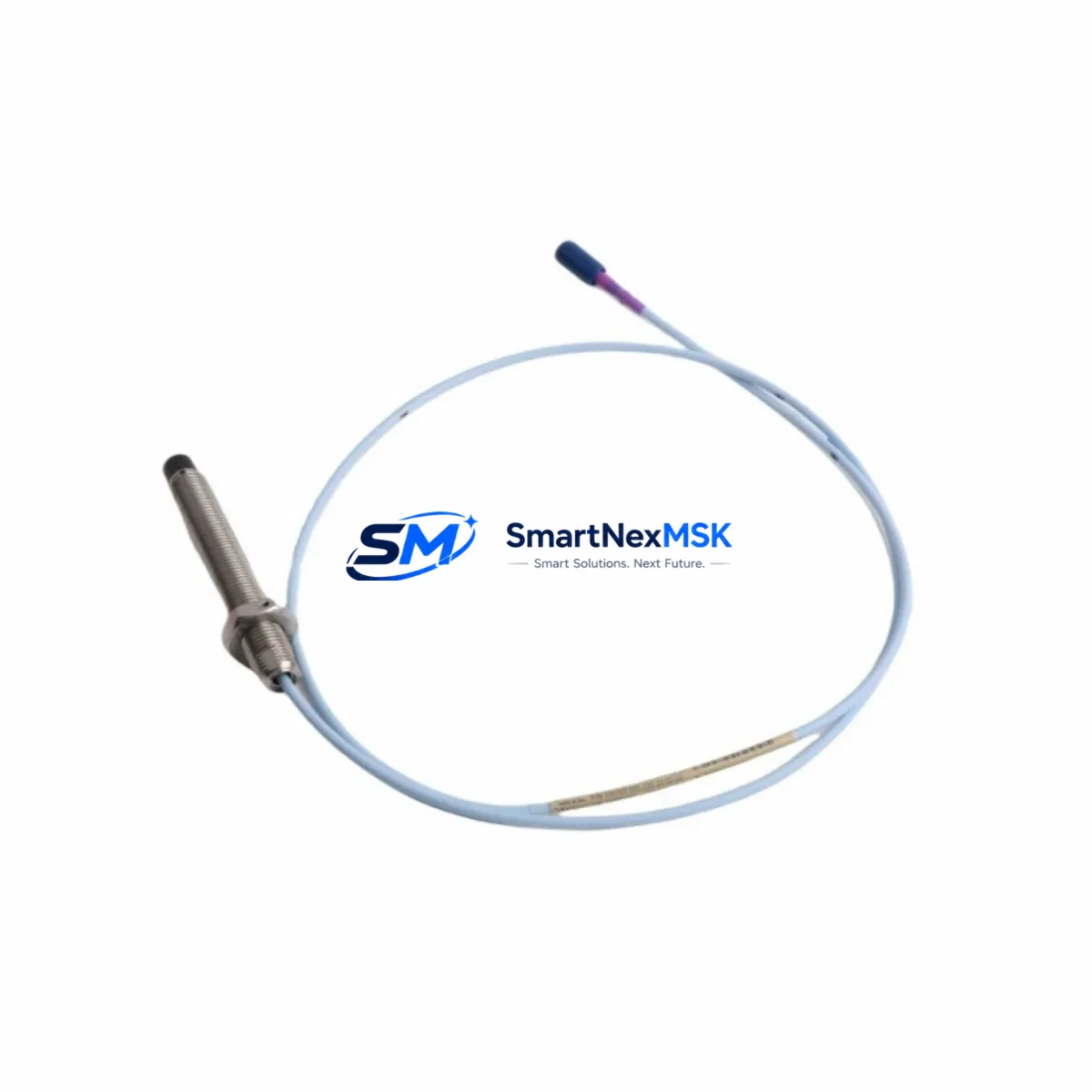

The Bently Nevada 330703-000-080-50-02-00 is an original 11mm eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring within the 3300 XL Series machinery protection system. In rotating equipment environments — turbines, compressors, pumps, and gearboxes — this transducer is a front-line component whose failure directly triggers unplanned downtime. Sourcing a verified original spare before failure occurs is the single most effective strategy for protecting uptime and avoiding emergency procurement premiums.

At SMARTNEXMSK, every 330703-000-080-50-02-00 unit is sourced from authorized supply chains, individually inspected, and shipped with full documentation. Our B2B fulfillment process supports urgent replacement orders with same-day processing and tracked international logistics, backed by a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330703-000-080-50-02-00 proximity transducer is flagged for replacement — whether through a high-vibration alarm, a gap voltage drift, or a scheduled calibration interval — maintenance engineers should treat the event as a system-level inspection opportunity rather than a single-component swap.

Begin by verifying the paired 3300 XL extension cable (typically the 330130 series). Extension cables are subject to connector corrosion, jacket abrasion near bearing housings, and impedance drift that can mimic transducer failure. A probe replaced without inspecting its cable will often reproduce the original fault within weeks.

Next, confirm the 3300 XL proximitor/driver module (such as the 330180 or 330185 series) is within calibration. The driver provides the –24 VDC excitation and converts gap distance to a linear voltage output; a drifting driver will invalidate readings from an otherwise healthy transducer. While the cabinet is open, inspect the 3300 XL monitor card for alarm setpoint integrity and channel configuration — firmware or setpoint corruption is a common secondary finding during transducer replacements.

For installations in high-temperature or high-vibration zones, check the armored conduit fittings and junction box terminal strips for loosening. Vibration-induced terminal loosening is a leading cause of intermittent gap signal faults that are frequently misdiagnosed as transducer failure. Inspect DIN rail terminal blocks and signal cable shielding continuity at the monitor rack entry point.

If the machine is part of a turbine or compressor train, the replacement interval is also an appropriate time to audit the Keyphasor transducer (330980 or 330900 series) and its associated wiring. Keyphasor signal integrity directly affects phase-referenced vibration analysis and balancing accuracy. A degraded Keyphasor will corrupt vector data even when all proximity channels are healthy.

For facilities running legacy 3300 Series (non-XL) monitors alongside newer 3300 XL racks, verify that the replacement 330703-000-080-50-02-00 is matched to the XL-series driver. Mixing non-XL probes with XL drivers — or vice versa — produces systematic gap voltage errors that are difficult to diagnose without a calibration fixture.

Finally, update the CMMS spare parts record to reflect the replacement date, gap voltage at commissioning, and the serial number of the installed unit. This baseline reading is essential for trending gap voltage over time and predicting the next replacement interval before an alarm condition develops.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit SKU (330703-000-080-50-02-00) matches the installed probe diameter (11 mm), cable length (5.0 m), and connector type. Cross-reference against the machine OEM documentation and the 3300 XL system configuration record.

Step 2 — Safe Isolation: De-energize the proximitor channel at the monitor rack. Do not rely solely on software inhibit — physically disconnect the driver output at the terminal strip to prevent false vibration trips during installation.

Step 3 — Probe Removal and Gap Measurement: Record the existing gap voltage before removal. Remove the probe using the correct spanner to avoid thread damage on the bearing housing boss. Inspect the boss threads and clean with a thread chaser if necessary.

Step 4 — Installation and Gapping: Install the new 330703-000-080-50-02-00 and set the air gap to the OEM-specified nominal (typically 1.0–1.27 mm / 40–50 mil for 11 mm probes). Verify gap voltage at the driver output against the calibration curve. A reading of approximately –10.0 VDC at nominal gap confirms correct installation.

Step 5 — System Re-energization and Alarm Verification: Re-energize the channel, confirm the gap voltage is stable, and verify that the monitor card displays a healthy channel status. Check that vibration and position readings are within expected baseline ranges before returning the machine to service.

Step 6 — Documentation: Record the installed gap voltage, date, technician ID, and unit serial number in the CMMS. Schedule the next calibration check per site maintenance intervals (typically 12–24 months or at the next planned outage).

Spare Parts Support FAQ

Q1: Is the 330703-000-080-50-02-00 compatible with both 3300 and 3300 XL monitor systems?
The 330703-000-080-50-02-00 is specifically designed for the 3300 XL 11mm proximity system. While the physical probe dimensions are similar to earlier 3300 Series probes, the driver electronics and calibration curves differ between XL and non-XL systems. Always verify the installed driver model before ordering to ensure full system compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 330703-000-080-50-02-00 unit shipped by SMARTNEXMSK undergoes visual inspection, connector integrity check, and cable continuity verification. Units are packaged in anti-static, impact-resistant packaging with a test record included. The 12-month warranty covers functional performance from the date of receipt.

Q3: Can I order a matched probe-and-extension-cable set for a complete channel replacement?
Yes. We recommend ordering the 330703-000-080-50-02-00 probe together with the appropriate 330130-series extension cable as a matched set. Matched sets are calibrated to the same sensitivity curve, eliminating the impedance mismatch risk that can occur when mixing components from different production batches.

Q4: What is the lead time for urgent or emergency orders?
In-stock units are processed same business day. International shipments to most industrial regions are fulfilled within 3–7 business days via tracked express freight. For critical shutdown situations, contact our team directly to arrange priority dispatch and real-time shipment tracking.
