Bently Nevada 330703-000-100-10-02-CN 3300 XL Probe

Bently Nevada 330703-000-100-10-02-CN: Retrofit-Ready Proximity Probe for 3300 XL Control Systems

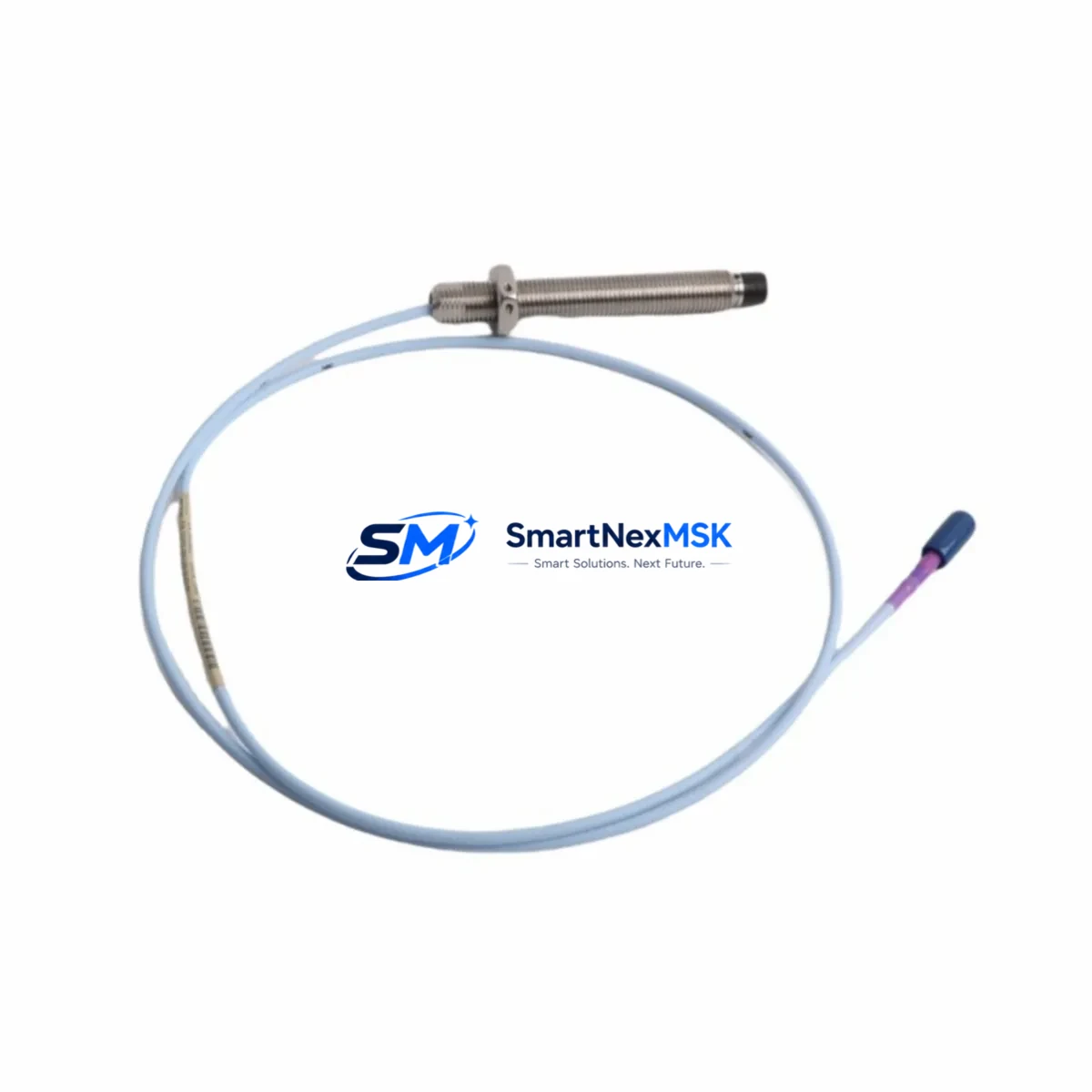

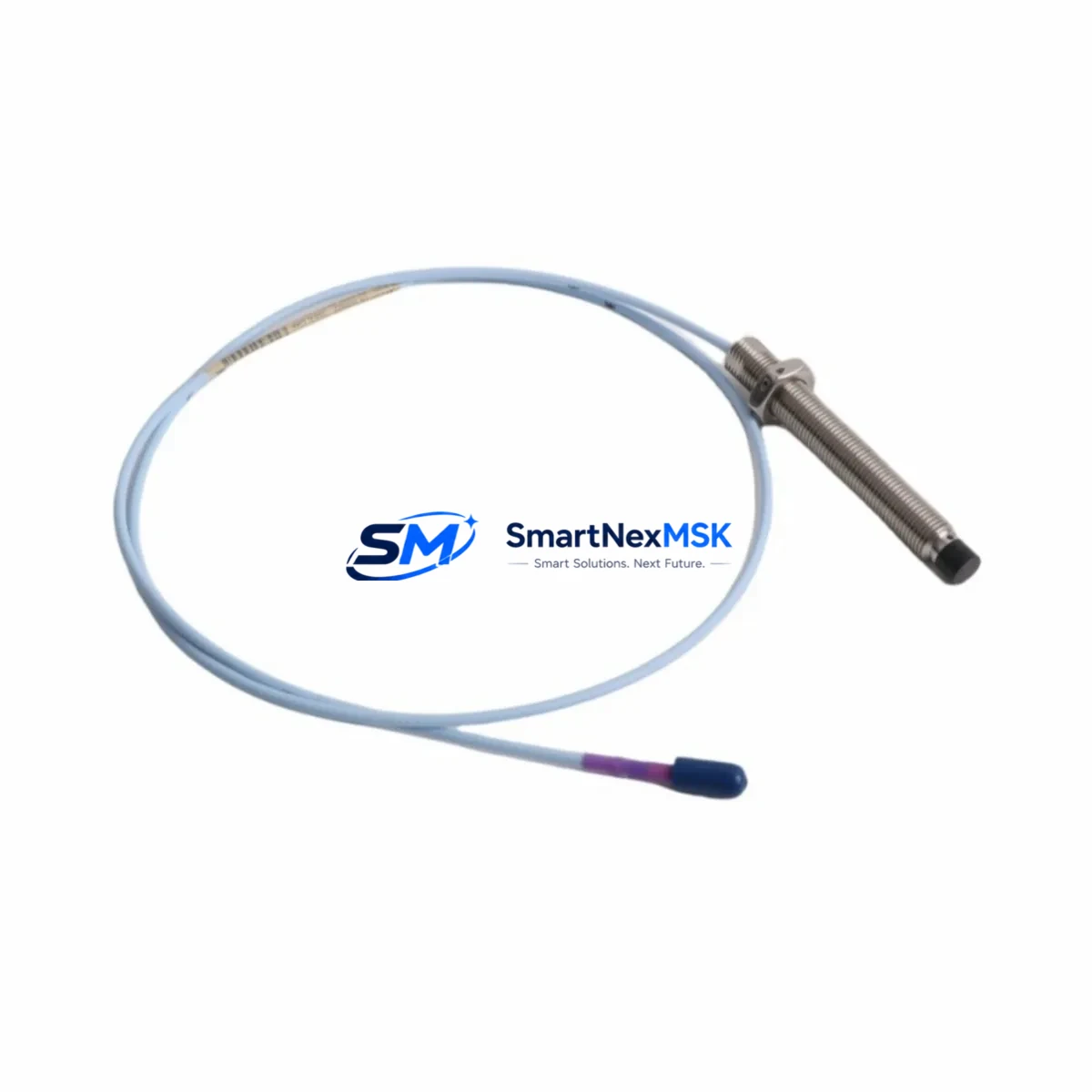

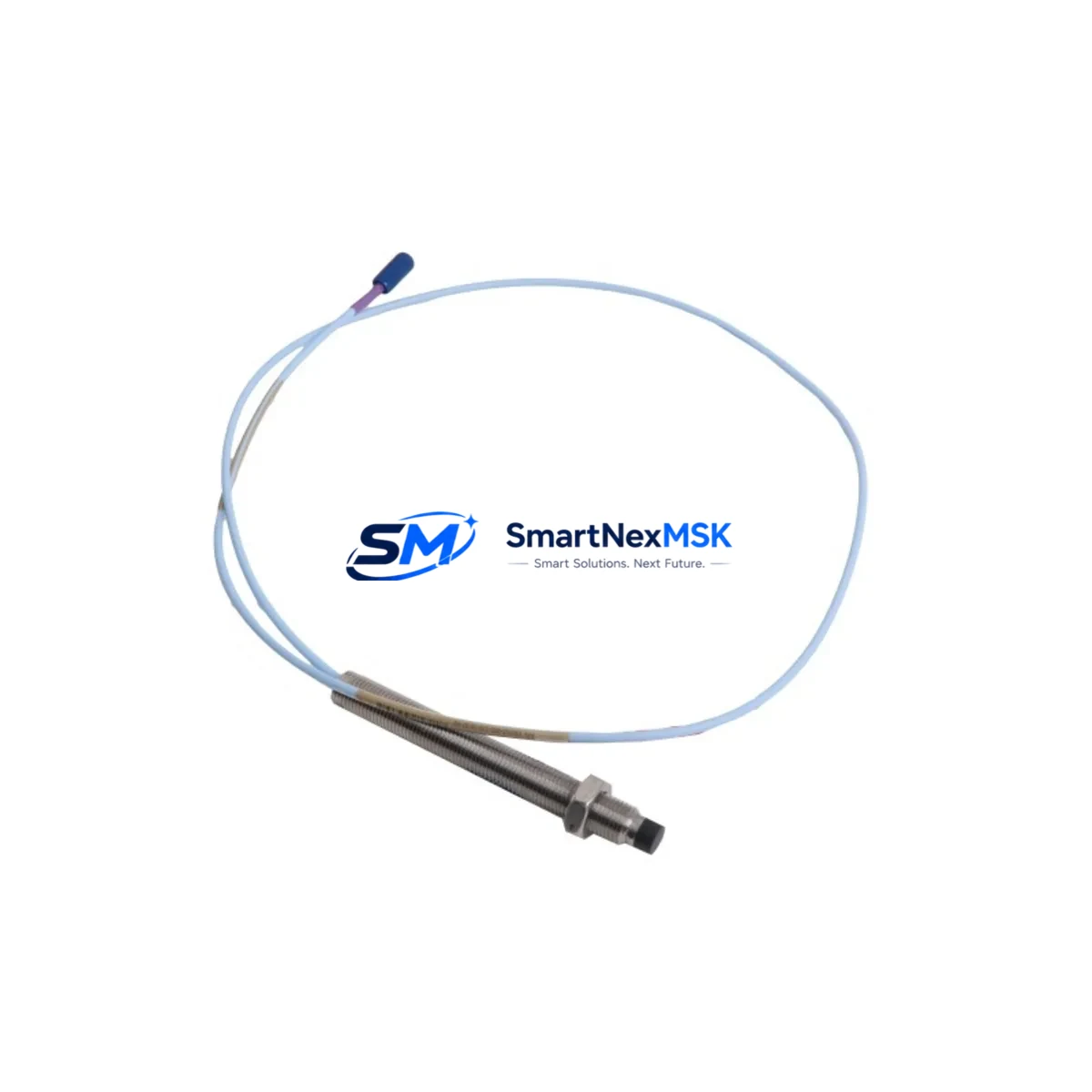

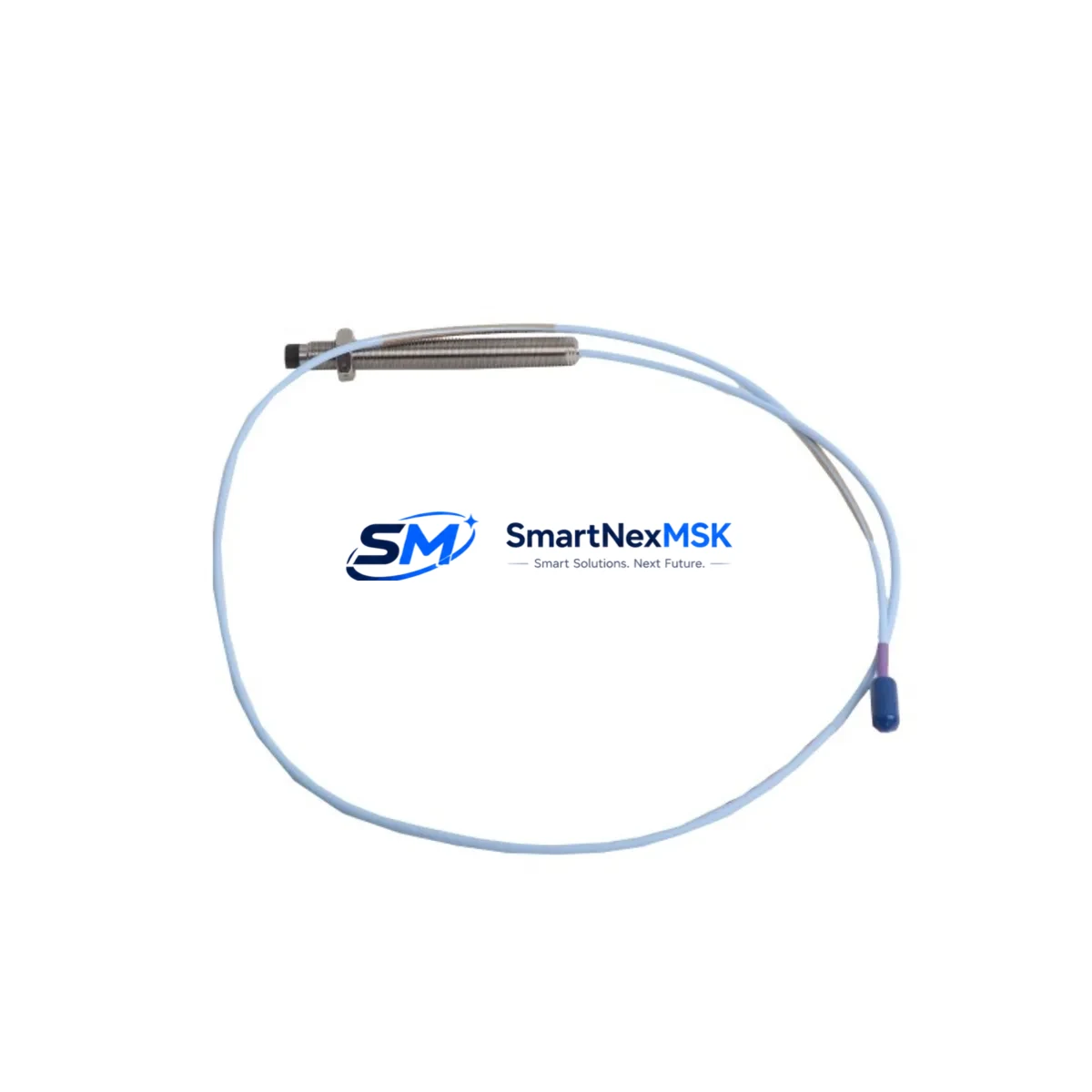

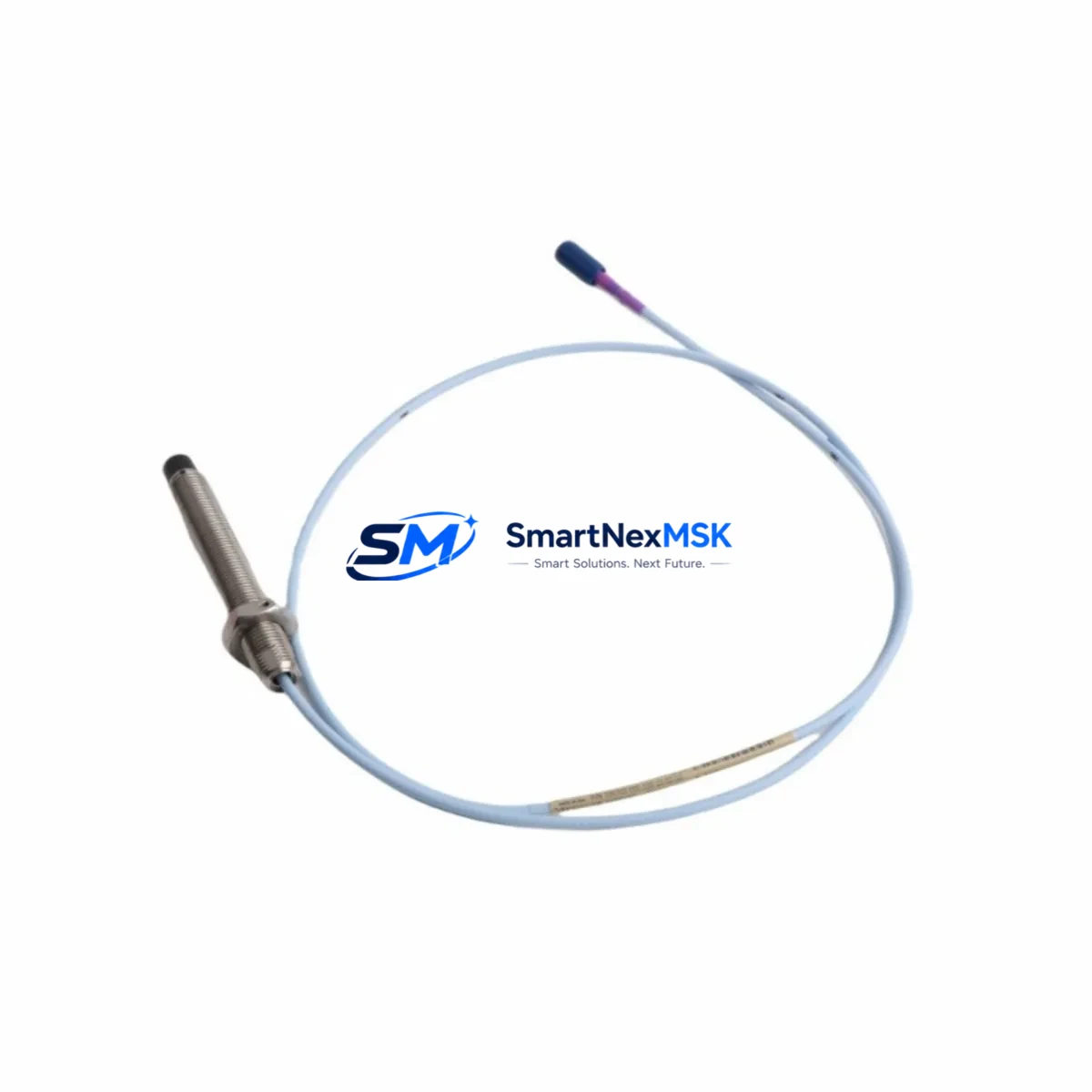

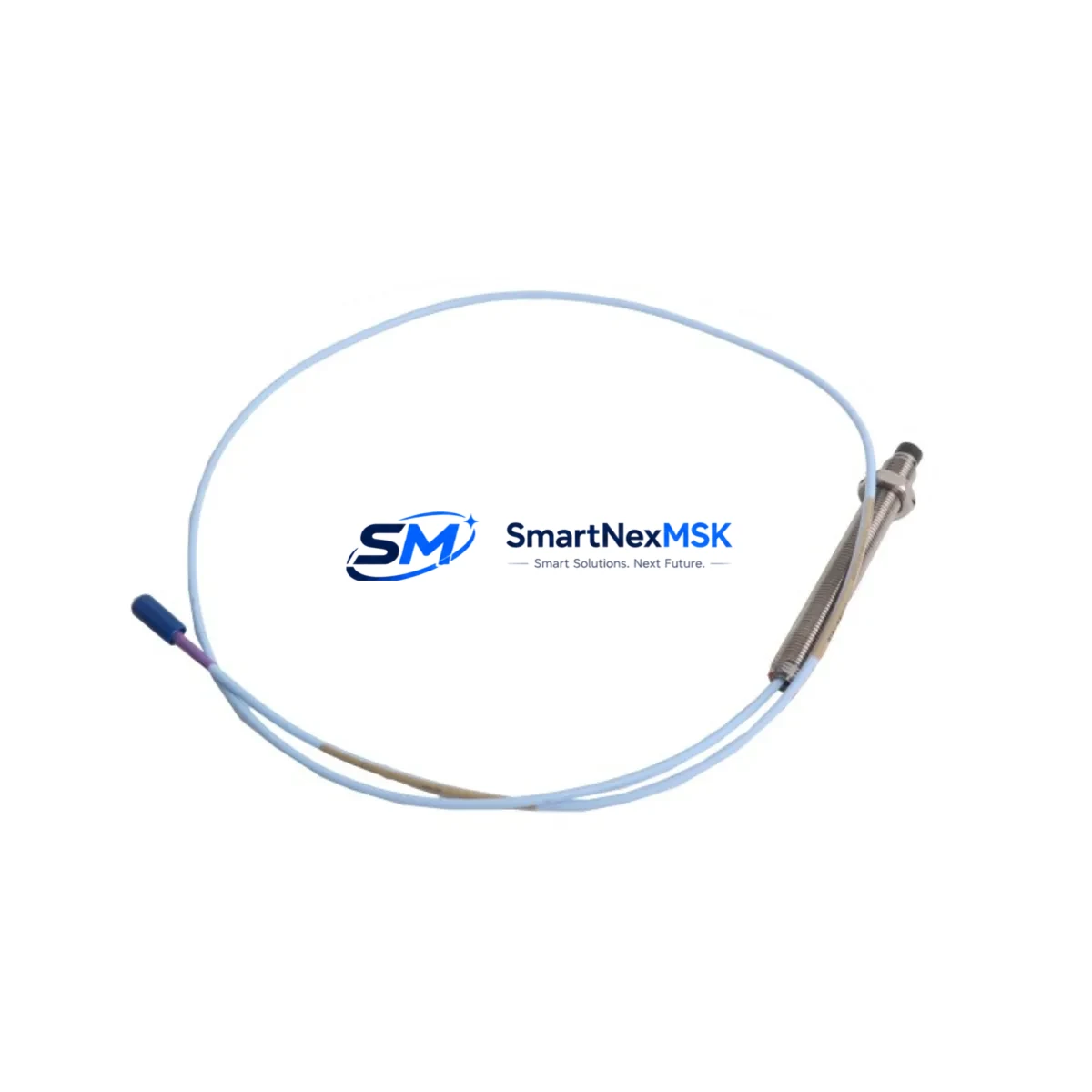

The Bently Nevada 330703-000-100-10-02-CN is an 11mm proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy Bently Nevada installations age and original spare parts become increasingly difficult to source, this retrofit-ready replacement provides a direct, wiring-compatible solution for engineers managing vibration monitoring upgrades, control cabinet overhauls, and predictive maintenance programs across rotating machinery applications including turbines, compressors, pumps, and gearboxes.

This probe is fully compatible with the 3300 XL proximitor/driver system and integrates seamlessly into existing Bently Nevada rack-based monitoring architectures. Whether you are replacing a failed sensor on a live production line or executing a planned system modernization, the 330703-000-100-10-02-CN delivers the signal conditioning performance and dimensional accuracy required to maintain measurement integrity without reprogramming your monitoring system or reconfiguring alarm setpoints.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330703-000-100-10-02-CN into an aging Bently Nevada installation requires a structured approach that accounts for the full signal chain — from probe tip to monitoring rack output. Engineers should begin by auditing the existing 3300 XL extension cable (typically a 330130-series or 330730-series cable) to confirm continuity and insulation integrity before reusing it with the new probe. A degraded extension cable is a common source of erratic OK relay behavior and should be replaced alongside the probe if cable age exceeds ten years or physical damage is visible.

At the proximitor end, confirm that the installed 3300 XL Proximitor/Driver module — such as the 330180-X1-05 or equivalent — is within its calibrated operating range for the 11mm probe format. If the proximitor itself is flagged for replacement, sourcing a matched proximitor during the same maintenance window eliminates a second planned outage. For installations where the full monitoring rack is being modernized, the 3500/42M Proximitor/Seismic Monitor module offers a migration path to the Bently Nevada 3500 Series platform while retaining compatibility with existing probe and cable infrastructure.

Control cabinet work should include verification of the terminal block wiring assignments. The 330703-000-100-10-02-CN uses a standard coaxial signal path; confirm that the shield drain wire is landed correctly at the proximitor input terminal and that no ground loops are introduced through the cabinet grounding scheme. If the cabinet includes a Bently Nevada 3300/16 or 3300/20 rack, inspect the rack power supply module — typically a 3300/05 or equivalent — to ensure it is delivering stable -24 VDC to the proximitor slots. A marginal power supply will cause intermittent OK relay dropout that can be misdiagnosed as a probe fault.

For sites running a DCS or safety system integration, the 4–20 mA or voltage output from the proximitor feeds directly into the I/O module of the host controller — whether a Honeywell C300, an Emerson DeltaV MD Plus, or an ABB AC800M. No changes to the I/O module configuration or channel scaling are required provided the replacement probe is gapped to the same nominal distance as the original. Document the as-found gap voltage before removal and use it as the target during recommissioning to minimize deviation from the established alarm and danger setpoints stored in the monitoring system.

HMI screens tied to the vibration monitoring channels do not require modification when performing a like-for-like probe replacement. However, if the site is simultaneously upgrading from a 3300 XL rack to a 3500 Series rack, the System 1 Evolution software configuration will need to be updated to reflect the new rack node address and channel mapping. Coordinate this change with the control room operator to avoid nuisance alarms during the cutover window.

For installations incorporating a Bently Nevada TK-3 or TK-4 portable vibration analyzer, the replacement probe can be verified in the field prior to full system reconnection by measuring the static gap voltage with the analyzer in DC measurement mode. This step is strongly recommended before returning the machine to service, as it confirms probe sensitivity and extension cable integrity without requiring the monitoring rack to be online.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components before the maintenance window opens. For the 330703-000-100-10-02-CN, this means having the replacement probe, a verified extension cable, and a calibrated proximitor module on hand at the work site before the machine is taken offline. If the proximitor is being retained, perform a bench verification of its output voltage using a known-good probe and cable set to confirm it is within specification before the outage begins.

During the replacement, photograph the existing terminal wiring and record the as-found gap voltage from the monitoring system historian or the local proximitor LED indicator. These reference values protect the original program logic and alarm configuration from inadvertent changes during recommissioning. Once the new probe is installed and gapped, restore power to the proximitor and confirm the OK relay closes within the expected timeframe — typically within two seconds of power application for a correctly gapped 3300 XL system.

If the site operates under a safety instrumented system (SIS) that uses the vibration channel as a protective input, coordinate the bypass and reinstatement of the SIS function with the safety system engineer before and after the probe replacement. Bypassing the SIS channel without proper authorization and documentation is a compliance risk that can extend the outage far beyond the time saved by rushing the mechanical work.

For multi-machine sites where several proximity probes are being replaced in a single campaign, prioritize machines with the highest criticality rating and shortest allowable mean time to repair. Batch ordering of the 330703-000-100-10-02-CN and associated extension cables reduces per-unit cost and ensures consistent lead times across the campaign. All units shipped by SMARTNEXMSK are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q: Is the 330703-000-100-10-02-CN a direct replacement for the original Bently Nevada part?
A: Yes. This unit is a retrofit-ready replacement that matches the mechanical dimensions, connector type, and electrical sensitivity of the original 330703-000-100-10-02-CN. It is designed for direct installation into existing 3300 XL probe holders and brackets without modification. Gap voltage should be verified after installation using the proximitor OK LED or a portable analyzer.

Q: What wiring checks are required before installation?
A: Confirm that the extension cable shield is intact and that the coaxial connector at the proximitor input is clean and fully seated. Verify that the proximitor power supply is delivering stable -24 VDC. Check terminal block connections for corrosion or loose terminations, particularly in high-vibration or high-humidity environments. Record terminal assignments before disconnecting the old probe.

Q: How do I confirm compatibility with my existing proximitor module?
A: The 330703-000-100-10-02-CN is calibrated for use with 3300 XL 11mm Proximitor/Driver modules. Check the proximitor nameplate for the probe format designation (8mm or 11mm) and confirm it matches. If the proximitor is a dual-format unit, verify the configuration jumper or DIP switch setting selects the 11mm calibration curve before powering the system.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported by SMARTNEXMSK’s technical team; contact sales@smartnexmsk.com with the order reference and a description of the fault condition to initiate a warranty assessment.
