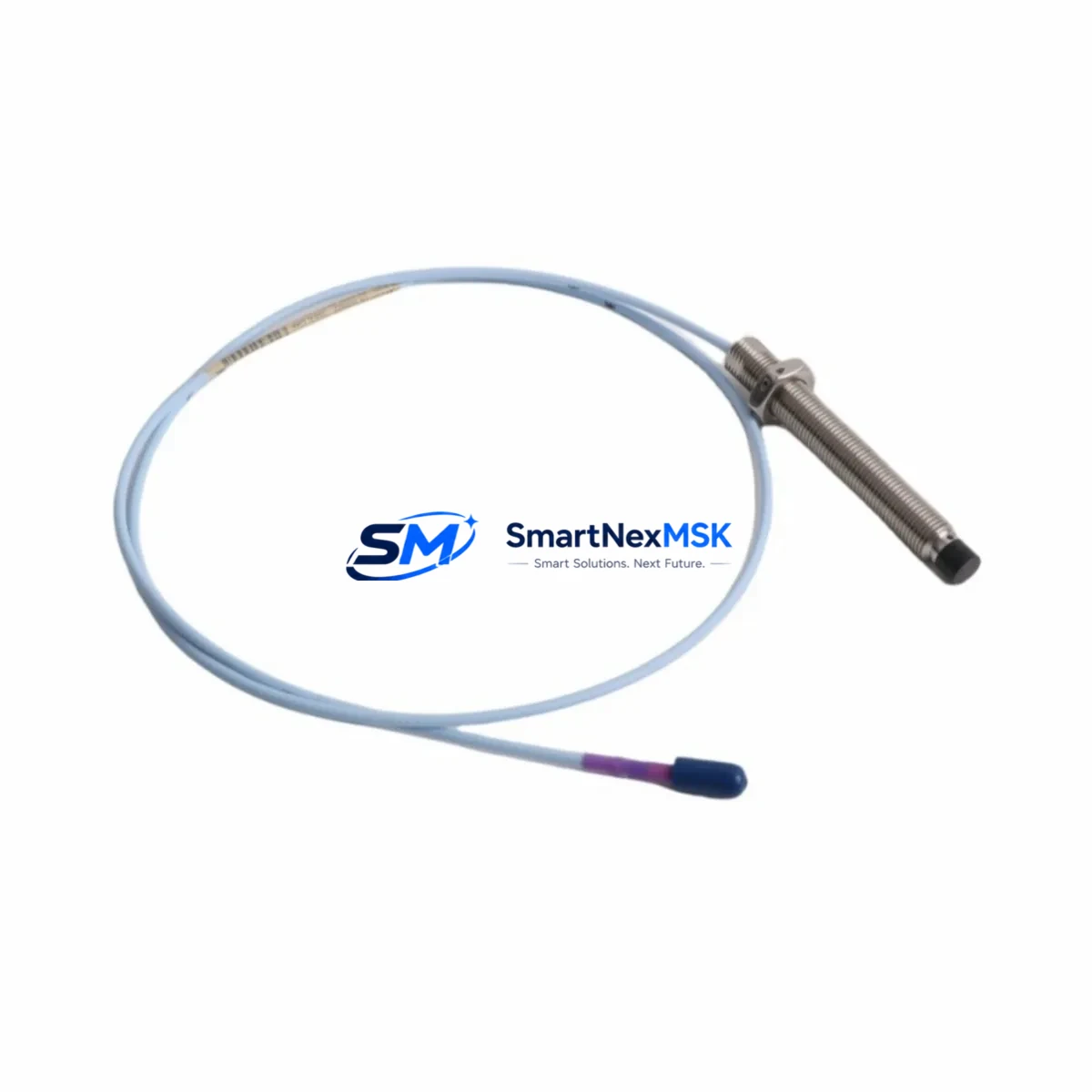

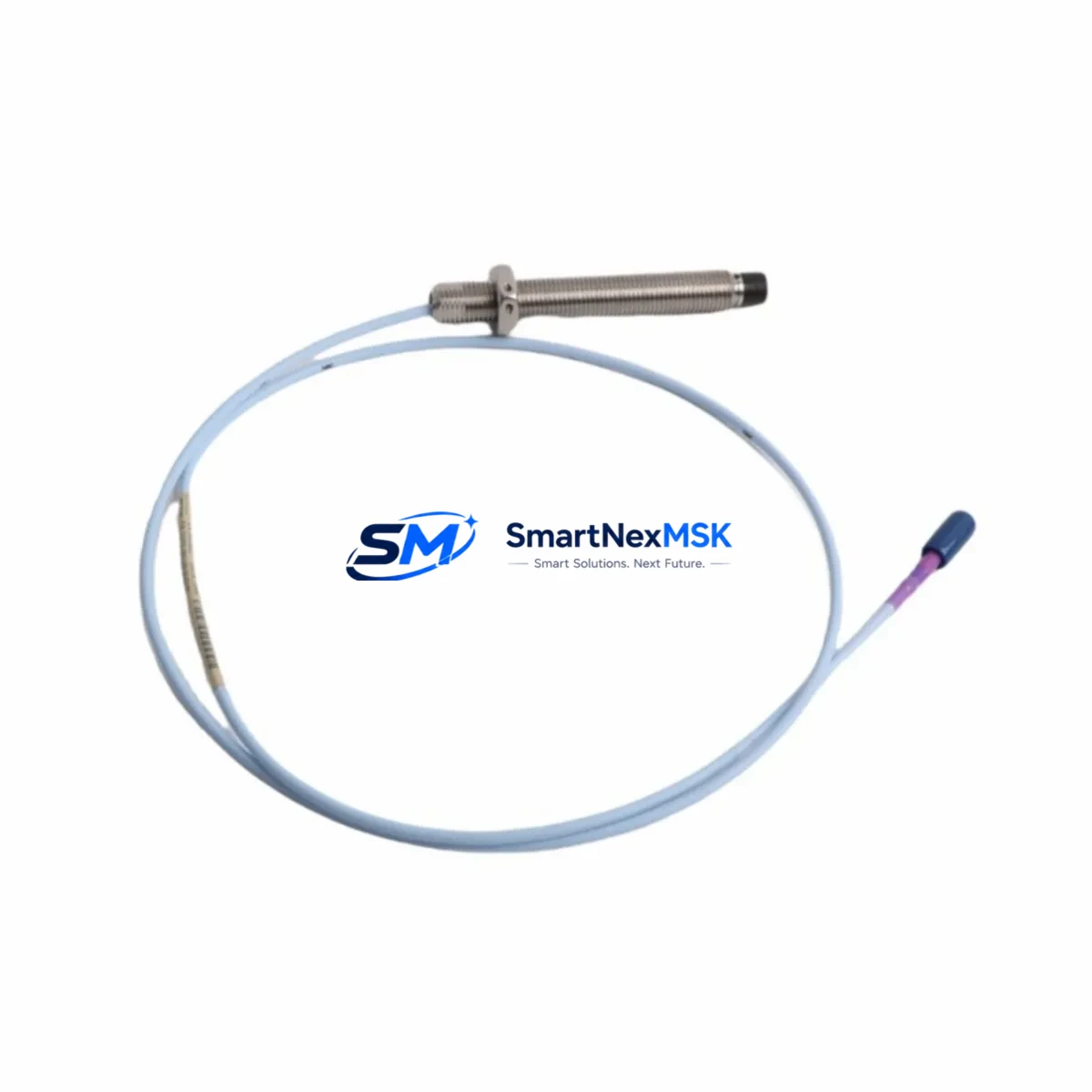

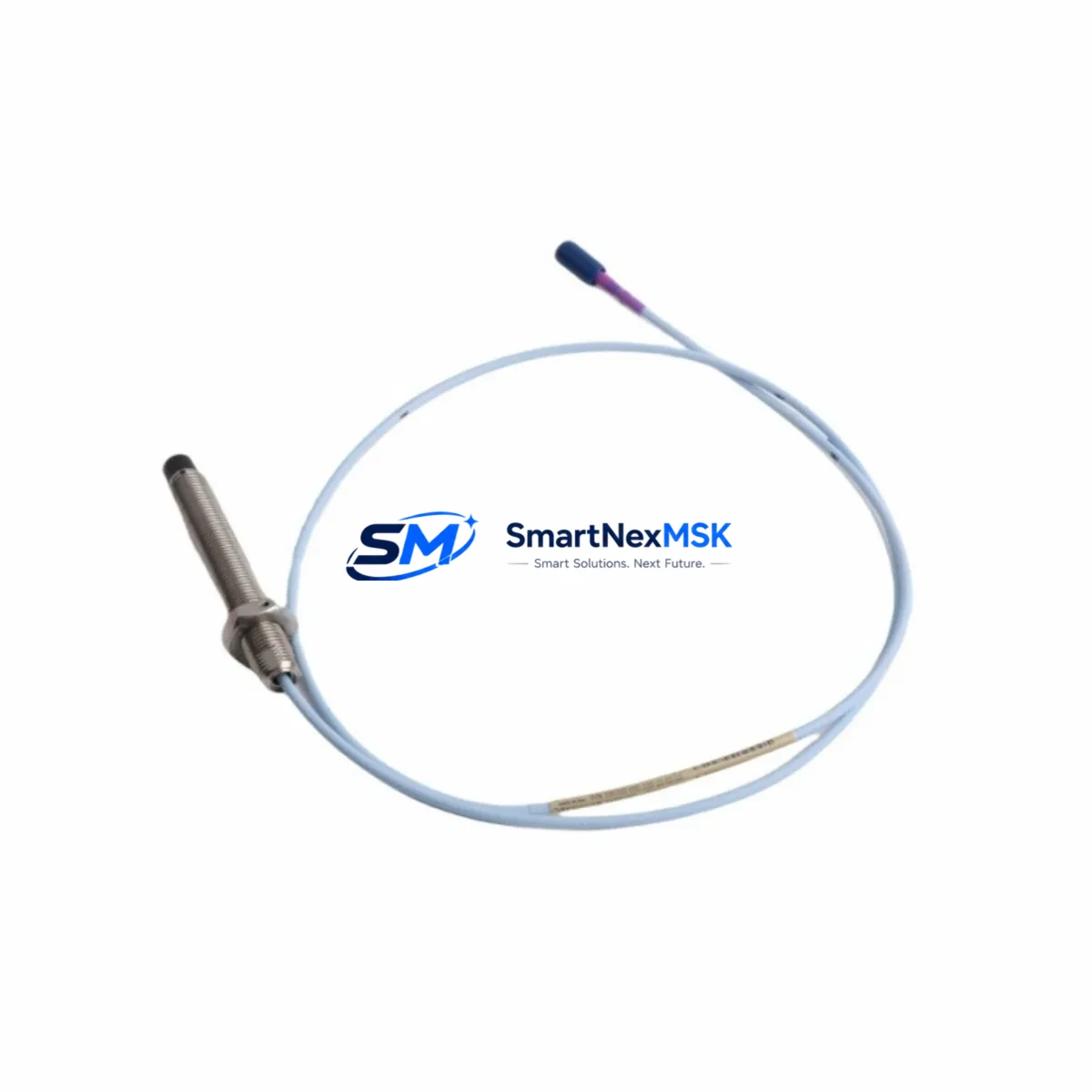

Bently Nevada 330703-000-100-10-11-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites
The Bently Nevada 330703-000-100-10-11-00 is an 11mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities worldwide.
At SMARTNEXMSK, every unit of the 330703-000-100-10-11-00 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent field replacements, planned maintenance shutdowns, and long-term spare parts programs for critical asset protection systems.
Safety Reliability Table
| Parameter | Specification / Value |
|---|---|
| Part Number / SKU | 330703-000-100-10-11-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | Eddy-Current Proximity Transducer |
| Probe Tip Diameter | 11 mm |
| Cable Length | 1.0 m (standard) |
| Operating Temperature | -35°C to +177°C (probe); -35°C to +85°C (extension cable) |
| Supply Voltage | -24 VDC (nominal) |
| Output Range | -2 VDC to -18 VDC |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.26 mm (10 mil to 89 mil) |
| Target Material Compatibility | AISI 4140 steel (standard); other alloys with calibration |
| EMI/RFI Protection | Shielded cable construction; compatible with 3300 XL signal conditioning |
| Ingress Protection | Sealed probe tip; suitable for oil mist, steam, and process fluid exposure |
| Vibration Resistance | Designed for continuous operation in high-vibration rotating machinery environments |
| Safety Application | Machinery protection, overspeed detection, thrust position monitoring, radial vibration |
| Warranty | 12 Months — SMARTNEXMSK Pre-Shipment Tested |
| Availability | In Stock — Ready to Ship |
| Origin | United States |
Control Cabinet Protection Strategy
In a well-engineered machinery protection cabinet, the 330703-000-100-10-11-00 proximity transducer operates as the primary sensing element, feeding real-time shaft displacement and vibration data into the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330130-080-00-00 extension cable assembly), which conditions the raw eddy-current signal before it reaches the monitoring system. The conditioned output is then processed by a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed in the 3500 Rack, where alarm and danger setpoints are enforced to protect the asset.
To ensure signal integrity across long cable runs in electrically noisy environments — common in motor control centers, variable frequency drive (VFD) cabinets, and high-power switchgear rooms — the system relies on properly matched extension cables and grounded conduit routing. Surge protection devices installed at the cabinet entry point guard against transient overvoltage events that could otherwise corrupt proximity readings or damage the Proximitor circuitry. In safety instrumented systems (SIS), the transducer output may feed directly into a Triconex TRICON or Rockwell Automation GuardLogix safety PLC, where the signal is voted in a 2oo3 or 1oo2 logic configuration to prevent spurious trips while maintaining protective integrity.
Power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply module provides regulated -24 VDC to the Proximitor network, and redundant power supply configurations are strongly recommended for SIL-rated loops. Alongside the proximity system, Bently Nevada 3500/25 keyphasor modules and 3500/40M seismic monitor cards are commonly installed in the same rack to provide a complete rotating machinery health picture. For facilities running legacy 7200 Series or 3300 (non-XL) systems, the 330703-000-100-10-11-00 offers a direct upgrade path with improved temperature stability and reduced signal noise floor.
Critical Industrial Safety Applications
The 330703-000-100-10-11-00 proximity transducer is deployed across the full spectrum of heavy industrial and process-critical environments where unplanned machinery downtime carries severe safety and financial consequences.
In petrochemical and refinery facilities, it monitors radial vibration and axial thrust position on centrifugal compressors, reactor feed pumps, and turbine-driven blowers operating in classified hazardous areas. Continuous, accurate shaft position data allows the control system to detect bearing wear, rotor imbalance, and seal degradation before they escalate into catastrophic failures or process releases.
In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the transducer is installed on steam turbine shafts, generator rotors, and boiler feed pump trains. It feeds the turbine supervisory instrumentation (TSI) system, enabling operators to track differential expansion, eccentricity, and shaft vibration against API 670 alarm and danger limits.
In mining and mineral processing operations, where crushers, ball mills, and slurry pumps run continuously under extreme mechanical loads, the 330703-000-100-10-11-00 provides reliable proximity sensing despite high ambient vibration, dust ingress, and wide temperature swings. Its ruggedized construction and sealed probe tip maintain measurement accuracy in environments where standard instrumentation would fail within weeks.
In water and wastewater treatment plants, it monitors large vertical turbine pumps and blower trains that must operate continuously to maintain process safety and regulatory compliance. In metallurgical facilities — steel mills, aluminum smelters, and rolling mills — it protects drive motors and gearboxes operating in high-temperature, high-vibration conditions where early fault detection directly prevents production losses and personnel safety incidents.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330703-000-100-10-11-00?
Every unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support, minimizing your site’s exposure to extended downtime.
Q2: How is each unit tested before shipment?
All 330703-000-100-10-11-00 transducers undergo pre-shipment inspection including visual examination, connector integrity verification, and functional output testing against Bently Nevada 3300 XL specification parameters. Units that do not meet specification are quarantined and not shipped.
Q3: Is this transducer compatible with existing 3300 XL Proximitor systems and 3500 Series racks?
Yes. The 330703-000-100-10-11-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly with 3500 Series monitoring racks. It is also backward-compatible with many legacy 7200 Series installations when used with appropriate extension cables and gap voltage verification.
Q4: Can SMARTNEXMSK support long-term spare parts supply and emergency replacement orders?
Yes. SMARTNEXMSK maintains standing inventory of the 330703-000-100-10-11-00 and related 3300 XL series components to support both planned maintenance programs and emergency field replacements. We offer expedited shipping for critical shutdowns and can provide documentation packages including test records and certificates of conformance upon request.
