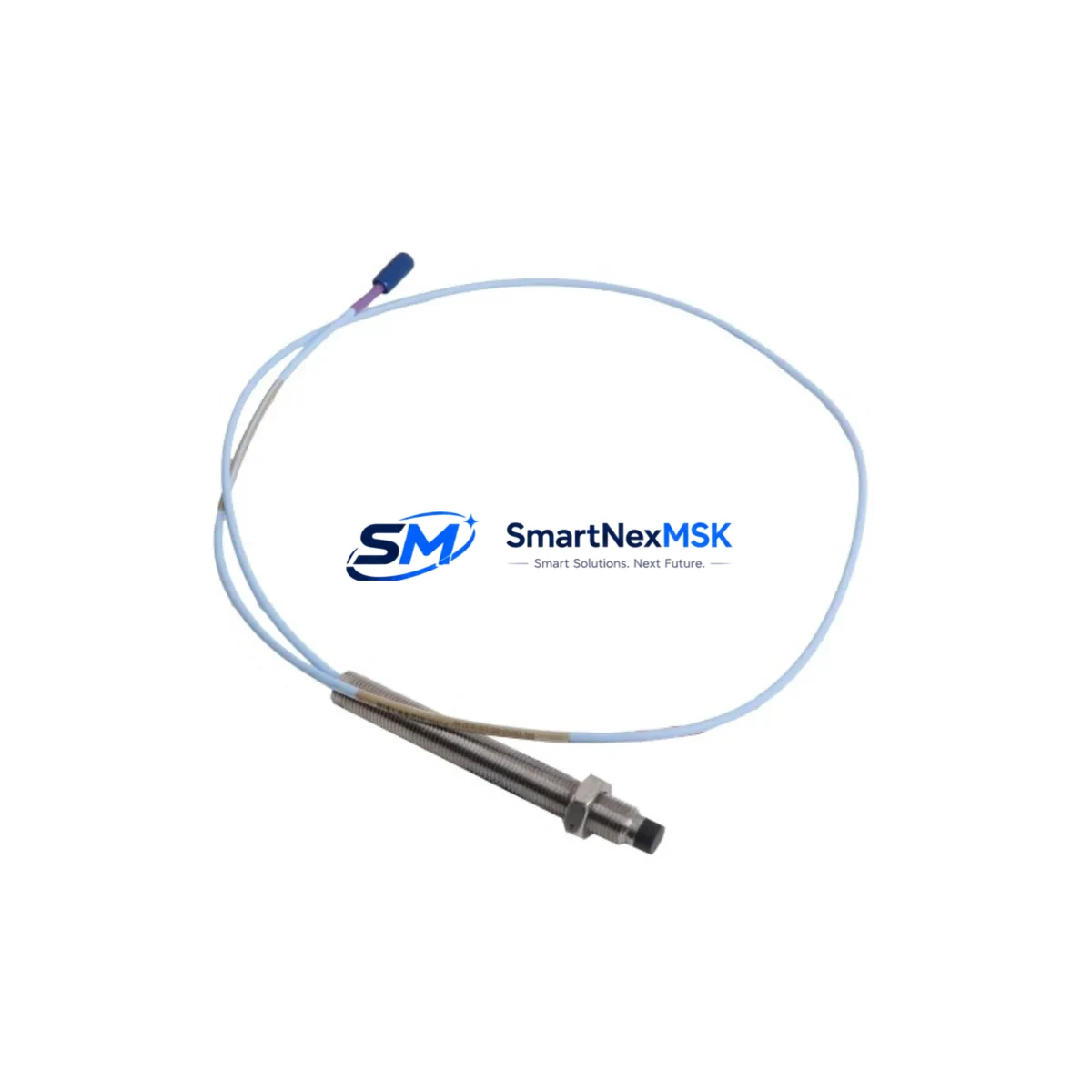

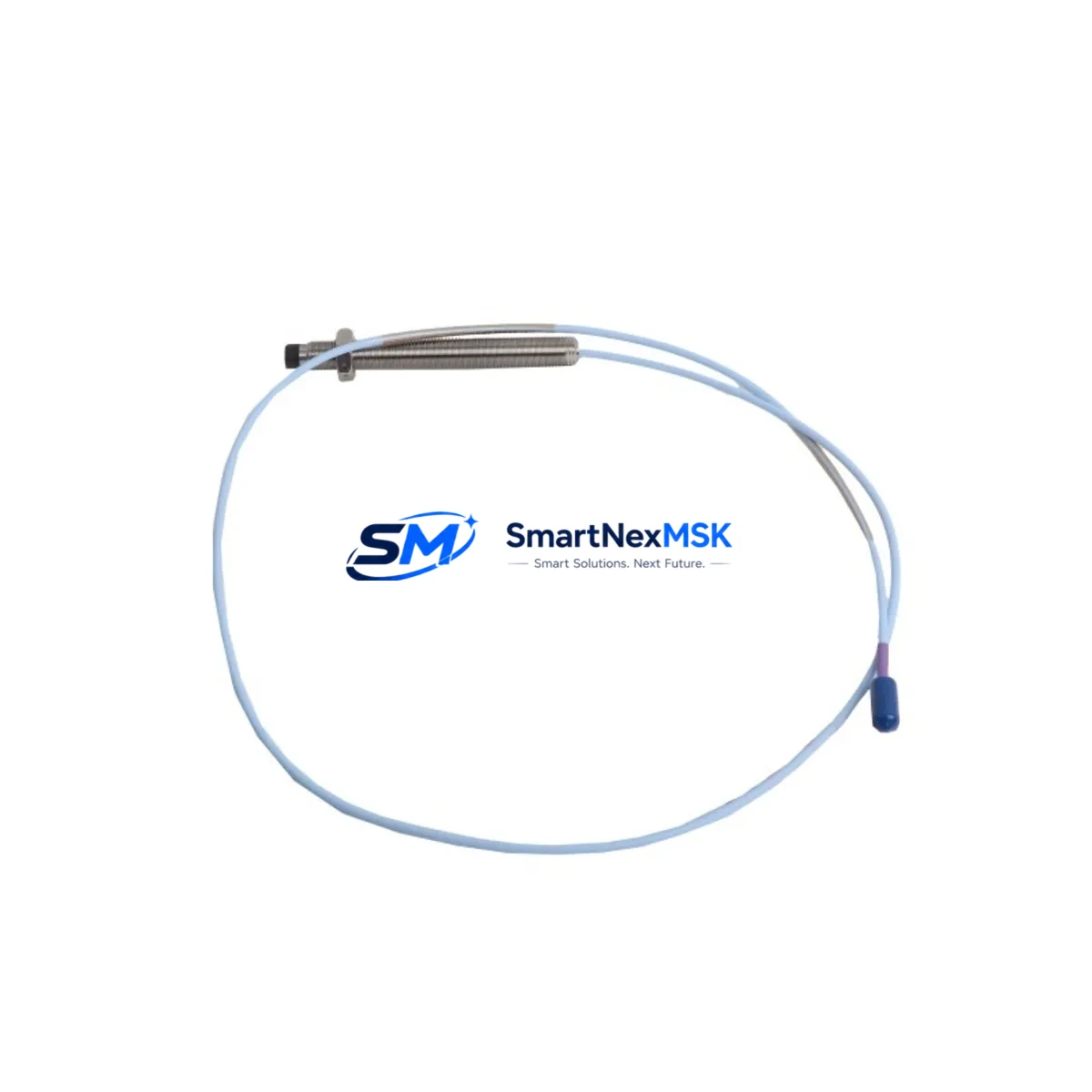

Bently Nevada 330703-000-100-50-12-00 Safety Proximity Probe

Bently Nevada 330703-000-100-50-12-00 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 330703-000-100-50-12-00 is a 3300 XL Series 11mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, extreme temperatures, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous process industries.

In high-stakes control environments — where a single sensor failure can trigger unplanned shutdowns, cascade equipment damage, or safety interlock activation — the 330703-000-100-50-12-00 delivers the signal integrity and mechanical durability that plant engineers and reliability teams depend on. Its ruggedized stainless-steel housing, hermetically sealed tip, and precision-wound coil assembly ensure stable output even when installed adjacent to high-voltage switchgear, variable frequency drives, or heavy motor loads that generate significant radiated noise.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330703-000-100-50-12-00 proximity probe does not operate in isolation — it is one element of a tightly integrated machinery protection architecture. In a properly engineered control cabinet or machinery protection rack, this probe connects via a matched 3300 XL extension cable (e.g., 330130-045-00-CN) to a dedicated 3300 XL Proximitor/Seismic Monitor such as the 330180-X1-05 or 3300/16 monitor module, which conditions the raw eddy-current signal into a calibrated 4–20 mA or voltage output for the DCS or safety PLC.

Within the same protection panel, a Bently Nevada 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor may handle multiple channel inputs simultaneously, providing redundant shaft vibration and axial position data to the plant’s safety instrumented system (SIS). The power supply feeding these monitor racks — typically a 3500/15 Power Supply module — must be stable and isolated; any ripple or transient on the 24 VDC rail can introduce measurement offset and trigger false alarms in the interlock logic.

For installations in hazardous classified zones (Zone 1 or Zone 2), the signal path between the 330703-000-100-50-12-00 and its Proximitor must pass through a certified Zener barrier or galvanic isolator — such as a P+F KFD2-STC4-Ex1 isolator or equivalent — to maintain intrinsic safety compliance and prevent ignition risk from electrical faults. Surge protection devices installed at the cabinet entry point further guard against lightning-induced transients that could damage the sensitive coil circuitry of the probe.

Communication from the monitor rack to the plant DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Profibus DP — relies on a stable communication gateway module. Any communication anomaly between the 3500 rack and the DCS can mask a developing machinery fault, making the integrity of the full signal chain — from probe tip to historian — a genuine safety concern. Periodic loop checks using a Bently Nevada ADRE 408 DSPi data acquisition system or portable vibration analyzer allow maintenance teams to verify probe sensitivity and gap voltage without taking the machine offline.

Critical Industrial Safety Applications

The 330703-000-100-50-12-00 is deployed across a wide range of critical rotating machinery protection scenarios:

Petrochemical & Refinery Plants: Installed on high-speed centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors where shaft vibration exceedance triggers automatic ESD (Emergency Shutdown) valve closure. Continuous, drift-free signal output is essential to avoid nuisance trips that disrupt production or, worse, missed trips that allow bearing failure to progress to catastrophic seal loss.

Power Generation: Used on steam turbine shaft monitoring systems where axial position and radial vibration data feed directly into the turbine protection relay. A failed or drifted proximity probe in this application can result in either an unwarranted unit trip — costing tens of thousands in lost generation — or a missed overspeed or rub event with severe mechanical consequences.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion shafts, and slurry pump impeller assemblies operating in high-dust, high-vibration environments. The IP67-rated stainless housing of the 330703-000-100-50-12-00 withstands wash-down, mineral dust ingress, and the mechanical shock loads common in crushing and grinding circuits.

Water & Wastewater Treatment: Monitors high-speed blower shafts and vertical turbine pump bearings in continuous-duty service. Reliable proximity measurement prevents bearing wear from going undetected in unmanned pump stations where manual inspection intervals may be weekly or longer.

Metallurgy & Steel Production: Deployed on rolling mill drive shafts, continuous caster pinch roll drives, and blast furnace blower trains where thermal cycling, scale, and water spray create a hostile sensor environment. The hermetically sealed probe tip resists contamination that would degrade measurement accuracy in open-face sensor designs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330703-000-100-50-12-00?
The 12-month warranty covers all manufacturing defects, functional failures, and sensitivity deviations from factory specification. If the probe fails to meet its rated 7.87 V/mm sensitivity or exhibits signal instability under normal operating conditions within the warranty period, we will replace or repair the unit at no charge. Warranty claims are processed with a target turnaround of 5–7 business days.

Q2: How is each unit tested before shipment?
Every 330703-000-100-50-12-00 unit undergoes a full pre-shipment functional test including gap voltage verification, sensitivity calibration check, cable continuity and insulation resistance measurement, and visual inspection of the connector, housing, and tip seal. A test report is available upon request for quality-critical procurement.

Q3: Is the 330703-000-100-50-12-00 compatible with existing 3300 XL system installations?
Yes. This probe is fully compatible with the Bently Nevada 3300 XL Proximitor/Seismic Monitor family and standard 3300 XL extension cables. It is a direct form-fit-function replacement for existing 330703-series probes in the field, requiring no recalibration of the monitor module when replacing a like-for-like unit.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
We maintain dedicated stock of the 330703-000-100-50-12-00 to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Lead times for standard orders are typically 1–3 business days from confirmed payment. For customers requiring guaranteed availability under a service contract, consult our sales team to discuss blanket order arrangements.
