Bently Nevada 330704-00-100-10-01-05 Safety Proximity Transducer

Bently Nevada 330704-00-100-10-01-05 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

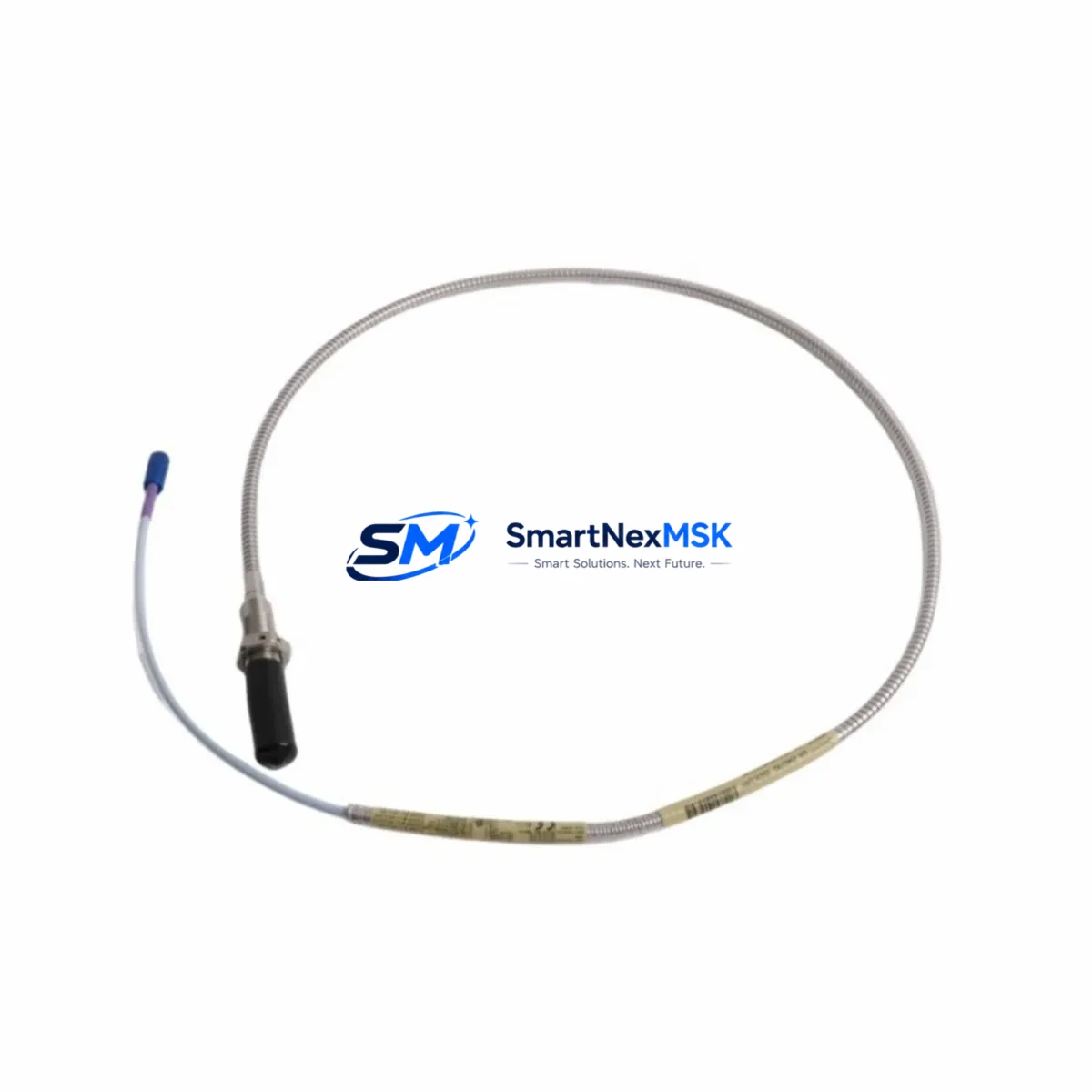

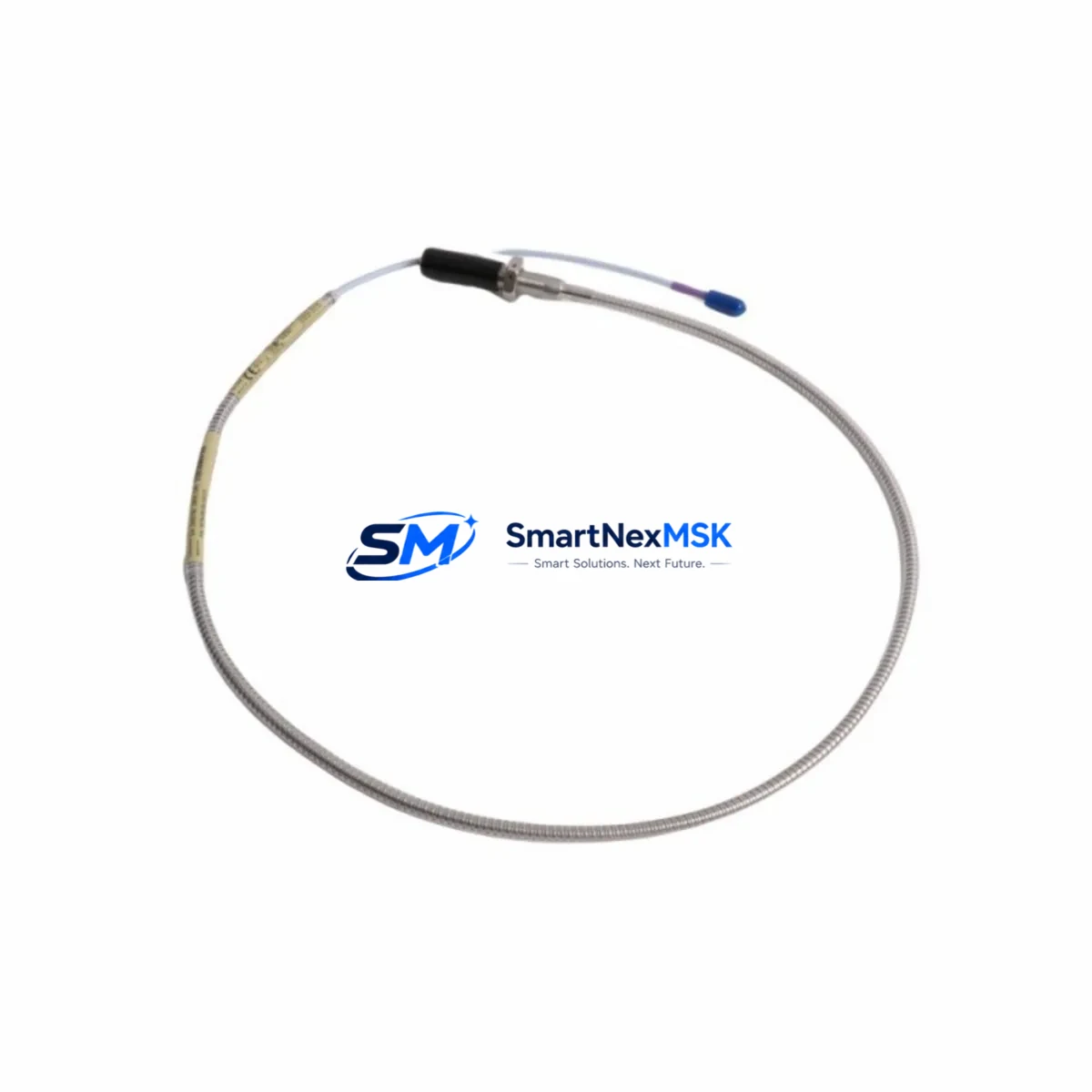

The Bently Nevada 330704-00-100-10-01-05 is a ruggedized 11mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemical exposure, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

In high-stakes control architectures where signal integrity directly determines plant safety, the 330704-00-100-10-01-05 delivers consistent eddy-current sensing performance with minimal signal drift. Its ruggedized construction resists the vibration-induced connector fatigue and cable degradation that commonly cause false trips or missed fault detection in continuous production environments. When integrated into a Bently Nevada 3300 XL Proximitor Sensor system — paired with the appropriate extension cable and signal conditioning module — it forms a complete, calibrated measurement chain that feeds accurate shaft displacement data to the plant’s safety instrumented system (SIS) or distributed control system (DCS).

Control cabinet engineers specifying protection loops for large rotating assets such as compressors, turbines, pumps, and fans rely on this transducer’s stable output to prevent costly unplanned shutdowns. In a typical critical machinery protection cabinet, the 330704-00-100-10-01-05 works alongside components such as the Bently Nevada 3300/16-14-01-01-00-00-00 monitor module, 3300/05-01-01-00-00-00 power supply, and 3300/46 keyphasor module to deliver a fully redundant, SIL-rated vibration monitoring loop. The transducer’s output is conditioned and transmitted over shielded instrumentation cable to avoid ground loops and common-mode noise — a critical consideration in high-voltage switchgear rooms and motor control centers where EMI levels are severe.

For plants operating under IEC 61511 or ISA-84 functional safety standards, the 330704-00-100-10-01-05 supports the implementation of safety instrumented functions (SIFs) that initiate automatic machine shutdown upon detection of abnormal shaft vibration or axial displacement. This capability is essential in interlock circuits protecting against bearing failure, rotor rub, and catastrophic mechanical damage. When combined with a Bently Nevada TK-3 extension cable and a 3500/42M proximitor I/O module, the system achieves the measurement accuracy and response time required for high-demand safety loops.

Beyond vibration monitoring, this transducer is widely deployed in differential expansion and eccentricity measurement applications on large steam turbines and gas turbines, where thermal growth and rotor dynamics must be tracked continuously to prevent blade-to-casing contact. In these applications, signal stability over wide temperature ranges — from cold startup to full-load operating temperature — is non-negotiable. The 330704-00-100-10-01-05 maintains its calibrated sensitivity across the full operating envelope, reducing the risk of nuisance trips during transient conditions while remaining responsive to genuine fault signatures.

Maintenance teams in refineries, LNG terminals, offshore platforms, and steel mills value this transducer for its direct interchangeability with existing 3300 XL installations, enabling rapid spare-part replacement without recalibration of the entire measurement chain. Stocking a verified OEM-equivalent unit such as the 330704-00-100-10-01-05 as a critical spare reduces mean time to repair (MTTR) and supports plant reliability programs. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification to confirm sensitivity, gap voltage linearity, and connector integrity before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection cabinet built around the 330704-00-100-10-01-05 typically integrates multiple layers of sensing, conditioning, and logic to achieve the redundancy required for safety-critical applications. The transducer feeds its raw gap voltage signal to a Bently Nevada 3300/16 monitor or a 3500/42M proximitor I/O module, which performs real-time signal processing and alarm/trip logic. Power to the proximitor system is supplied by a dedicated Bently Nevada 3300/05 power supply module, isolated from the main plant bus to prevent voltage sag events from corrupting measurement signals during motor starts or grid disturbances.

In turbine protection panels, the 330704-00-100-10-01-05 is often deployed in a 2-out-of-3 (2oo3) voting configuration alongside two additional proximity probes, with each channel routed through independent 3300 XL Proximitor Sensors and separate monitor cards. This architecture eliminates single-point failures in the vibration trip circuit and satisfies the redundancy requirements of IEC 61511 SIL 2 safety loops. The Bently Nevada 3300/46 keyphasor module provides the phase reference signal needed for synchronous vibration analysis, enabling the control system to distinguish between structural resonance, imbalance, and rub events.

For installations in hazardous classified areas (Zone 1 or Zone 2 per IEC 60079), the transducer is paired with Bently Nevada intrinsic safety barriers or galvanic isolators mounted in the safe-area cabinet, ensuring that fault currents cannot ignite flammable atmospheres at the measurement point. Communication of processed vibration data to the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — is typically achieved via 4–20 mA analog outputs or Modbus RTU over shielded twisted-pair cable, with proper cable segregation from high-voltage power conductors to maintain signal integrity.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330704-00-100-10-01-05 is widely used on centrifugal compressors, reactor charge pumps, and cooling water pumps in refineries and petrochemical complexes. In these facilities, undetected bearing wear or rotor imbalance can escalate rapidly to seal failure, process fluid release, and fire or explosion. Continuous vibration monitoring with this transducer provides the early warning needed to schedule predictive maintenance before a failure event occurs, supporting both process safety and environmental compliance.

Power Generation: Steam turbine-generators in coal, gas, and nuclear power plants rely on proximity transducers to monitor shaft eccentricity during startup and differential expansion under load. The 330704-00-100-10-01-05’s wide temperature rating and stable sensitivity make it suitable for high-pressure turbine stages where ambient temperatures near the bearing pedestals can exceed 150°C.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject instrumentation to extreme vibration, dust, and moisture. The ruggedized armored cable and sealed connector of the 330704-00-100-10-01-05 resist the mechanical abuse and ingress common in these environments, maintaining reliable signal transmission to the plant control room.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment plants benefit from continuous shaft monitoring to detect cavitation-induced vibration and bearing degradation before pump failure disrupts water supply. The transducer’s DC-coupled output enables both static position and dynamic vibration measurement from a single installation point.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and blast furnace blowers operate under high cyclic loads and thermal stress. The 330704-00-100-10-01-05 provides the measurement stability needed to distinguish normal operational vibration from developing mechanical faults in these high-noise electromagnetic environments.

Safety and Quality FAQ

Q: What warranty does SMARTNEXMSK provide on the 330704-00-100-10-01-05?
A: Every unit carries a 12-month warranty covering manufacturing defects and functional performance. If the transducer fails to meet its specified sensitivity or linearity within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement or full refund.

Q: What pre-shipment testing is performed on each unit?
A: Each 330704-00-100-10-01-05 undergoes functional verification prior to dispatch, including gap voltage linearity check across the specified measurement range, connector continuity and insulation resistance test, and visual inspection of the armored cable and probe tip for mechanical damage. A test report is available upon request.

Q: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
A: Yes. The 330704-00-100-10-01-05 is a direct replacement for existing 3300 XL 11mm proximity probes and is fully compatible with 3300 XL Proximitor Sensors and 3500 Series monitor racks without requiring system recalibration, provided the extension cable and proximitor are matched to the same system.

Q: Can SMARTNEXMSK support long-term supply for critical spare programs?
A: Yes. SMARTNEXMSK maintains stock of the 330704-00-100-10-01-05 and related 3300 XL components to support plant critical spare inventories and emergency replacement requirements. Bulk orders and scheduled delivery programs are available for reliability-centered maintenance programs. Contact sales@smartnexmsk.com for availability and lead times.
