Bently Nevada 330704-000-026-50-01-00 Spare 3300 XL

Bently Nevada 330704-000-026-50-01-00 Maintenance-Ready Spare for 3300 XL Automation

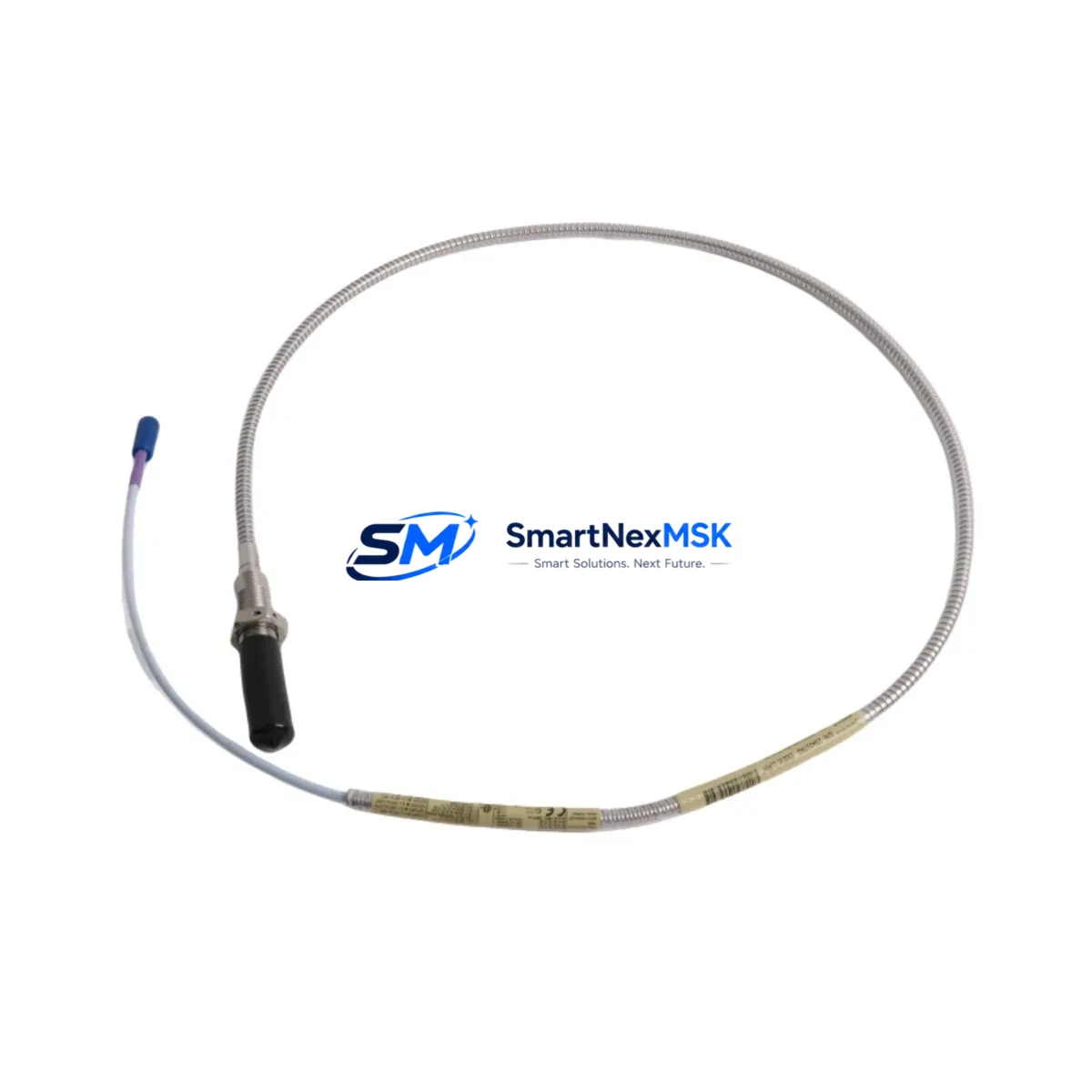

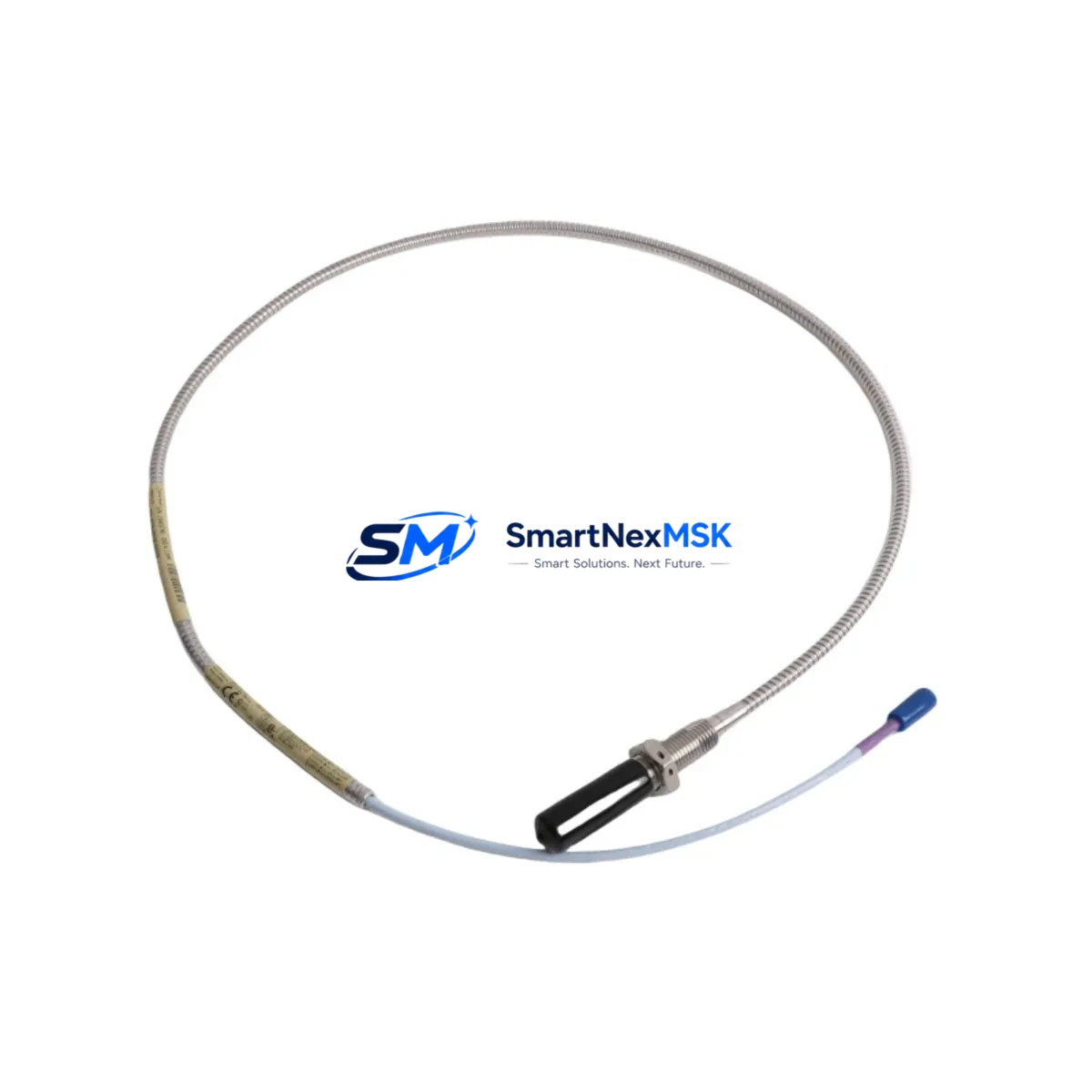

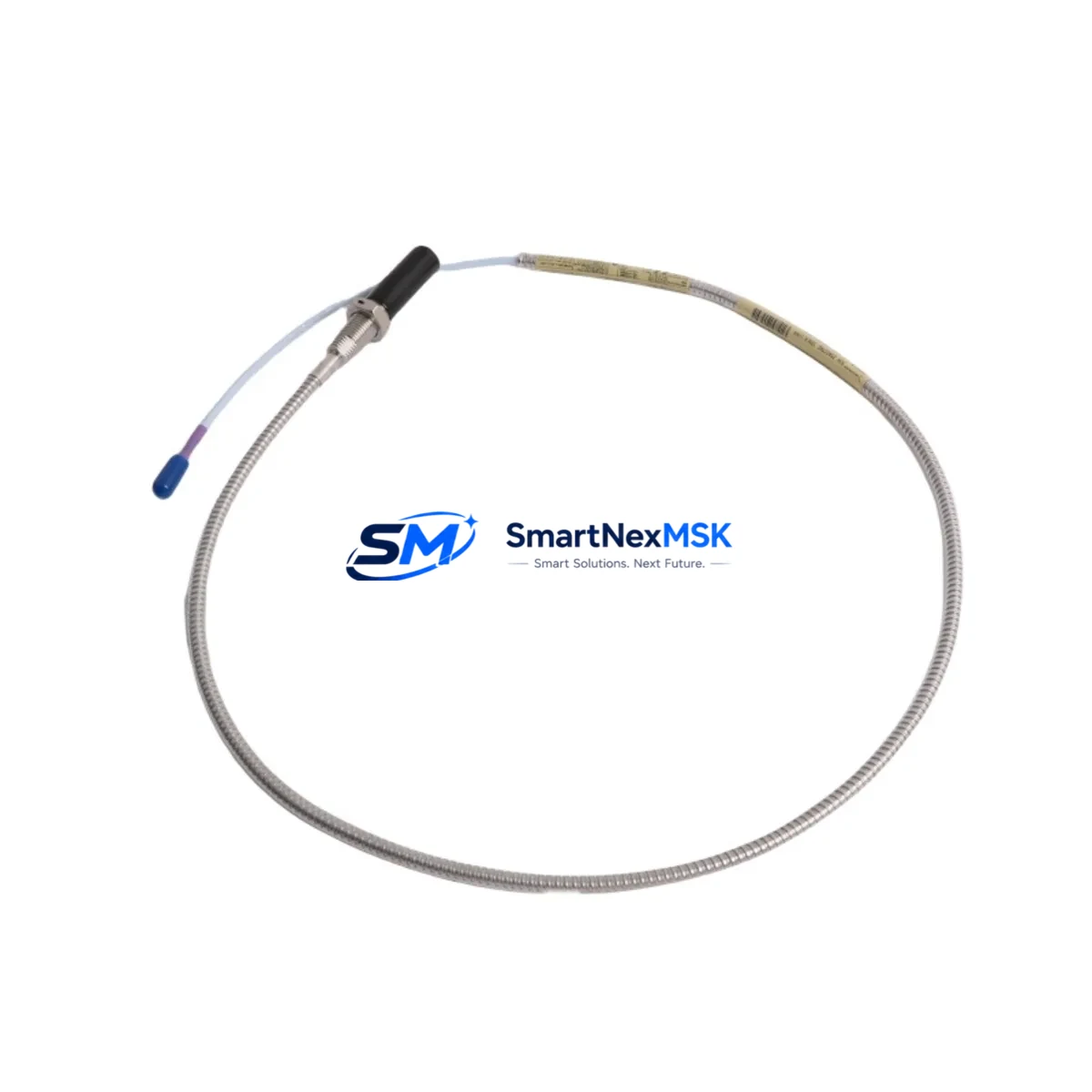

The Bently Nevada 330704-000-026-50-01-00 is an original 11mm eddy-current proximity probe engineered for the 3300 XL continuous machinery monitoring system. Designed for critical rotating equipment — including turbines, compressors, pumps, and gearboxes — this probe delivers precise radial and axial vibration measurement in demanding industrial environments. Sourced as a genuine spare, it is fully compatible with the 3300 XL monitor series and supports direct drop-in replacement without recalibration of the monitoring rack.

For maintenance engineers managing rotating machinery health, the 330704-000-026-50-01-00 is a cornerstone spare. Its 5-metre integral cable and standard TNC connector interface directly with Bently Nevada 3300 XL proximitor/seismic modules, ensuring signal integrity from probe tip to monitor input. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and signal performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330704-000-026-50-01-00 during a planned outage or emergency shutdown, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure reliable restart. Begin with the 3300 XL Proximitor/Seismic Module — verify its output voltage and confirm the gap voltage reading falls within the linear range before declaring the probe loop healthy. If the proximitor shows drift or erratic output, replace it concurrently rather than risk a second unplanned outage.

Inspect the 3300 XL Monitor Module (such as the 3300/16 or 3300/20 series) for alarm setpoint integrity and relay output continuity. Relay contacts on these monitors can develop high-resistance connections over years of service, causing false trips or missed alarms. While the control cabinet is open, check the 3300 XL Power Supply Module — confirm -24 VDC rail stability under load, as voltage sag directly degrades probe sensitivity and gap calibration accuracy.

Examine all field wiring and armoured extension cables between the probe and proximitor for insulation breakdown, moisture ingress, and connector corrosion — particularly in high-vibration or high-temperature zones. Damaged extension cables are a leading cause of premature probe failure and should be treated as a paired spare alongside the probe itself. Verify terminal block connections on the I/O marshalling panel for tightness and absence of oxidation.

For systems integrated with a Bently Nevada 3500 Series rack or a DCS historian, confirm that the communication gateway module (Modbus or Ethernet) is correctly mapping the channel data after probe replacement. A channel reassignment or address conflict can silently suppress vibration alarms at the DCS level. If the machine train includes thrust position measurement, inspect the paired 330705 or 330706 thrust probe and its proximitor simultaneously — thrust and radial probes share the same maintenance interval in most OEM recommendations.

Finally, review the junction box and conduit seals at the machine bearing housing. Moisture infiltration at this point is the most common cause of probe signal noise in outdoor or wash-down environments. Stocking a 3300 XL spare probe kit — comprising the 330704-000-026-50-01-00 probe, a matched extension cable, and a proximitor module — reduces mean time to repair (MTTR) to under two hours for most rotating equipment platforms.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energise the 3300 XL monitor channel before disconnecting the probe. Note the existing gap voltage reading from the monitor display or DCS historian for reference during reinstallation.

Step 2 — Probe Removal: Unscrew the probe from the bracket, taking care not to rotate the integral cable. Record the installed gap (distance from probe tip to shaft surface) using a feeler gauge or the original installation record.

Step 3 — New Probe Installation: Thread the 330704-000-026-50-01-00 into the bracket to the same gap dimension. Reconnect the TNC connector to the extension cable or proximitor input. Restore power and verify gap voltage on the monitor — target value should fall within -9 VDC to -11 VDC for a standard 1.0 mm gap on AISI 4140 steel.

Step 4 — Loop Verification: Confirm alarm setpoints are active, OK relay is energised, and the DCS or historian is receiving a valid vibration signal. Perform a slow-roll check if the machine can be safely barred over, and verify the probe output tracks shaft movement linearly.

Step 5 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation gap, and gap voltage. Update the spare parts inventory to trigger reorder of the consumed unit — maintaining at least one 330704-000-026-50-01-00 in stock per machine train is the recommended minimum buffer for critical rotating equipment.

Spare Parts Support FAQ

Q1: Is the 330704-000-026-50-01-00 a direct replacement for older 330704 variants?
Yes. The 330704-000-026-50-01-00 is backward compatible with earlier 330704 configurations used in 3300 XL systems. No monitor reconfiguration is required for a like-for-like swap, provided the cable length and connector type match the existing installation.

Q2: How do you verify probe condition before installation?
Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification including DC resistance check of the probe coil and visual inspection of the TNC connector and cable jacket. A test certificate is available on request. On-site, verify gap voltage with a calibrated DC voltmeter before machine restart.

Q3: What is the recommended spare stock level for critical rotating equipment?
Industry best practice for Tier-1 critical machines (turbines, large compressors) is a minimum of one probe per monitored bearing, plus one spare proximitor module per rack. For Tier-2 machines, a shared pool of two probes per site is typically sufficient. SMARTNEXMSK supports blanket order arrangements for multi-unit stocking programs.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, coil integrity, connector reliability, and signal performance within published specifications. It does not cover damage from incorrect installation gap, mechanical impact, or operation outside the rated temperature range. Warranty claims are processed within 5 business days with advance replacement available for critical applications.
