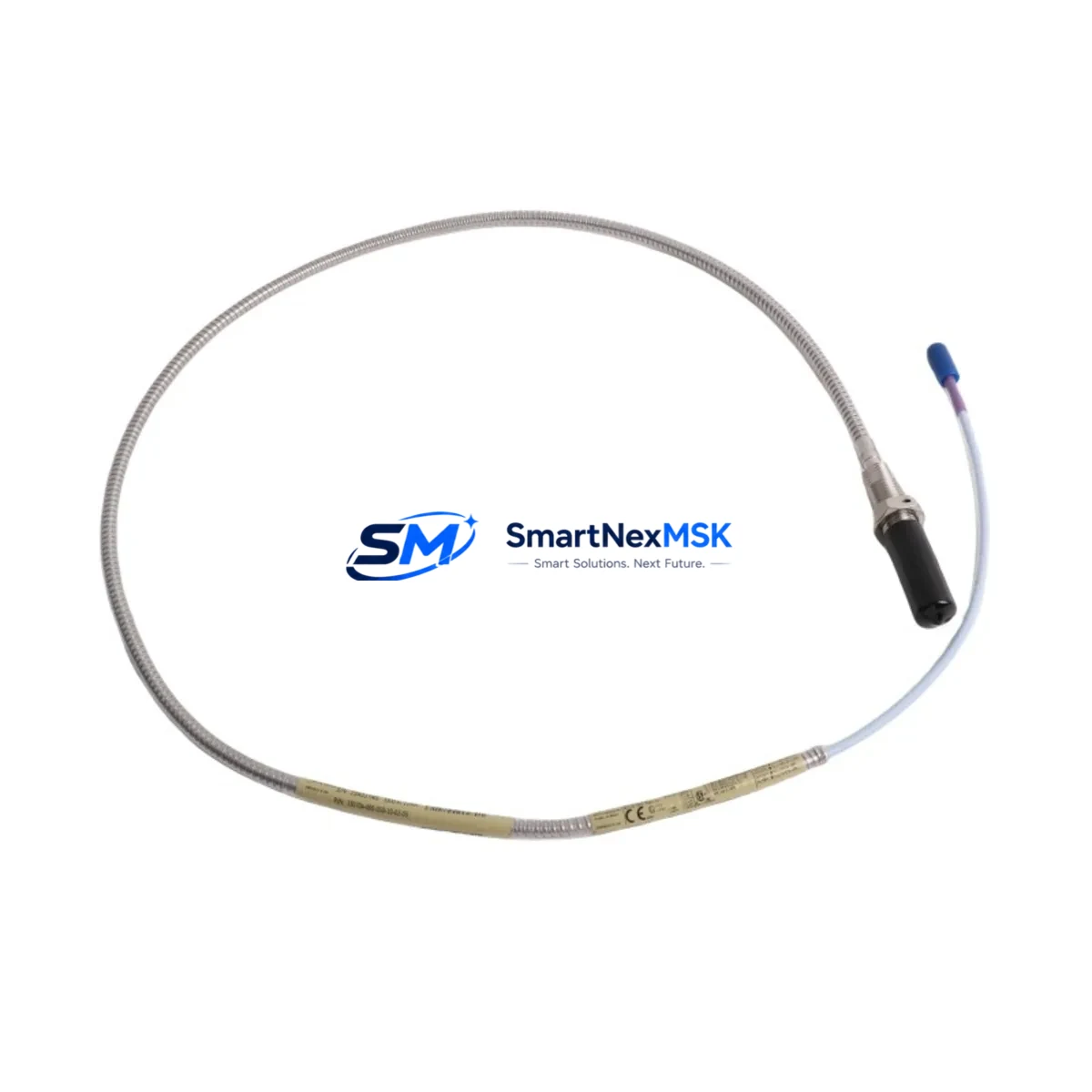

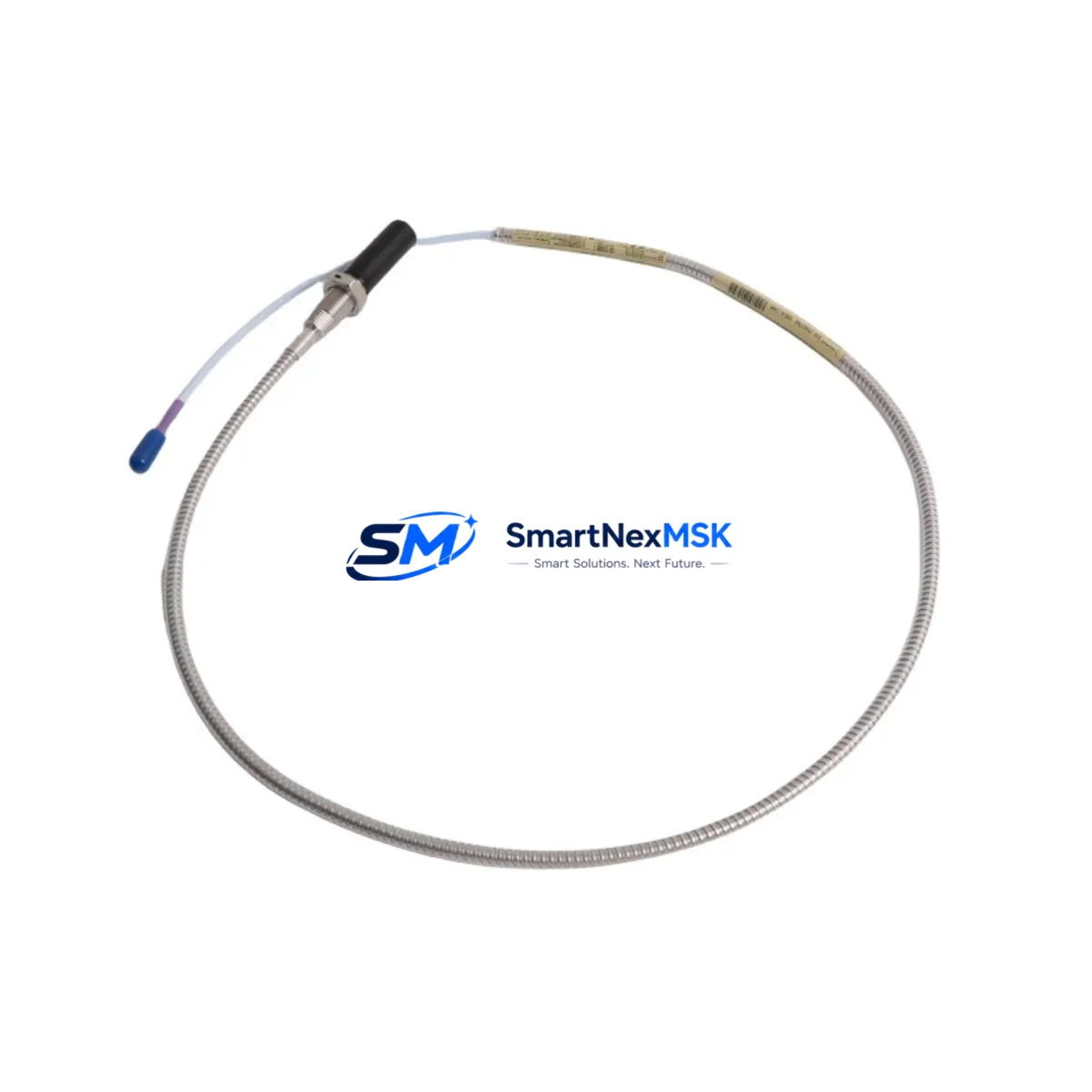

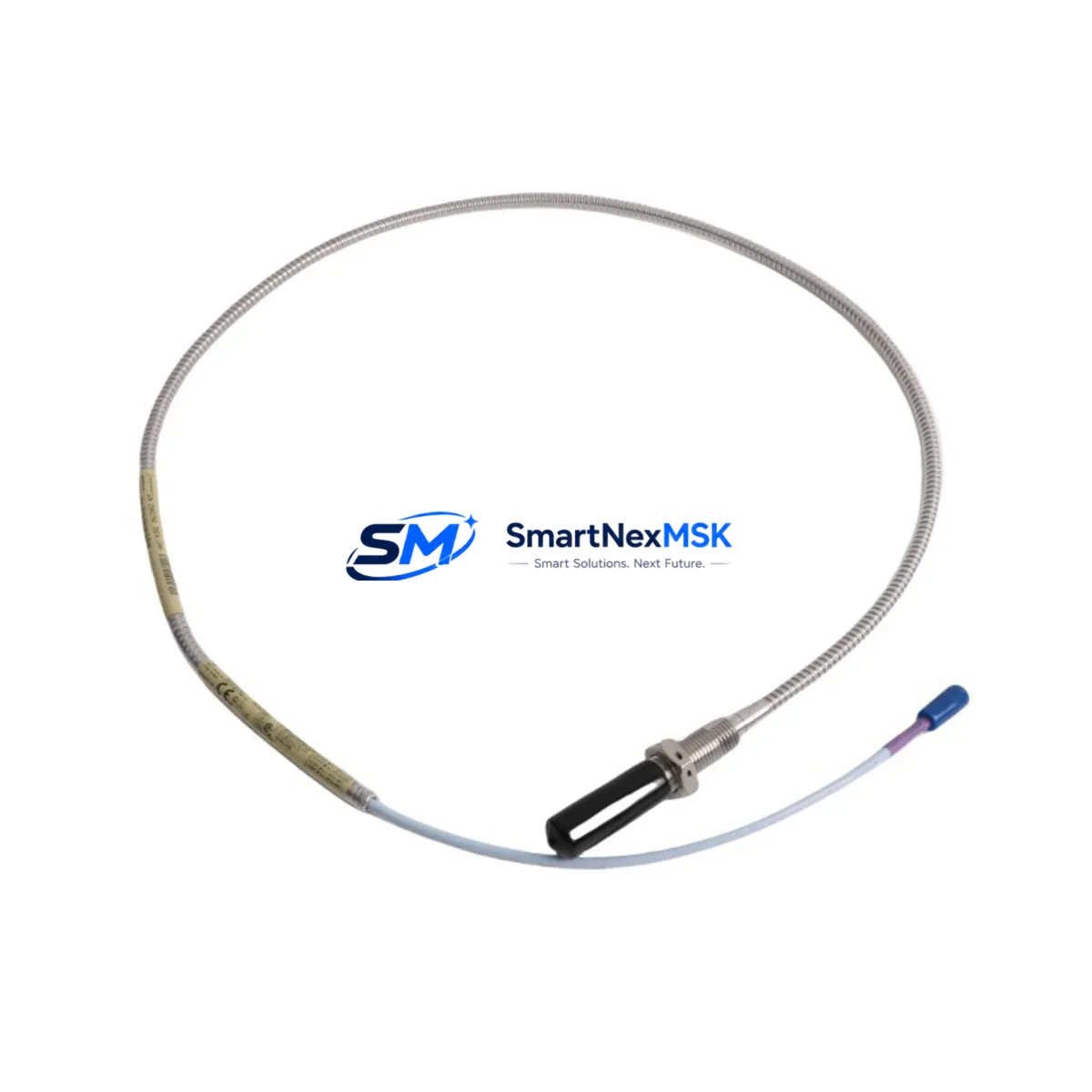

Bently Nevada 330704-000-030-50-02-00 Safety Probe

Bently Nevada 330704-000-030-50-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330704-000-030-50-02-00 is an 11 mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Deployed across rotating machinery protection systems in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port terminals, this probe is a front-line component in preventing catastrophic machinery failure and unplanned production shutdowns.

As part of the Bently Nevada 3300 XL monitoring architecture, the 330704-000-030-50-02-00 operates in conjunction with a matched extension cable and proximitor/driver to deliver precise, low-noise shaft displacement and vibration signals to the monitoring system. Its ruggedized construction — featuring a stainless steel housing, high-temperature rated cable, and EMI-resistant signal path — ensures stable output even in environments characterized by high electromagnetic interference, mechanical vibration, thermal cycling, and chemical exposure. Every unit supplied by SMARTNEXMSK is functionally tested prior to dispatch and backed by a 12-month warranty from the date of shipment.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330704-000-030-50-02-00 probe does not operate in isolation — its reliability is directly tied to the integrity of the complete measurement chain and the protection infrastructure surrounding it. When installing or replacing this probe, maintenance and reliability engineers should conduct a systematic audit of all associated components to eliminate latent failure risks that could compromise the safety function of the vibration monitoring loop.

Begin with the Bently Nevada 330130 extension cable, which must be matched in length and impedance to the probe to maintain calibrated sensitivity. A damaged or mismatched extension cable is one of the most common causes of signal drift and false alarms in eddy-current systems. Inspect the cable jacket for abrasion, kinking, or chemical degradation, particularly in areas where it passes through cable glands or conduit fittings.

Next, verify the condition and configuration of the Bently Nevada 3300/16 or 3300/20 proximitor/driver module housed in the monitoring rack. These driver modules provide the oscillator signal and condition the probe output into a usable voltage signal for the monitoring system. A failing driver module can produce erratic gap voltage readings that mimic probe failure — always cross-check the driver before condemning the probe.

The Bently Nevada 3500 Series rack — including the 3500/22M transient data interface or 3500/42M proximitor monitor — should be inspected for card seating integrity, power rail voltage stability, and alarm setpoint configuration. Incorrect alarm thresholds or a misconfigured OK relay output can result in either missed trips or nuisance shutdowns, both of which carry serious safety implications in rotating machinery protection.

For the power supply feeding the monitoring rack, inspect the 3500/15 power supply module for output ripple and voltage regulation. An unstable DC supply is a known source of baseline noise in proximity measurement systems. Where redundant power is required, confirm that the redundant supply module is healthy and that the automatic changeover function is operational.

In installations where the proximity system interfaces with a DCS or safety instrumented system (SIS) — such as a Honeywell Safety Manager, Triconex TMR controller, or Yokogawa ProSafe-RS — verify that the 4–20 mA or relay outputs from the Bently Nevada rack are correctly wired, scaled, and tested at the receiving end. Signal isolators between the monitoring rack and the SIS input cards should be checked for drift and insulation resistance, particularly in high-humidity or chemically aggressive environments.

Finally, inspect all terminal blocks, cable shields, and grounding connections within the junction box or marshalling cabinet. Improper shield grounding is a leading cause of EMI-induced noise in proximity probe circuits, and a single ungrounded shield can corrupt vibration readings across an entire measurement channel.

Critical Industrial Safety Applications

The 330704-000-030-50-02-00 proximity probe is deployed in safety-critical rotating machinery monitoring across a broad range of heavy industrial sectors.

In petrochemical and refinery operations, this probe is typically installed on centrifugal compressors, turbine expanders, and boiler feed pumps — machinery where shaft displacement monitoring is a mandatory element of the safety instrumented function (SIF) and where API 670 compliance requires continuous, certified vibration measurement. A probe failure in this context can trigger a spurious shutdown or, more critically, allow a developing bearing failure to go undetected.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 3300 XL probe system monitors shaft eccentricity, differential expansion, and thrust position on steam turbines and generators. These measurements feed directly into the turbine protection system, and probe integrity is audited during every planned outage.

In mining and mineral processing, the probe is used on large ball mills, SAG mills, and slurry pumps operating in environments with extreme dust loading, vibration, and temperature variation. The ruggedized construction of the 330704-000-030-50-02-00 makes it well suited to these conditions, where standard industrial sensors would degrade rapidly.

In water and wastewater treatment, the probe monitors large vertical turbine pumps and blower units in continuous-duty service. Reliable vibration data from these assets supports predictive maintenance programs that reduce emergency repair costs and extend equipment life.

In metallurgical and steel production environments, the probe is installed on rolling mill drives, continuous caster pinch rolls, and converter vessel tilting drives — applications where high ambient temperature, electromagnetic interference from arc furnaces, and mechanical shock are constant challenges to sensor reliability.

Safety and Quality FAQ

Q1: Is the 330704-000-030-50-02-00 compatible with my existing 3300 XL proximitor and extension cable?
The 330704-000-030-50-02-00 is designed for use within the Bently Nevada 3300 XL transducer system. It must be used with a matched 3300 XL extension cable (such as the 330130 series) and a compatible 3300 XL proximitor/driver. The complete system is calibrated as a matched set — mixing components from different series or manufacturers will affect sensitivity and accuracy. Please provide your proximitor model and extension cable part number when ordering to confirm system compatibility.

Q2: What pre-shipment testing is performed on each probe?
Each 330704-000-030-50-02-00 unit undergoes functional output verification and sensitivity testing prior to dispatch. We confirm that the probe produces a stable gap voltage within the specified linear range when driven by a reference 3300 XL proximitor. ESD-protective and impact-resistant packaging is used for all shipments to prevent transit damage to the probe tip and cable termination.

Q3: What does the 12-month warranty cover, and how are claims handled?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact to the probe tip, or use outside the specified environmental limits. Warranty claims are initiated through our sales team at sales@smartnexmsk.com, and we aim to resolve all claims within five business days of receiving the returned unit.

Q4: Can you support long-term or emergency supply of this probe and related 3300 XL components?
Yes. SMARTNEXMSK maintains ongoing sourcing for Bently Nevada 3300 XL series components, including probes, extension cables, and proximitor modules. We support scheduled procurement for planned outages, blanket order arrangements for maintenance programs, and emergency spot purchases for unplanned failures. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
