Bently Nevada 330704-000-040-10-02-05 Safety Proximity Transducer

Bently Nevada 330704-000-040-10-02-05 Safety Proximity Transducer: Reliable Vibration Monitoring for Harsh Industrial Sites

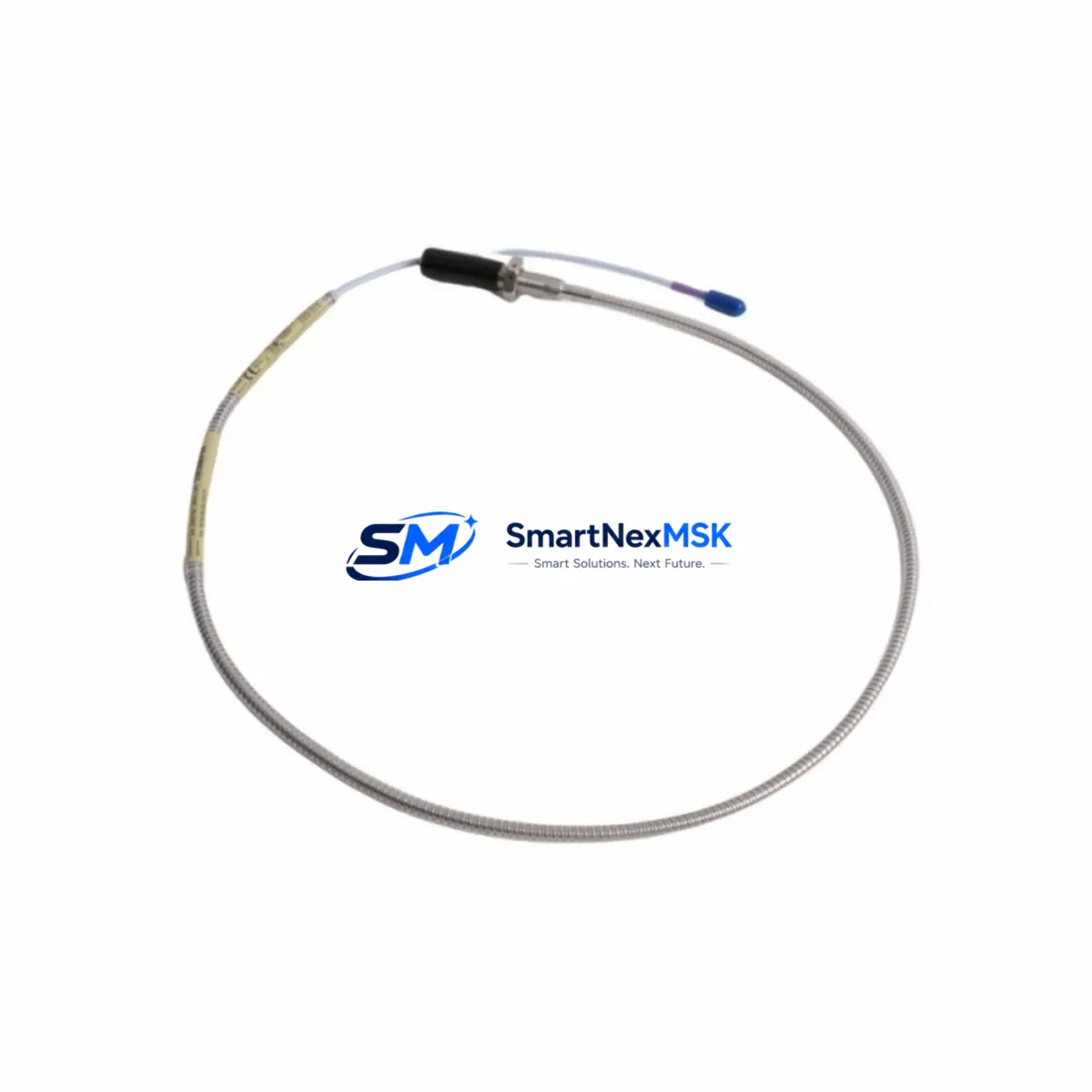

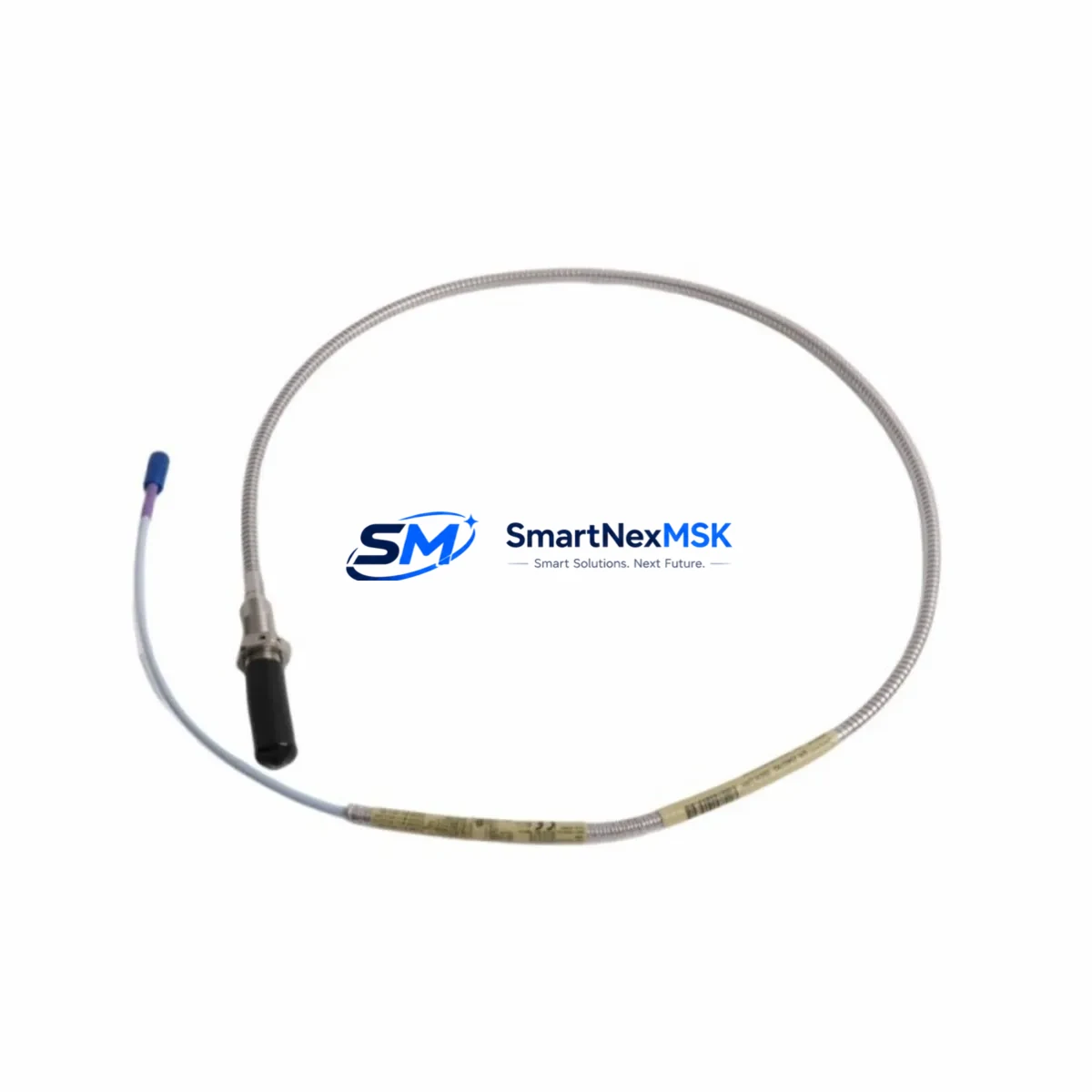

The Bently Nevada 330704-000-040-10-02-05 is a ruggedized 11mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemically aggressive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous process manufacturing facilities.

In critical control loops where shaft displacement, radial vibration, or axial position data must be delivered without interruption, the 330704-000-040-10-02-05 provides the signal integrity and mechanical durability that safety engineers and reliability teams depend on. Its ruggedized housing and precision-wound coil assembly resist signal drift caused by temperature excursions, moisture ingress, and high-frequency electrical noise — conditions that routinely compromise standard-grade sensors in heavy industrial cabinets and field junction boxes.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including output linearity checks and insulation resistance testing, ensuring that the transducer you receive performs to OEM specification from the moment it is installed. A 12-month warranty is included with every shipment, backed by long-term inventory availability for ongoing maintenance and emergency replacement programs.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330704-000-040-10-02-05 probe operates as part of a complete measurement chain. It pairs directly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330130-040-00-00 driver module), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500 Series Machinery Protection System rack. Within that rack, modules such as the 3500/42M Proximitor®/Seismic Monitor Card and the 3500/22M Transient Data Interface process the transducer signal and trigger relay outputs to the plant DCS or safety PLC when vibration thresholds are exceeded.

To maintain signal integrity across long cable runs in electrically noisy environments — common in motor control centers, variable frequency drive (VFD) cabinets, and high-voltage switchgear rooms — the measurement loop should be protected by proper grounding discipline and, where necessary, supplemented with Bently Nevada TK-3 extension cables or equivalent low-capacitance coaxial interconnects. Surge protection devices installed at the cabinet entry point guard against transient overvoltage events caused by nearby switching operations or lightning-induced surges on field cable trays.

Power supply stability is equally critical. The 3300 XL system requires a clean –24 VDC rail; facilities typically source this from a dedicated Bently Nevada 3500/15 Power Supply Module or an equivalent redundant DC supply with battery backup. Upstream, the plant’s 24 VDC distribution panel should incorporate fused branch circuits and EMI-filtered power entry modules to prevent conducted noise from corrupting the transducer’s low-level output signal. In safety instrumented systems (SIS), the transducer loop may feed a Triconex TRICON or Rockwell Allen-Bradley GuardLogix safety PLC, where the analog input card must be rated for SIL 2 or SIL 3 operation to satisfy functional safety requirements under IEC 61511.

Complementary field instruments in the same protection loop often include Bently Nevada 330500 Series velocity transducers for casing vibration measurement, 330900 Series temperature sensors for bearing RTD monitoring, and 330850 Series keyphasor® transducers for phase reference and rotational speed tracking. Together, these components form a layered, redundant protection architecture that minimizes the risk of undetected machinery faults and unplanned shutdowns.

Critical Industrial Safety Applications

The Bently Nevada 330704-000-040-10-02-05 is deployed across a wide spectrum of safety-critical rotating machinery applications:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors, where continuous shaft vibration monitoring is mandated by API 670 and plant safety management systems. Undetected rotor imbalance or bearing degradation in these machines can lead to catastrophic seal failures, hydrocarbon releases, and fire or explosion hazards.

Power Generation: Used on steam turbine-generator sets, boiler feed pumps, and induced draft fans in thermal power stations. The transducer’s wide frequency response and high-temperature cable rating make it suitable for turbine bearing pedestals where ambient temperatures and vibration amplitudes are extreme.

Mining and Mineral Processing: Applied to SAG mill pinion drives, slurry pump motors, and conveyor drive gearboxes in open-pit and underground mining operations. The ruggedized armored cable withstands abrasive dust, water spray, and mechanical impact common in these environments.

Water and Wastewater Treatment: Monitors large vertical turbine pumps and blower units in municipal water treatment facilities, where continuous operation is essential for public health infrastructure and regulatory compliance.

Metallurgy and Steel Production: Protects rolling mill drive motors, continuous casting machine drives, and blast furnace blower compressors, where thermal shock and heavy electromagnetic interference from arc furnaces challenge sensor reliability.

Port and Marine Infrastructure: Installed on ship-to-shore crane hoist motors and bulk material handling conveyor drives, where saltwater corrosion resistance and reliable operation under variable load cycles are essential.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 330704-000-040-10-02-05?
Every unit ships with a 12-month warranty covering manufacturing defects and functional performance. If the unit fails to meet OEM specifications within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are processed promptly with dedicated after-sales support.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment inspection protocol that includes output linearity verification across the specified measurement range, insulation resistance testing between the coil and shield, and visual inspection of the cable jacket, connector, and probe tip. Units that do not pass all checks are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is this transducer compatible with existing 3300 XL Proximitor® drivers and 3500 Series racks?
Yes. The 330704-000-040-10-02-05 is a factory-standard 3300 XL Series probe and is fully compatible with all Bently Nevada 3300 XL Proximitor® Sensor drivers and the complete 3500 Series Machinery Protection System rack. No recalibration of the rack is required when replacing a like-for-like probe of the same series and scale factor.

Q4: Can SMARTNEXMSK support long-term supply for maintenance and turnaround programs?
Yes. SMARTNEXMSK maintains standing inventory of the 330704-000-040-10-02-05 and related 3300 XL Series components to support planned turnaround schedules, emergency replacements, and multi-year maintenance contracts. Customers with recurring demand are encouraged to contact our sales team to discuss blanket order arrangements and priority allocation agreements.
