Bently Nevada 330704-000-050-10-01-CN Safety Proximity Probe

Bently Nevada 330704-000-050-10-01-CN Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

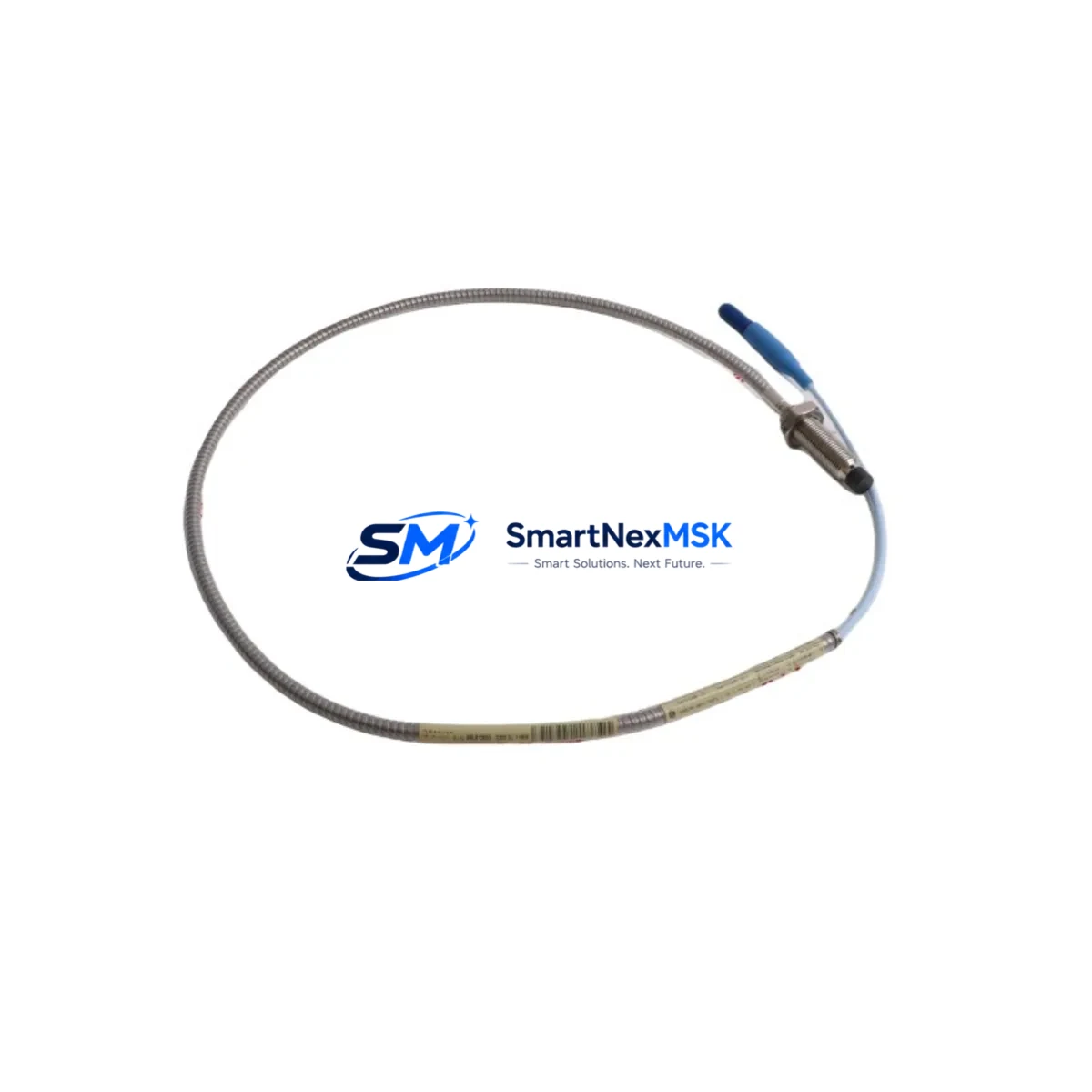

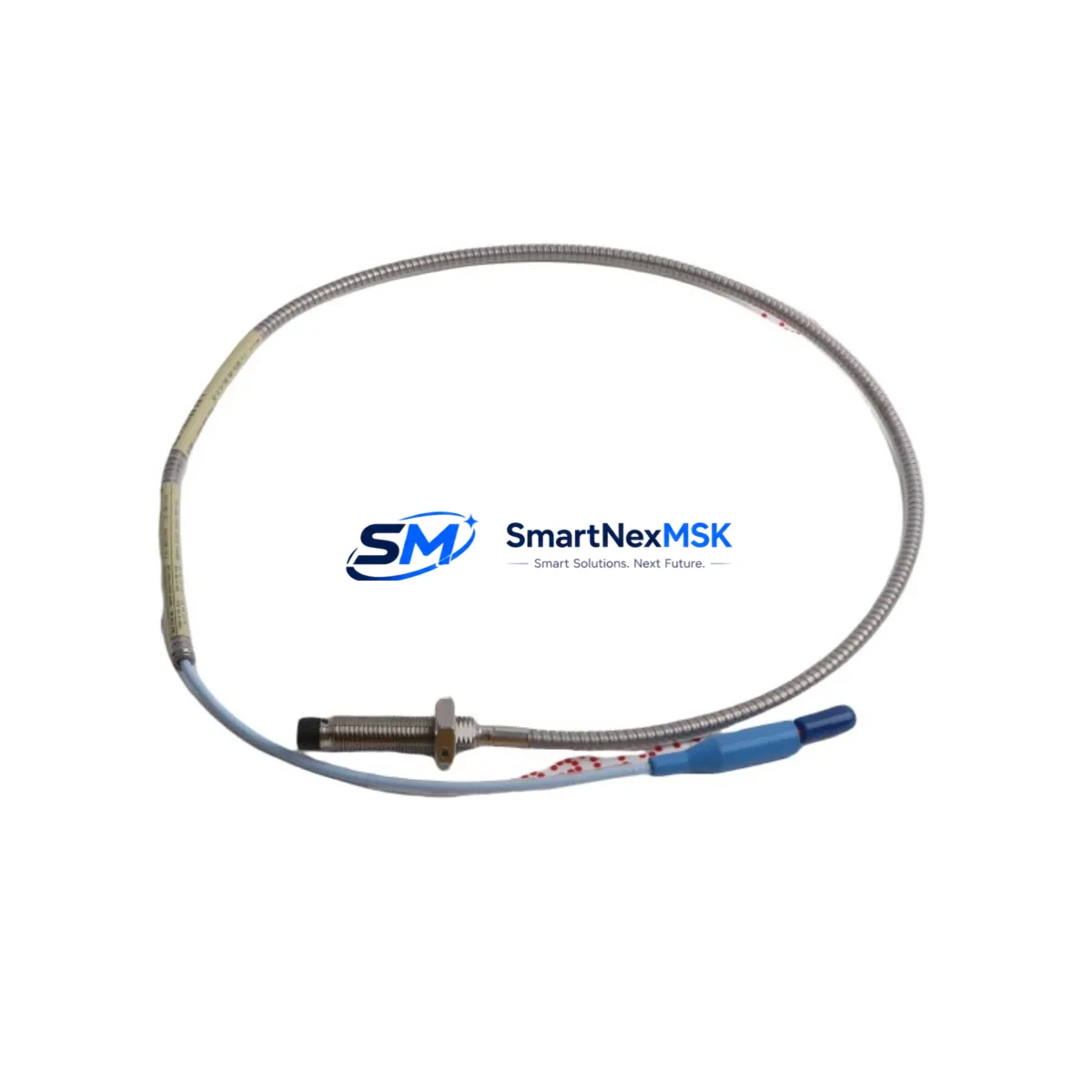

The Bently Nevada 330704-000-050-10-01-CN is an 11mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port crane drives.

In continuous production environments where unplanned downtime carries severe safety and financial consequences, the 330704-000-050-10-01-CN delivers the signal integrity and mechanical durability required to keep critical machinery protection loops fully operational. Its robust stainless-steel housing and hermetically sealed tip resist oil mist, coolant splash, and corrosive process gases, while its EMI-shielded coaxial cable assembly minimizes signal drift caused by high-frequency interference from variable-frequency drives, large motor starters, and adjacent power cabling.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330704-000-050-10-01-CN proximity probe does not operate in isolation — it is one element of a tightly integrated machinery protection architecture. In a properly configured control cabinet, this probe connects to a Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a clean 4–20 mA or voltage output suitable for the 3500 Series Machinery Protection System rack. Within that rack, modules such as the 3500/42M Proximitor®/Seismic Monitor and the 3500/22M Transient Data Interface process vibration, position, and speed data in real time, triggering relay outputs to safety PLCs or DCS controllers when alarm thresholds are exceeded.

To protect the signal path from power-line transients and surge events — common in heavy industrial switchgear rooms — installers typically pair the probe cable with Bently Nevada 330130 series extension cables and route them through grounded conduit separated from high-voltage power wiring. Surge protection barriers, such as those from the MTL 7700 Series or equivalent Zener barriers, are installed at the cabinet entry point to clamp voltage spikes before they reach the Proximitor® input. Proper grounding of the probe body to the machine casing, combined with a single-point ground at the 3500 rack, eliminates ground-loop noise that would otherwise cause false vibration readings and nuisance trips.

In safety instrumented systems (SIS), the vibration signal from this probe may feed a Triconex Tricon or Rockwell AADvance safety controller as part of a turbine or compressor emergency shutdown (ESD) loop. Redundant probe configurations — using two or three 330704-series probes at 90° or 120° offsets — are standard practice in API 670-compliant installations to ensure that a single probe failure does not compromise the protective function. Power supply redundancy, typically provided by Bently Nevada 3500/15 Power Supply modules in a 1+1 configuration, ensures that the entire monitoring rack remains energized even during a single PSU fault.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracker compressor trains, the 330704-000-050-10-01-CN monitors shaft radial vibration and axial position on centrifugal compressors and steam turbines. Early detection of rotor imbalance, bearing wear, or surge events allows operators to initiate controlled shutdowns before catastrophic seal failures or blade contact occurs, preventing fires, toxic releases, and extended outages.

Power Generation: Gas turbine and steam turbine generator sets in combined-cycle power plants rely on API 670-compliant proximity probe arrays to maintain continuous shaft centerline monitoring. The 3300 XL probe’s wide operating temperature range and high-temperature cable insulation make it suitable for installation close to turbine bearing housings where ambient temperatures routinely exceed 120 °C.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pump drives in open-pit and underground mining operations subject monitoring equipment to extreme vibration, dust ingress, and electrical noise from high-power thyristor drives. The IP67-rated probe body and double-shielded cable of the 330704-000-050-10-01-CN maintain signal integrity in these conditions, supporting continuous mill protection without frequent recalibration.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment plants benefit from non-contact vibration monitoring to detect impeller wear and bearing degradation before pump failure disrupts water supply. The corrosion-resistant probe housing withstands the humid, chemically active atmosphere typical of chlorination and aeration facilities.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower turbines operate under high radial loads and thermal cycling. Proximity probes in these applications must tolerate electromagnetic interference from large DC drives and induction furnaces — conditions where the 3300 XL’s shielding architecture provides a measurable advantage over lower-specification sensors.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, signal sensitivity drift beyond published specifications, connector integrity failures, and cable insulation breakdown under normal operating conditions. Each unit undergoes pre-shipment functional testing including sensitivity verification, insulation resistance check, and connector continuity inspection. Warranty claims are processed with replacement dispatch within 5 business days upon receipt of the defective unit.

Q2: How is outgoing quality verified before shipment?
Every 330704-000-050-10-01-CN unit is tested against Bently Nevada factory acceptance criteria prior to dispatch. Testing includes eddy-current sensitivity measurement at the nominal 7.87 V/mm (200 mV/mil) specification, cable shield continuity, connector torque verification, and visual inspection of the probe tip and housing. A test report is available upon request for customers requiring traceability documentation for SIL-rated installations.

Q3: Is this probe compatible with existing 3300 XL Proximitor® drivers and 3500 rack systems?
Yes. The 330704-000-050-10-01-CN is fully compatible with all Bently Nevada 3300 XL Proximitor® Sensors and the 3500 Series Machinery Protection System. It is also backward-compatible with legacy 3300 Series drivers. The standard 10-32 UNF reverse-mount connector mates directly with 330130 series extension cables without adapters, simplifying field replacement in existing installations.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated safety-stock inventory of the 330704-000-050-10-01-CN to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers operating API 670-compliant machinery protection systems can contact our team to establish a blanket order or consignment stock arrangement, ensuring that replacement probes are available on-site or within 24-hour delivery reach at all times.
