Bently Nevada 330704-000-060-50-12-00 Spare 3300 XL: Maintenance-Ready Proximity Probe for Industrial Downtime Control

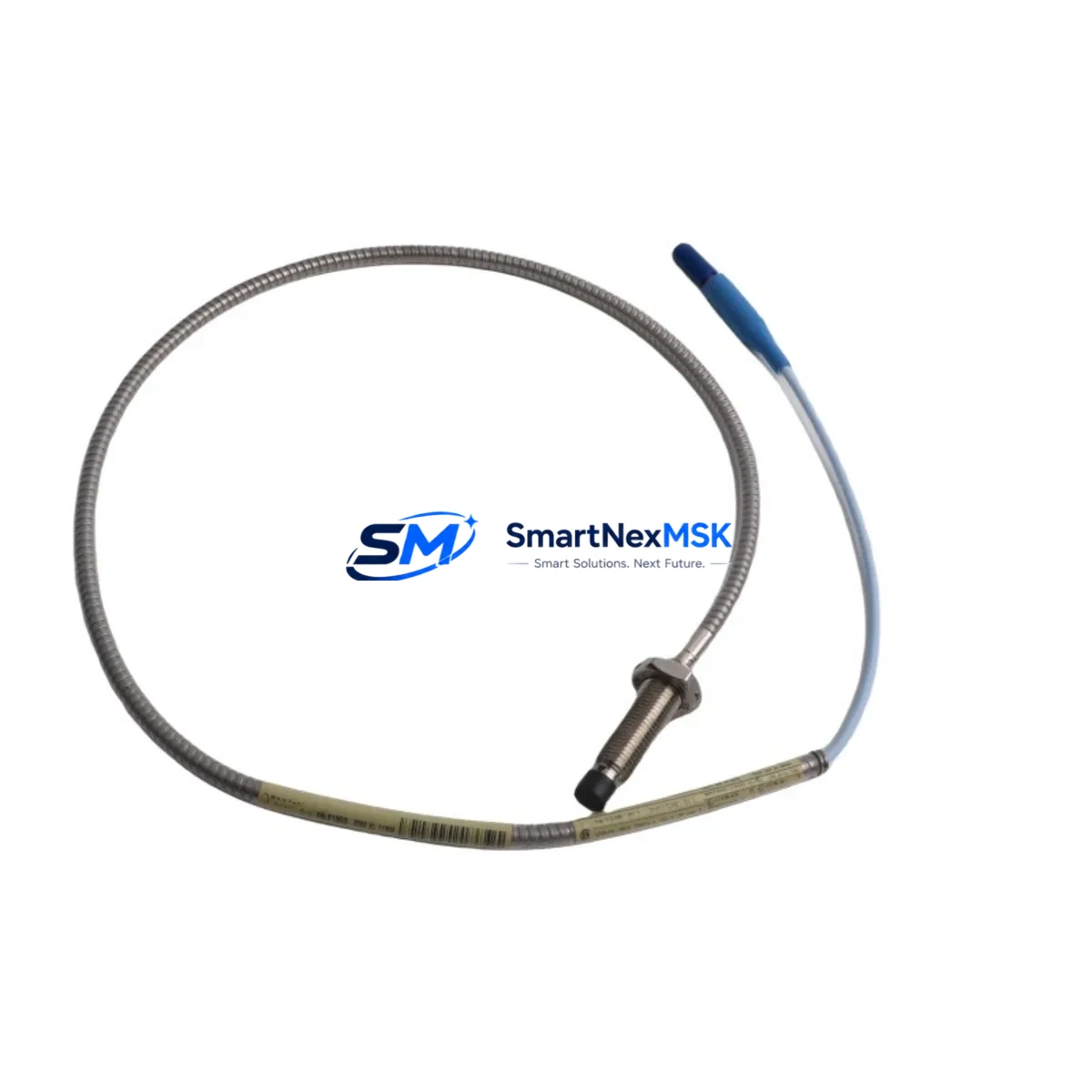

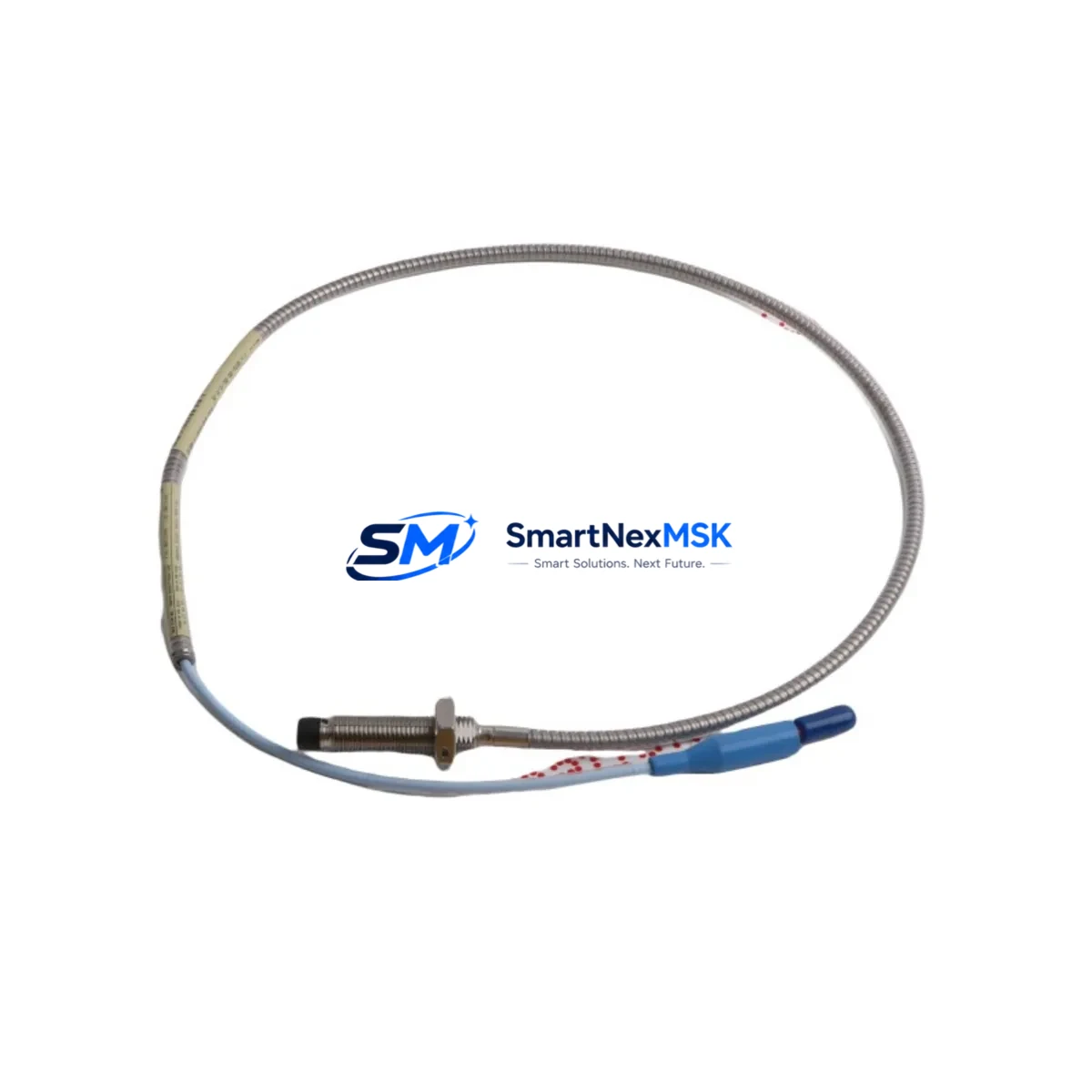

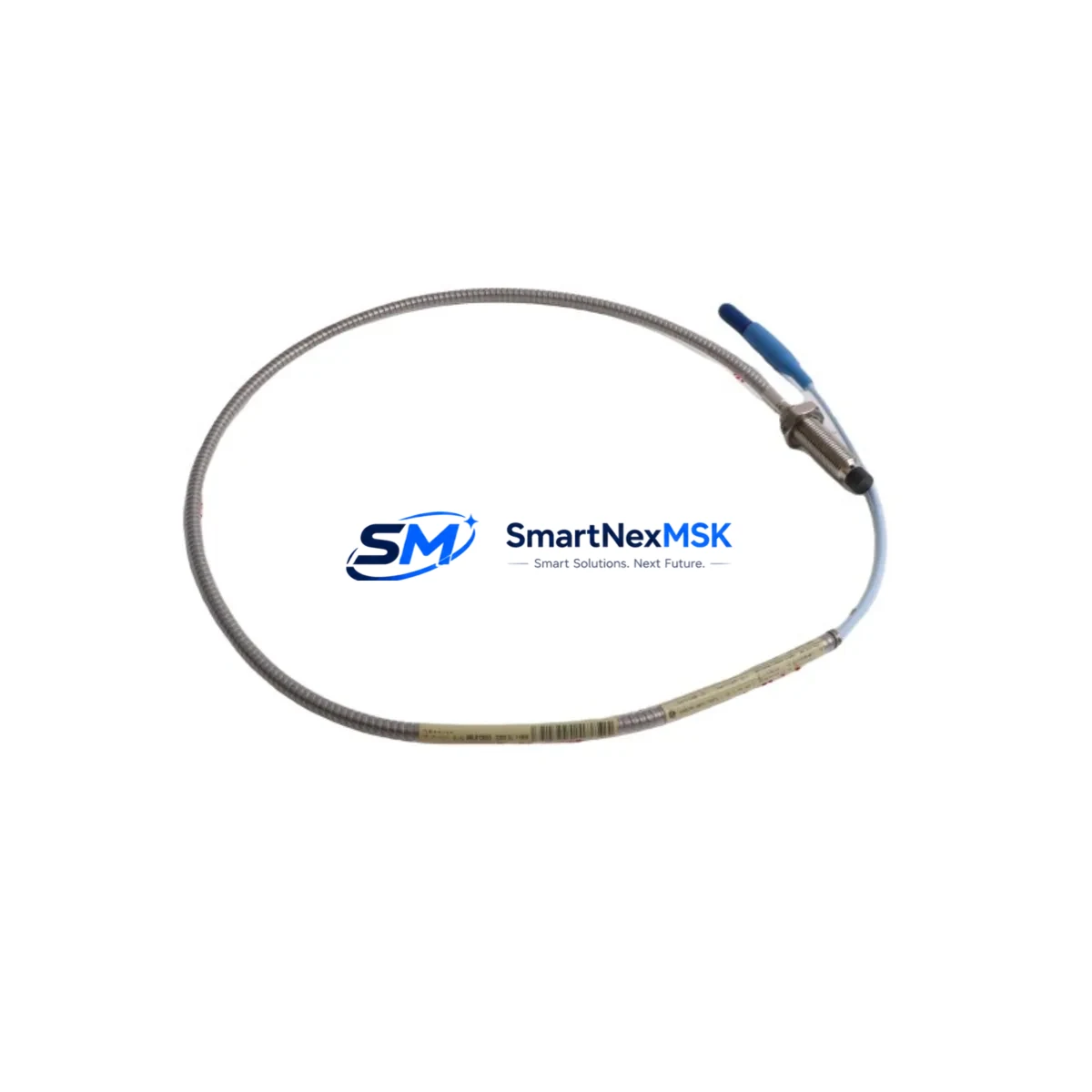

When a rotating machine trips unexpectedly in a petrochemical plant, power station, or continuous manufacturing facility, every minute of unplanned downtime carries a measurable cost. The Bently Nevada 330704-000-060-50-12-00 is an 11 mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered to deliver precise shaft displacement and vibration measurements in the most demanding rotating machinery protection systems. Holding a verified replacement unit in your spare parts inventory is one of the most effective strategies a maintenance engineer can deploy to compress mean time to repair (MTTR) and keep critical assets online.

This probe is a direct, drop-in replacement for existing 3300 XL installations. Its 11 mm sensing tip, 5 m (50 ft) integral cable, and standard -24 VDC bias voltage output make it fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-91-05) without any recalibration of the monitoring system. Maintenance teams working on steam turbines, compressors, pumps, fans, and gearboxes will find this probe ready to install directly from the shipping box after a brief bench verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. Experienced maintenance engineers know that when a probe shows signs of drift, signal noise, or physical damage, the surrounding measurement chain deserves equal scrutiny. Before or during replacement of the 330704-000-060-50-12-00, a thorough site inspection should include the paired Bently Nevada 330180-91-05 Proximitor® Sensor, which conditions the raw probe signal into a usable voltage output for the monitoring rack. A faulty Proximitor can mask probe performance issues or introduce false readings even after a new probe is installed.

The extension cable connecting the probe to the Proximitor — typically a Bently Nevada 330130 Series armored extension cable — should be inspected for kinking, abrasion, or connector corrosion, particularly in high-vibration or high-temperature zones near bearing housings. A degraded extension cable is a common root cause of intermittent signal faults that are often misdiagnosed as probe failure.

At the rack level, the Bently Nevada 3500/42M Proximitor/Seismic Monitor module processes the displacement signal and triggers alarms or trips. Maintenance teams should verify that the monitor’s gap voltage reading falls within the linear range after probe installation. If the facility also uses Bently Nevada 3500/25 keyphasor modules, confirming their signal integrity during the same maintenance window prevents a second unplanned outage. For plants running older Bently Nevada 7200 Series probes in parallel systems, this is also an opportune moment to audit those assemblies for end-of-life replacement planning.

Power supply stability is critical to measurement accuracy. The Bently Nevada 3500/15 Power Supply module feeding the rack should be checked for output voltage stability and ripple, as power fluctuations directly affect Proximitor bias voltage and scale factor accuracy. Where redundant power is not already in place, adding a secondary supply module is a low-cost insurance policy against rack-wide measurement failure.

Finally, the Bently Nevada 3500/92 Communication Gateway or equivalent Modbus/OPC interface module should be confirmed operational so that vibration data flows uninterrupted to the plant DCS or historian. A probe replacement that is not reflected in the monitoring system’s live data stream can create a false sense of security during the post-maintenance verification period.

Site Replacement Workflow

Replacing the 330704-000-060-50-12-00 in the field follows a structured sequence that minimizes exposure time and ensures measurement integrity is restored before the machine is returned to service.

Step 1 — Pre-Replacement Verification: Record the existing gap voltage from the Proximitor or monitoring rack display. This baseline confirms the probe’s current installation depth and provides a reference for the new probe setup. If the gap voltage is already out of range, the Proximitor or extension cable may also require replacement.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For hot-standby or redundant measurement systems, confirm that the redundant channel is active and alarming correctly before isolating the faulty channel.

Step 3 — Physical Replacement: Remove the probe from the probe holder, noting the thread engagement depth. Install the new 330704-000-060-50-12-00 to the same depth, then fine-adjust to achieve the target gap voltage (typically -10 VDC ± 0.5 V for standard steel targets at mid-range). Lock the probe in position with the jam nut.

Step 4 — Signal Verification: With the machine at rest, confirm gap voltage, then observe the dynamic signal during slow-roll and run-up to operating speed. Verify that 1X and 2X vibration amplitudes are consistent with historical baseline data stored in the plant historian or Bently Nevada System 1 software.

Step 5 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new probe serial number, and post-installation gap voltage. Schedule the next inspection interval based on the machine’s criticality classification.

This workflow applies equally to turbine radial and axial position probes, compressor shaft displacement measurements, and pump bearing monitoring points — anywhere the 3300 XL system is deployed.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 330704-000-060-50-12-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failure under normal operating conditions, and out-of-specification scale factor performance. Units that fail within the warranty period are replaced or refunded at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every 330704-000-060-50-12-00 undergoes pre-shipment functional verification including bias voltage output check, scale factor confirmation against a calibrated steel target, and cable continuity testing. Units that do not meet Bently Nevada’s published specifications are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is this probe compatible with the Bently Nevada 3500 Series monitoring rack?
The 330704-000-060-50-12-00 is natively designed for the 3300 XL system. It is compatible with the 3500 Series rack when used with the appropriate 3300 XL Proximitor Sensor (e.g., 330180-91-05). Direct connection to a 3500/42M monitor without the Proximitor is not supported. If your facility is migrating from 3300 XL to 3500 Series, our technical team can advise on the correct interface configuration.

Q4: Can you support long-term or blanket purchase orders for this spare part?
Yes. SMARTNEXMSK maintains standing inventory of high-demand Bently Nevada 3300 XL components to support planned maintenance schedules and emergency call-off orders. Blanket purchase agreements with scheduled quarterly releases are available for facilities managing multiple machine trains. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stock arrangements.
