Bently Nevada 330704-000-060-90-01-CN Spare 3300 XL: Precision Replacement for Continuous Vibration Monitoring

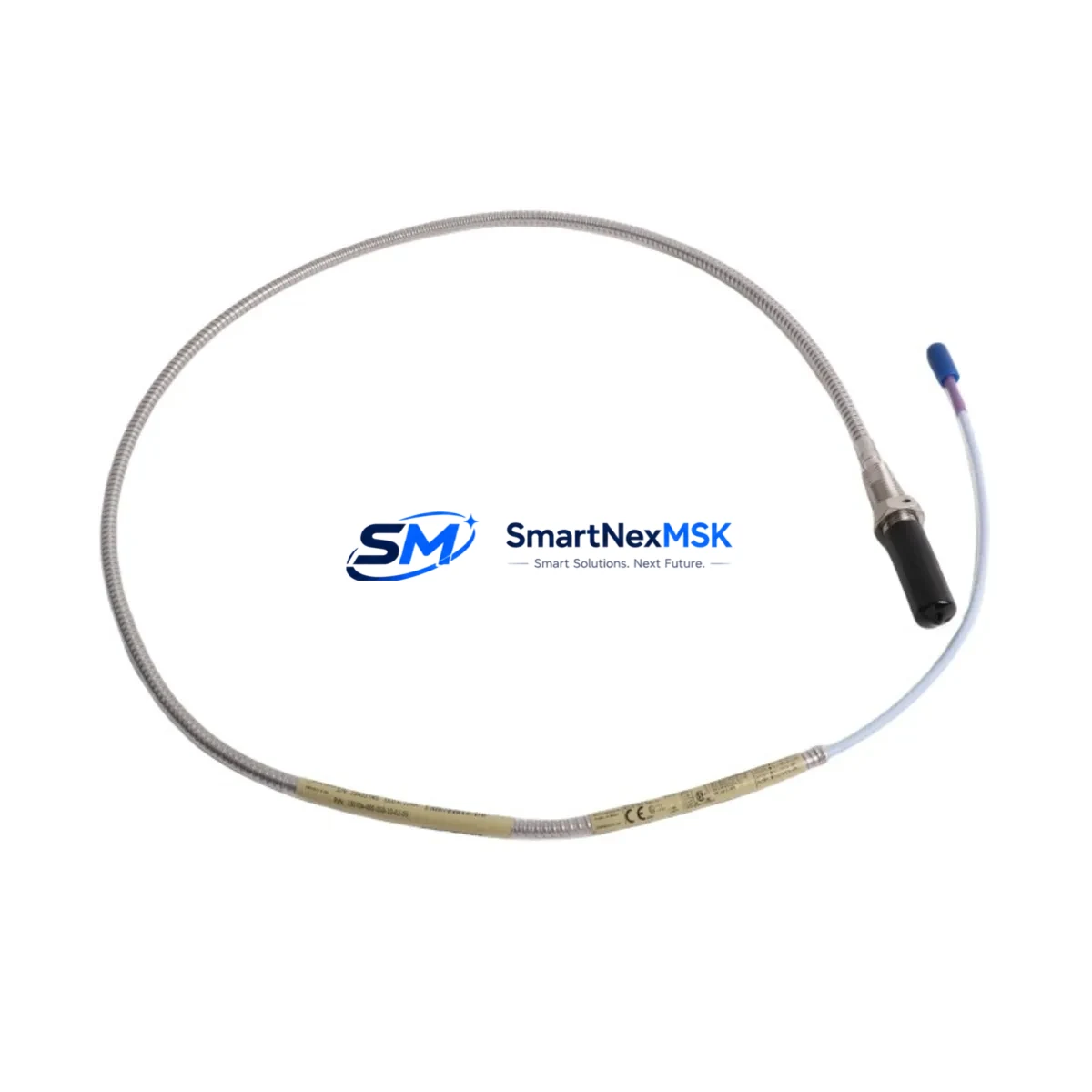

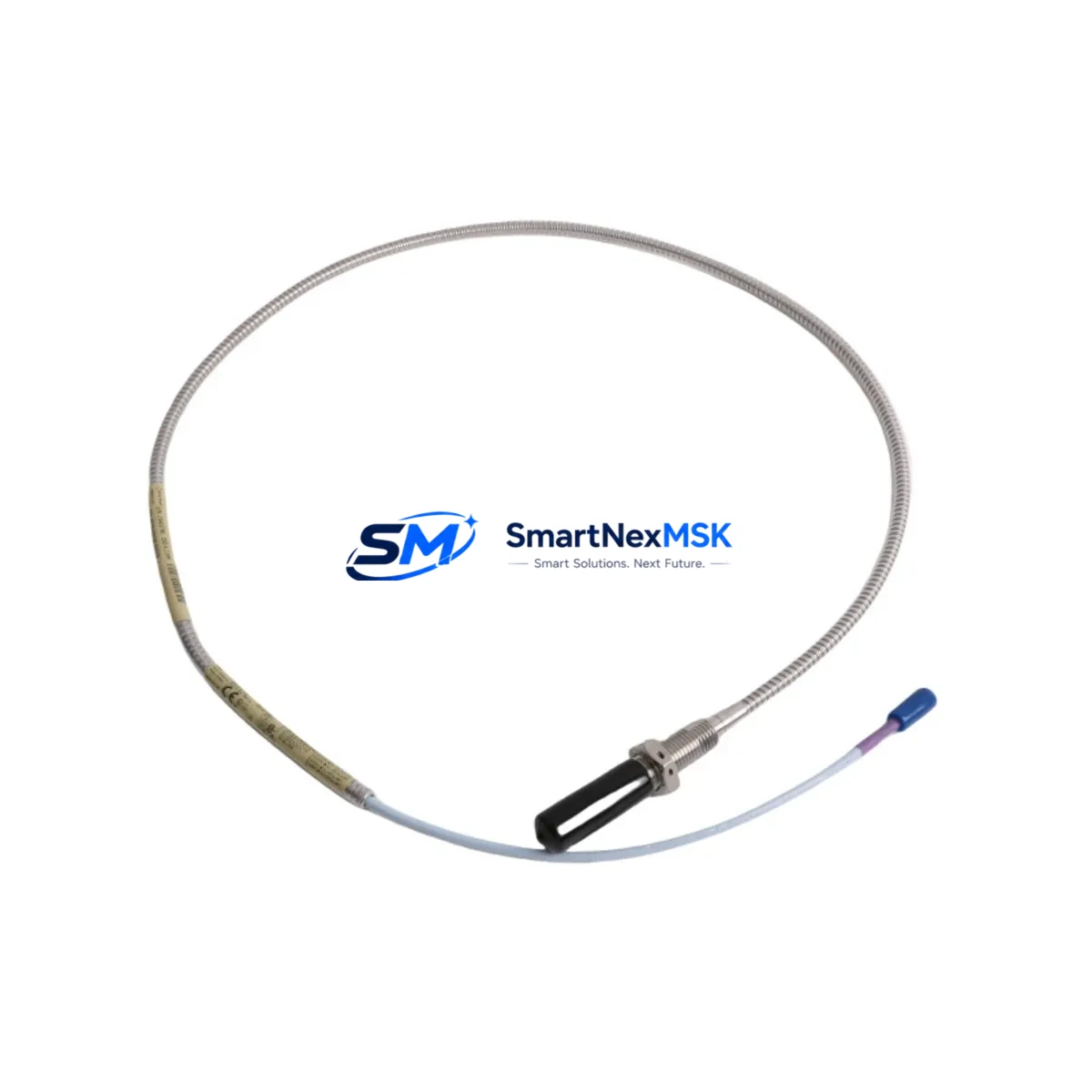

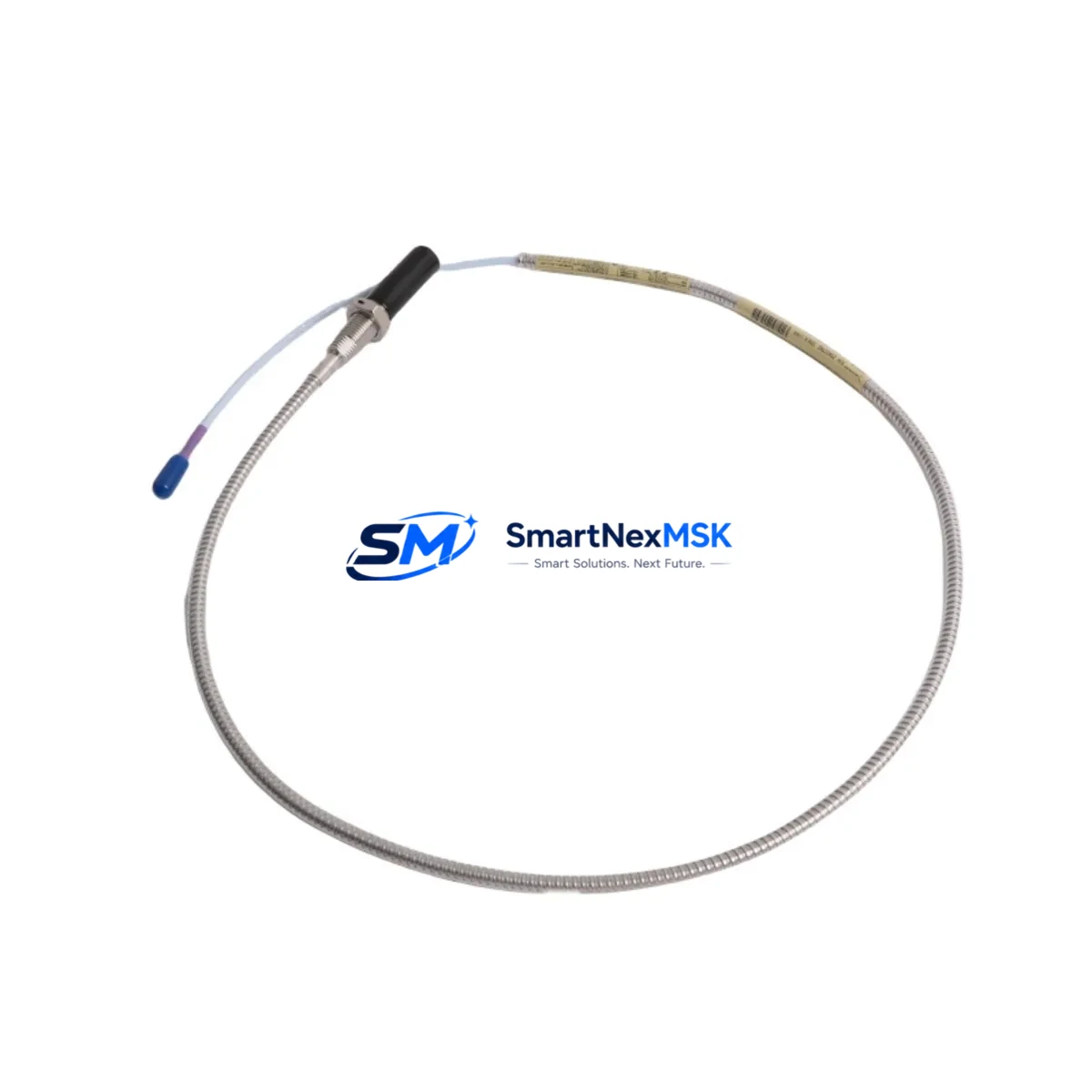

The Bently Nevada 330704-000-060-90-01-CN is an original 11mm eddy current proximity probe from the 3300 XL series, supplied with a 60-inch (approximately 1.5 m) armored extension cable and factory-terminated connectors. This probe is a direct maintenance-ready spare for rotating machinery protection systems operating on Bently Nevada 3300 XL monitor racks. It delivers non-contact displacement measurement with the signal fidelity required by API 670-compliant machinery protection systems in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy industrial facilities.

Sourced from authorized supply channels and subject to pre-shipment functional verification, each unit is dispatched with a 12-month warranty covering manufacturing defects and electrical performance. Stocking this probe as a critical spare eliminates the multi-week lead time associated with OEM procurement and supports rapid return-to-service after unplanned shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330704-000-060-90-01-CN probe is flagged during routine vibration trending or fails a gap voltage check, the replacement workflow should extend beyond the probe itself. A complete inspection of the measurement chain is essential to restore system integrity and prevent repeat failures.

Begin with the 330180-91-00 Proximitor Sensor (driver/oscillator module): verify output voltage at the recommended gap (typically –10 VDC ±0.25 V) and confirm the driver is not thermally stressed or moisture-contaminated. Next, inspect the 330130-045-00-CN extension cable connecting the probe to the proximitor — armored cables in high-vibration zones are prone to micro-fractures at conduit entry points, which introduce noise and erratic gap readings.

At the monitor rack level, check the 3300/16-02-01-00 16-channel monitor card for alarm setpoint integrity and verify that the 3300/20-01-00 power supply module is delivering stable –24 VDC within tolerance. A drifting rack power supply is a common root cause of false vibration alarms that are misdiagnosed as probe failures. If the facility uses a 3500/42M Proximitor/Seismic Monitor in parallel, confirm that channel configuration and OK relay outputs are consistent across both systems.

For installations where the probe monitors axial position or differential expansion, also inspect the 330500-02-00 thrust position probe in the same measurement plane — a single degraded probe in a complementary pair can mask true shaft movement. Review the 3300/55-01-01-00 I/O module terminal assignments and verify that 4–20 mA output signals feeding the DCS historian are within calibrated range.

Where the control cabinet includes a Bently Nevada 3500/92 communication gateway (Modbus or Ethernet/IP), confirm that the new probe’s channel data is correctly mapped and that the gateway is not buffering stale alarm states. Finally, inspect terminal blocks and grounding bars within the junction box — loose shield grounds on proximity probe cables are a leading cause of electrical noise that mimics mechanical instability.

Stocking the 330704-000-060-90-01-CN alongside its companion proximitor, extension cable, and a spare monitor card ensures that any single-point failure in the vibration measurement chain can be resolved within one maintenance shift, keeping MTTR below four hours for critical rotating equipment.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Inhibit the affected channel at the 3300 XL or 3500 monitor rack to suppress spurious alarms during the swap. Record the existing gap voltage (typically –10 VDC ±0.5 V) and note the physical gap dimension (usually 1.0–1.5 mm for 11 mm probes on steel targets) for post-installation verification.

Step 2 — Probe Removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip for impact damage or contamination. If the armored cable shows kinking or jacket cracking, replace the extension cable simultaneously rather than reusing it with a new probe.

Step 3 — Installation & Gap Setting: Thread the 330704-000-060-90-01-CN into the probe holder. Using a calibrated gap tool or a digital multimeter monitoring the proximitor output, adjust the probe gap to achieve the target voltage specified in the machine’s vibration monitoring datasheet. Tighten the locknut to the torque value specified in the Bently Nevada installation manual.

Step 4 — Functional Verification: Re-enable the monitor channel and confirm OK relay status. Observe gap voltage stability over 5–10 minutes at operating temperature. Compare vibration amplitude and phase readings against the pre-failure baseline stored in the historian. If readings are within ±5% of baseline, the replacement is confirmed successful.

Step 5 — Documentation & Spare Replenishment: Log the replacement in the CMMS with the new probe serial number, installation date, and gap voltage. Immediately initiate a purchase order to replenish the consumed spare — lead times for original Bently Nevada components can exceed 8–12 weeks through standard OEM channels, making proactive restocking critical for high-availability plants.

Spare Parts Support FAQ

Q1: Is the 330704-000-060-90-01-CN compatible with both 3300 XL and 3500 series monitor racks?
The 330704-000-060-90-01-CN is natively designed for the 3300 XL system. It is also compatible with 3500 series racks when paired with the appropriate 3500-series proximitor driver that accepts 3300 XL probe inputs. Always verify the driver part number and channel configuration before installation in a 3500 rack.

Q2: What pre-shipment testing is performed on each unit?
Each 330704-000-060-90-01-CN is bench-tested for gap voltage output, scale factor linearity, and cable continuity prior to dispatch. Units that do not meet Bently Nevada factory specifications are quarantined. A test report is available upon request for critical applications.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an ESD-safe bag in a dry environment between –20 °C and +70 °C, away from strong magnetic fields. Inspect the connector and cable jacket annually. Probes stored correctly retain full performance characteristics for 5+ years. Rotate stock on a first-in, first-out basis to manage shelf life.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, electrical performance deviations from published specifications, and cable/connector integrity failures under normal operating conditions. It does not cover damage resulting from incorrect gap setting, mechanical impact, chemical exposure, or installation in systems outside the specified supply voltage range. Warranty claims are processed within 5 business days of receipt of the returned unit.
