Bently Nevada 330704-000-100-10-01-05 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330704-000-100-10-01-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

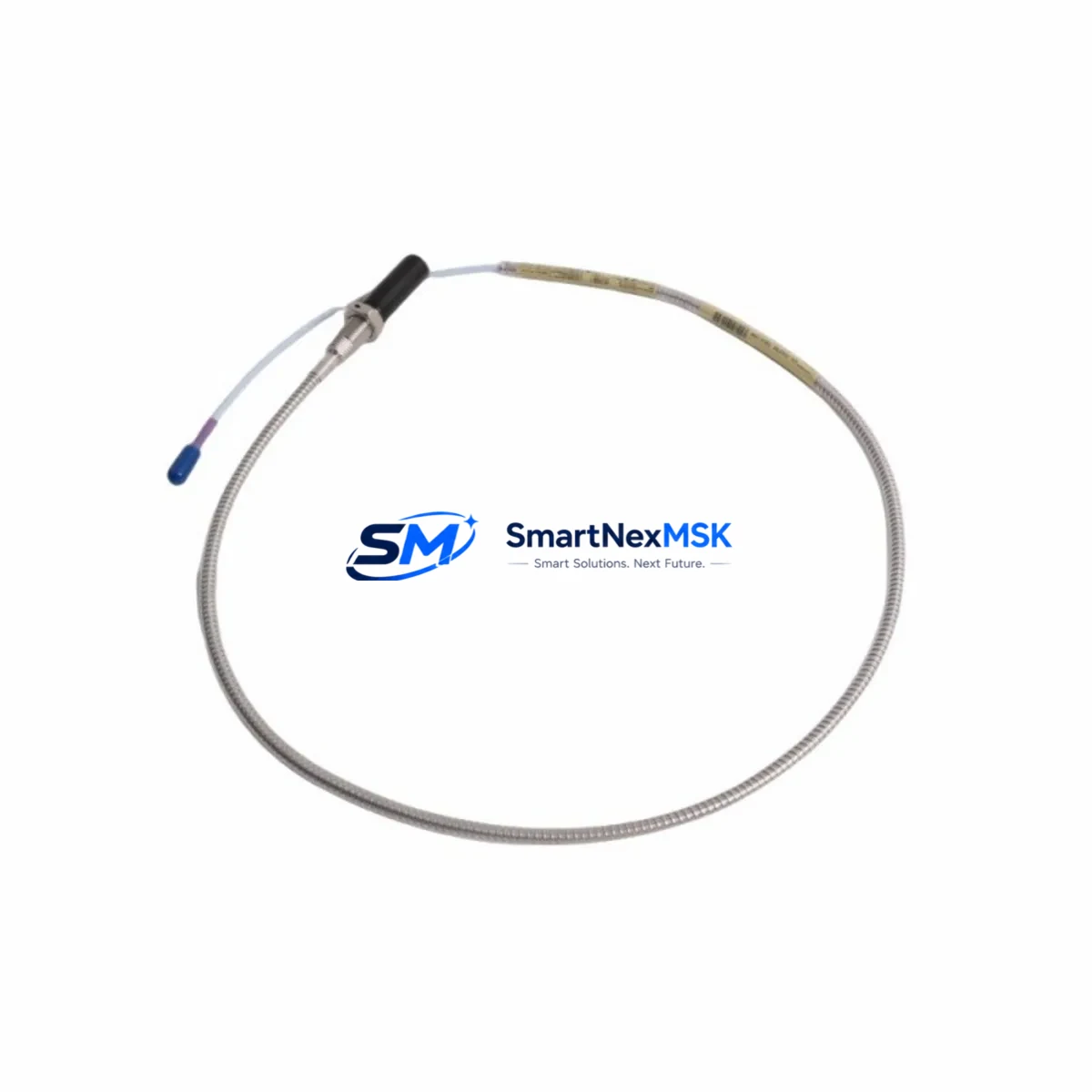

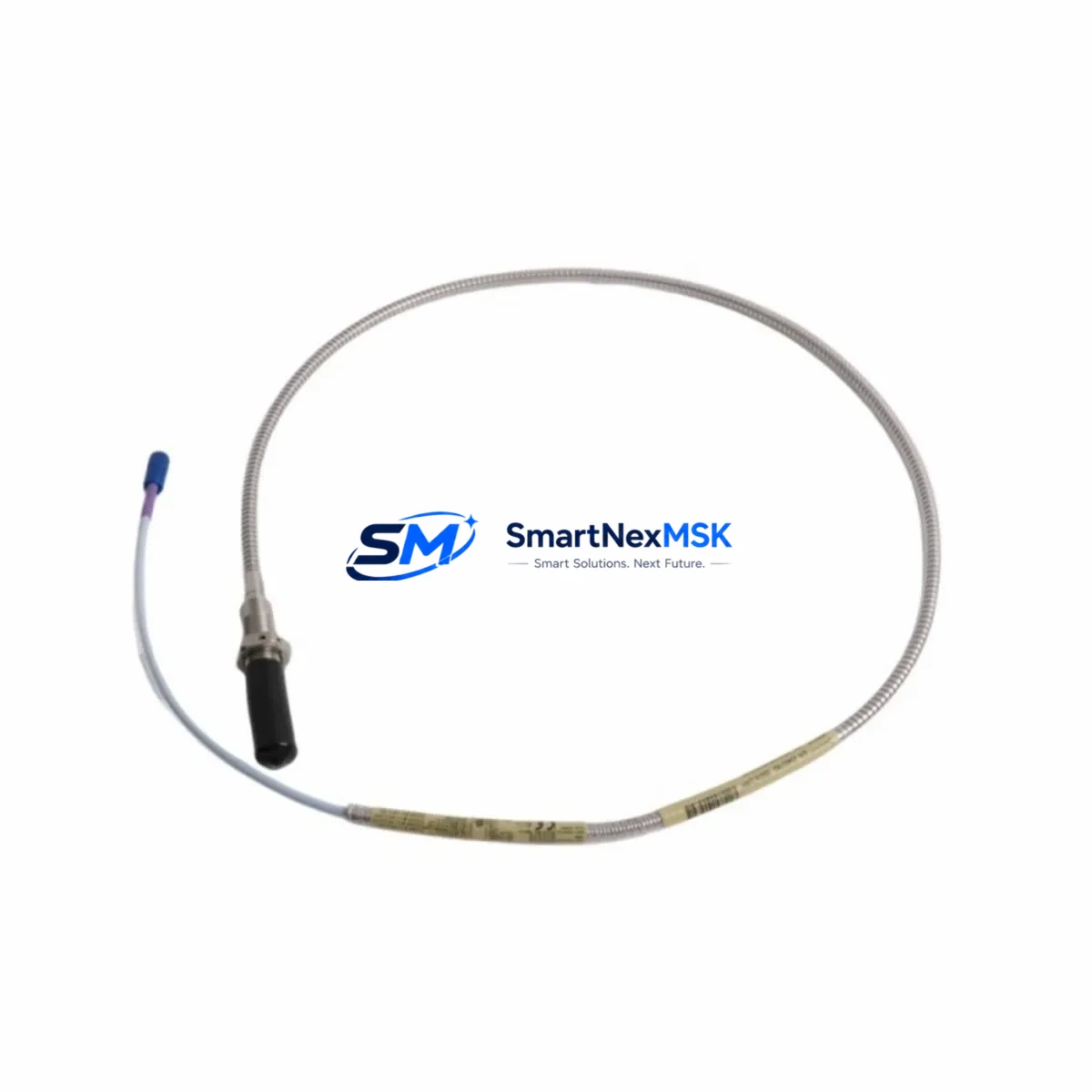

The Bently Nevada 330704-000-100-10-01-05 is an 11mm proximity transducer engineered for seamless integration into Bently Nevada 3300 XL continuous machinery monitoring systems. As legacy 3300 Series transducers reach end-of-life and OEM support is discontinued, this retrofit-ready replacement provides a verified drop-in solution for rotating machinery protection applications including turbines, compressors, pumps, and gearboxes. Whether you are executing a planned control system upgrade or responding to an unplanned failure, this transducer is stocked and ready for immediate dispatch with full 12-month warranty coverage.

The 330704-000-100-10-01-05 is part of the 3300 XL 11mm transducer system, which operates in conjunction with the 330180 extension cable and the 330130 proximitor/oscillator to form a complete proximity measurement loop. When replacing a failed or degraded transducer in an existing installation, engineers must verify the gap voltage at the proximitor output — typically –10 VDC at the calibrated gap — before returning the machine to service. The transducer’s 5-metre integral cable and standard TNC connector ensure direct compatibility with existing 330180 series extension cables without field modification.

For sites migrating from the earlier Bently Nevada 3300 Series (non-XL) to the 3300 XL platform, the 330704-000-100-10-01-05 supports a phased retrofit approach. The 3300 XL Monitor, such as the 3300/16 or 3300/20 rack-mounted module, accepts the same 4–20 mA and voltage output signals, allowing existing DCS or PLC I/O cards to remain in service during the transition. Engineers should confirm that the 3300 XL rack backplane and power supply module — typically the 3300/05 Power Supply — are rated for the additional transducer loop current before expanding the monitoring channel count.

In turbomachinery protection panels, the 330704-000-100-10-01-05 is commonly installed alongside the 3300/55 Dual Voting Logic module and the 3300/46M Keyphasor module to provide shaft speed reference and overspeed trip logic. When upgrading these panels, technicians should document the existing Keyphasor gap setting and replicate it precisely on the replacement transducer to avoid false speed readings that could trigger spurious shutdowns. The 3300 XL system’s System 1 Evolution software retains historical vibration trend data across transducer replacements, provided the channel configuration and engineering unit scaling remain unchanged.

For facilities operating Bently Nevada 7200 Series or 9000 Series monitors in parallel with 3300 XL racks, the 330704-000-100-10-01-05 is not cross-compatible at the proximitor level; however, the physical installation geometry and target material requirements are identical, simplifying multi-platform maintenance planning. Sites consolidating onto a single monitoring platform should evaluate the 3500/42M Proximitor/Seismic Monitor as a long-term migration target, noting that the 3500 rack accepts the same 3300 XL transducer probes with appropriate proximitor module selection.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330704-000-100-10-01-05 into an operating machinery protection system begins with a thorough pre-outage audit. Technicians should collect the existing channel configuration from the 3300 XL Monitor database, including the full-scale range, alert and danger setpoints, and the Keyphasor channel assignment. This data is typically stored in the System 1 Evolution historian and should be exported before any hardware is disturbed.

The replacement sequence for a single transducer channel in a live 3300 XL rack proceeds as follows: inhibit the channel in the monitor to suppress spurious alarms, disconnect the 330180 extension cable at the junction box, remove the probe from the machine casing, install the 330704-000-100-10-01-05 at the same radial position, reconnect the extension cable, restore the channel inhibit, and verify the gap voltage at the 330130 proximitor output before re-enabling the trip logic. This procedure typically requires less than 45 minutes per channel when spare parts are pre-staged.

For larger-scale retrofits involving multiple channels across a 3300/16 or 3300/20 rack, engineers should consider replacing the 3300/05 Power Supply module proactively if it has accumulated more than 80,000 operating hours. An ageing power supply is a common source of intermittent channel faults that can be misdiagnosed as transducer failures. Similarly, the 3300/46M Keyphasor module should be inspected for connector corrosion, as a degraded Keyphasor signal will affect all speed-referenced channels in the rack simultaneously.

When the retrofit scope extends to the control cabinet wiring, technicians should verify that the terminal block assignments for each transducer channel match the as-built drawings. In older installations, field wiring may have been re-routed without documentation updates, creating a risk of channel cross-connection during reassembly. A point-to-point continuity check from the junction box terminal to the monitor rack input card is recommended before powering up the upgraded system.

For sites integrating the 3300 XL monitoring data into a Honeywell DCS or Siemens PCS 7 platform via the System 1 OPC server, the transducer replacement does not require any OPC tag reconfiguration, provided the channel number and engineering unit scaling are preserved. However, if the retrofit includes a rack expansion using additional 3300/16 modules, the OPC server node configuration must be updated to include the new rack address before the additional channels will appear in the DCS historian.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer retrofit requires a structured pre-outage preparation protocol. The 330704-000-100-10-01-05 should be bench-tested against a reference target before the outage window opens, confirming the gap voltage curve matches the factory calibration certificate. This eliminates the risk of discovering a defective replacement unit after the machine has been taken offline.

Where the process cannot tolerate a full machine shutdown, a channel-by-channel hot-swap approach is feasible on 3300 XL racks equipped with the 3300/55 Dual Voting Logic module. By configuring the voting logic to 1-out-of-2 (1oo2) during the replacement window, one transducer channel can be taken out of service while the remaining channel continues to provide overspeed and vibration protection. This approach requires coordination with the control room operator and a formal management-of-change record.

After the replacement transducer is installed and the gap voltage is verified, the channel should be returned to service in inhibit mode and monitored for a minimum of 30 minutes before the trip logic is re-enabled. This soak period allows the transducer to reach thermal equilibrium and confirms that the output signal is stable within the expected range. Any drift exceeding ±0.5 VDC from the nominal gap voltage during the soak period should be investigated before the machine is returned to full load.

All retrofit activities should be documented in the site’s maintenance management system with the transducer serial number, installation date, gap voltage reading, and the name of the technician who performed the calibration verification. This record supports the 12-month warranty claim process and provides traceability for future maintenance planning.

Retrofit Support FAQ

Q: Is the 330704-000-100-10-01-05 a direct replacement for the legacy 330700-000-100-10-01-05?
A: Yes. The 330704 series supersedes the 330700 series for 11mm proximity measurement in 3300 XL systems. The mechanical dimensions, connector type, and cable length are identical. The 330130 proximitor must be used with the 330704; the older 330100 proximitor is not compatible with the XL transducer calibration curve.

Q: What commissioning checks are required after installation?
A: Verify the gap voltage at the 330130 proximitor output (nominal –10 VDC ±0.5 VDC at 1.0 mm gap), confirm the channel alert and danger setpoints are active in the 3300 XL Monitor, and perform a functional test of the trip relay output before returning the machine to service. Document the as-found and as-left gap voltage readings.

Q: Can this transducer be used with a 3500 Series monitor rack?
A: The 330704-000-100-10-01-05 probe is physically compatible with 3500 Series installations when paired with the appropriate 3500 Series proximitor module. However, the 3500/42M Proximitor/Seismic Monitor requires a 3500-compatible proximitor; the 330130 (3300 XL) proximitor cannot be used in a 3500 rack. Confirm the complete transducer system part numbers with your instrumentation engineer before ordering.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects, calibration drift beyond published specifications, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or exposure to fluids outside the transducer’s rated chemical compatibility. Warranty claims are processed from the date of shipment with proof of purchase.
