Bently Nevada 330704-000-100-10-01-CN 3300 XL Spare

Bently Nevada 330704-000-100-10-01-CN 3300 XL Spare: Precision Vibration Monitoring Replacement for Industrial Uptime

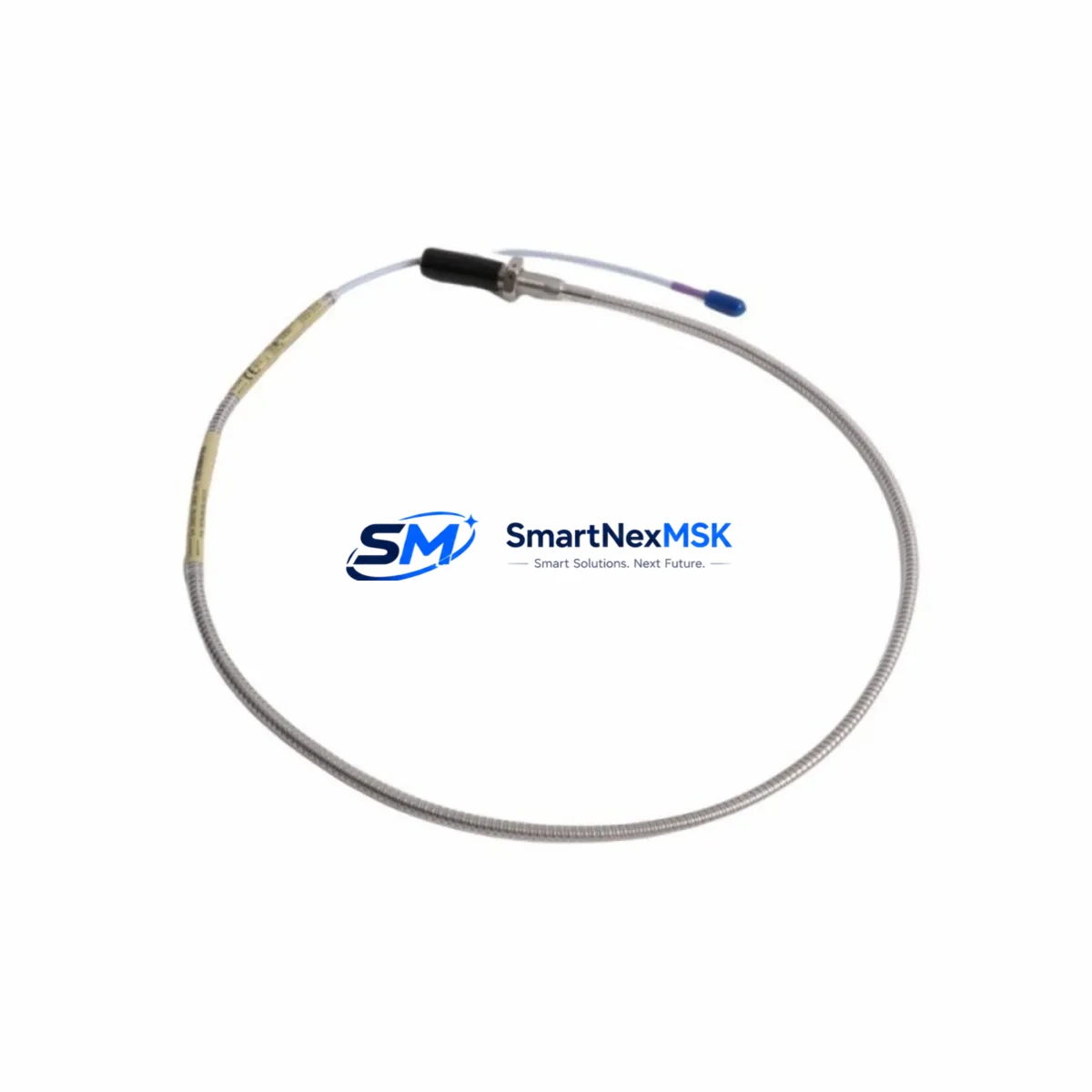

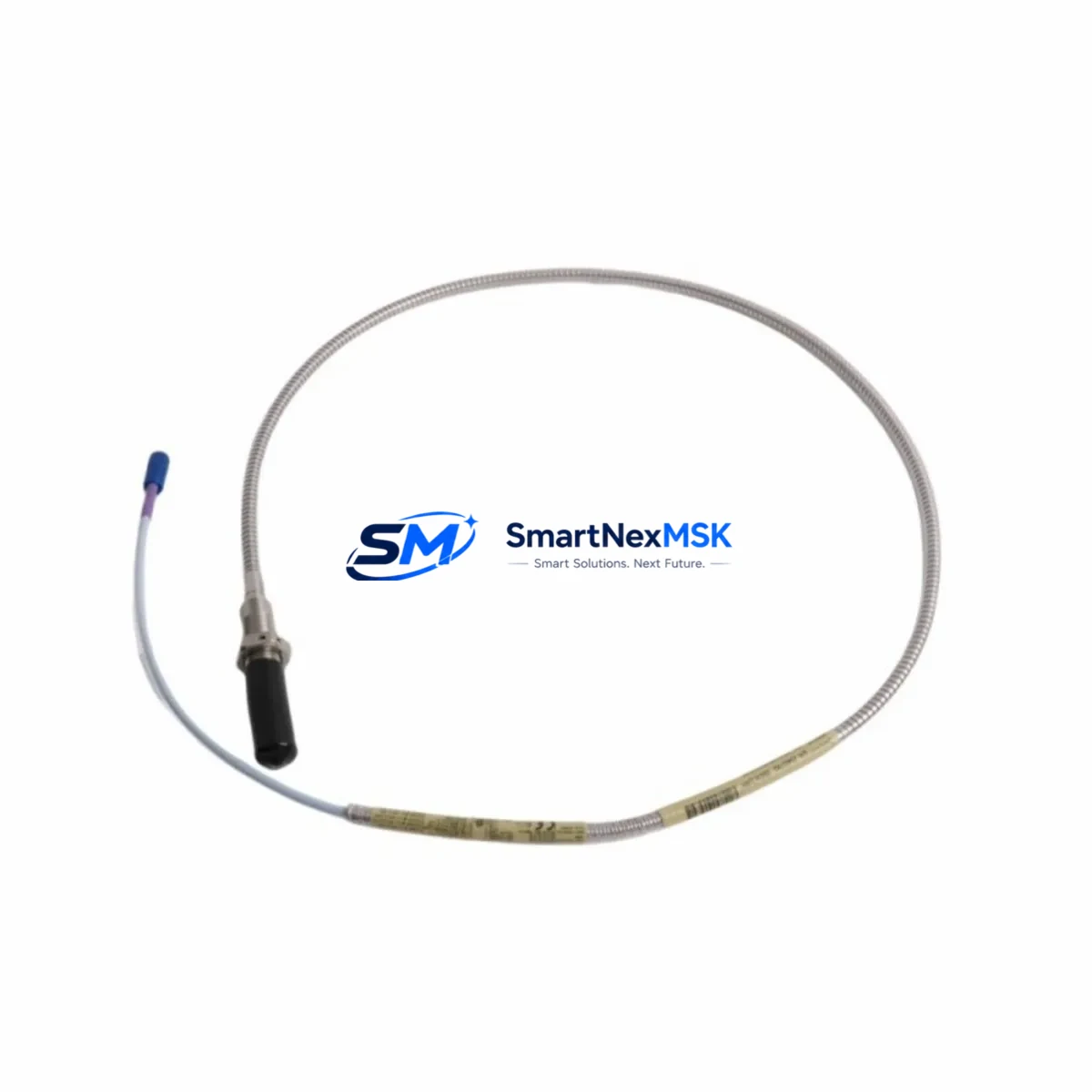

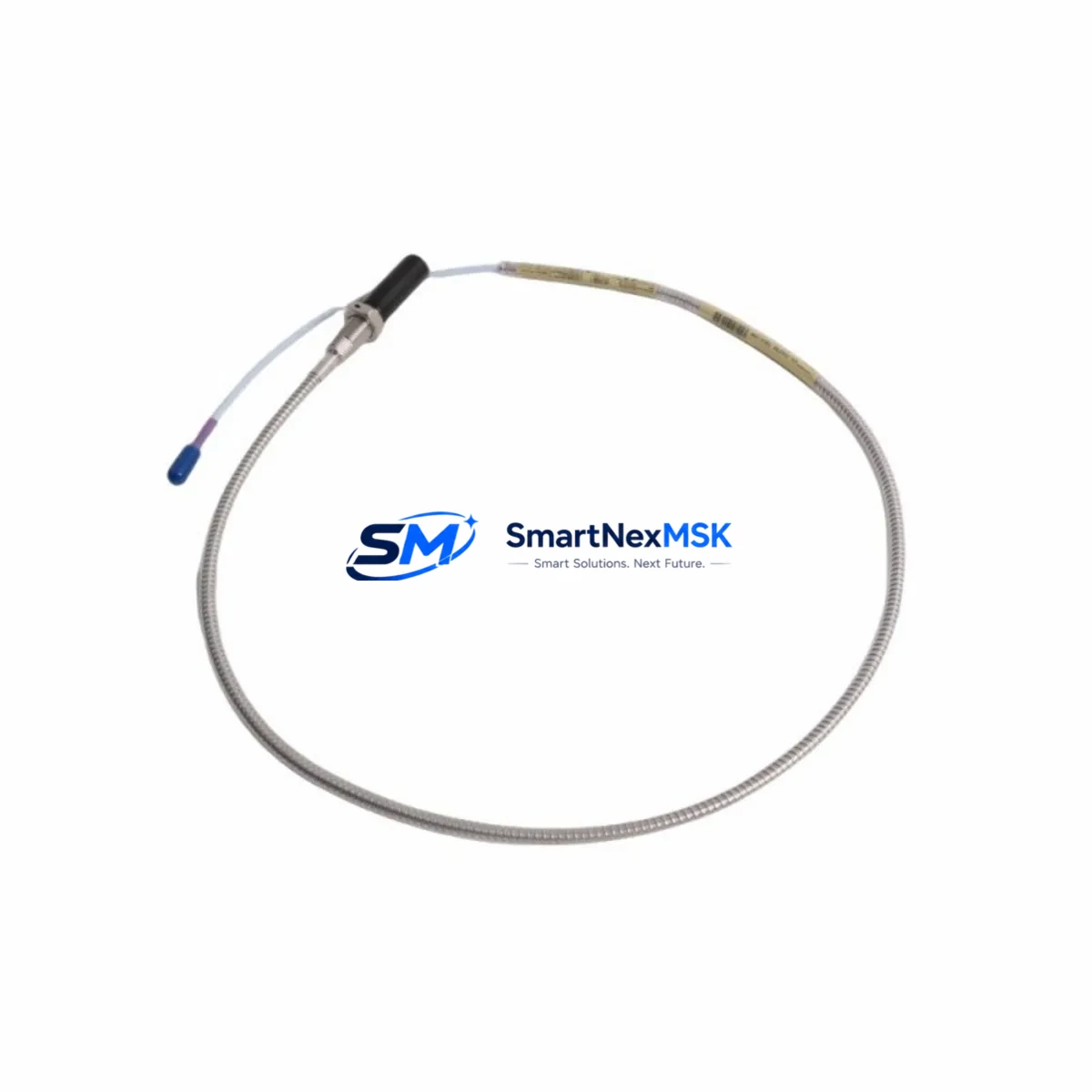

The Bently Nevada 330704-000-100-10-01-CN is an original 11mm proximity transducer engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this transducer delivers the measurement accuracy and signal integrity that your condition monitoring system demands.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, compressors, pumps, and gearboxes depend on the 3300 XL system to provide continuous radial vibration, axial position, and speed measurements. A failed or degraded proximity transducer is one of the most common causes of spurious trips and false alarms in these systems. Stocking a verified original replacement — tested, serialized, and shipped with a 12-month warranty — is the most cost-effective insurance against unplanned downtime.

Each unit supplied by SMARTNEXMSK is sourced from authorized channels, inspected against OEM specifications, and function-tested prior to dispatch. We support both emergency same-day quotation and scheduled procurement for planned maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330704-000-100-10-01-CN proximity transducer is flagged during a routine control cabinet inspection or condition monitoring review, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient for a complete corrective action. A thorough site assessment should include the following associated components to prevent repeat failures and ensure system integrity:

The 3300 XL 11mm Proximitor Monitor (typically the 3300/16 or 3300/20 series) should be checked for output voltage drift, internal calibration, and connector condition — a degraded Proximitor can mask a healthy transducer or generate false high-vibration alarms. The extension cable assembly (330130 series) connecting the transducer to the Proximitor is a frequent failure point due to mechanical fatigue, connector corrosion, or shield continuity loss; always verify cable impedance and continuity during any transducer swap.

For systems integrated into a Bently Nevada 3500 Series Machinery Protection System, the 3500/42 Proximitor/Seismic Monitor module and its associated 3500/20 Power Supply module should be inspected for supply rail stability and alarm relay output integrity. Relay output cards and terminal blocks within the 3500 rack are subject to contact oxidation in humid environments and should be cleaned or replaced as part of a planned outage.

In older installations still running Bently Nevada 7200 Series or 3300 Series monitors, a transducer replacement is an ideal opportunity to evaluate whether the monitoring rack itself is approaching end-of-life. Spare 3300/16 monitor cards, power supply modules, and I/O terminal boards should be held in the site spare parts store to support rapid recovery if a rack-level fault occurs during the same outage window.

Signal conditioning integrity should also be verified at the DCS or safety system interface. Where the 3300 XL output feeds a signal isolator or 4–20 mA converter before entering a DCS analog input card, the isolator’s output accuracy and loop resistance should be confirmed. Fuse holders and terminal block assemblies in the marshalling cabinet should be inspected for loose terminations, which are a common source of intermittent vibration signal noise.

Finally, if the machine is equipped with a Keyphasor transducer (typically a 330980 or 330905 series), its gap voltage and signal quality should be verified simultaneously, as Keyphasor degradation directly affects phase and speed measurements across the entire monitoring system.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and isolate the monitoring channel at the 3300 XL or 3500 rack. Note the current gap voltage (typically –10.0 V ±0.5 V at nominal gap) before removal to establish a baseline for the replacement unit.

Step 2 — Transducer Removal: Disconnect the extension cable at the transducer connector. Remove the transducer from the mounting bracket, noting the installed gap (number of turns from contact). Inspect the probe tip for mechanical damage or target surface contamination.

Step 3 — Target Surface Inspection: Before installing the replacement 330704-000-100-10-01-CN, inspect the shaft target area for runout, scratches, or plating irregularities that could introduce electrical or mechanical runout errors. Address any surface defects before proceeding.

Step 4 — Installation and Gap Setting: Install the replacement transducer and set the gap to the OEM-specified value (typically 1.0 mm / 40 mil for standard 11mm probes). Verify gap voltage at the Proximitor output using a calibrated voltmeter. Acceptable range: –9.5 V to –10.5 V.

Step 5 — System Verification: Restore the monitoring channel and confirm alarm and danger setpoints are active. Perform a functional check by observing live vibration data at the DCS or historian. Compare readings against the pre-maintenance baseline to confirm correct installation.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new transducer serial number, gap voltage as-found and as-left, and the date of replacement. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330704-000-100-10-01-CN a direct drop-in replacement for older 330704 variants?
The 330704-000-100-10-01-CN is the current production variant of the Bently Nevada 11mm proximity transducer for the 3300 XL system. It is backward compatible with 3300/16 and 3300/20 Proximitor monitors and the 3500/42 module. Minor suffix differences (e.g., cable length or connector type) should be verified against your system documentation before installation. SMARTNEXMSK can assist with cross-reference confirmation prior to order.

Q2: How do you verify the unit before shipment?
Every 330704-000-100-10-01-CN unit is function-tested against OEM electrical specifications — including scale factor, gap voltage linearity, and cable continuity — before dispatch. A test report is available upon request. Units are individually packaged with anti-static protection and shipped with a 12-month warranty from the date of shipment.

Q3: What is your recommended spare parts stocking strategy for critical rotating machinery?
For assets classified as critical (single-train compressors, main turbines, boiler feed pumps), we recommend holding a minimum of two proximity transducers per monitored shaft, one spare extension cable assembly, and one spare Proximitor monitor card per rack. For semi-critical assets, one transducer per machine train is typically sufficient. SMARTNEXMSK can support annual blanket orders to reduce per-unit cost and ensure guaranteed availability.

Q4: Can you supply the 330704-000-100-10-01-CN for long-term or legacy system support?
Yes. SMARTNEXMSK maintains long-term supply capability for Bently Nevada 3300 XL and 3500 Series components, including transducers, extension cables, Proximitor monitors, and rack power supplies. We support customers operating legacy systems beyond OEM end-of-life, providing tested original parts with full traceability. Contact our team for multi-year supply agreements and consignment stock arrangements.
