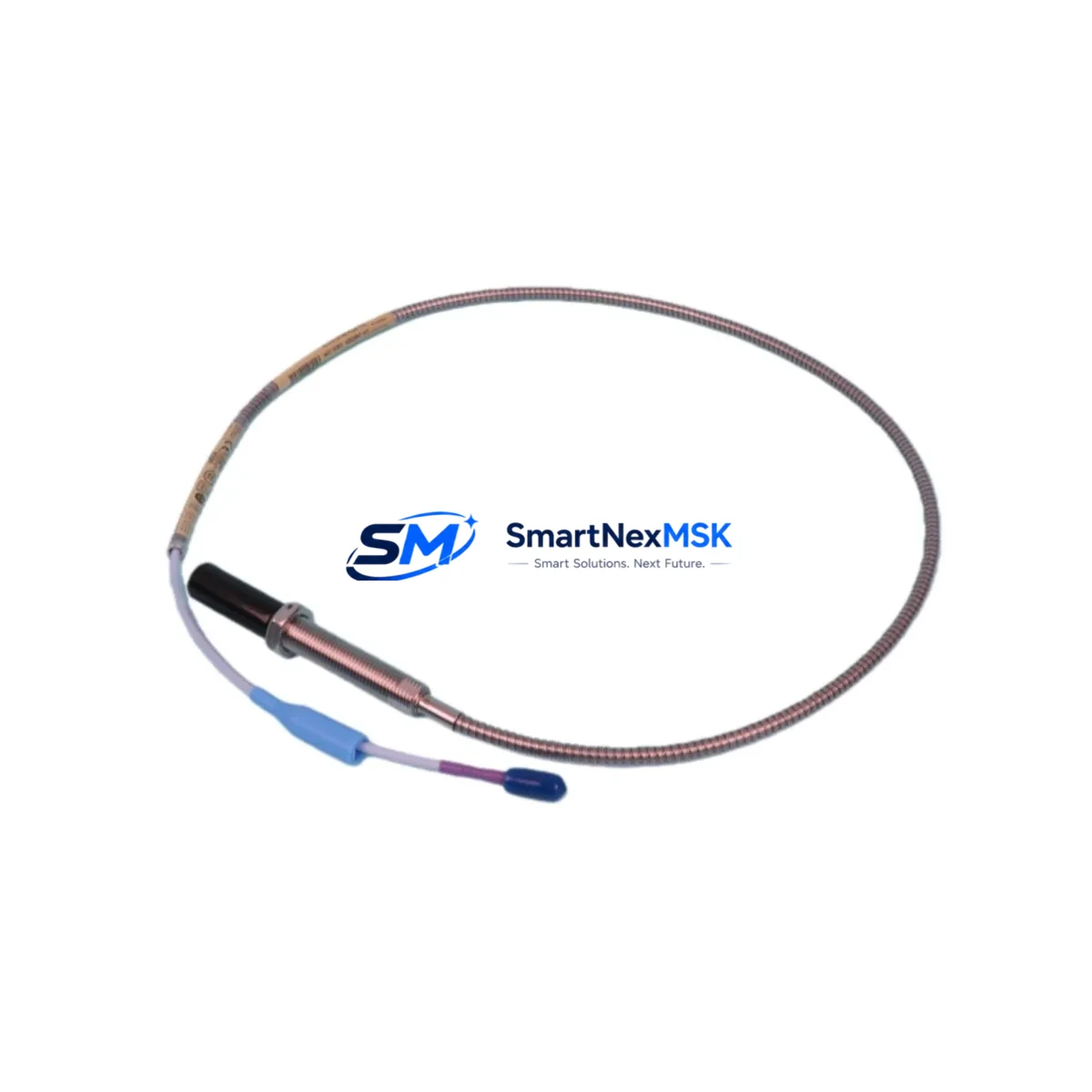

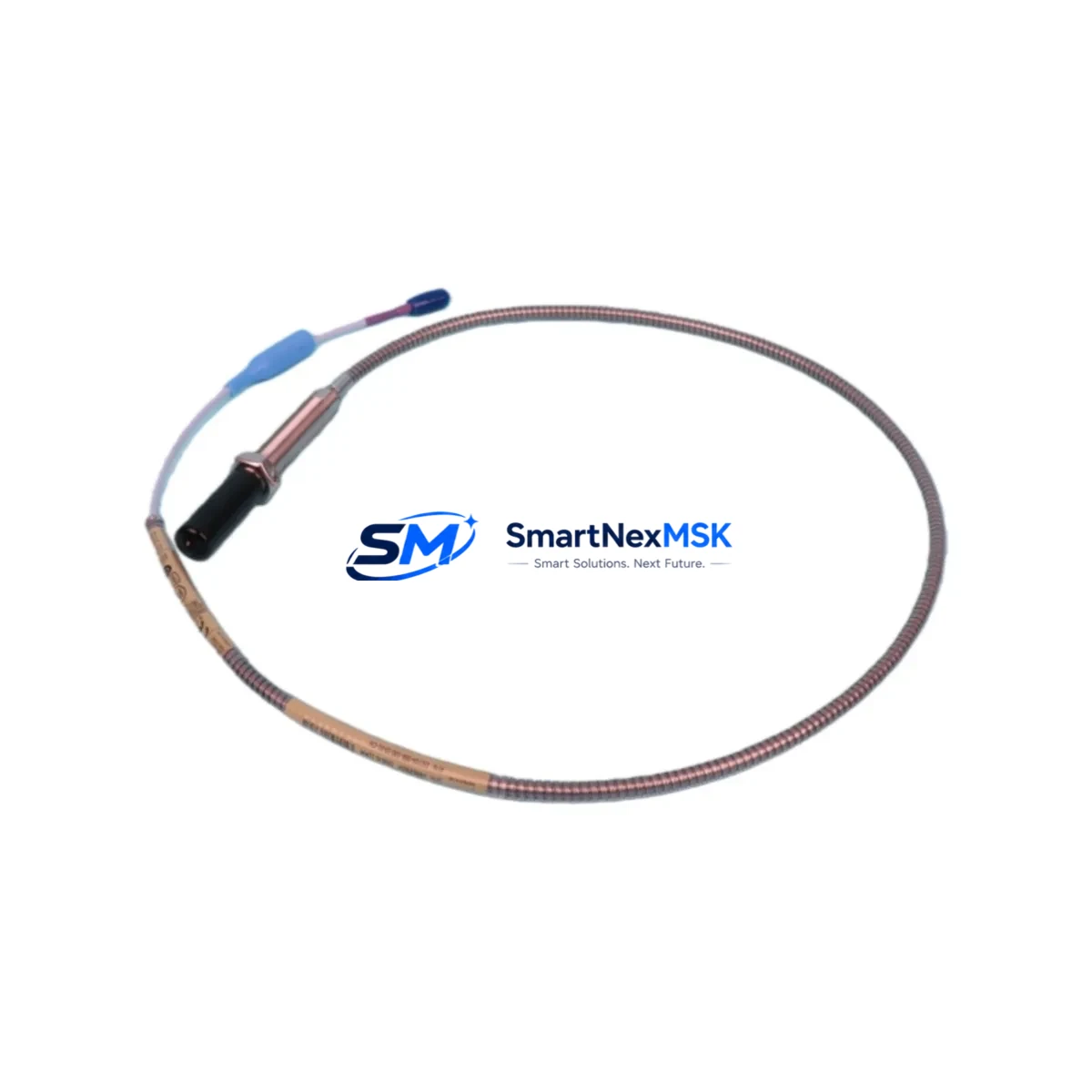

Bently Nevada 330704-000-100-10-01-RU Safety Proximity Probe

Bently Nevada 330704-000-100-10-01-RU Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

The Bently Nevada 330704-000-100-10-01-RU is a ruggedized 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core sensing element within the Bently Nevada 3300 XL Proximity System, this probe delivers stable, high-resolution shaft displacement and vibration measurements even under extreme mechanical shock, chemical exposure, elevated temperatures, and persistent electromagnetic interference — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, and heavy metallurgical processes.

The -RU ruggedized designation signifies a reinforced cable jacket and connector assembly rated for aggressive media contact, including oils, coolants, and industrial solvents. This construction directly reduces the risk of sensor degradation, signal drift, and unplanned measurement interruptions that can cascade into costly process shutdowns or, in safety-instrumented systems, dangerous undetected machinery faults. When installed in a properly configured 3300 XL Proximitor® Sensor loop — typically paired with a 330180 Proximitor® Sensor or 330130 Proximitor® Sensor — the 330704-000-100-10-01-RU maintains a linear output range of 0–200 mils (0–5.08 mm) with a sensitivity of 200 mV/mil, ensuring that the connected 3500/42M Proximitor®/Seismic Monitor or 3500/40M Proximitor® Monitor receives clean, calibrated signals at all times.

In control cabinet environments, this probe is frequently deployed alongside 3300 XL Extension Cables (such as the 330130-045-00-00 series) to bridge the gap between the probe tip and the Proximitor® sensor mounted in the machinery protection rack. Proper cable routing and grounding within the control cabinet — combined with the probe’s inherent shielding — suppresses common-mode noise and prevents ground loops that could otherwise introduce false vibration readings into the 3500 Machinery Protection System rack. The rack’s 3500/20 Rack Interface Module and 3500/22M Transient Data Interface depend on sensor-level signal integrity to execute reliable trip logic and interlock commands.

For plants operating under IEC 61511 or API 670 machinery protection standards, the 330704-000-100-10-01-RU is a proven choice for integration into Safety Instrumented System (SIS) loops. Its ruggedized construction supports the high-availability, fault-tolerant architectures required in SIL-rated protection layers, where sensor failure must not compromise the integrity of the safety function. When used in conjunction with a 3500/15 Power Supply providing stable ±24 VDC to the Proximitor® sensor, the system maintains measurement continuity even during power transients or brief supply interruptions — a critical requirement in continuous process industries where machinery trips carry significant safety and financial consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330704-000-100-10-01-RU within a well-engineered control cabinet protection strategy requires attention to the entire signal chain. The probe connects via a matched 3300 XL Extension Cable — typically a 330130-045-00-00 or equivalent length — to a 330180-X1-05 Proximitor® Sensor mounted in the field junction box or directly at the rack. The Proximitor® sensor conditions the raw probe signal into a voltage output proportional to shaft gap, which is then fed into a 3500/40M Proximitor® Monitor or 3500/42M Proximitor®/Seismic Monitor card seated in the 3500 Rack.

Power integrity is maintained by the 3500/15 Power Supply Module, which provides regulated ±24 VDC to the Proximitor® sensors. Surge protection at the cabinet entry point — using DIN-rail mounted transient voltage suppressors — prevents lightning-induced or switching-transient surges from reaching the sensitive probe circuitry. The 3500/20 Rack Interface Module (RIM) manages communication between the protection rack and the plant DCS or safety PLC, transmitting alarm and trip status via hardwired relay outputs or Modbus/TCP. For plants requiring event capture and waveform analysis, the 3500/22M Transient Data Interface records dynamic data during trip events, enabling post-incident root-cause analysis without requiring additional field instrumentation.

Grounding discipline is essential: the probe cable shield must be grounded at one end only (typically at the Proximitor® sensor) to prevent circulating currents that introduce 50/60 Hz noise into the vibration signal. Proper installation per Bently Nevada Application Note 44 guidelines ensures that the 330704-000-100-10-01-RU delivers its rated measurement accuracy throughout its service life, minimizing nuisance trips and maximizing machinery protection effectiveness.

Critical Industrial Safety Applications

The 330704-000-100-10-01-RU is deployed across a broad spectrum of heavy industrial applications where continuous shaft monitoring is non-negotiable for operational safety and regulatory compliance.

In petrochemical and refinery facilities, this probe monitors radial vibration on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors — machinery whose undetected bearing failure can trigger catastrophic releases of flammable or toxic process fluids. The ruggedized cable construction withstands hydrocarbon vapor exposure and the elevated ambient temperatures common in compressor houses and heat exchanger bays.

In power generation plants — both thermal and combined-cycle — the probe is installed on steam turbine journal bearings and boiler feed pump shafts, where API 670-compliant vibration monitoring is mandatory. Trip setpoints configured in the 3500/40M monitor provide automatic machine protection, isolating faulted equipment before catastrophic mechanical failure can damage adjacent systems or injure personnel.

In mining and mineral processing operations, the ruggedized designation is particularly valuable. Ball mill pinion bearings, SAG mill trunnion shafts, and slurry pump impeller shafts operate in environments saturated with abrasive dust, moisture, and vibration levels that rapidly degrade standard probe cables. The -RU construction extends mean time between replacements, reducing maintenance intervention frequency in remote or confined-space locations.

In water and wastewater treatment facilities, the probe monitors large vertical turbine pumps and blower shafts in chemically aggressive atmospheres. In metallurgical and steel plants, it is used on rolling mill drive shafts and continuous caster pinch roll drives, where thermal cycling and scale contamination challenge standard instrumentation. In port and bulk material handling terminals, it monitors conveyor drive gearboxes and ship unloader slewing ring drives operating in salt-laden, high-humidity coastal environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330704-000-100-10-01-RU?
The 12-month warranty covers all manufacturing defects, material failures, and functional non-conformance under normal operating conditions consistent with Bently Nevada 3300 XL system specifications. Warranty claims are supported with replacement or equivalent substitution. Warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on this probe?
Each 330704-000-100-10-01-RU unit undergoes functional verification prior to shipment, including continuity testing of the probe cable and connector assembly, and confirmation of probe tip integrity. Units sourced as surplus new are inspected for physical condition and packaging integrity. Test records are available upon request for quality-critical applications.

Q3: Is this probe compatible with existing 3300 XL Proximitor® sensors and 3500 Series monitors without recalibration?
Yes. The 330704-000-100-10-01-RU is a direct form-fit-function replacement within the Bently Nevada 3300 XL system architecture. It is calibrated to the standard 200 mV/mil sensitivity and is compatible with 330180 and 330130 series Proximitor® sensors and all 3500 Series monitor cards without requiring system recalibration, provided the extension cable length matches the original system configuration.

Q4: Can long-term supply and spare parts availability be assured for ongoing plant maintenance programs?
Yes. SMARTNEXMSK maintains stocked inventory of the 330704-000-100-10-01-RU and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-unit procurement for spare parts programs. Customers with ongoing maintenance contracts or blanket purchase requirements are encouraged to contact our sales team to discuss reserved stock arrangements and lead-time commitments.
