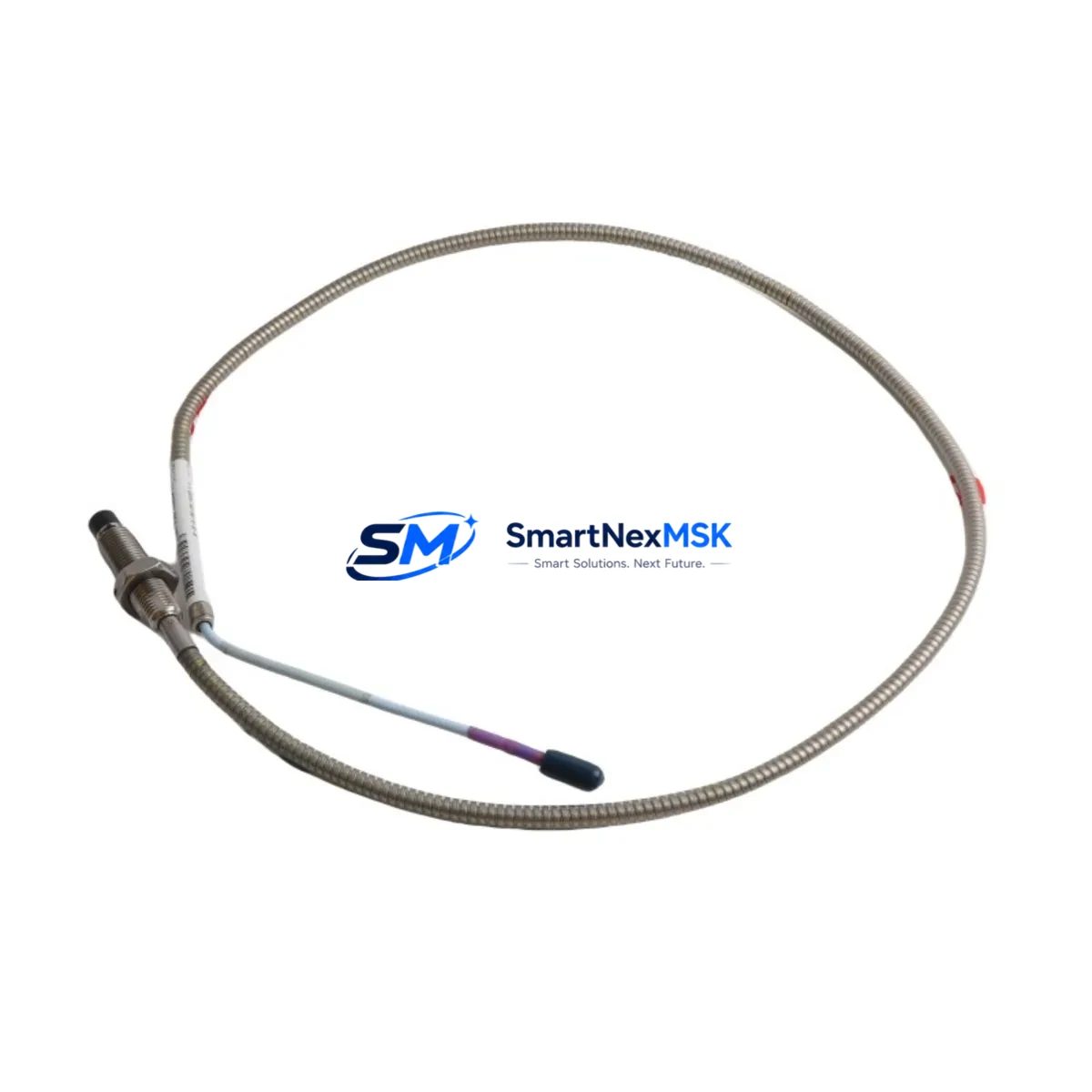

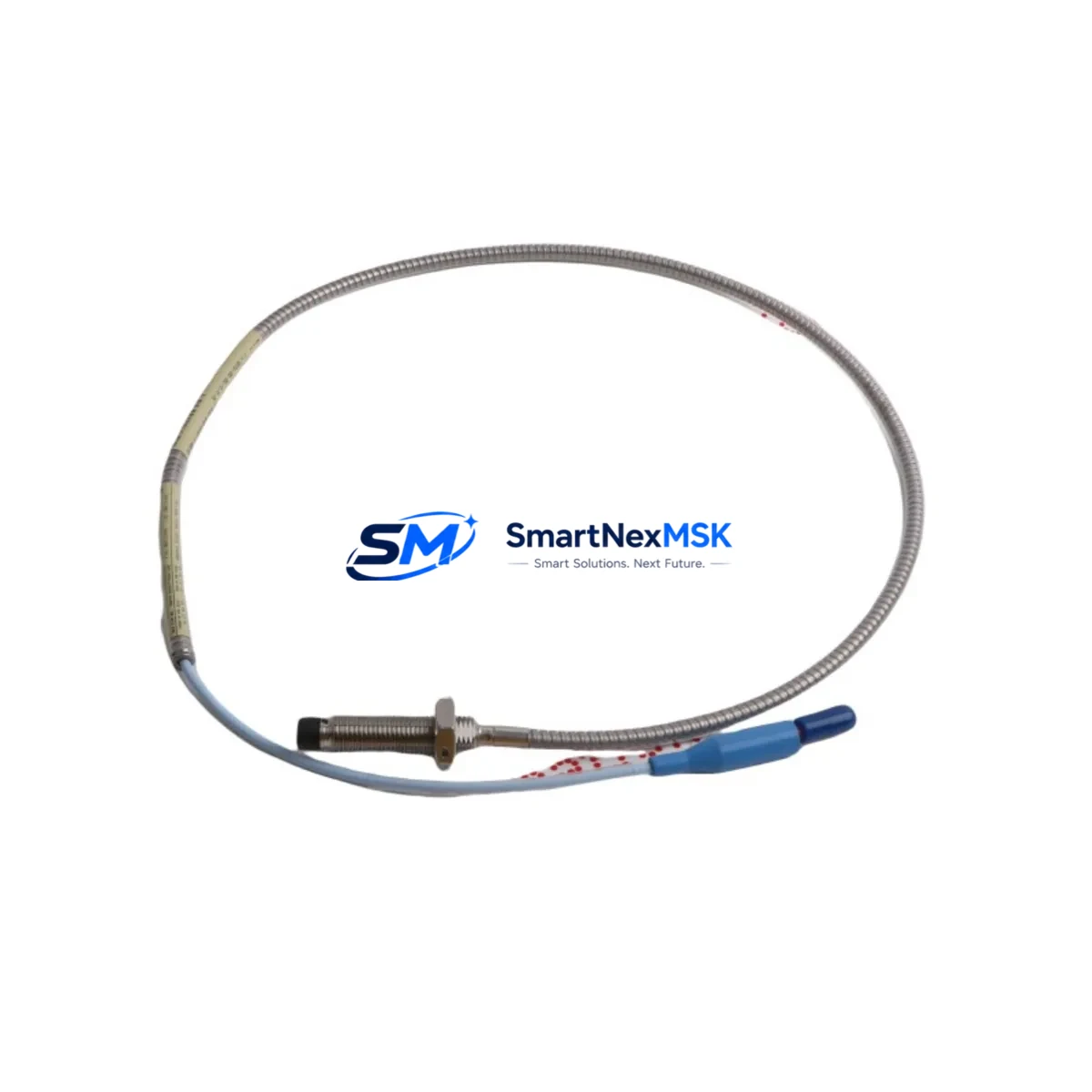

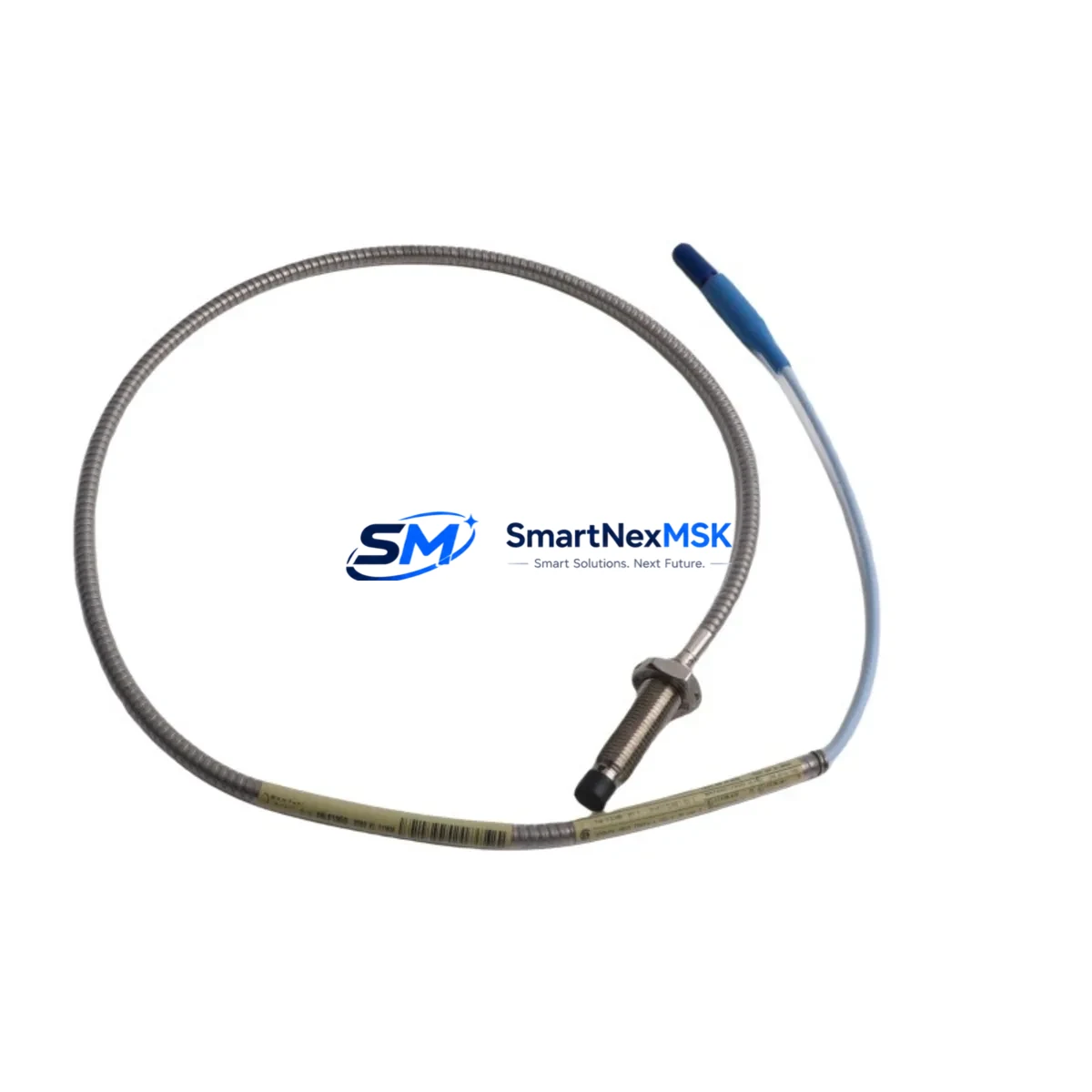

Bently Nevada 330704-000-100-10-11-CN Safety Proximity Probe

Bently Nevada 330704-000-100-10-11-CN Safety Proximity Probe: Reliable Shaft Monitoring for Harsh Industrial Sites

The Bently Nevada 330704-000-100-10-11-CN is an 11mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity shaft displacement and vibration monitoring in the most demanding industrial environments. Designed to API 670 standards, this probe is a critical component in machinery protection systems where control interruption, signal drift, or sensor failure can lead to catastrophic equipment damage, unplanned downtime, or personnel safety incidents.

In high-load rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 330704-000-100-10-11-CN provides stable, low-noise output even under severe electromagnetic interference, mechanical vibration, and wide temperature fluctuations. Its ruggedized stainless-steel housing and chemically resistant cable jacket ensure long-term mechanical integrity in petrochemical, power generation, mining, and metallurgical plant environments where exposure to aggressive media, moisture ingress, and thermal cycling are routine operational conditions.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification, including signal linearity checks and insulation resistance testing, ensuring the probe meets OEM performance specifications before it reaches your control cabinet or machinery protection rack.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330704-000-100-10-11-CN operates as part of a tightly integrated machinery protection architecture. In a typical critical rotating machinery installation, this probe pairs with the Bently Nevada 3300 XL Extension Cable 330130-045-00-CN to achieve the required gap distance between the probe tip and the monitored shaft surface. The signal is then conditioned by the Bently Nevada 3300 XL Proximitor Sensor 330180-91-05, which converts the raw eddy-current signal into a calibrated DC voltage proportional to shaft displacement — a signal that feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module for real-time vibration and position alarming.

Within the control cabinet, surge protection for the signal wiring is provided by dedicated transient suppression barriers, while the Bently Nevada 3500 Rack Power Supply 3500/15 ensures stable, regulated DC power to all monitoring modules, eliminating the risk of power-induced false trips or module resets during grid disturbances. For plants operating under functional safety requirements, the monitoring data from this probe integrates with Triconex TRICON Safety Controllers or Emerson DeltaV SIS logic solvers via hardwired 4–20 mA or discrete relay outputs, enabling automatic shutdown initiation when vibration thresholds are exceeded.

In installations where multiple machines share a common monitoring bus, the Bently Nevada System 1 Condition Monitoring Software aggregates probe data across all measurement points, providing trend analysis and early fault detection that reduces unplanned maintenance events. Cable routing within the cabinet follows shielded, segregated conduit practices to prevent cross-talk from adjacent Allen-Bradley PowerFlex 755 Variable Frequency Drives or high-current motor starters, preserving signal integrity across the full operating frequency range of the 330704-000-100-10-11-CN.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 330704-000-100-10-11-CN is deployed on critical compressor trains and reactor agitator shafts where API 670-mandated vibration monitoring is a non-negotiable safety requirement. Continuous shaft displacement data from this probe feeds interlock logic that initiates emergency shutdown before bearing failure or rotor rub can escalate to a process safety event.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — this probe monitors turbine shaft eccentricity and differential expansion, providing the early warning data that allows operators to manage thermal transients safely during startup and load changes. Its wide operating temperature range makes it equally suitable for high-temperature steam turbine pedestals and cold-climate outdoor installations.

In mining and mineral processing operations, where crusher drives, ball mill pinion shafts, and slurry pump bearings operate under extreme radial loads and high ambient dust concentrations, the IP67-rated housing of the 330704-000-100-10-11-CN ensures reliable long-term operation without signal degradation caused by contamination ingress. The probe’s non-contact measurement principle eliminates wear-related drift, making it a preferred choice for continuous-duty applications where sensor replacement during production is not feasible.

In water and wastewater treatment plants, this probe monitors large vertical turbine pumps and blower shafts in humid, chemically aggressive atmospheres. Its corrosion-resistant construction and stable scale factor ensure that vibration alarm setpoints remain accurate over multi-year service intervals without recalibration.

In metallurgical and steel mill applications, the probe withstands the intense electromagnetic fields generated by induction furnaces and large DC drive systems, maintaining measurement accuracy where lesser sensors would exhibit significant output noise or zero-point drift.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 330704-000-100-10-11-CN?
All units are covered by a 12-month warranty from the date of shipment. If the unit fails to meet OEM performance specifications under normal operating conditions within this period, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are supported by our pre-shipment test records.

Q2: What pre-shipment testing is performed on each probe?
Each 330704-000-100-10-11-CN undergoes functional verification including output voltage linearity across the full measurement range, cable continuity and insulation resistance testing, and physical inspection of the probe tip, housing, and connector. Test data is retained and available upon request for quality audit purposes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system components?
Yes. The 330704-000-100-10-11-CN is fully compatible with all standard 3300 XL Series extension cables, Proximitor sensors, and 3500 Series rack monitors. It is a direct form-fit-function replacement for equivalent 3300 XL 11mm probes and requires no recalibration of the Proximitor when replacing a like-for-like unit.

Q4: Can SMARTNEXMSK support long-term or repeat supply requirements?
Yes. SMARTNEXMSK maintains standing inventory of the 330704-000-100-10-11-CN and related 3300 XL Series components to support planned maintenance schedules, emergency spare requirements, and multi-unit project procurement. Customers with ongoing supply needs are encouraged to contact our sales team to discuss framework agreements and lead-time commitments.
