Bently Nevada 330704-000-100-50-11-00 Maintenance-Ready Spare for 3300 XL Automation

Bently Nevada 330704-000-100-50-11-00 Maintenance-Ready Spare for 3300 XL Automation

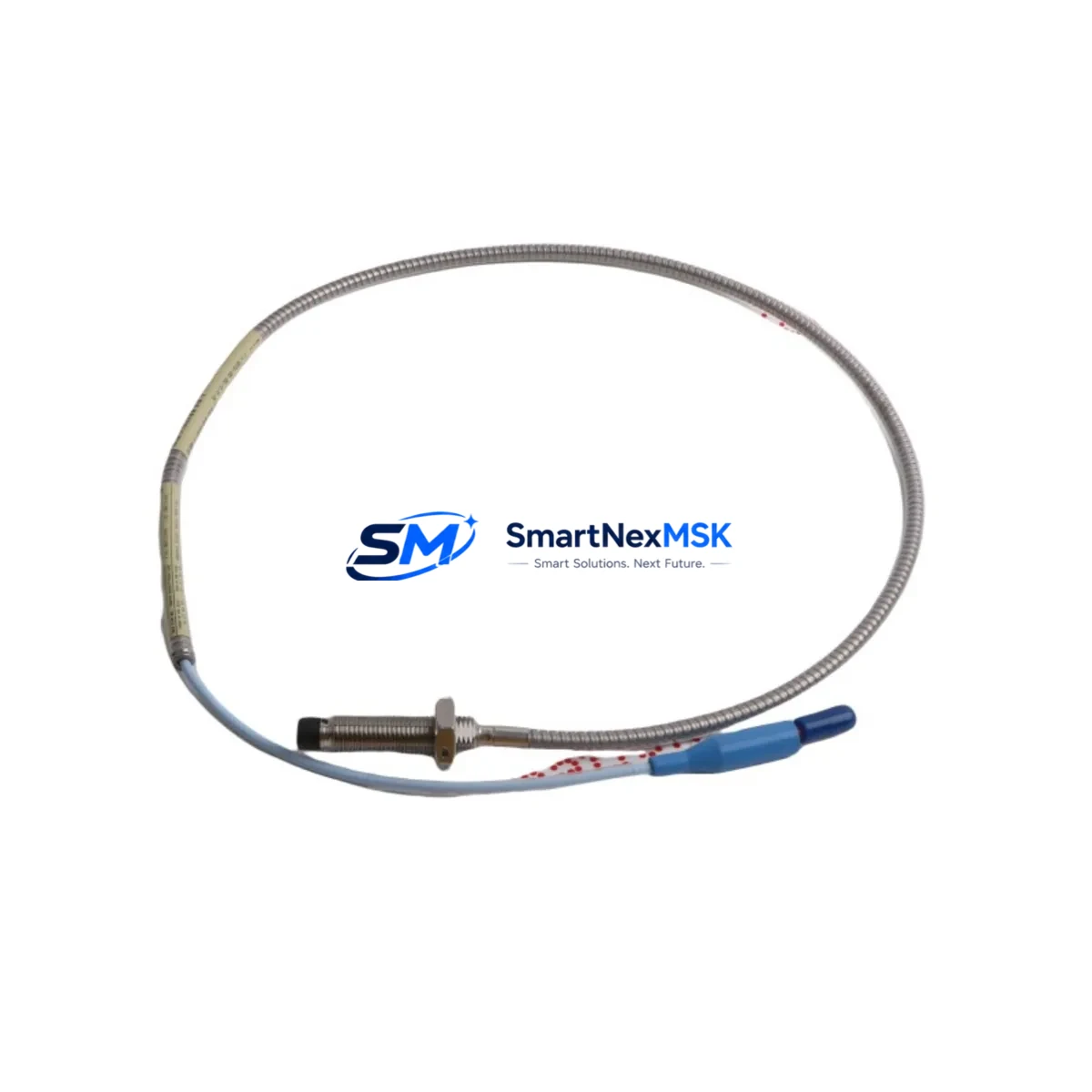

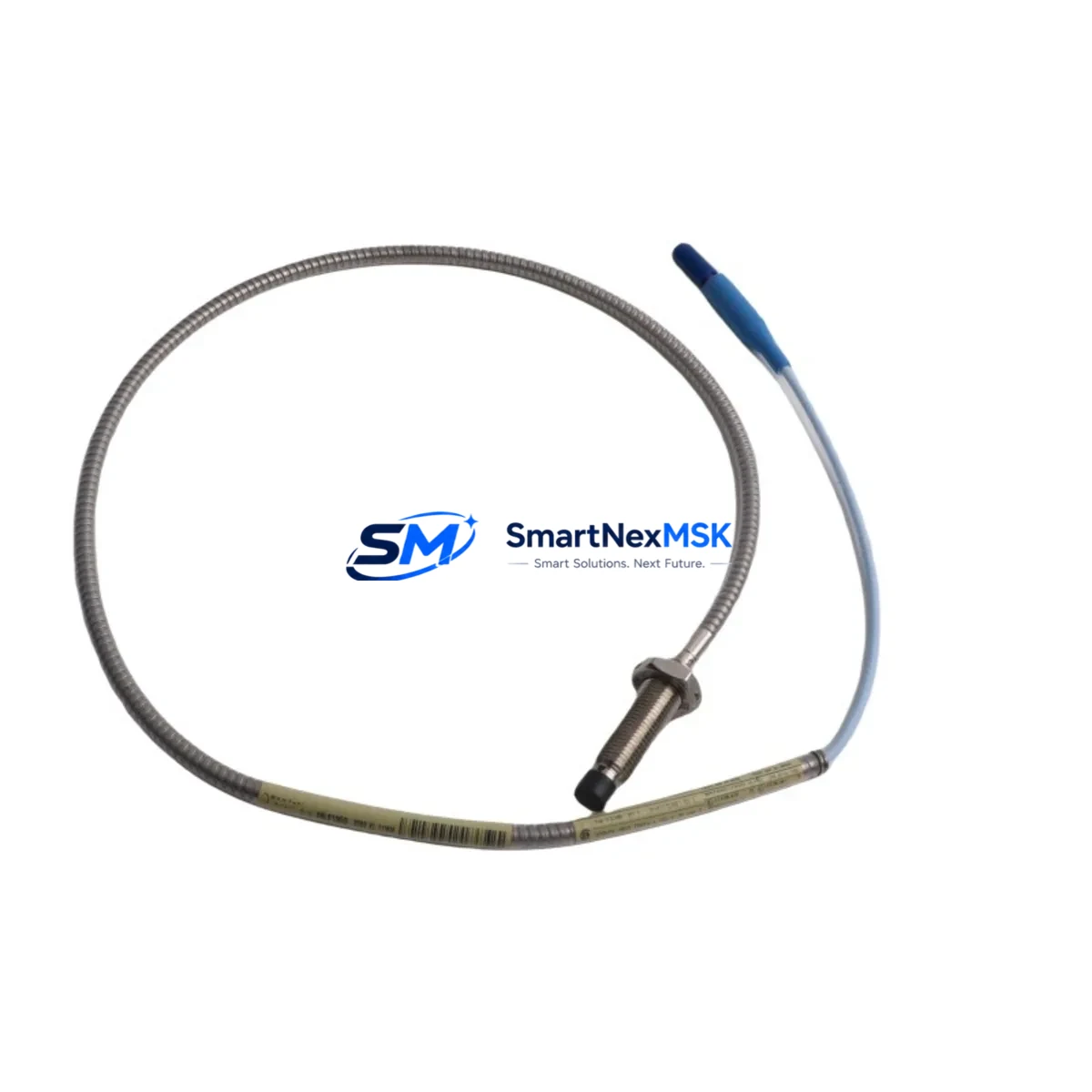

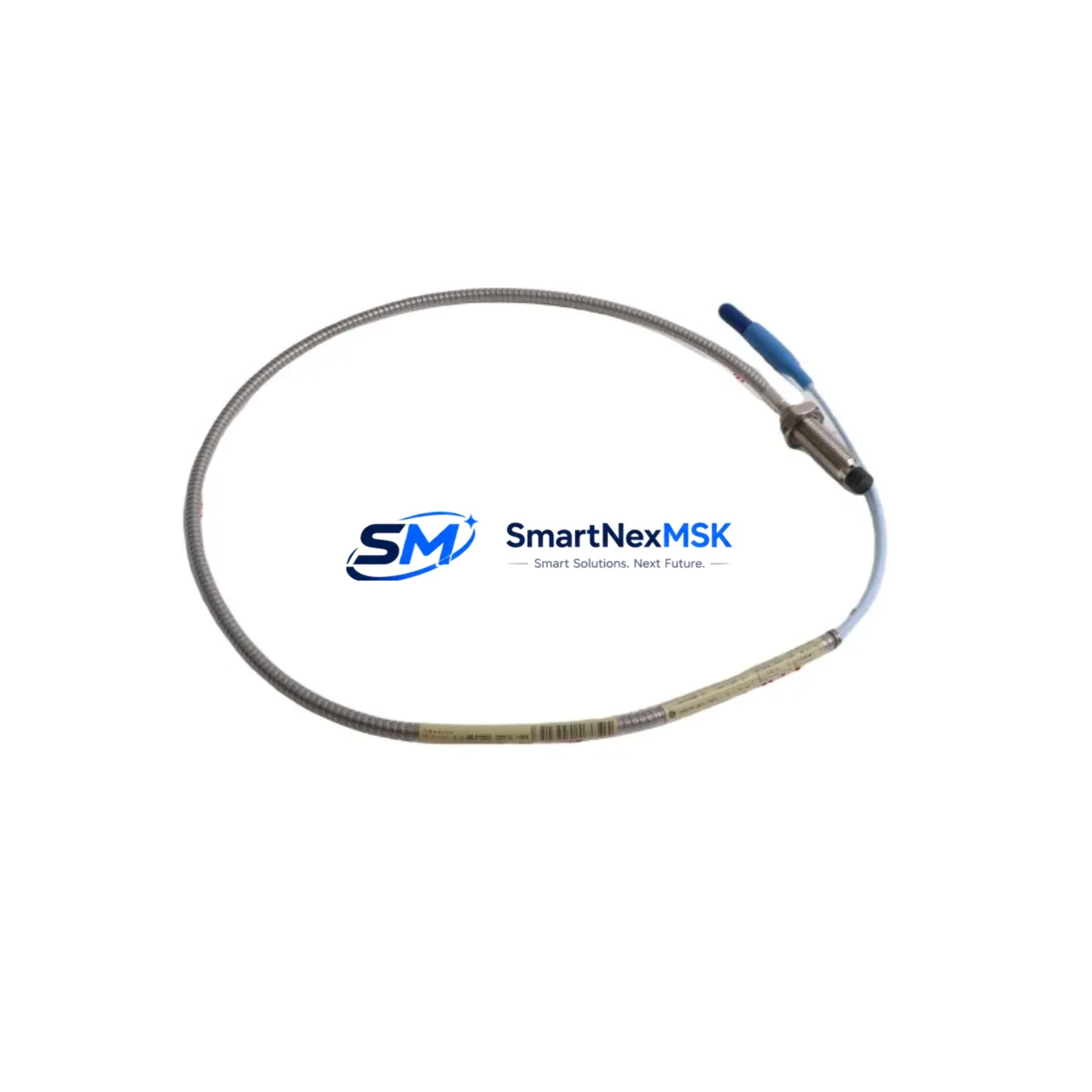

The Bently Nevada 330704-000-100-50-11-00 is an original 11mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for shaft radial vibration, axial position, and differential expansion measurement, this probe is a critical component in rotating machinery protection across turbines, compressors, pumps, and gearboxes in oil & gas, power generation, petrochemical, and heavy industrial facilities.

For maintenance engineers managing aging DCS or machinery protection systems, having a verified, tested spare of the 330704-000-100-50-11-00 on the shelf is the single most effective strategy to minimize unplanned downtime. When a probe fails during operation, the monitoring channel goes offline, triggering a trip or a blind spot in your protection logic. A pre-qualified replacement eliminates the procurement lead time that turns a two-hour repair into a two-week outage.

This unit ships fully tested, with output linearity and gap voltage verified against Bently Nevada factory specifications. Each unit carries a 12-month warranty covering manufacturing defects and electrical performance. Packaging is ESD-safe with individual calibration documentation included.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330704-000-100-50-11-00 in the field, a disciplined maintenance engineer does not stop at the probe itself. The 3300 XL monitoring chain is a system — and a fault in any link can mask or mimic a probe failure. During the same maintenance window, inspect and verify the following associated components:

The 3300 XL Proximitor Sensor (330180 / 330181 series) should be checked for output voltage drift and housing integrity. A degraded Proximitor will produce erratic gap voltage even with a new probe installed. Similarly, the 3300 XL Extension Cable (330130 series, 5m or 9m) should be inspected for jacket abrasion, connector corrosion, and continuity — cable faults are the most common misdiagnosed probe failure in the field.

At the rack level, verify the 3500/40M Proximitor I/O Module for channel calibration and alert/danger setpoint integrity. If the system uses a 3500 Rack Power Supply (3500/15 or 3500/05), confirm output voltage stability under load — a sagging supply rail affects all channels simultaneously and is often overlooked during single-channel troubleshooting.

For facilities running integrated control and protection, check the communication interface module (Modbus, Profibus, or Ethernet/IP gateway) bridging the 3500 rack to the DCS or SCADA layer. A communication fault here causes the control room to lose vibration data visibility even when the probe and Proximitor are functioning correctly.

In control cabinets housing the 3300 or 3500 series, also inspect terminal blocks and field wiring terminations for oxidation and torque compliance, signal isolators on the 4–20 mA retransmission outputs, and any surge protection devices on probe cable entry points — particularly in outdoor or exposed installations. If the facility uses a Keyphasor module (3500/25 or 330980 series), verify its gap voltage and phase reference signal integrity, as Keyphasor faults affect all vector measurements across the entire rack.

For older systems approaching end-of-life, consider stocking the 3300 XL 8mm Proximity Probe (330703 series) alongside the 11mm variant to cover mixed installations within the same plant. Maintaining a minimum of two probe assemblies per critical machine train — with matched extension cables — is the industry-standard recommendation for Tier 1 rotating equipment.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330704-000-100-50-11-00 matches the installed probe’s cable length, tip diameter, and thread specification. Cross-reference the machine train datasheet and the original Bently Nevada installation drawing.

Step 2 — Gap setting: Using a calibrated digital multimeter, set the probe gap to achieve the nominal -10.0 VDC output from the Proximitor at the target operating gap (typically 1.0–1.5 mm for most steel shafts). Record the as-found and as-left gap voltages in the maintenance log.

Step 3 — Channel verification: After installation, verify the channel reading at the 3500 rack operator display or DCS faceplate. Confirm alert and danger setpoints are active and that the OK relay is energized.

Step 4 — System handback: Document the replacement in the equipment history file, update the spare parts inventory, and reorder a replacement spare to restore buffer stock. For critical machines, a zero-spare condition is an unacceptable operational risk.

This workflow applies equally when upgrading from legacy 3300 series probes to the 3300 XL standard, ensuring backward compatibility with existing Proximitor sensors and rack infrastructure while improving measurement accuracy and temperature range.

Spare Parts Support FAQ

Q: Is the 330704-000-100-50-11-00 compatible with both the 3300 and 3300 XL Proximitor sensors?
A: The 330704-000-100-50-11-00 is a 3300 XL series probe and is fully compatible with 3300 XL Proximitor sensors. Compatibility with earlier 3300 (non-XL) Proximitors should be verified against the specific Proximitor model number and Bently Nevada system documentation before installation.

Q: What pre-shipment testing is performed on each unit?
A: Each 330704-000-100-50-11-00 is bench-tested for output linearity, gap voltage at nominal supply, and cable continuity prior to shipment. Test results are documented and available upon request. Units are shipped in ESD-safe packaging with individual identification labels.

Q: How should this probe be stored as a long-term spare?
A: Store in a dry, temperature-controlled environment (0–40°C), away from strong magnetic fields and mechanical vibration. Keep in original ESD packaging. Inspect connector pins and cable jacket annually. Recommended maximum storage period before re-verification is 36 months.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical performance out-of-specification, and connector integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with return authorization and include replacement or full refund.
