Bently Nevada 330707-00-25-10-02-00 Safety Proximity Transducer

Bently Nevada 330707-00-25-10-02-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

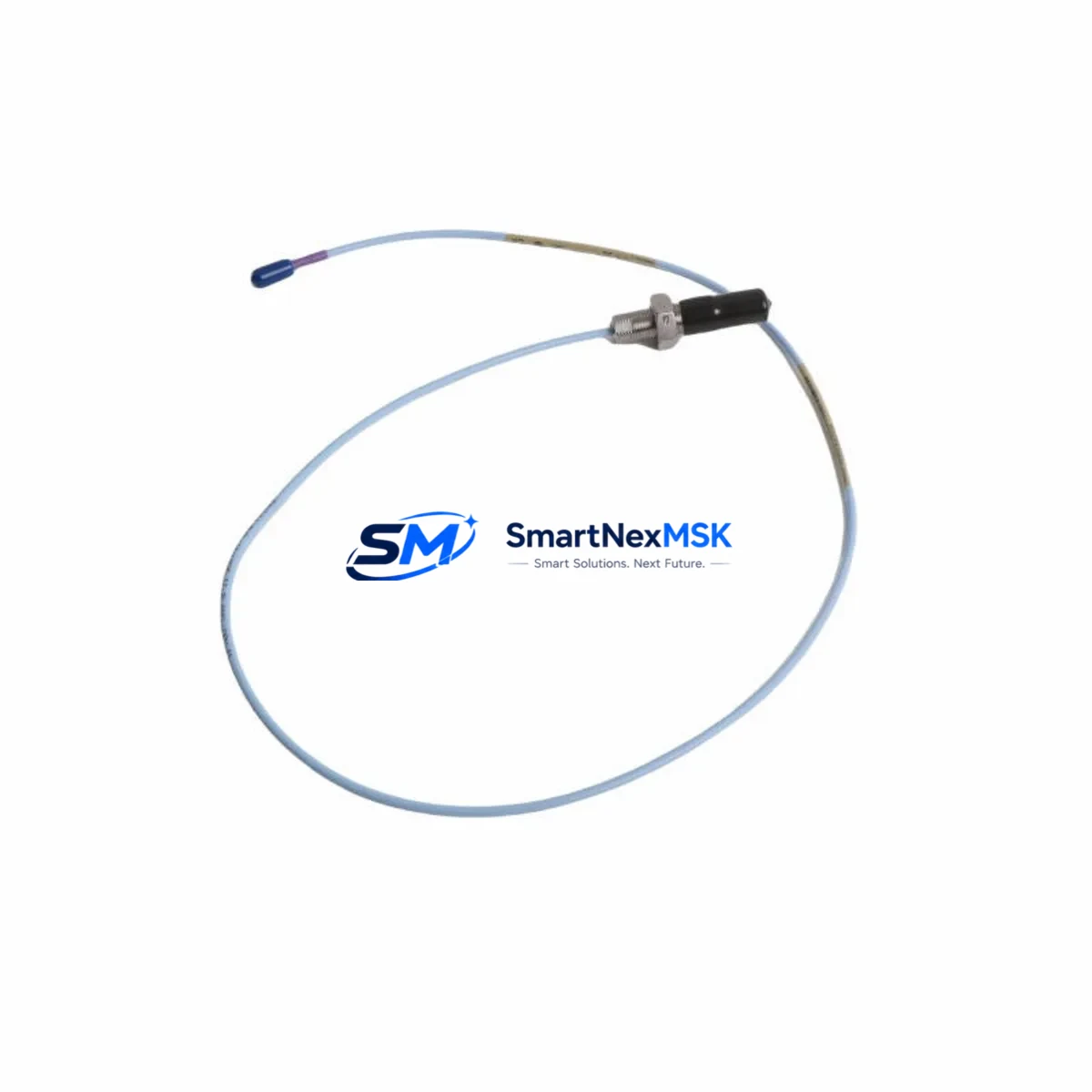

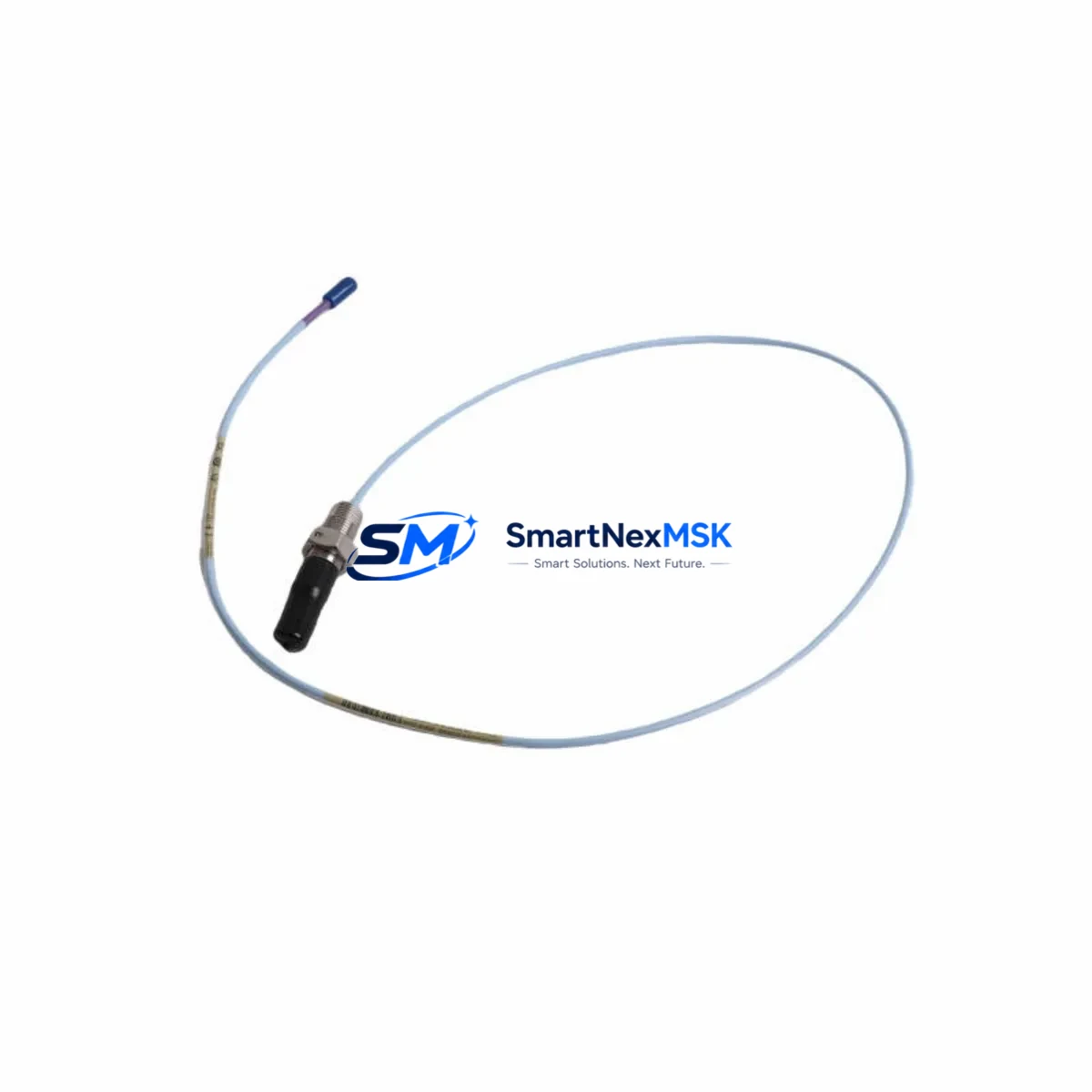

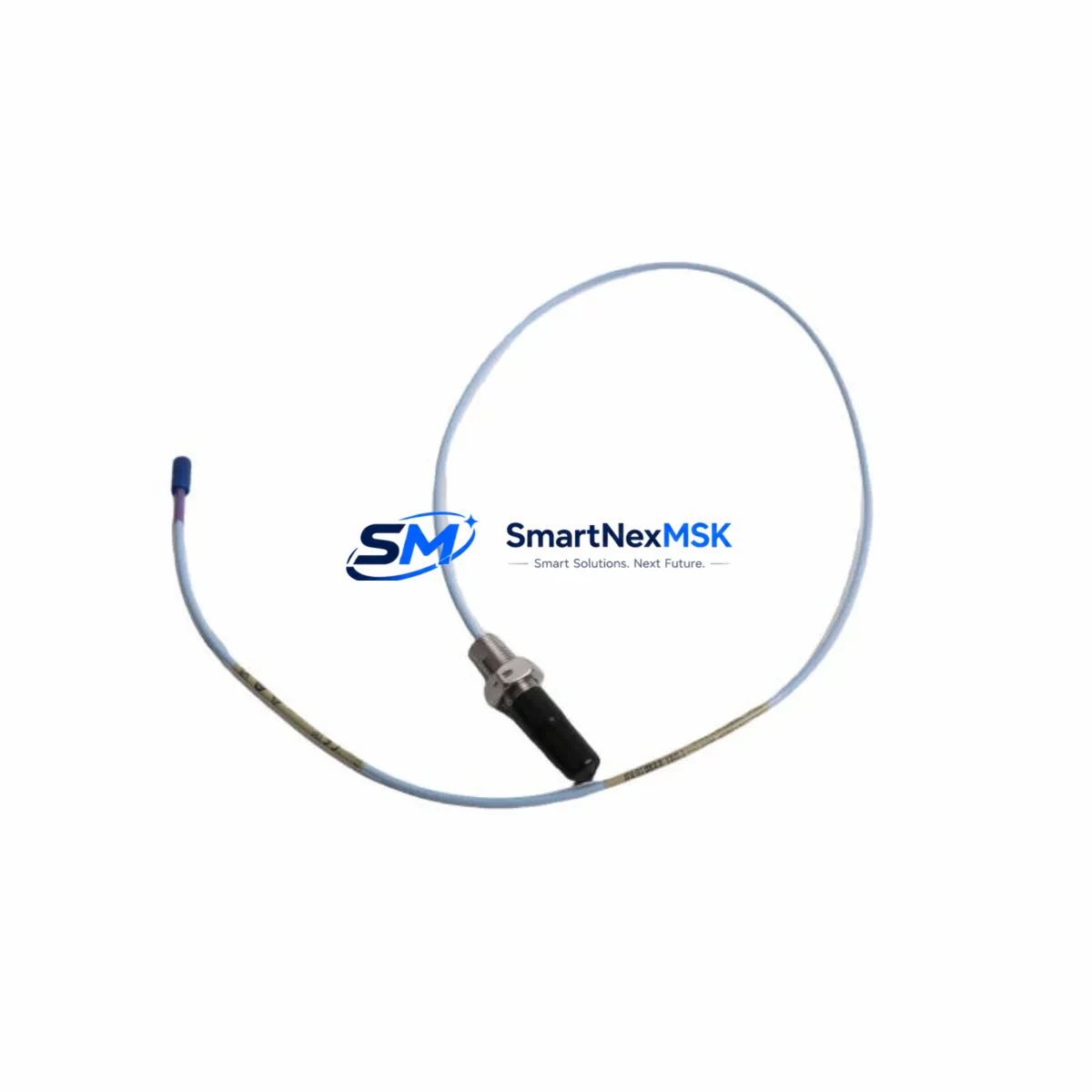

The Bently Nevada 330707-00-25-10-02-00 is a high-performance eddy current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, wide temperature swings, and corrosive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems, turbine monitoring panels, and critical interlock circuits across heavy industry.

In high-load production facilities — including petrochemical plants, power generation stations, steel mills, and offshore platforms — control interruptions caused by signal drift, sensor degradation, or power fluctuations can trigger unplanned shutdowns, equipment damage, or safety incidents. The 330707-00-25-10-02-00 addresses these risks directly: its non-contact eddy current sensing principle eliminates mechanical wear, while its ruggedized housing and shielded cable assembly resist signal contamination from variable-frequency drives, high-current bus bars, and adjacent motor fields commonly found in industrial control cabinets.

When integrated into a complete Bently Nevada 3300 XL monitoring system, this transducer pairs with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to form a calibrated measurement chain. The Proximitor converts the transducer’s raw impedance signal into a clean, linear DC voltage output — typically –24 VDC at gap — that feeds directly into the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor rack cards. These rack-mounted monitors provide relay-driven trip and alarm outputs that integrate with plant DCS or safety instrumented systems (SIS), ensuring that shaft displacement anomalies trigger protective action before mechanical failure occurs.

In control cabinet installations, the 330707-00-25-10-02-00 is typically deployed alongside the Bently Nevada 3500 Rack Power Supply and 3500 System Display and Interface Module (SDIM), which provide stable, conditioned power and centralized system diagnostics. Surge protection at the cabinet entry point — using DIN-rail mounted transient voltage suppressors compatible with the 3300 XL signal range — further shields the measurement chain from lightning-induced surges and switching transients on long cable runs between the field sensor and the control room.

For facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 330707-00-25-10-02-00 supports integration into safety instrumented loops. Its predictable, linear output characteristic and stable zero-speed performance make it suitable for overspeed detection, thrust position monitoring, and differential expansion measurement — all functions where sensor reliability directly determines whether a safety function is achieved on demand. Complementary components such as the Bently Nevada 3300 XL Velomitor Piezo-Velocity Sensor and the 3500/15 Power Supply are frequently specified in the same protection panel to cover both vibration velocity and displacement measurement channels.

SMARTNEXMSK maintains verified stock of the 330707-00-25-10-02-00 and its associated 3300 XL system components, sourced through established supply channels with full traceability. Every unit undergoes pre-shipment functional verification — including gap voltage linearity check and insulation resistance test — before dispatch. A 12-month warranty covers all units against manufacturing defects and performance deviation from published specifications. Fast global shipping with export documentation support ensures that maintenance teams and procurement engineers can restore critical monitoring capability without extended lead times.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330707-00-25-10-02-00 typically integrates multiple layers of signal conditioning, power management, and redundancy. At the field level, the probe is paired with the Bently Nevada 3300 XL Proximitor Sensor (330180-91-00), which converts the raw eddy current signal into a buffered DC output suitable for long cable runs to the control room. The extension cable — typically the 3300 XL 5-metre or 9-metre armored extension — provides mechanical protection across cable trays shared with power conductors.

Inside the 3500 rack, the 3500/20 Rack Interface Module manages communication between the monitor cards and the plant DCS via Modbus or Ethernet/IP, while the 3500/15 Dual Power Supply ensures uninterrupted power to all monitor cards even during a single supply failure. For applications requiring seismic velocity measurement on the same machine train, the Bently Nevada 330500-02-00 Velomitor XA Sensor is mounted on the bearing housing and wired into an adjacent 3500/42M monitor card, providing complementary velocity data alongside the displacement channel from the 330707-00-25-10-02-00.

Surge protection at the cabinet terminal strip — using devices rated for the –24 VDC Proximitor supply and the 0 to –24 VDC signal range — prevents transient energy from lightning strikes or switching events from reaching the sensitive monitor card inputs. Proper grounding of the Proximitor housing and cable shield at a single point, per Bently Nevada installation guidelines, eliminates ground loop currents that would otherwise introduce low-frequency noise into the displacement signal and cause false alarm conditions in the 3500/40M monitor.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330707-00-25-10-02-00 is widely deployed on centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers in refinery service. Continuous shaft radial vibration and axial thrust position monitoring via this transducer enables the 3500 rack to initiate an automatic trip before a high-vibration event causes seal failure, bearing wipe, or rotor-to-stator contact — all of which carry significant fire and explosion risk in hydrocarbon-rich environments.

Power Generation: In gas turbine and steam turbine generator sets, the 330707-00-25-10-02-00 monitors shaft eccentricity and differential expansion during startup and load transients. Its stable output at zero speed allows the protection system to detect rotor bow before the machine reaches critical speed, preventing catastrophic blade-tip rubs that would require extended outages and major rotor repairs.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity transducers to extreme vibration, dust ingress, and wide ambient temperature variation. The ruggedized stainless steel probe tip and IP67 cable assembly of the 330707-00-25-10-02-00 maintain measurement integrity in these conditions, supporting continuous operation monitoring and early detection of bearing degradation before unplanned mill stoppages.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities rely on proximity transducers for shaft position monitoring. The non-contact measurement principle of the 330707-00-25-10-02-00 eliminates the maintenance burden of contact-type sensors in wet, chemically aggressive environments, supporting long mean-time-between-maintenance intervals critical for utilities operating with lean maintenance teams.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and converter vessel tilting drives operate under extreme electromagnetic noise from high-current DC drives and induction furnaces. The shielded coaxial signal path of the 330707-00-25-10-02-00 and its Proximitor maintain signal integrity in these environments, providing reliable position feedback to the machine protection and process control systems.

Safety and Quality FAQ

Q1: What warranty does the 330707-00-25-10-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and performance deviation from Bently Nevada published specifications. Warranty claims are processed with replacement dispatch within 5 business days upon confirmation of the defect.

Q2: What pre-shipment testing is performed on each unit?
Every 330707-00-25-10-02-00 undergoes a gap voltage linearity verification across the full measurement range and an insulation resistance test on the cable assembly before dispatch. Test records are available upon request for quality-critical procurement processes.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330707-00-25-10-02-00 is a direct fit for all standard 3300 XL system configurations using 8 mm probes. It is compatible with the full range of 3300 XL Proximitor Sensors and 3500 Series monitor rack cards without requiring recalibration of the monitoring system, provided the extension cable length matches the original system design.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of the 330707-00-25-10-02-00 and key 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-unit capital projects. Customers with recurring demand are encouraged to contact our sales team to discuss scheduled supply agreements and priority allocation during high-demand periods.
