Bently Nevada 330708-00-20-50-02-05 Spare 3300 XL

Bently Nevada 330708-00-20-50-02-05 Spare 3300 XL: Precision Spare Parts Replacement for Industrial Downtime Control

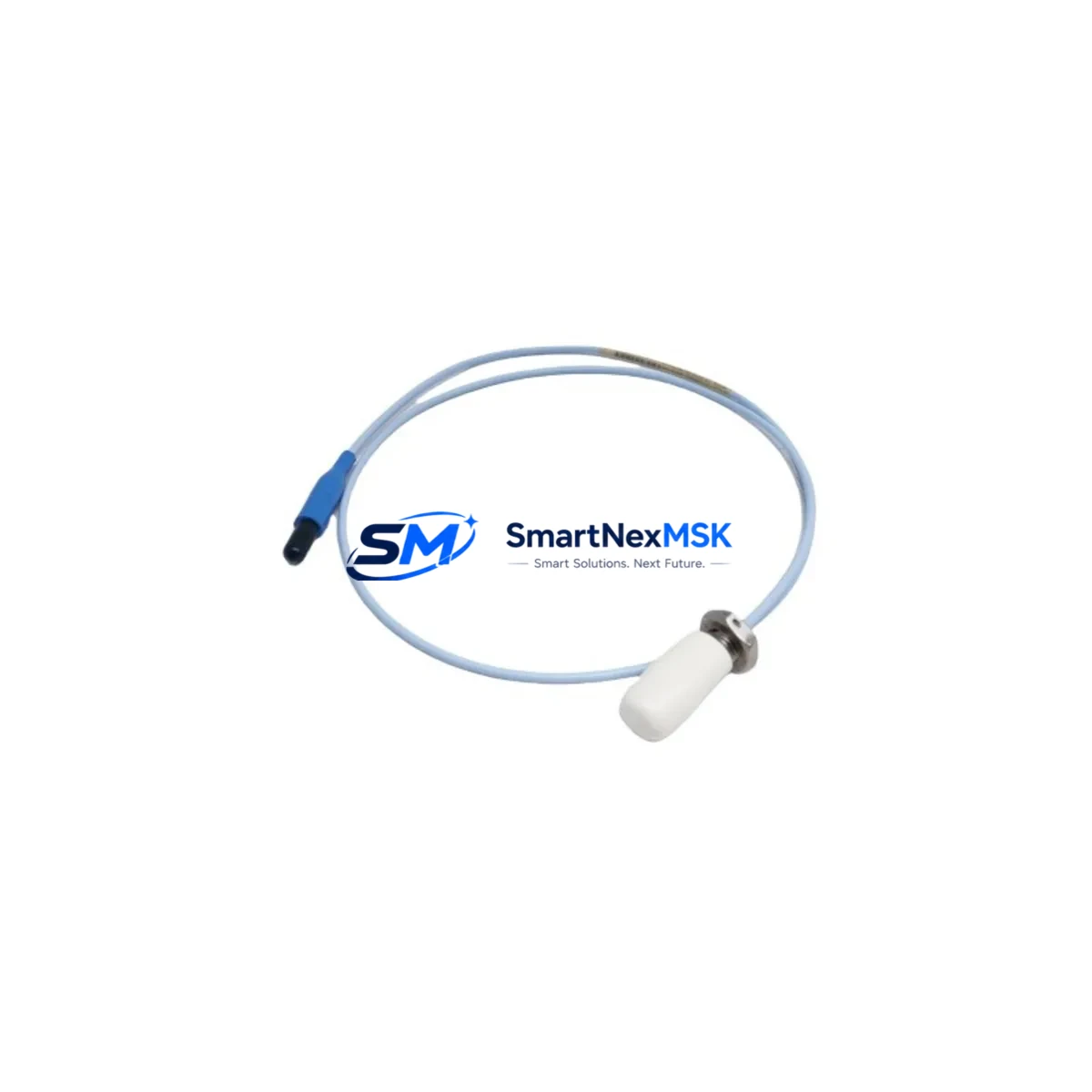

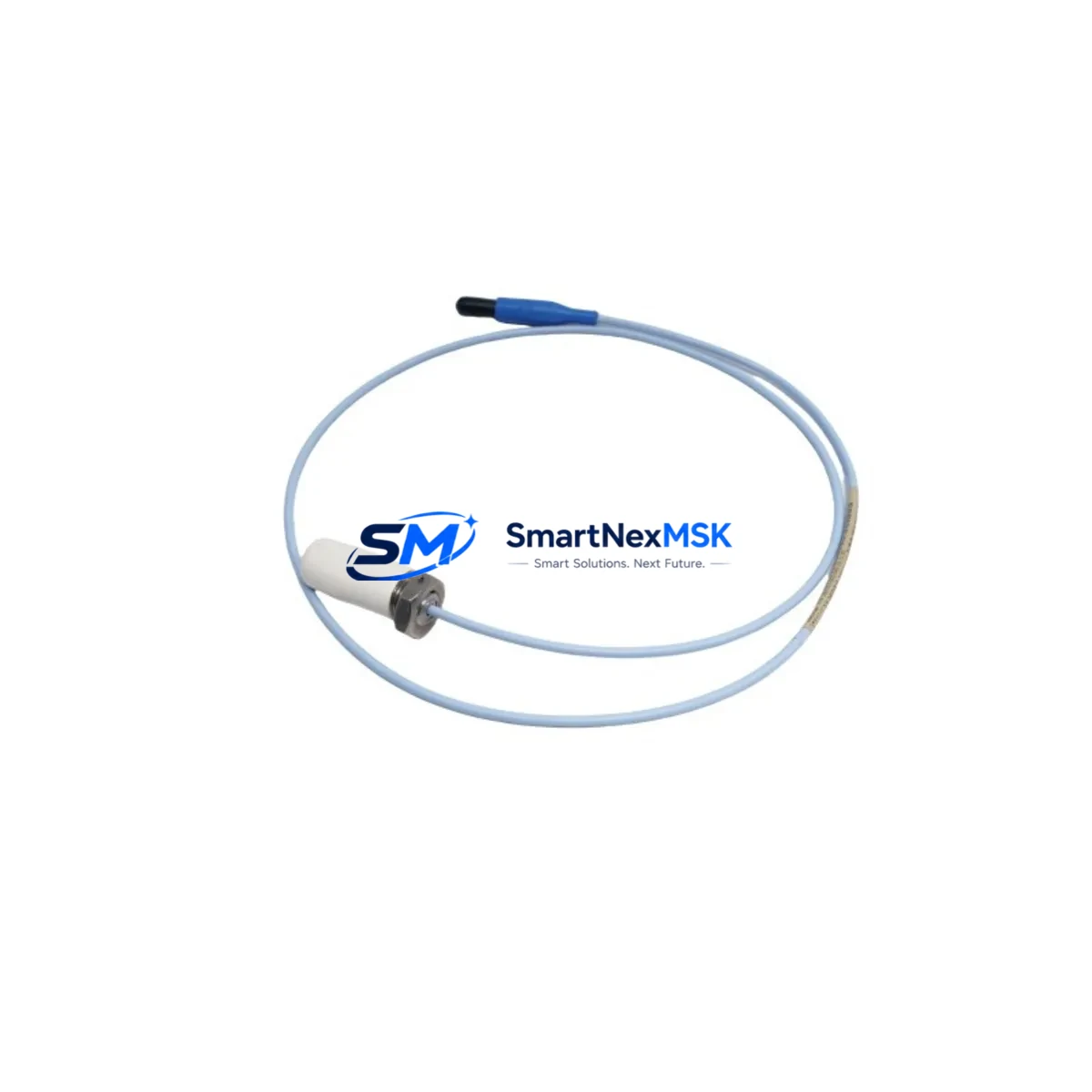

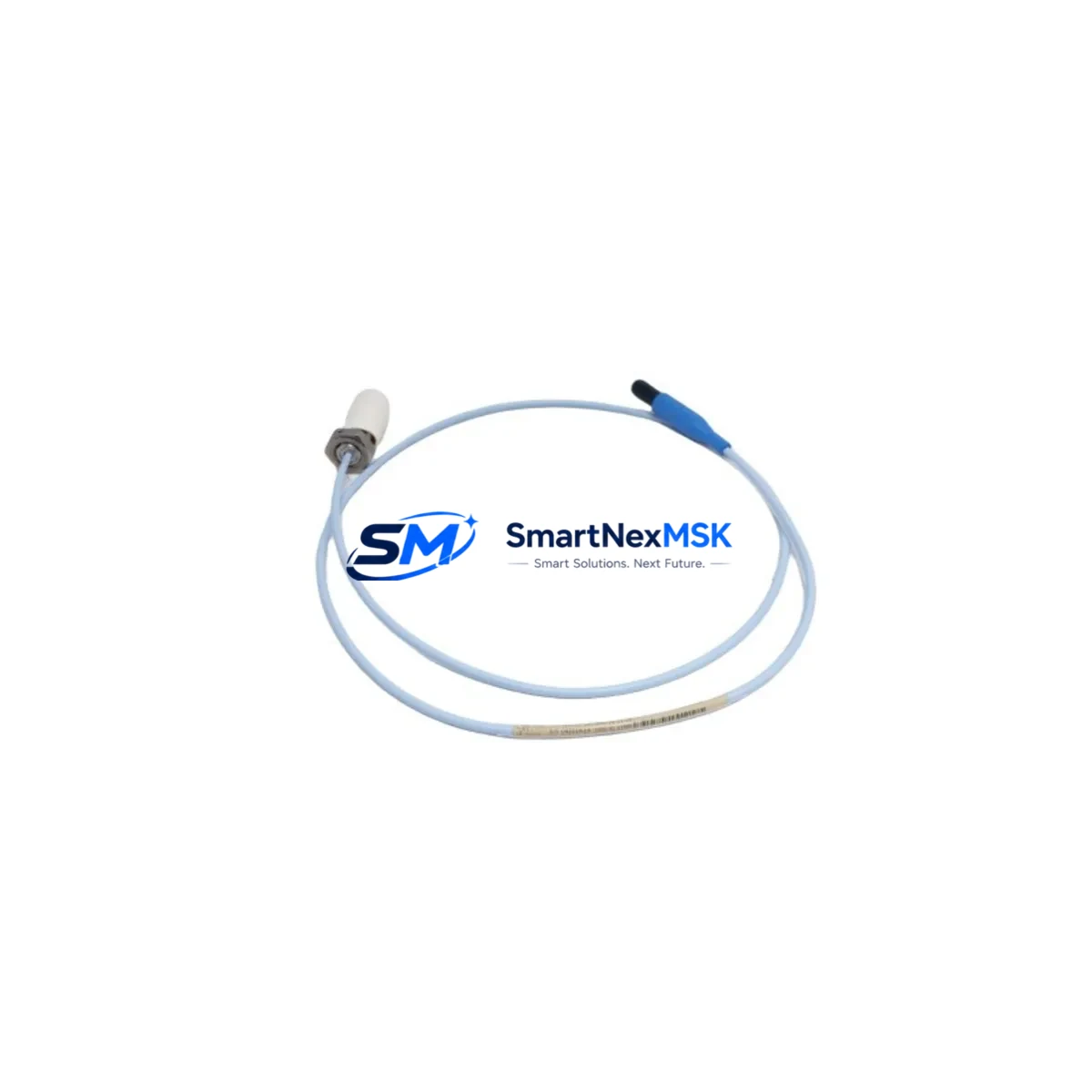

The Bently Nevada 330708-00-20-50-02-05 is an 11mm proximity transducer designed for the 3300 XL Series continuous machinery protection system. As a maintenance-ready original spare, this unit supports rapid field replacement in rotating machinery monitoring applications — including turbines, compressors, pumps, and gearboxes — where unplanned downtime carries significant operational and financial risk. Sourced from verified supply channels, each unit undergoes pre-shipment functional testing and ships with a 12-month warranty.

For maintenance engineers managing aging vibration monitoring infrastructure, having a verified spare of the 330708-00-20-50-02-05 on the shelf is a fundamental risk mitigation strategy. The 3300 XL proximity transducer system is widely deployed across petrochemical, power generation, and heavy manufacturing facilities, and replacement lead times from OEM channels can extend weeks. Stocking this transducer as part of your critical spare inventory ensures that a single sensor failure does not cascade into a full machinery trip or extended outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330708-00-20-50-02-05 proximity transducer, a thorough inspection of the surrounding measurement chain is essential to ensure system integrity and prevent repeat failures. Maintenance engineers should treat this replacement as an opportunity for a full loop verification rather than a simple swap.

Begin by inspecting the 3300 XL Proximitor / Seismic Monitor (e.g., 330180-X1-05) — the signal conditioning module that powers the probe and converts gap voltage to a usable output. A degraded Proximitor can cause erratic readings even with a new transducer installed. Verify the extension cable (typically 330130-series or 330140-series) for continuity, insulation resistance, and connector integrity; damaged extension cables are a leading cause of transducer system faults that are misdiagnosed as probe failures.

Check the -24 VDC power supply feeding the Proximitor for voltage stability and ripple — an unstable supply will directly affect output linearity. If the system is integrated into a 3500 Series rack, inspect the 3500/42M Proximitor I/O Module and its associated 3500/20 Rack Interface Module for firmware currency and channel configuration. For installations using terminal blocks and field wiring, inspect the 3300 XL junction box or marshalling panel for corrosion, loose terminations, and moisture ingress — particularly in outdoor or high-humidity environments.

In control cabinet inspections, also verify the 3500/01 Rack Power Supply output and any signal isolators or barriers (such as Zener barriers in hazardous area installations) that sit between the Proximitor output and the DCS or safety system input. Faulty isolation components can introduce ground loops that corrupt vibration and position data. If the machinery protection system feeds a DCS historian or safety PLC, confirm that the analog input card receiving the 4–20 mA or voltage signal is functioning correctly and that alarm setpoints remain calibrated after the transducer replacement.

For facilities running legacy 3300 XL infrastructure alongside newer System 1 Evolution condition monitoring software, this replacement is also an appropriate time to verify that the software configuration reflects the correct transducer sensitivity and gap voltage range, ensuring that trend data continuity is maintained post-replacement.

Site Replacement Workflow

The 330708-00-20-50-02-05 is a direct replacement for earlier 3300 XL 11mm proximity transducer variants. Before installation, confirm the target gap distance per the OEM specification (typically 1.0–1.5 mm for most shaft materials) and verify that the replacement probe’s thread pitch and body length match the existing bracket. Do not assume dimensional compatibility across all 330708-series sub-variants without cross-referencing the suffix codes.

Follow this field replacement sequence to minimize downtime: (1) De-energize the Proximitor and disconnect the extension cable at the junction box. (2) Remove the existing probe using the appropriate spanner, noting the gap setting. (3) Install the replacement 330708-00-20-50-02-05, setting gap per specification with a feeler gauge or oscilloscope-verified gap voltage. (4) Reconnect the extension cable and re-energize the Proximitor. (5) Verify output voltage at the Proximitor output terminals — nominal gap voltage should fall within the linear range. (6) Confirm alarm and trip setpoints are active in the monitor before returning the machine to service.

This workflow supports a typical replacement time of under 60 minutes for experienced maintenance personnel, significantly reducing mean time to repair (MTTR) compared to waiting for OEM procurement. Stocking this spare alongside a matched extension cable and a spare Proximitor module creates a complete replacement kit that covers the most common 3300 XL field failure modes.

Spare Parts Support FAQ

Q1: Is the 330708-00-20-50-02-05 compatible with both 3300 XL and 3500 Series systems?
The 330708-00-20-50-02-05 is natively designed for the 3300 XL Proximitor system. It can be used with 3500 Series monitors when paired with the appropriate 3500 XL transducer interface; confirm compatibility with your specific 3500 rack I/O module configuration before installation. Sensitivity and output range must match the monitor’s input specification.

Q2: How is each unit tested before shipment?
Each 330708-00-20-50-02-05 unit undergoes pre-shipment functional verification including output voltage linearity check, insulation resistance test, and physical inspection of the probe tip, cable, and connector. Units that do not meet specification are quarantined. A test report is available upon request for critical applications.

Q3: What is the recommended spare inventory strategy for this transducer?
For facilities with 4 or more 3300 XL measurement points, we recommend maintaining a minimum of 2 spare probes, 1 spare extension cable, and 1 spare Proximitor module. This covers the most common single-point failure scenarios without requiring emergency procurement. For critical machinery (first-out protection on turbines or compressors), consider a 1:1 hot-spare ratio per measurement plane.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and dimensional non-conformance. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature and environmental ratings. Warranty claims are processed with return of the defective unit and a brief failure description.
