Bently Nevada 330709-000-070-50-02-00 3300 XL Spare: Precision Proximity Probe for Industrial Downtime Recovery

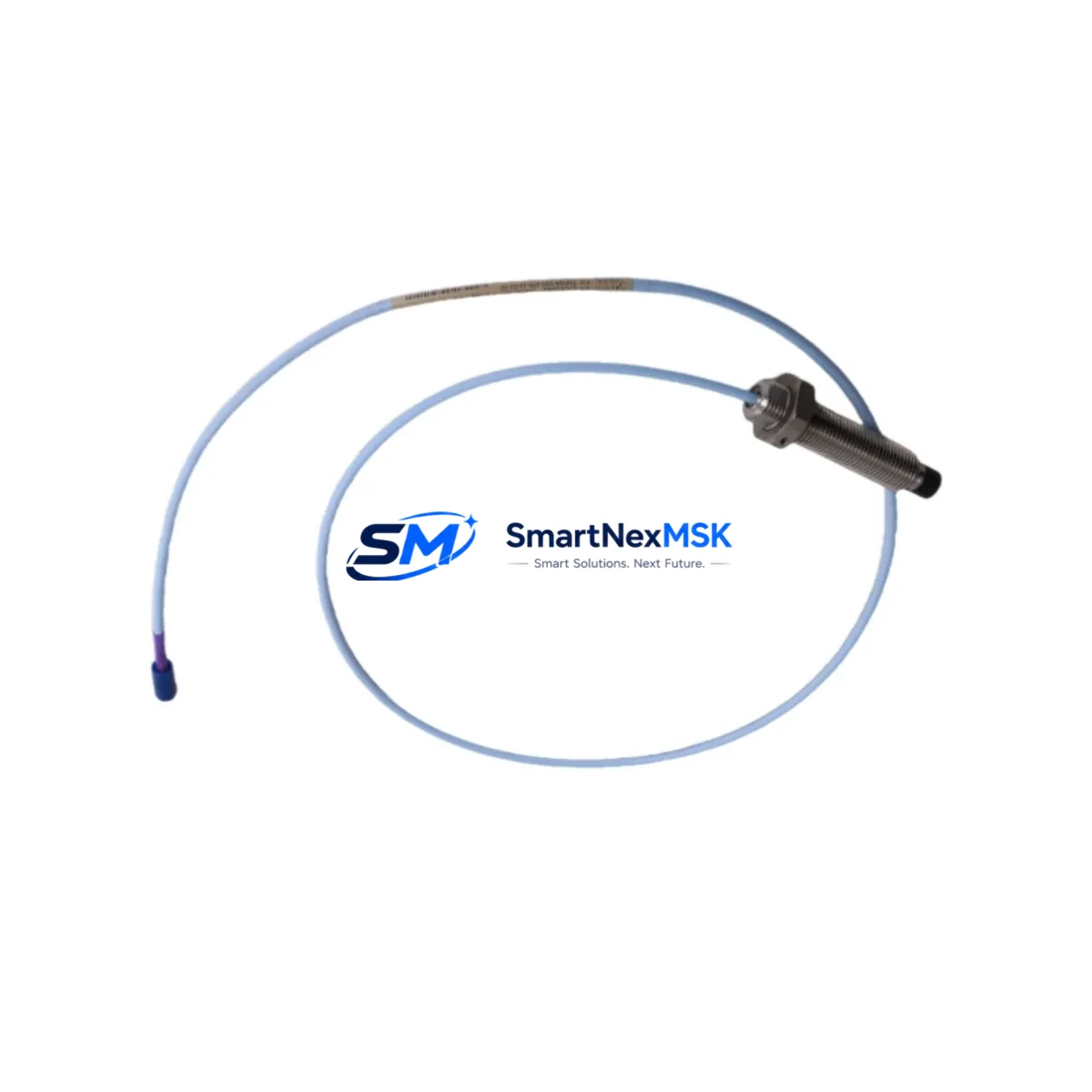

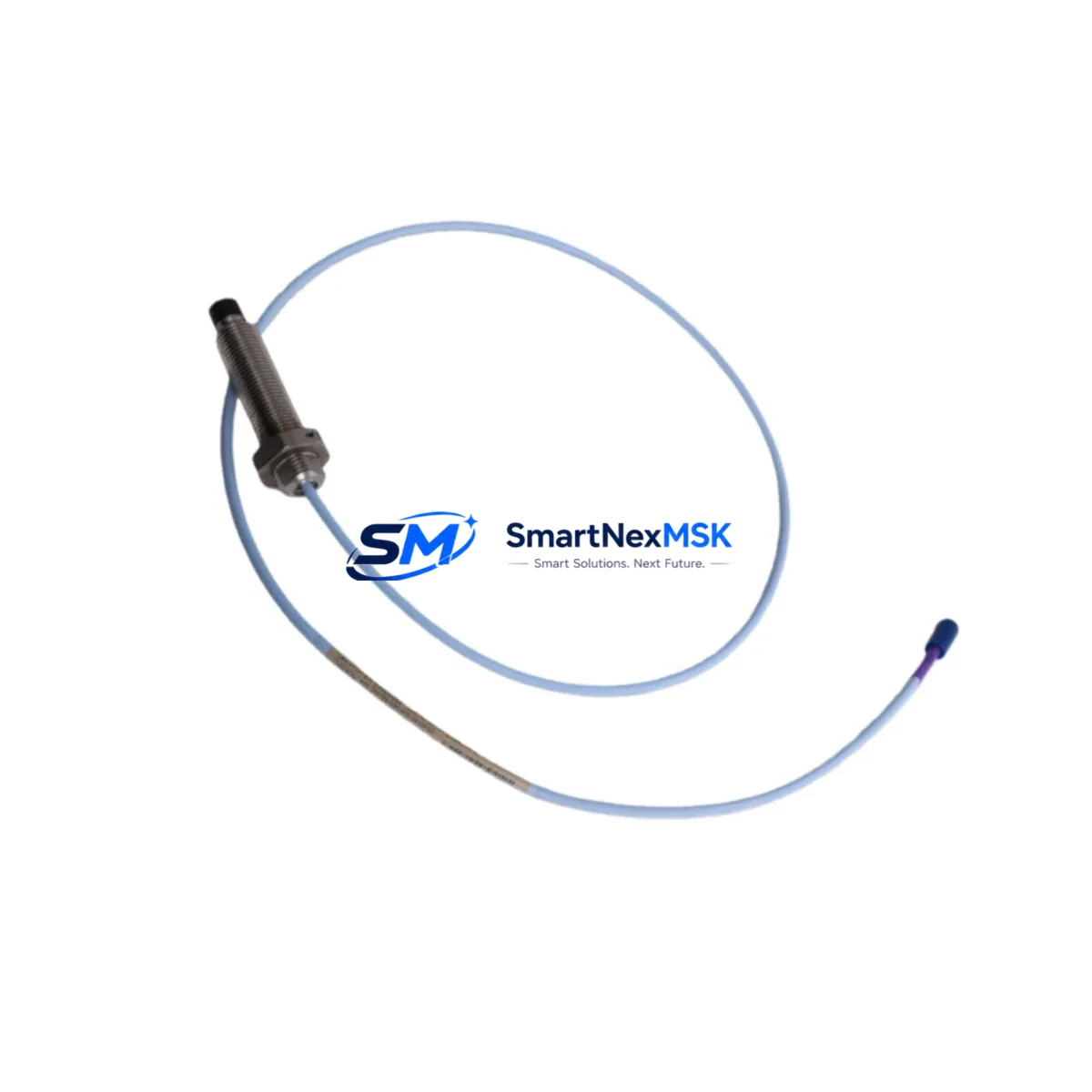

The Bently Nevada 330709-000-070-50-02-00 is an original 7mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous shaft displacement and radial vibration measurement in rotating machinery, this probe is a critical spare component in turbine control panels, compressor monitoring racks, and pump protection systems across oil & gas, power generation, and heavy industrial facilities. Maintaining a verified stock of this probe directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled or emergency maintenance events.

For maintenance engineers managing aging machinery protection systems, the 330709-000-070-50-02-00 represents a direct, drop-in replacement for worn or damaged probes in the 3300 XL monitoring loop. Its 7mm tip diameter, standard 5-metre extension cable compatibility, and -24 VDC bias voltage output ensure seamless integration with existing Bently Nevada proximitor/driver modules without requiring recalibration of the full monitoring chain. Procurement engineers sourcing this part for MRO inventory can rely on our 12-month warranty and pre-shipment electrical verification to meet plant reliability standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330709-000-070-50-02-00 proximity probe during a planned outage or emergency callout, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should simultaneously verify the condition of the paired 3300 XL Proximitor® Sensor (typically mounted in the junction box), as probe and proximitor wear rates are closely correlated. A degraded proximitor will produce erratic gap voltage readings even with a new probe installed.

The 3300 XL 5-metre extension cable connecting the probe to the proximitor is a frequent source of intermittent faults — inspect for jacket abrasion, connector corrosion, and continuity before closing the panel. In high-vibration environments, cable clamp integrity should be confirmed to prevent fretting damage. If the monitoring rack houses a 3300/16 or 3300/20 Series monitor card, verify that the OK relay output and alarm setpoints remain correctly configured after probe replacement, as some firmware versions reset parameters on power cycle.

For control cabinet inspections concurrent with probe replacement, engineers should check the 3300 XL power supply module output voltage stability — a sagging supply rail is a common root cause of false OK trips. Terminal blocks and field wiring connections within the Bently Nevada junction box should be torqued to specification and inspected for oxidation. Where the monitoring system interfaces with a DCS or safety PLC via 4–20 mA output cards or relay output modules, confirm signal continuity and loop resistance to the receiving I/O card.

In facilities running legacy 3300 Series racks alongside newer systems, it is advisable to maintain parallel stock of the 330130-080-00-00 proximitor and compatible 330780 extension cable assemblies to cover both probe generations. For systems with integrated Keyphasor® modules used for phase reference in balancing and diagnostics, inspect the Keyphasor probe and its dedicated proximitor as part of the same maintenance window. Signal isolators or galvanic isolation barriers in the field wiring loop should also be tested for drift, particularly in environments with high common-mode noise from variable frequency drives or large motor starts.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the proximitor supply to the affected channel. Note the existing gap voltage reading from the monitor display or DCS historian before disconnection — this serves as the baseline for post-installation verification.

Step 2 — Probe Removal: Unthread the 330709-000-070-50-02-00 from its mounting bracket using the correct spanner. Inspect the probe tip for impact damage, contamination, or corrosion. Measure the extension cable connector pins for continuity and insulation resistance before reuse.

Step 3 — New Probe Installation: Thread the replacement probe to the bracket, setting the gap to the manufacturer-specified distance (typically 1.0–1.5 mm from the shaft surface, confirmed by gap voltage of -10.0 to -11.0 VDC with the shaft stationary). Use a non-metallic feeler gauge to avoid disturbing the shaft surface.

Step 4 — System Verification: Re-energize the proximitor supply. Confirm gap voltage is within the linear range (-10 to -18 VDC). Check the monitor OK relay status and verify that vibration readings are stable and consistent with historical baseline values. Document the as-left gap voltage in the maintenance record.

Step 5 — Return to Service: Clear any latched alarms at the monitor rack and DCS. Confirm with the control room that the channel is healthy before releasing the machine for restart. Update the spare parts inventory log to trigger reorder of the consumed probe.

This workflow minimises machine downtime to under two hours for a single-channel probe replacement and ensures full system compatibility is maintained without requiring specialist Bently Nevada service personnel on-site.

Spare Parts Support FAQ

Q1: Is the 330709-000-070-50-02-00 compatible with both 3300 XL and earlier 3300 Series monitors?
The 330709-000-070-50-02-00 is designed and specified for the 3300 XL Series. It is electrically compatible with standard 3300 Series monitor racks that accept 7mm probe inputs, but engineers should verify the monitor card’s input impedance and sensitivity settings match the XL probe specification before installation in legacy racks. When in doubt, consult the monitor card datasheet or contact our technical team prior to ordering.

Q2: What pre-shipment testing is performed on this spare?
Each 330709-000-070-50-02-00 unit undergoes electrical continuity verification, insulation resistance testing, and bias voltage output confirmation before dispatch. Units are individually packaged with anti-static protection and include a test record. Our 12-month warranty covers manufacturing defects and electrical performance from the date of shipment.

Q3: How many units should a facility stock for a critical rotating machine?
For machines classified as critical (single-train compressors, main turbines, boiler feed pumps), industry best practice recommends a minimum of two spare probes per monitored shaft, plus one spare proximitor per monitoring channel. For facilities with multiple identical machines, a pooled inventory of 4–6 probes per machine type is a common MRO strategy that balances carrying cost against downtime risk.

Q4: What is the lead time and can expedited shipping be arranged?
Standard orders ship within 3–5 business days from our warehouse. Expedited same-day or next-day dispatch is available for emergency maintenance situations — contact our sales team directly to confirm stock availability and arrange priority shipping. Long-term supply agreements and blanket purchase orders are supported for facilities requiring guaranteed inventory access.
