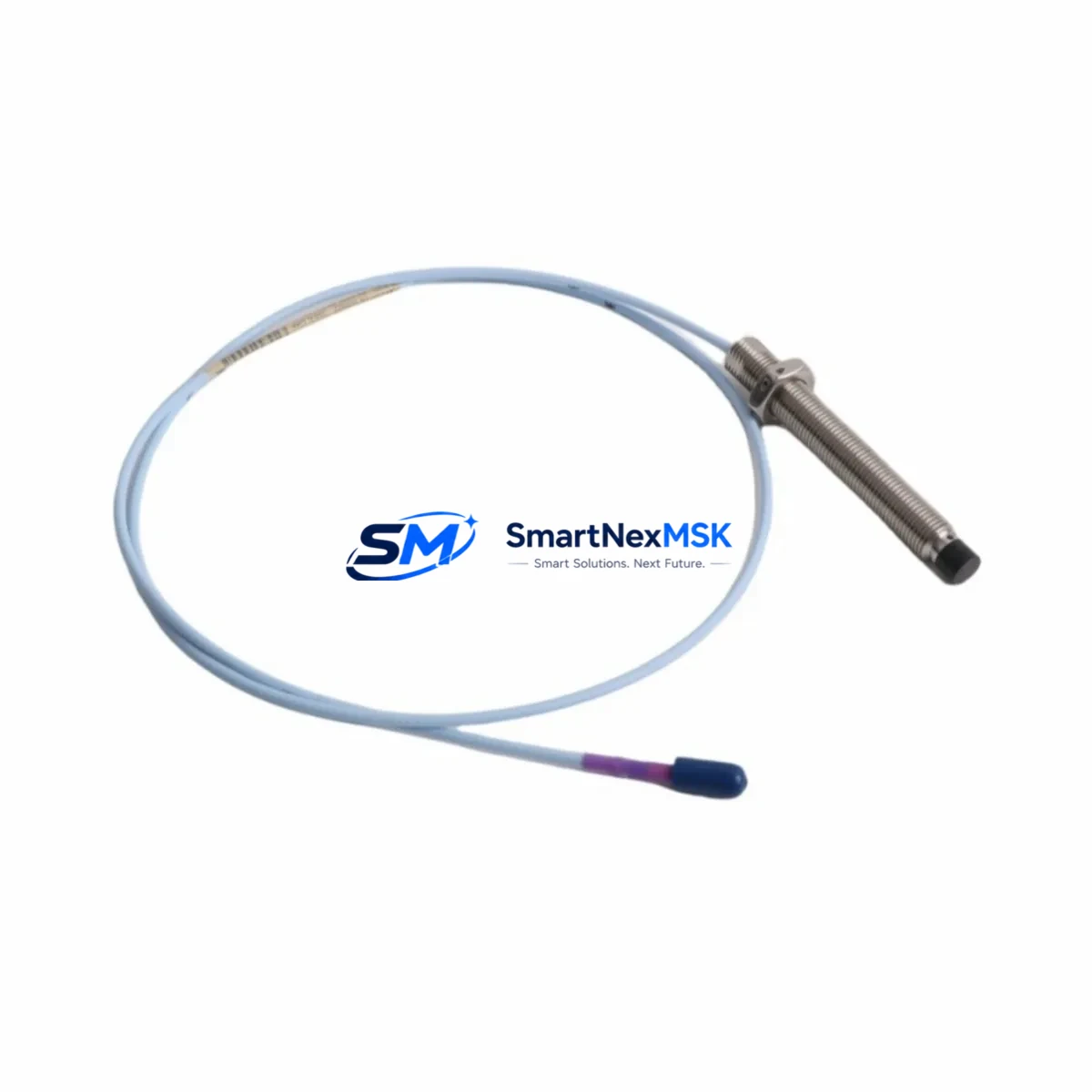

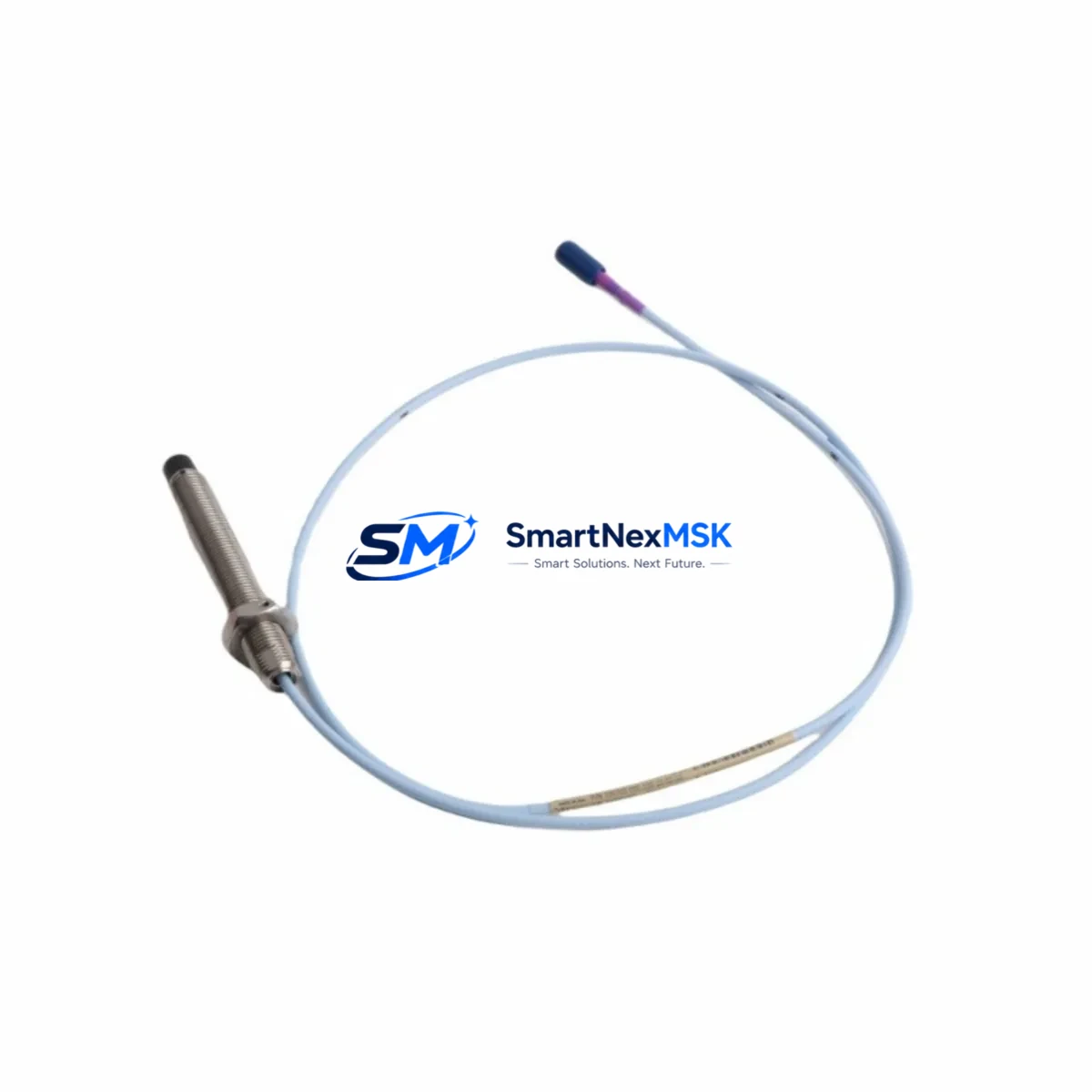

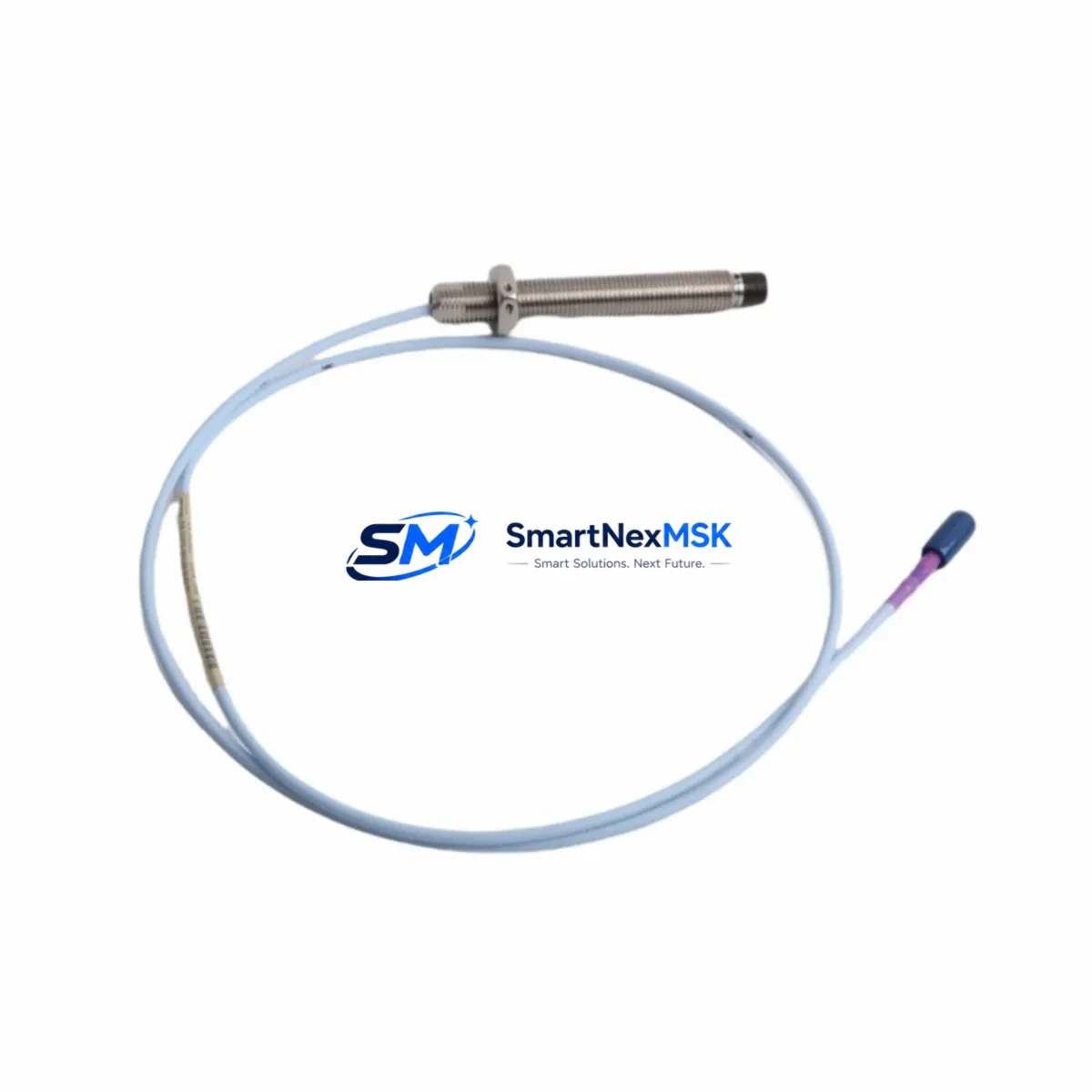

The Bently Nevada 330710-000-050-02-00 is an original 11 mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery protection system. Designed for radial vibration, axial position, and speed measurement on rotating equipment, this transducer is a critical maintenance-ready spare for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments. Sourced directly from authorized supply channels, every unit is inspection-tested before shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging 3300 XL installations, having a verified OEM-equivalent spare on the shelf is the single most effective strategy for reducing unplanned outages. The 330710-000-050-02-00 integrates directly with the 3300 XL monitor rack without recalibration of the full loop, provided the extension cable and proximitor are matched to the correct gap voltage range. Procurement engineers should note that this transducer is part of a three-component measurement chain — transducer, extension cable (e.g., 330130 series), and proximitor/driver (e.g., 3300 XL 8 mm or 11 mm proximitor) — and all three must be sourced and verified together to maintain API 670 compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy around the 330710-000-050-02-00 must account for the full measurement loop and the broader protection system. When replacing this transducer during a planned outage or emergency callout, maintenance engineers should simultaneously inspect and verify the following components to prevent repeat failures and ensure loop accuracy:

• 330130-080-02-00 Extension Cable (8 m): The most common wear point in the measurement chain. Inspect for jacket abrasion, connector corrosion, and continuity. A mismatched or degraded extension cable will produce erratic gap voltage and false alarms.
• 3300 XL 11 mm Proximitor (330180-X1-05): Verify output voltage at the nominal air gap (1.0–1.5 mm). A drifting proximitor can mask transducer faults or generate nuisance trips. Replace as a matched set with the transducer when loop calibration history is unavailable.
• 3300/16 or 3300/20 Monitor Module: Check the monitor card for alarm setpoint integrity, OK relay status, and buffered output signal quality. Firmware version should be confirmed against the current 3300 XL system revision.
• 3300/05 Power Supply Module: Confirm –24 VDC rail stability under load. A sagging power supply is a leading cause of intermittent OK dropouts that are incorrectly attributed to transducer failure.
• 3500/42M Proximitor I/O Module (for 3500 series cross-compatibility sites): On hybrid installations where 3300 XL transducers feed into a 3500 rack via adapter, verify I/O module channel mapping and scaling constants.
• Terminal Blocks and Field Junction Box: Inspect terminal strip connections for oxidation, loose ferrules, and moisture ingress. Poor terminations account for a significant proportion of field-reported transducer faults.
• Keyphasor Module (3300/25 or 3500/25): If the 330710-000-050-02-00 is used in a speed or phase reference role, verify the Keyphasor module trigger level and gap voltage simultaneously.
• Signal Isolator / Barrier (e.g., MTL or P+F Zener Barrier): In ATEX/IECEx Zone 1 installations, confirm the associated apparatus certificate is current and the barrier has not been subjected to fault current events.
• Buffered Output BNC Connectors: Clean and inspect BNC connectors on the monitor front panel used for portable analyzer connections. Contaminated connectors introduce noise into vibration spectra during condition monitoring rounds.

Recommended stocking level: maintain a minimum of two 330710-000-050-02-00 transducers per critical machine train, paired with one matched extension cable and one spare proximitor. For facilities with 10+ monitored shafts, a consignment or VMI arrangement with a qualified distributor is advisable to avoid emergency freight premiums.

Site Replacement Workflow

Replacing the 330710-000-050-02-00 in the field follows a straightforward procedure that can be completed within a standard 2–4 hour maintenance window without requiring full system shutdown in most configurations:

1. Isolate and document: Record the existing gap voltage (typically –10.0 to –11.0 VDC at nominal gap) from the monitor buffered output before removal. This baseline is essential for post-installation verification.
2. Remove the old transducer: Loosen the lock nut and back out the transducer from the mounting boss. Inspect the tip for impact damage or contamination that may indicate a bearing or seal issue requiring further investigation.
3. Install the replacement unit: Thread in the new 330710-000-050-02-00 and set the air gap to the manufacturer-specified nominal (typically 1.0–1.27 mm / 40–50 mil). Torque the lock nut to specification.
4. Verify gap voltage: Confirm the buffered output reads within ±0.5 VDC of the pre-removal baseline. If deviation exceeds this, check the extension cable and proximitor before returning the loop to service.
5. Functional test: Confirm OK relay status on the monitor module, verify alarm and danger setpoints are active, and perform a brief bump test if the machine can be safely barred over.
6. Return to service and log: Update the CMMS with the replacement date, new serial number, and gap voltage reading. Schedule the next inspection interval per your predictive maintenance program.

This workflow is compatible with legacy 3300 Series installations as well as current 3300 XL deployments, making the 330710-000-050-02-00 a reliable long-term spare for sites extending the operational life of older Bently Nevada protection systems.

Spare Parts Support FAQ

Q1: Is the 330710-000-050-02-00 a direct replacement for older 330710 series transducers?
Yes. The 330710-000-050-02-00 is backward-compatible with earlier 330710 variants within the 3300 XL 11 mm measurement chain, provided the extension cable and proximitor are also 11 mm-rated. Always verify the complete loop part numbers before installation to ensure scale factor consistency.

Q2: How is each unit tested before shipment?
Every 330710-000-050-02-00 dispatched from our inventory undergoes a pre-shipment inspection covering visual integrity, connector condition, and cable continuity. Units are packaged in anti-static, moisture-resistant packaging with a test record included. Our 12-month warranty covers manufacturing defects and performance deviations from published specifications.

Q3: What is the recommended spare parts inventory strategy for a plant with multiple 3300 XL systems?
For facilities with 5 or more 3300 XL monitor racks, we recommend maintaining a minimum of one transducer, one extension cable, and one proximitor per four monitored measurement points as a rotating buffer stock. Critical machines (compressors, main turbines) warrant dedicated on-shelf spares. Contact our team for volume pricing and consignment stock arrangements.

Q4: Can this transducer be used on machines not originally specified with Bently Nevada systems?
The 330710-000-050-02-00 can be integrated into third-party vibration monitoring systems that accept a –24 VDC-powered eddy-current input with a 200 mV/mil scale factor, subject to compatibility verification with the receiving monitor or data acquisition system. We recommend confirming input impedance and signal conditioning requirements with your system integrator before installation.
