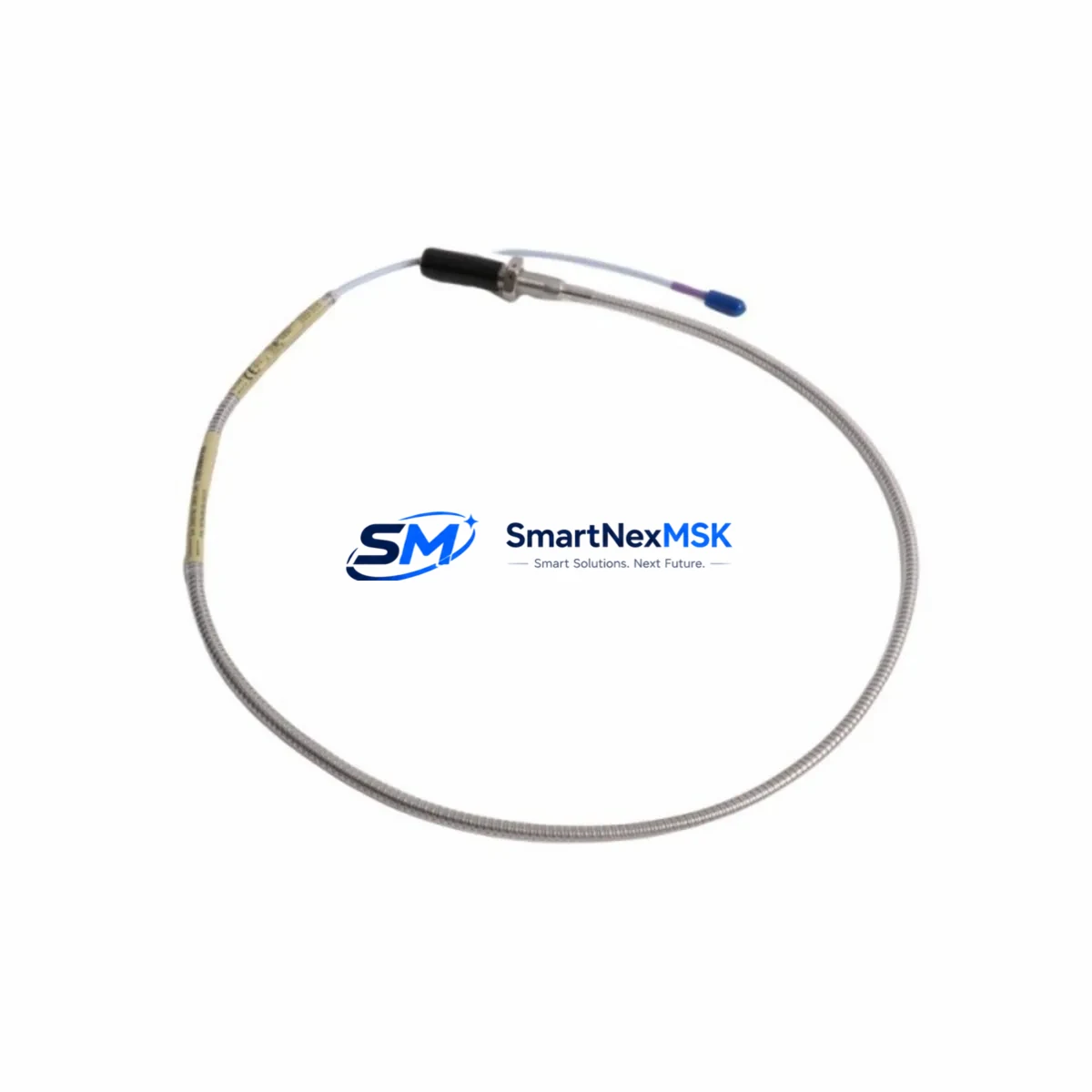

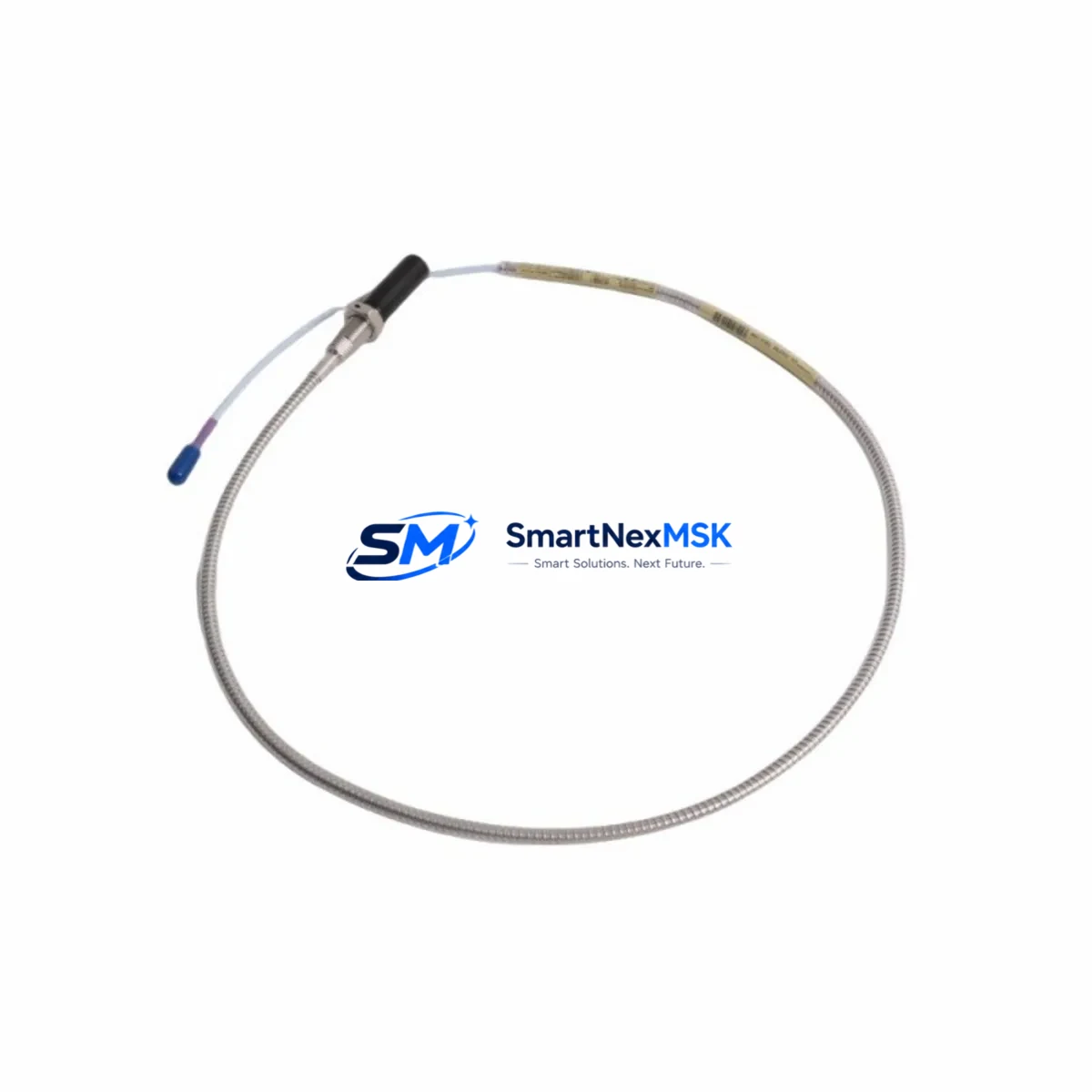

Bently Nevada 330780-50-05 Safety-Enhanced Proximity Transducer

Bently Nevada 330780-50-05 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330780-50-05 is an 11mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines.

In critical control loops where even a momentary signal interruption can trigger unplanned shutdowns or compromise personnel safety, the 330780-50-05 delivers the measurement stability and environmental resilience that plant engineers depend on. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring consistent output over extended service intervals without signal drift — a key requirement in safety instrumented systems (SIS) and machinery protection panels.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 330780-50-05 as part of a comprehensive machinery protection architecture requires careful integration with complementary components throughout the control cabinet and field wiring infrastructure. In a typical turbine or compressor protection panel, this transducer connects to a Bently Nevada 330180-X0-CN driver (3300 XL proximitor), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/40M proximitor monitor or the 3500/42M four-channel monitor housed in the 3500 rack system.

To protect the signal chain from power-line transients and surge events — a common threat in heavy industrial environments — the control cabinet should incorporate Phoenix Contact TRABTECH surge protection devices on the 24 VDC supply rails feeding the proximitor drivers. Pairing the transducer system with a Bently Nevada 3500/15 power supply module ensures stable, regulated DC power even during grid fluctuations, preventing false trips caused by supply voltage sag.

For installations in hazardous areas classified as Zone 1 or Class I Division 1, a Pepperl+Fuchs zener barrier or galvanic isolator (KFD2 series) must be installed in the intrinsically safe circuit between the field transducer and the control room equipment. This barrier limits fault energy to safe levels, protecting both personnel and instrumentation in the event of a wiring fault or short circuit.

Communication integrity between the 3500 rack and the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — is maintained through a Bently Nevada 3500/92 communication gateway, which supports Modbus TCP and OPC-DA protocols. Ensuring the rack’s backplane is properly grounded and that all cable shields are terminated at a single-point ground bar within the cabinet eliminates ground loops that can introduce noise into the proximity measurement signal.

For redundant protection in critical machinery trains, engineers often deploy the 330780-50-05 in dual-transducer configurations, with each probe connected to an independent channel of the 3500/40M monitor, enabling voted-logic (2-out-of-2 or 2-out-of-3) trip decisions that reduce both spurious trips and missed dangerous failures — a fundamental requirement of IEC 61511 functional safety standards.

Critical Industrial Safety Applications

The Bently Nevada 330780-50-05 is deployed across a wide spectrum of safety-critical rotating machinery applications in heavy industry:

Petrochemical & Refinery: Installed on high-speed centrifugal compressors, steam turbine-driven pumps, and reactor agitators where continuous shaft vibration monitoring is mandatory under API 670 machinery protection standards. Any deviation beyond alarm setpoints triggers automatic shutdown sequences, preventing catastrophic bearing failures and process gas releases.

Power Generation: Used on gas turbine generator sets and steam turbine LP/HP shafts to monitor radial vibration and axial thrust position. In combined-cycle power plants, the transducer feeds real-time data to the turbine control system, enabling predictive maintenance scheduling and preventing forced outages that carry significant financial and grid-stability consequences.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion shafts, and slurry pump impellers operating in dusty, high-humidity environments. The IP67-rated probe body and high-temperature cable construction ensure reliable operation even when exposed to mineral slurry splashing and ambient temperatures exceeding 60°C.

Water & Wastewater Treatment: Monitors vertical turbine pump shafts and blower rotor assemblies in municipal water treatment facilities, where continuous operation is a public safety obligation. Early detection of shaft misalignment or bearing wear allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures.

Metallurgy & Steel: Deployed on rolling mill main drive motors, continuous caster pinch roll drives, and blast furnace top gas compressors. The transducer’s resistance to electromagnetic interference from large variable-frequency drives and arc furnace harmonics makes it the preferred choice for steel plant instrumentation engineers.

Port & Material Handling: Used on ship unloader slewing ring drives and conveyor belt drive gearboxes, where remote monitoring via the 3500 rack’s communication gateway enables condition-based maintenance programs that reduce unplanned downtime in high-throughput logistics operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 330780-50-05?
Every unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period due to a verified product defect, we provide a free replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Each 330780-50-05 transducer undergoes a comprehensive pre-shipment inspection that includes: sensitivity calibration verification against the 7.87 V/mm (200 mV/mil) standard, DC resistance check of the probe coil, insulation resistance test at 500 VDC, and a functional gap-versus-output linearity test using a calibrated steel target. A test report is available upon request.

Q3: Is the 330780-50-05 compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330780-50-05 is fully compatible with the Bently Nevada 3300 XL proximitor driver (330180 series) and integrates seamlessly into 3500 rack-based monitoring systems. It is a direct functional replacement for earlier 3300 series probes in the same cable-length and tip-diameter configuration, requiring no recalibration of the monitor when replacing a like-for-like unit.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated safety-stock inventory of high-demand Bently Nevada 3300 XL series components, including the 330780-50-05 and its associated drivers and extension cables. We support OEM spare parts programs, annual blanket purchase orders, and emergency same-day dispatch for critical plant shutdowns. Contact our technical sales team to discuss a supply agreement tailored to your plant’s maintenance schedule.
