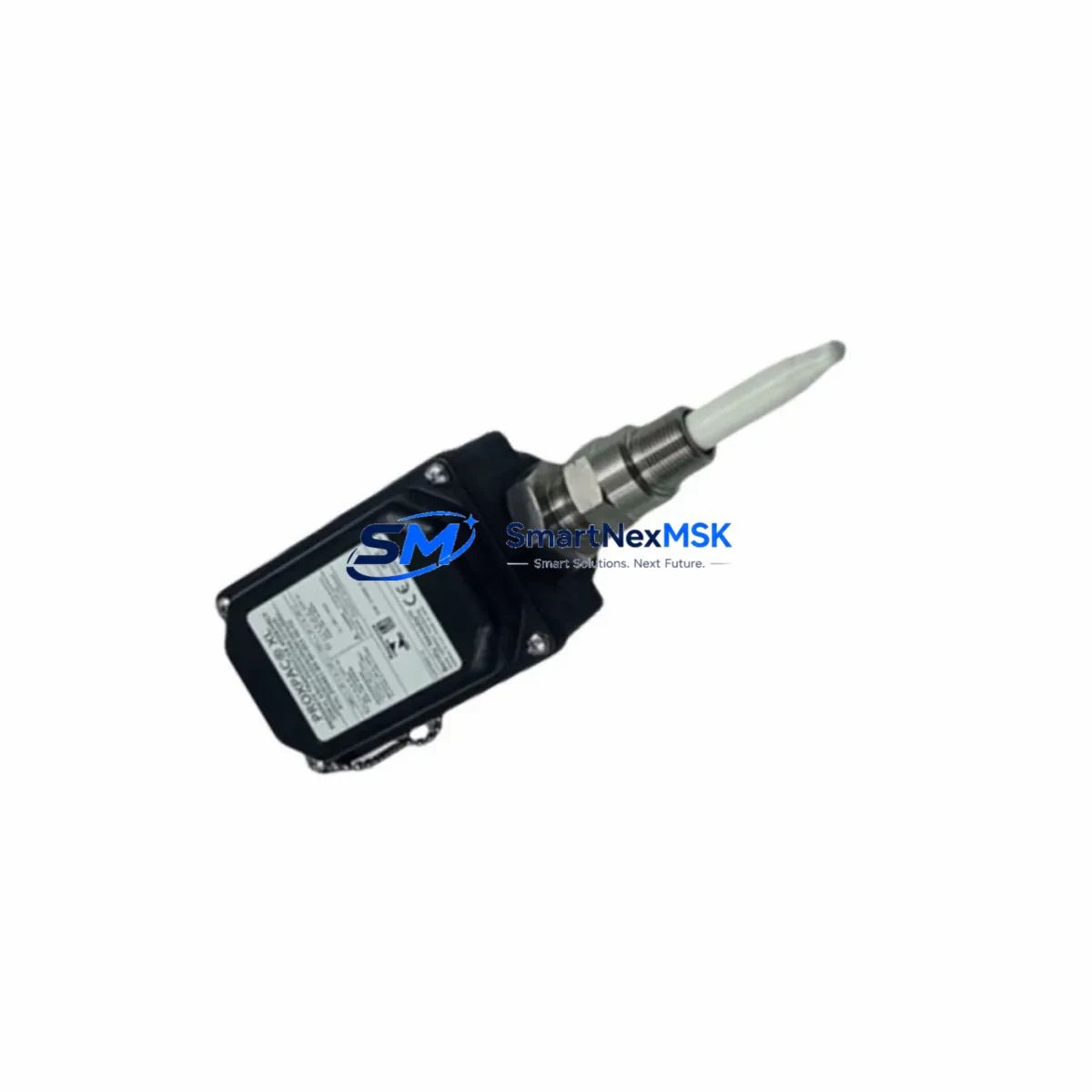

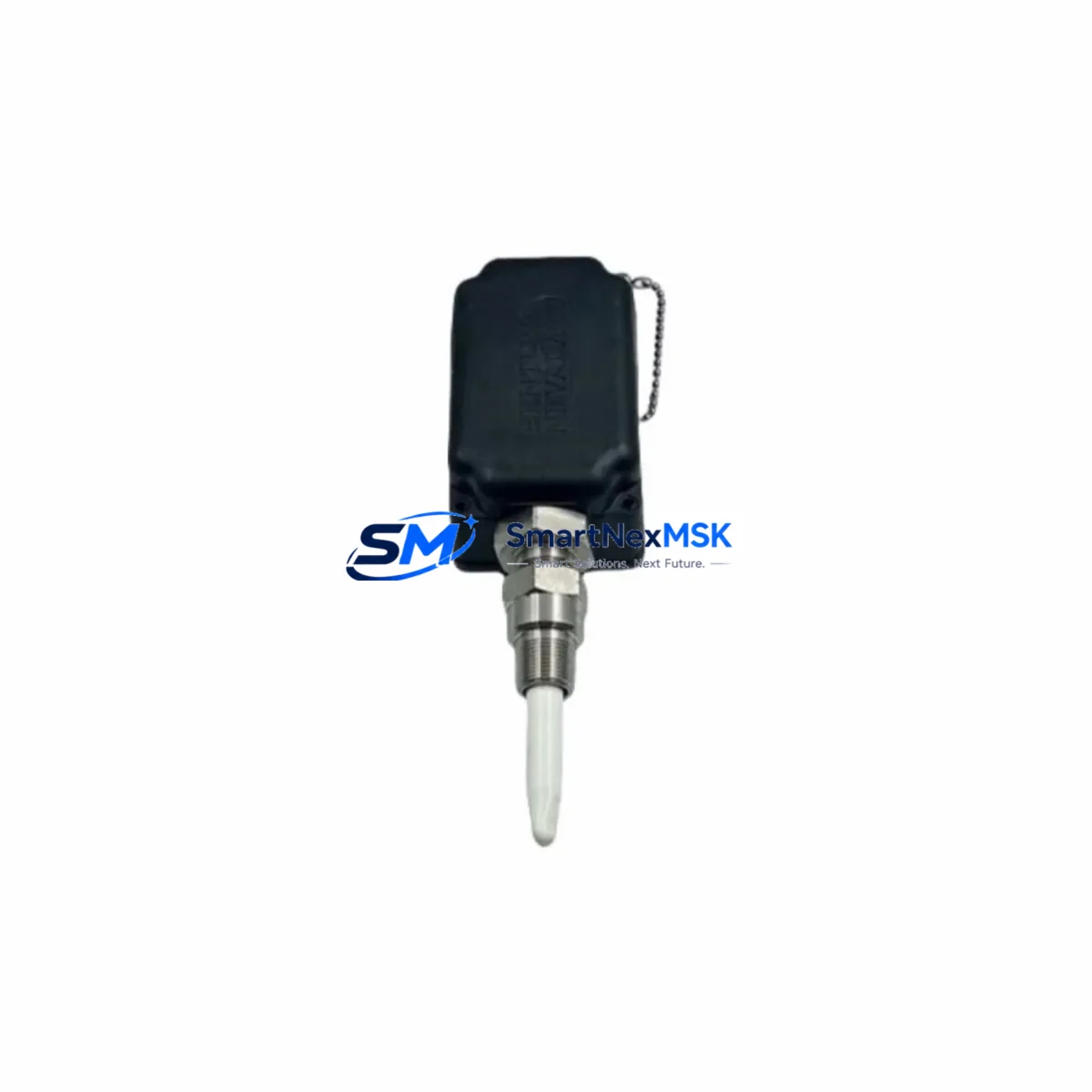

The Bently Nevada 330801-16-04-050-00-02 is a PROXPAC XL 16mm proximity transducer assembly engineered for continuous vibration monitoring in rotating machinery protection systems. As a factory-original spare, this unit integrates directly into Bently Nevada 3300 series monitoring racks without signal recalibration, making it the preferred choice for maintenance engineers who cannot afford extended downtime during unplanned shutdowns. Whether you are executing a planned turnaround, responding to a trip alarm, or building a critical-spares inventory for aging machinery, this assembly delivers the dimensional accuracy, gap voltage linearity, and cable integrity required by API 670-compliant monitoring systems.

Sourced from authorized supply channels and subject to pre-shipment functional verification, each unit ships with a 12-month warranty covering manufacturing defects and electrical performance. Our logistics process supports urgent dispatch for emergency replacement scenarios, with export documentation available for international industrial sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity transducer assembly such as the 330801-16-04-050-00-02 is flagged for replacement — whether due to a gap voltage drift alarm, a broken cable jacket, or a scheduled calibration interval — the replacement event is an opportunity to audit the entire vibration monitoring loop. Maintenance engineers should treat the transducer swap as a trigger for a broader control-cabinet inspection rather than an isolated component change.

Begin by verifying the 3300 XL proximitor / driver module seated in the monitoring rack. A degraded driver will produce erratic output even with a new probe assembly installed. Simultaneously, inspect the 3500/42M or 3500/45 vibration monitor card for relay contact wear and alarm setpoint integrity — these cards govern the trip output that protects the machine. Check the 3500/20 rack power supply module for output voltage stability; a sagging -24 VDC rail will shift the transducer’s operating point and introduce false readings.

Examine all armored extension cables and field junction boxes in the signal path. Moisture ingress at conduit fittings is a leading cause of insulation resistance failures that mimic probe faults. Inspect terminal blocks and DIN-rail mounted barriers within the marshalling cabinet — corroded or loose terminations on the signal pair introduce noise that can trigger nuisance trips. If the installation uses Zener barriers or galvanic isolators for intrinsic safety in hazardous areas, verify barrier resistance and isolation voltage with a calibrated meter before commissioning the new assembly.

For sites running Bently Nevada 3500/22M transient data interface or System 1 condition monitoring software, confirm that the new transducer’s scale factor and gap voltage are correctly entered in the software configuration — a mismatch will produce incorrect vibration amplitude readings without triggering a hardware fault. Where the machine protection system interfaces with a DCS or safety PLC via 4–20 mA output cards, verify the analog output scaling after transducer replacement. Finally, review the keyphasor probe and its associated 3500/25 keyphasor module if phase-referenced vibration analysis is part of the site’s predictive maintenance program — keyphasor signal integrity is essential for accurate 1× and 2× vibration vector trending.

Building a minimum two-unit on-site spare inventory of the 330801-16-04-050-00-02 is recommended for any facility operating more than four monitored machine trains. Pair this with a spare proximitor driver module and a pre-terminated extension cable set to enable a complete loop replacement within a single maintenance window.

Site Replacement Workflow

Step 1 — Isolation and documentation. Before removing the existing assembly, record the installed gap voltage (typically displayed on the 3500 rack front panel or System 1 dashboard) and photograph the probe mounting orientation and cable routing. This baseline is essential for verifying correct installation of the replacement unit.

Step 2 — Mechanical removal. De-energize the monitoring channel at the rack (do not power down the entire rack if other channels are protecting running machinery). Loosen the locknut and unthread the probe from the bracket. Disconnect the extension cable at the junction box, noting the connector orientation.

Step 3 — New assembly installation. Thread the 330801-16-04-050-00-02 into the bracket to the same depth as the removed unit, using the recorded gap voltage as the target. Adjust probe depth until the driver output reads within ±0.5 VDC of the nominal gap voltage for the target material. Torque the locknut to the manufacturer’s specification and secure the cable with the original clamps and conduit fittings.

Step 4 — Loop verification. Re-energize the monitoring channel and confirm gap voltage, vibration amplitude (should read near zero on a stationary machine), and alarm relay status on the 3500 rack. If System 1 is connected, verify that the channel shows a healthy status and that the historical trend resumes without data gaps.

Step 5 — Documentation and spare replenishment. Update the maintenance management system (CMMS) with the replacement date, new unit serial number, and as-found gap voltage. Immediately initiate a purchase order to replenish the consumed spare — lead times for original Bently Nevada assemblies can extend to several weeks during peak demand periods, and maintaining a buffer stock is the most effective strategy for minimizing future downtime exposure.

This workflow is compatible with legacy installations using older 3300 series monitors and supports a direct upgrade path to 3500 series racks without mechanical re-drilling, preserving the existing probe bracket and conduit infrastructure.

Spare Parts Support FAQ

Q1: Is the 330801-16-04-050-00-02 compatible with both 3300 and 3500 series Bently Nevada monitoring racks?
The PROXPAC XL assembly is natively compatible with the 3300 XL series. For 3500 series racks, compatibility depends on the specific monitor card installed — most 3500/42M and 3500/45 cards accept the standard -24 VDC eddy-current input from this assembly. Confirm the rack’s input impedance and supply voltage specification before installation. We recommend providing your rack model number when ordering so our technical team can confirm compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 330801-16-04-050-00-02 unit undergoes gap voltage linearity verification across the full linear range (0.25 mm – 2.54 mm), insulation resistance testing of the cable assembly, and cable continuity checks on both the signal pair and shield. Units that do not meet Bently Nevada’s original performance specifications are quarantined and not shipped. A test record is available upon request for quality-critical installations.

Q3: What is the recommended spare inventory strategy for this assembly?
For facilities with four or more monitored machine trains, a minimum of two units on-site is recommended. For critical machinery such as main steam turbines or high-pressure compressors where a trip event carries significant production loss, a three-unit buffer is advisable. Spare assemblies should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for cable jacket integrity and connector condition.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers electrical performance failures and manufacturing defects under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or supply voltage outside the specified range. To initiate a warranty claim, contact our sales team with the order number, unit serial number, and a description of the observed fault. We will arrange return shipping and provide a replacement unit or full refund based on inspection findings.
