Bently Nevada 330851-02-000-050-10-00-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330851-02-000-050-10-00-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

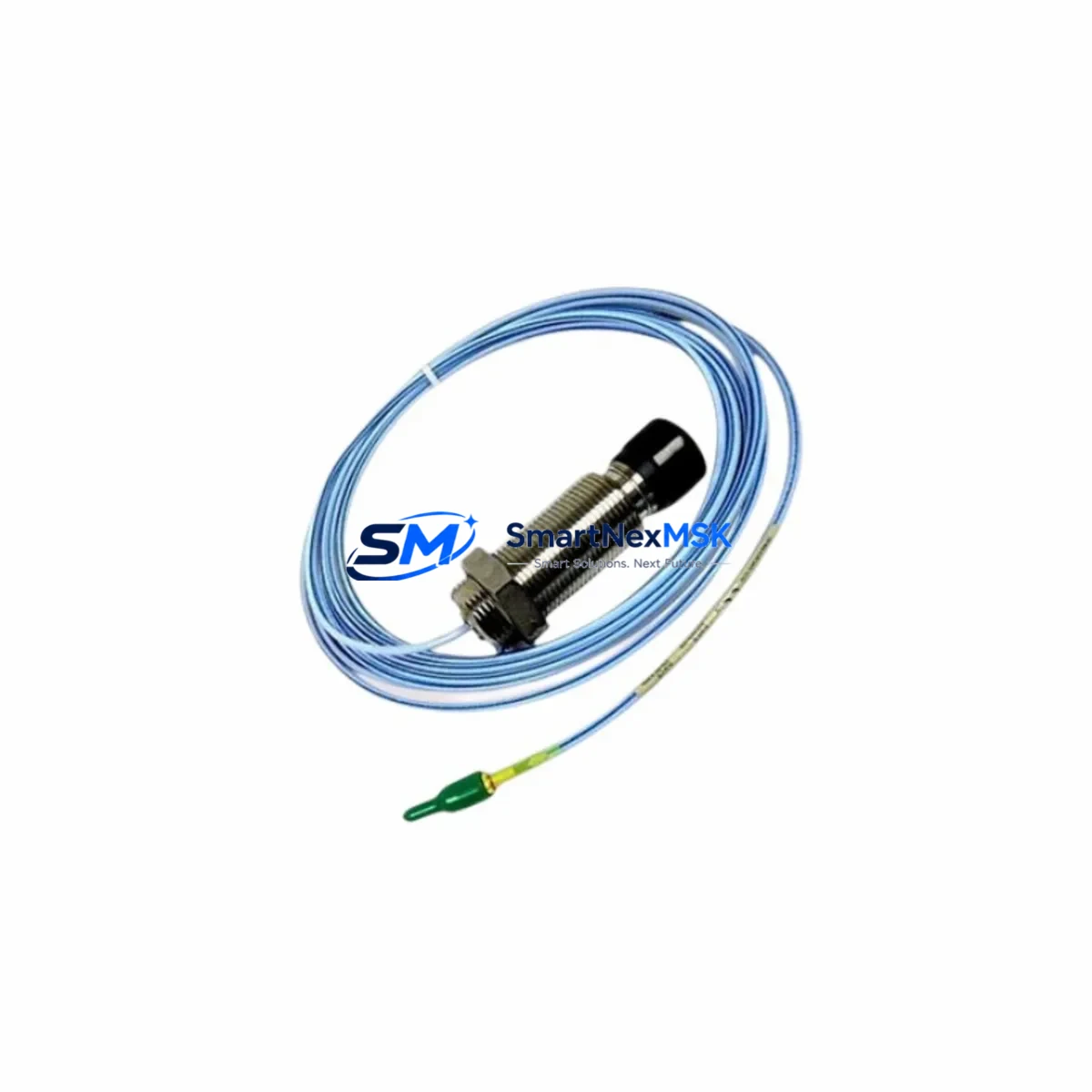

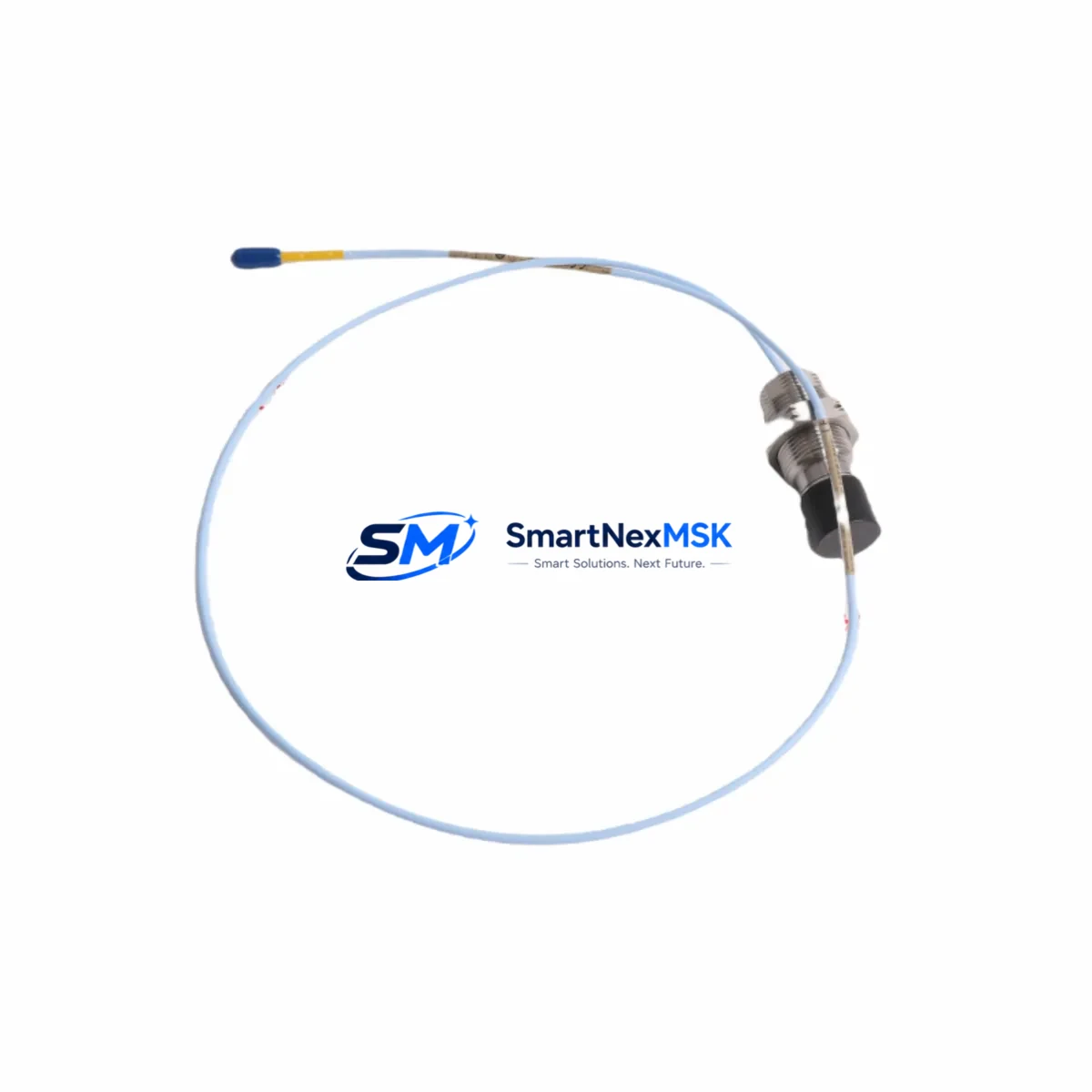

The Bently Nevada 330851-02-000-050-10-00-05 is a 5mm eddy-current proximity probe engineered for the 3300 XL Monitoring System. Designed as a direct retrofit replacement for legacy Bently Nevada 3300 series installations, this probe delivers full signal compatibility with existing Proximitor® sensor assemblies, field wiring, and monitor rack configurations — enabling smooth system modernization without requiring full panel redesign or program re-engineering.

Industrial facilities operating aging vibration monitoring infrastructure frequently encounter discontinued probe assemblies, degraded cable connectors, and obsolete extension cables that no longer meet API 670 measurement standards. The 330851-02-000-050-10-00-05 addresses these challenges directly: it maintains the same 5mm tip geometry, 200 mV/mil output sensitivity, and -18 VDC bias voltage characteristics as the original 3300 XL probe family, ensuring that existing 3300 XL Proximitor® sensors (such as the 330180-X1-05 or 330130-080-00-00) continue to function without recalibration of the signal chain.

When planning a retrofit around this probe, engineers must verify several critical interface parameters. Power supply capacity within the control cabinet should be confirmed against the Proximitor® sensor’s quiescent current draw — typically 25–35 mA per channel — especially when upgrading multiple channels simultaneously. Terminal block wiring must be inspected for correct polarity and shield grounding, as reversed driver cable connections are a common source of false gap voltage readings during commissioning. The probe’s 2-metre integral cable mates with standard 330130 extension cables, and the total system cable length must remain within the qualified range for the selected Proximitor® model to maintain linearity across the full measurement gap.

Backplane and rack compatibility is equally important. The 330851-02-000-050-10-00-05 is designed for use with 3300 XL rack-mount monitor modules, including the 3300/16 and 3300/20 series. If the existing rack uses earlier 3300 (non-XL) monitors, a module-level upgrade to the XL platform may be required to take full advantage of the probe’s extended gap range and improved signal-to-noise performance. Address configuration within the monitor should be verified against the existing machine train database in System 1® Evolution software to prevent channel mapping conflicts after probe replacement.

For facilities migrating from older Bently Nevada 7200 series probes or third-party eddy-current sensors, the 330851-02-000-050-10-00-05 provides a validated upgrade path. The transition typically involves replacing the probe and extension cable assembly, updating the Proximitor® sensor if the existing unit is a 7200-series type, and confirming that the 3300/55 Dual Voting Logic or 3300/46M Machinery Protection Monitor channel assignments remain consistent with the original machine protection philosophy. HMI screens in System 1® or third-party DCS historian tags referencing the affected measurement points should be reviewed and updated to reflect any revised engineering unit scaling.

Communication link integrity between the 3300 XL rack and the plant DCS or safety system must be validated post-installation. Where the monitoring rack interfaces via Modbus RTU or RS-232/RS-485 serial links to a DCS I/O module, the baud rate, parity, and register map should be confirmed unchanged. In installations using the 3500/92 Communication Gateway for Ethernet/IP or Modbus TCP connectivity, no protocol reconfiguration is typically required when replacing a probe within the same 3300 XL system architecture.

Field commissioning of the 330851-02-000-050-10-00-05 follows a structured sequence: mechanical installation and gap setting to the manufacturer’s recommended 1.0 mm (40 mil) nominal gap, DC bias voltage verification at the Proximitor® output terminals, dynamic signal check using a calibrated oscilloscope or the 3300 XL’s built-in OK relay status, and final alarm setpoint confirmation against the machine’s baseline vibration signature. Technicians should document the as-found and as-left gap voltages for each replaced probe to support future predictive maintenance records.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing monitoring loop. For a typical 3300 XL channel, this includes the 330851-02-000-050-10-00-05 proximity probe, a matched 330130 extension cable, a 330180 Proximitor® sensor, and the associated 3300 XL monitor module installed in a standard 19-inch rack. Where the existing rack also houses 3300/15 Keyphasor® modules for phase reference measurements, these should be inspected simultaneously to avoid a second planned outage.

Power distribution within the control cabinet deserves careful attention. The 3300 XL power supply module — typically a 3300/05 or equivalent — must have sufficient headroom to support all active channels after the retrofit. If additional I/O channels are being added as part of a broader system expansion, a second power supply module may be required. Terminal blocks should be labelled and torqued to specification; loose connections at the Proximitor® barrier terminal strip are a leading cause of intermittent OK relay trips in the field.

For sites also upgrading their vibration data acquisition infrastructure, the retrofit is an appropriate time to evaluate the System 1® Evolution software database for stale machine train configurations, outdated alarm philosophy documents, and unmapped measurement points. Integrating the new probe data with plant historians via OPC-DA or OPC-UA tags ensures that the upgraded measurement points are immediately visible in the DCS trend displays and condition monitoring dashboards without manual historian re-tagging.

Where the control system architecture includes a Bently Nevada 3500 Series rack operating in parallel with the 3300 XL system — a common arrangement in turbine protection applications — the probe replacement should be coordinated with the 3500 system’s bypass and inhibit logic to prevent spurious trips during the installation window. The 3500/42M Proximitor®/Seismic Monitor and 3500/22M Transient Data Interface modules in the adjacent rack should remain in service throughout the 3300 XL probe swap to maintain continuous machine protection coverage.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any proximity probe retrofit. The 330851-02-000-050-10-00-05 is stocked for same-week dispatch, eliminating the extended lead times associated with factory-order-only legacy parts. Pre-staging the replacement probe, extension cable, and any required Proximitor® sensor before the maintenance window begins reduces the actual installation time to under two hours for a single-channel swap.

To protect the original program logic, the existing System 1® machine train configuration file should be exported and archived before any hardware changes are made. Monitor module parameters — including full-scale range, alarm setpoints, and OK limit thresholds — should be documented from the 3300 XL configuration software prior to removal. This ensures that if a module requires replacement during the retrofit, the original protection philosophy can be restored from the archived configuration rather than reconstructed from memory or paper records.

Field control continuity during the swap can be maintained by placing the affected monitor channel in bypass mode through the 3300 XL’s front-panel inhibit function or via the System 1® software interface, provided the site’s safety management system permits temporary bypass of the affected measurement point. A second technician should monitor the machine’s overall vibration signature on adjacent channels throughout the installation to detect any anomalous behaviour during the gap-setting procedure. Once the new probe is installed and the bias voltage confirmed within specification, the bypass is released and the channel is returned to normal protection service before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the 330851-02-000-050-10-00-05 a direct drop-in replacement for earlier 3300 (non-XL) 5mm probes?
In most installations, yes. The probe tip geometry, output sensitivity, and bias voltage are consistent with the 3300 XL probe family. However, if the existing Proximitor® sensor is a non-XL 3300 series unit, it should be upgraded to a 330180-series XL Proximitor® to ensure full system compatibility and to qualify for the 12-month warranty coverage on the complete measurement loop.

Q2: What wiring checks are required before commissioning the replacement probe?
Verify shield continuity and polarity on the extension cable, confirm the Proximitor® barrier terminal connections are torqued to specification, and measure the DC bias voltage at the Proximitor® output terminals before connecting to the monitor module. The nominal gap voltage at 1.0 mm should fall within the Proximitor® sensor’s published linear range — typically -10 VDC ±1 VDC for a 5mm system.

Q3: Will replacing the probe affect the existing DCS historian tags or HMI displays?
Not if the monitor module channel assignment and engineering unit scaling remain unchanged. The 330851-02-000-050-10-00-05 maintains the same 200 mV/mil output as the original probe, so no rescaling of historian tags or HMI trend displays is required. If the Proximitor® sensor is also being replaced, confirm that the new sensor’s scale factor matches the existing monitor configuration before releasing the channel from bypass.

Q4: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and signal performance under normal operating conditions. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing — including bias voltage output, OK relay operation, and cable continuity — with test records available upon request. Warranty claims are supported by the original invoice date and the pre-shipment test certificate provided with each shipment.
